- IS420UCSCH1A-G-V0.1-A
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for IS420UCSCH1A-G-V0.1-A
-
Product ModelIS420UCSCH1A-G-V0.1-A
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size5.5x15.3x20.3cm
-
ManufacturerGeneral Electric
-
Weight1.52 kg
-
ProcessorAMD GX-412HCGE412GHCJ44JB
-
CPU Frequency1.2 Ghz
-
CPU Cores4
-
Mark VIe Cores2
-
L2 Cache2 M
-
Qnx Version6.5 or 7.1
-
ConsoleRJ-45(Adaptor sold separately)
-
Additional PortsUSB2.0 x2
-
Max Power Consumption31 W
-
Minimum Voltage18 V
-
Nominal Voltage24/28 V
-
Memory TypeDDR3 - 1333
-
Flash Storage40 GB SSD pSLC(16 GB used)
Description

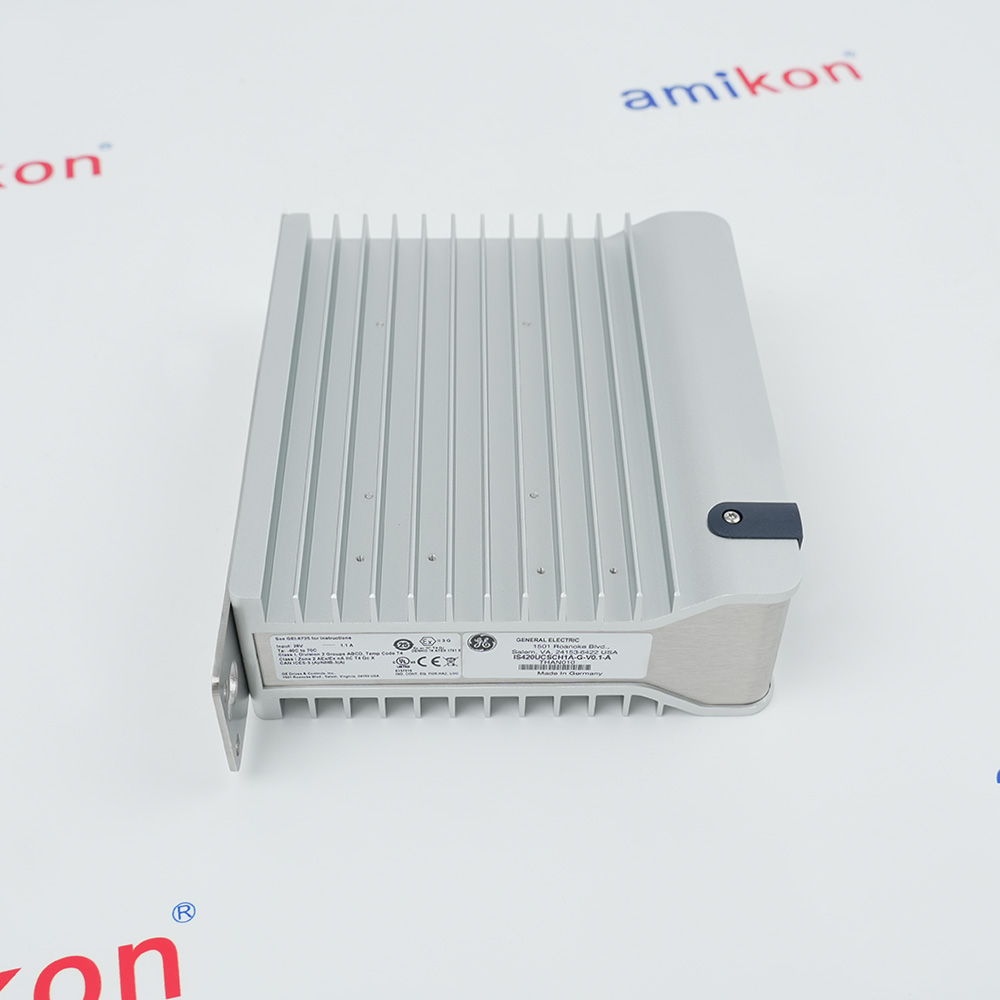

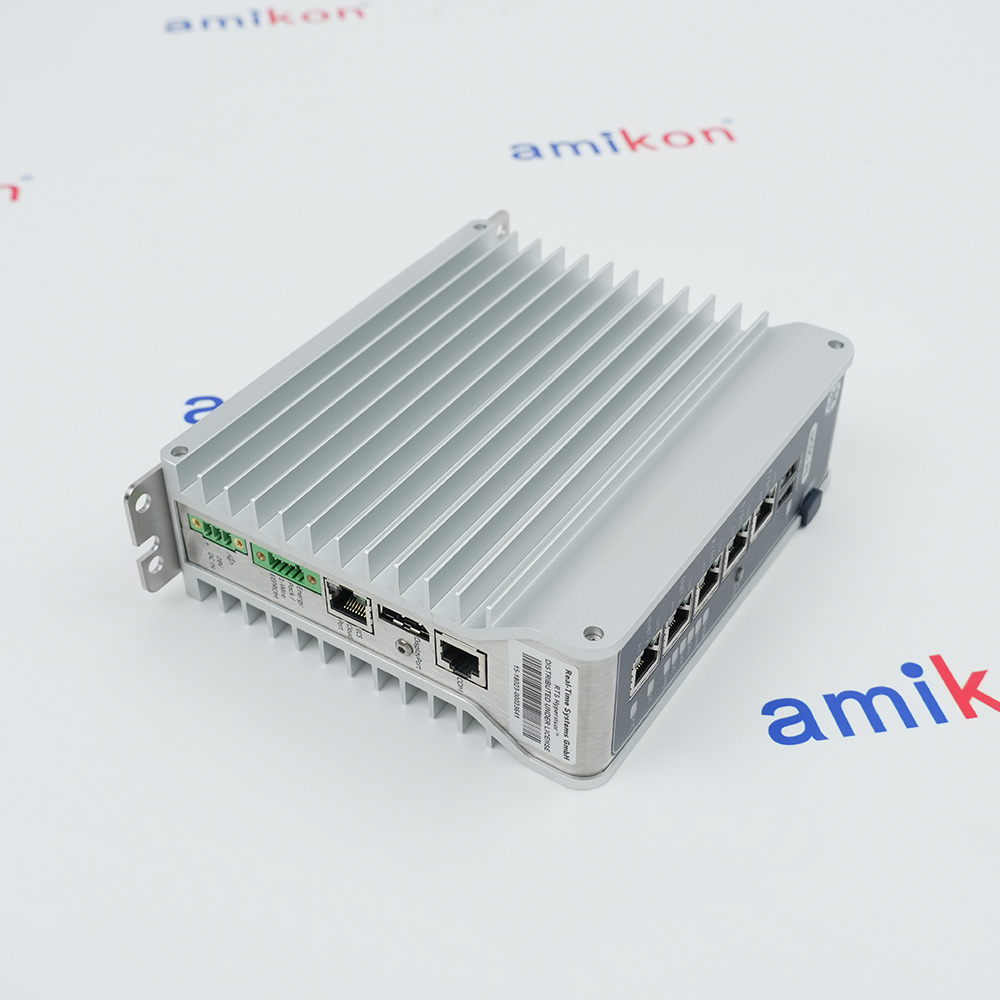

The GE IS420UCSCH1A-G-V0.1-A is a stand-alone controller that uses the QNX® Neutrino real-time, multi-tasking operating system to run application-specific control system software. The GE IS420UCSCH1A-G-V0.1-A is widely deployed across diverse power generation applications, including gas and steam turbines, safety systems, wind turbines, gasification, hydro, nuclear, and combined cycle power plants, delivering the high performance and flexibility required for outcome-optimizing control.
Information
Overview
Manuals
Engineering Considerations
Product Applications
Electrical Grounding & Power Integration
Features:
- High-Performance Quad-Core Processing
- Extensive Ethernet & Serial Connectivity
- Real-Time Deterministic Control with Precision Time Sync
- Secure-by-Design Cybersecurity Architecture
- Stand-Alone, Maintenance-Friendly Hardware Design
Unlike traditional controllers where I/O resides on a local backplane, the GE IS420UCSCH1A-G-V0.1-A does not host any application I/O. Instead, the GE UCSEH2A communicates with I/O modules through on-board I/O network (IONet), PROFINET, High-speed Serial Link (HSSL), and other industrial networks. External process inputs and outputs are transferred to and from the I/O packs over the IONet Ethernet interfaces, enabling a fully distributed architecture. In a redundant controller set, all I/O networks are attached to each GE IS420UCSCH1A-G-V0.1-A, guaranteeing that no single point of application input is lost if one controller is powered down for maintenance or replacement.
The IS420UCSCH1A-G-V0.1-A GE UCSC Controller may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS420UCSCH1A-G-V0.1-A UCSC Controller Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE IS420UCSCH1A-G-V0.1-A features a quad-core 2.8 GHz 11th Gen Intel® Core™ i7 processor, 8 GB of DDR4-2400 memory, and an 80 GB NVMe SSD with 18 GB allocated for system use. The GE UCSEH2A requires no battery and no jumper settings, with ToolboxST programmatically updating host application board programmable devices. The GE IS420UCSCH1A-G-V0.1-A mounts directly to a panel base and operates reliably across a temperature range of −40 °C to +65 °C with 0.5 m/s vertical airflow, making it suitable for harsh industrial environments. With its compact dimensions, robust environmental certifications, and seamless interoperability within Mark VIe redundancy sets, the GE IS420UCSCH1A-G-V0.1-A provides a future-ready control platform that reduces lifecycle cost while optimizing business outcomes through secure, deterministic, and high-speed performance.
- Thermal Power Plants:Gas/steam turbines: fuel-air, sync, thermal mgmt
- Renewable Energy Infrastructure:Hydro/wind: excitation, pitch & load conditioning
- Oil & Gas Infrastructure:Compressors, offshore rigs & refining processing
- Marine Propulsion & Utilities:Cargo/LNG/military: propulsion & auxiliary control
- Heavy Manufacturing & Metals:Steel mills, blast furnaces & auto assembly
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Chassis Grounding Check: Verify panel rack grounding continuity to plant ground networks, ensuring an absolute resistance path of under 0.1 ohms Ω before mounting the unit.
Power Distribution: Route dual or triple redundant 28 VDC power lines through standard distribution modules, conforming to the high-availability layouts specified in the GEH-6725 HazLoc manual.
Zero Jumper Settings: Do not modify physical micro-switches; the hardware requires no physical jumper modifications
FAQs
-
What is the IS420UCSCH1A ？+The GE IS420UCSCH1A is a Universal Control/Servo Card (UCSC) used in GE Mark VIe (and occasionally Mark VI) Speedtronic turbine control systems
-
Does this controller host application I/Os?+No. Unlike some other controllers in the Mark VIe series, the IS420UCSCH1A does not host application I/Os itself.
-
What type of processor does it have?+It is a quad-core processor unit, marking it as one of the earliest quad-core additions to the Mark VIe series
-
How much memory is onboard?+It features 4GB of high-speed DDR3-1333 SDRAM for robust real-time data storage.
