Technical specifications for IC200ALG230
-
Product ModelIC200ALG230
-
Product ParametersANALOG INPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size11x5.5x6.5cm
-
ManufacturerGeneral Electric
-
Weight0.15 kg
-
Product LineVersamax
-
Number of Inputs4
-
Analog input resolution12 bits
-
Input TypeSingle-Ended
-
Response times5.0 ms
-
Configuration Type2 Jumpers
-
Update rate0.4 ms
-
Backplane Current125 milliamps at 5 Volts Output
-
Backplane current consumption125 mA at 5VDC
Description
IC200ALG230
INPUT MODULE
VERSAMAX
ANALOG
4 POINT
12 BIT
VOLTAGE/CURRENT
0-10 VDC / +/-10 VDC
INPUT MODULE
VERSAMAX
ANALOG
4 POINT
12 BIT
VOLTAGE/CURRENT
0-10 VDC / +/-10 VDC
Information
Overview
Manuals
Technical notes
Protection Functions
Need more info
Features:
- Analog Input Module
- 12 Bit Voltage/Current 4 Channels
- 250VAC continuous; 1500VAC for 1 minute
- Wiring Connectionsfor Carriers with TwoRows of Terminals
- Terminal-style I/O Carrier
The IC200ALG230 GE Analog input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200ALG230 Analog input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

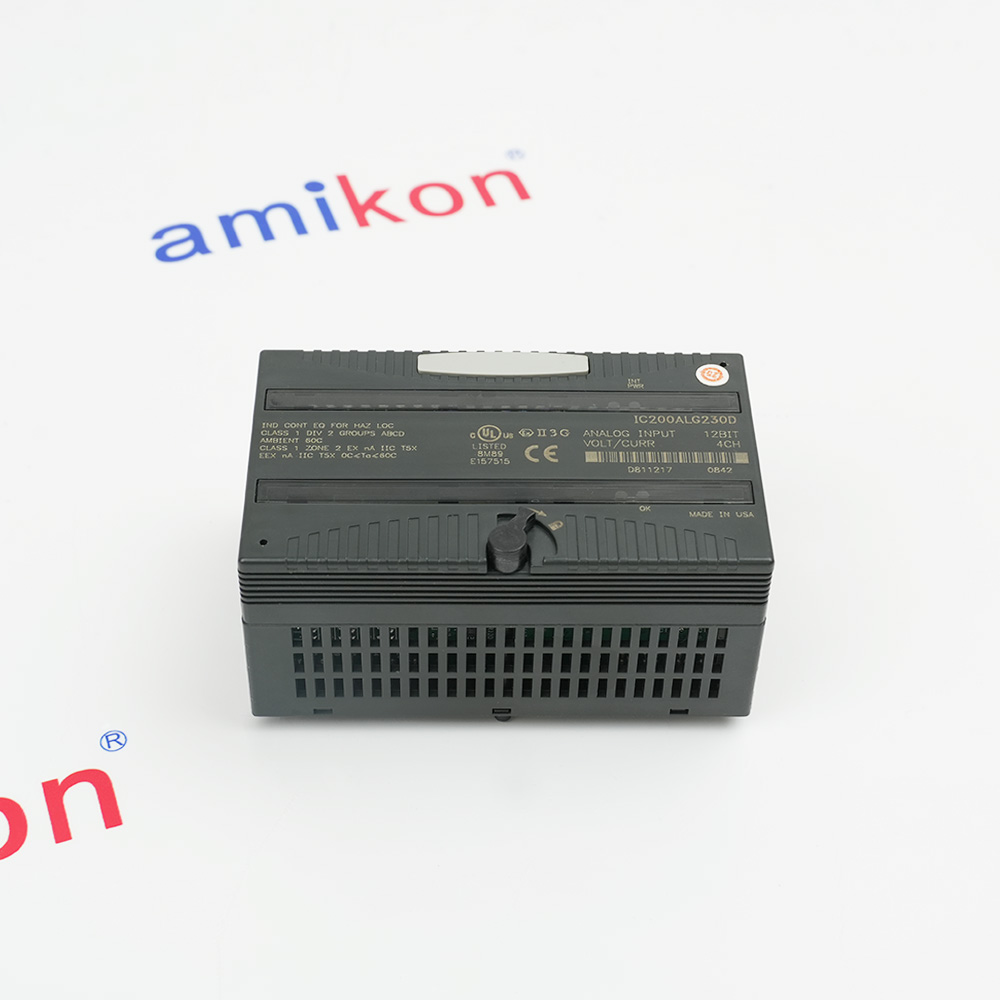

The IC200ALG230 is an analog input module from the Versamax modular I/O and control platform. This module is a compact analog input module featuring Four (4) individually configurable voltage or current analog input channels. This module supports interfacing of analog signals, particularly unipolar 0 to 10VDCand bipolar +/-10 VDC voltage signals, and 4-20 mA current signal.
The IC200ALG230 is provided with Two (2) status LED indicators for locally reporting the operational state of the module, Specifically, INT POWER LED indicating supply of internally generated field power and OK LED indicating backplane power being actively supplied to the module. Two (2) jumpers are present to this analog input module for setting the mode of operation of the module whether voltage or current and unipolar of bipolar data.
The IC200ALG230 has a built-in Analog to Digital converter with a resolution of 4?A = 8 counts when configured for Current operation and 2.5 mV = 8 counts for voltage configuration. This module has a typical response time of 0.4 ms and a filter response of 5.0 ms. The input data of this module is configurable to be held to the last state or go to a defined value when module error is detected. The IC200ALG230 can be installed with an auxiliary I/O terminal for wiring of signals. Terminal part numbers are IC200TBM001, 002, or 005. Additionally, terminal style I/O carrier may also be used with catalog number IC200CHS001, 002, or 005, Compact Terminal-style I/O Carrier with catalog number IC200CHS022, 025 and connector style I/O carrier with part number IC200CHS003.
Optical Isolation: Provides 250VAC continuous and 1500VAC for 1 minute of isolation between user input circuits and the backplane logic, as well as between the circuit and frame ground.
Crosstalk Rejection: Features a minimum of 30dB channel-to-channel crosstalk rejection to prevent signal interference between the four input channels.
EMI Protection: Recommended grounding procedures include grounding the cable at the source or using Auxiliary I/O Terminals to ground the cable shield at the module to minimize external noise.
We know that questions occur, and sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.
With our team, you're just a message away from clarity and confidence. Whether you have a specific question, need a particular image, video or more details, the request click puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!
FAQs
-
What is IC200ALG230?
+The IC200ALG230 is a 4-channel, 12-bit Voltage/Current Analog Input module from the GE Fanuc VersaMax series -
What signals does the IC200ALG230 support?
+It supports 4-20 mA current inputs and -10VDC to +10 VDC voltage inputs. -
How is the IC200ALG230 module powered?
+The module receives 5VDC power directly from the backplane of the VersaMax system. No external power is required for the module itself, but external power is needed for user transceivers. -
What is the IC200ALG230 backplane current consumption?
+The module consumes 125 mA at 5 VDC. -
What are the IC200ALG230 configuration parameters?
+The module is configured using jumpers on the carrier to select the range and mode (voltage or current).
