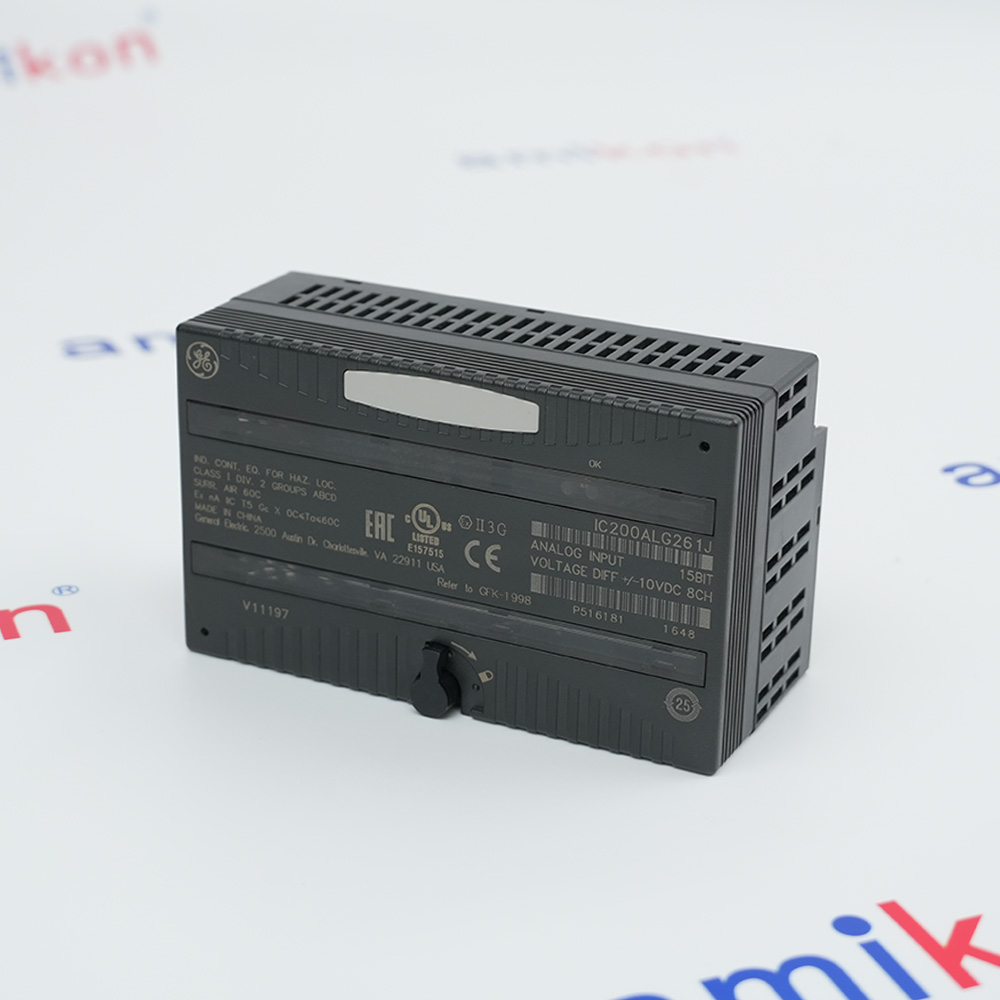

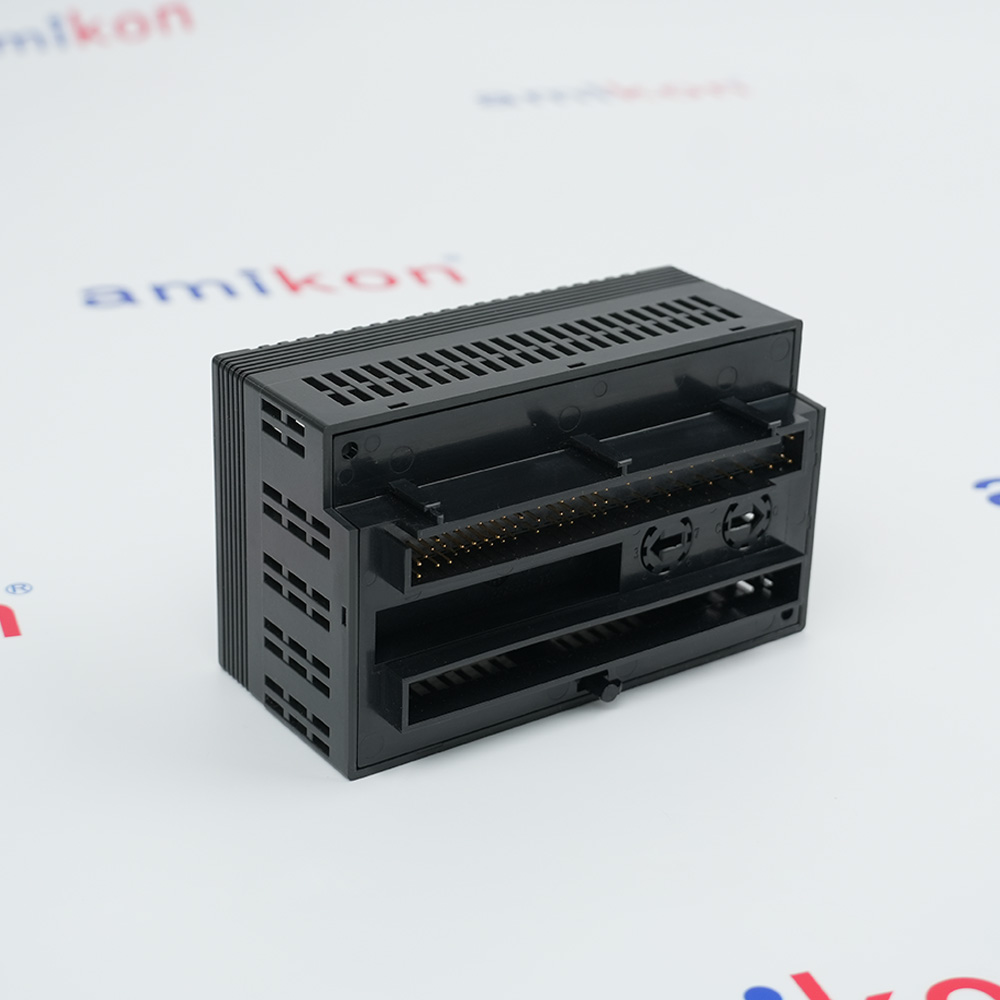

Technical specifications for IC200ALG261
-
Product ModelIC200ALG261
-
Product ParametersAnalog input module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size11x5.5x6.5cm
-
ManufacturerGeneral Electric
-
Weight0.15 kg
-
Input Range±10 VDC
-
Number of Channels8
-
ResolutionBipolar mode: 0.3125 mV =1 counts
-
Update Rate7.5 ms
-
Accuracy at 25°C±0.3% typical of full scale,±0.5% maximum of full scale
-
Input Impedance100 kOhms maximum
-
Input Filter ResponseN/A
-
5V Backplane CurrentConsumption (mA)200 maximum
Description
IC200ALG261
INPUT MODULE
VERSAMAX
ANALOG
8 POINT
15 BIT
DIFFERENTIAL VOLTAGE
+/-10 VDC
INPUT MODULE
VERSAMAX
ANALOG
8 POINT
15 BIT
DIFFERENTIAL VOLTAGE
+/-10 VDC
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Guidelines
Features:
- VersaMax Distributed I/O
- 15 Bit Differential Voltage
- 8 Channel
The IC200ALG261 GE Analog input module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200ALG261 Analog input module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Signal processing is crucial, and the input resolution stands at 0.3125 millivolts, ensuring that even small voltage variations are accurately captured. For installation, the compatible connector type is a shielded twisted pair cable, which aids in minimizing electrical interference. Additionally, the minimum input impedance is specified at 100 ohms. A status indicator, highlighted by a green OK LED, provides quick visual confirmation of module status. The update rate of this module is 7.5 milliseconds, ensuring that readings are consistently and reliably delivered.
- Automotive Manufacturing:Pressure sensor monitoring for consistent air/fluid in assembly lines
- Food & Beverage Processing:Precise temp control to maintain strict food safety standards
- Machine Control:8-channel high-res voltage readings for automation & machine control
- Condition Monitoring:Proximity probes/sensors for critical machinery health monitoring
- Light Process Control:PID control & distributed I/O for smaller industrial processes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Cable Type: Use shielded twisted pair cable for all analog channel connections.
Grounding: Ideally, ground the cable shield at the source device. If this isn't possible, ground it at the I/O module using an auxiliary terminal strip.
Differential Inputs: Ensure you are connecting to the differential pairs correctly to take advantage of the module's noise rejection capabilities.
FAQs
-
What is the IC200ALG261?+It is an 8-channel, 15-bit differential voltage analog input module within the GE Fanuc VersaMax series.
-
What voltage range does it support?+It supports differential voltage inputs, typically used for measuring analog signals in PLC applications.
-
What do the LEDs indicate?+The green "OK" LED is on when backplane power is present, the module is configured, and it is recognized on the backplane.
-
What I/O carriers are compatible?+The module is compatible with VersaMax I/O carriers, including IC200CHS001, 002, 003, 005, and 022.
-
What to do if the module is not working?+Check for the green OK LED, verify the configuration in the software, and ensure proper 5V backplane power is present. If faults persist, the module may require repair.
