Technical specifications for IC200CHS022N
-
Product ModelIC200CHS022N
-
Spare ModelIC200CHS022
-
Product ParametersCompact Box-Style I/O Carrier
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size16.5x7.2x7cm
-
ManufacturerGeneral Electric
-
Weight0.2 kg
-
Product DescriptionI/O carrier module
-
Box-style Terminals36
-
Current rating per point2 A
-
Voltage rating0-264 VAC
-
Current per Point2 Amps
-
Current rating per each power terminal8A
-
Transient voltage, max300 VAC
Description

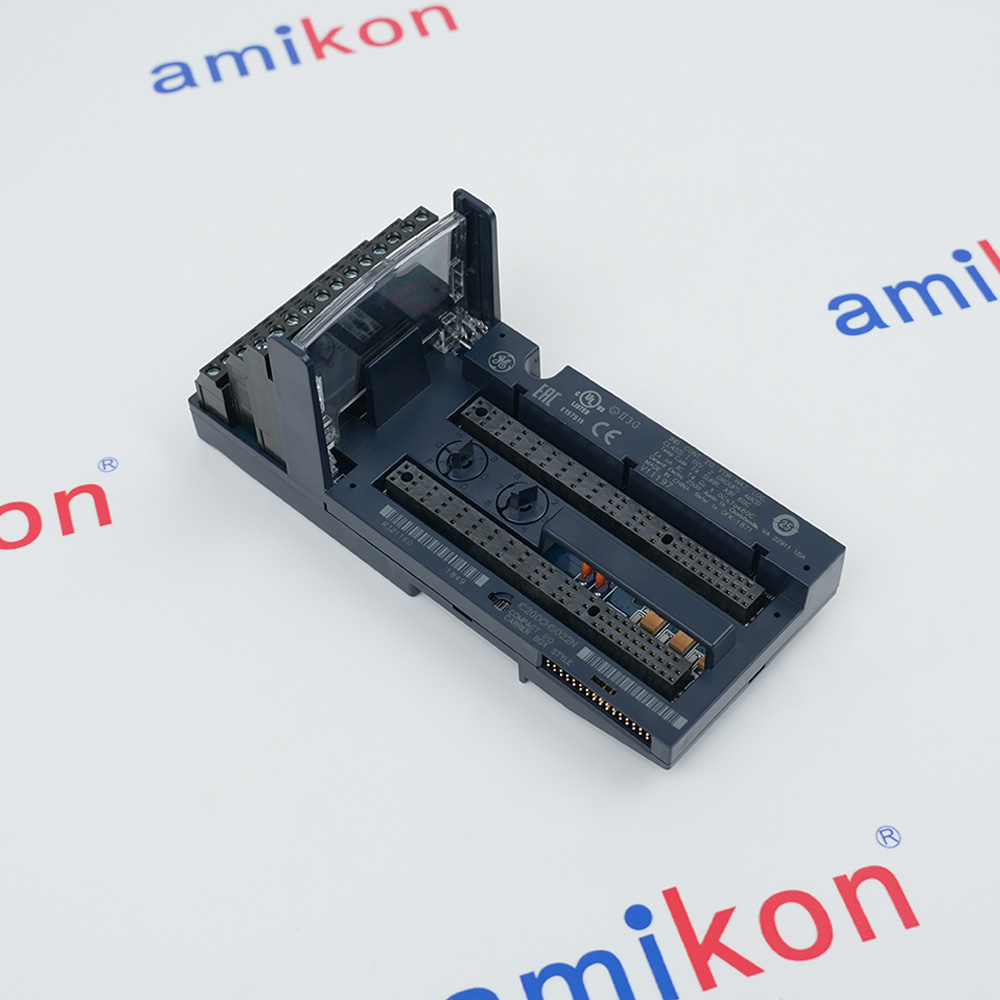

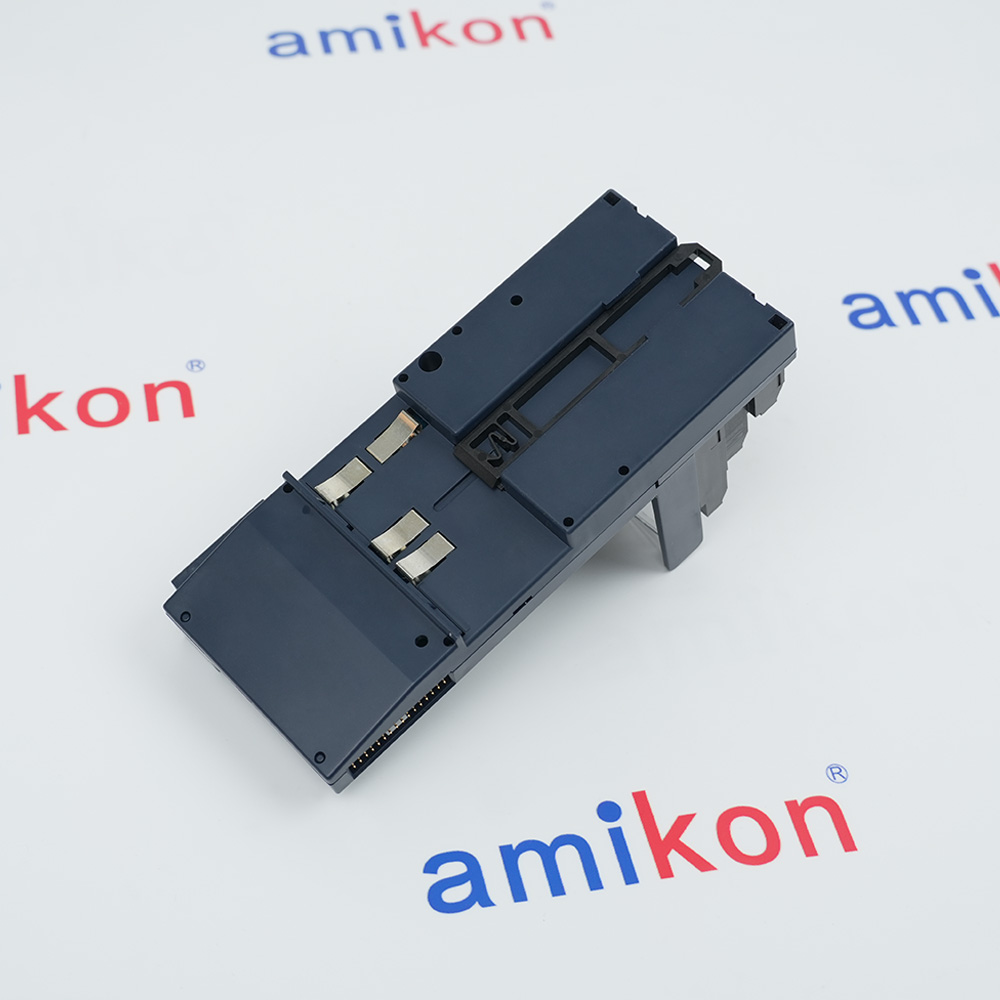

The GE IC200CHS022N Compact Box-Style I/O Carrier is a mechanical mounting and wiring platform for the GE VersaMax I/O system. IC200CHS022 provides mounting, backplane communications, and field wiring termination for one I/O module, serving as the essential interface between the modular I/O electronics and the industrial field devices.
IC200CHS022 features 36 IEC box-style terminals arranged in three rows of 18 terminals each, supporting wiring for up to 32 I/O points and 4 common or power connections. Each terminal of IC200CHS022 accommodates one solid or stranded AWG #14 (average 2.1 mm² cross section) to AWG #22 (average 0.36 mm² cross section) wire, or two wires up to AWG #18 (average 0.86 mm² cross section). The terminal arrangement of IC200CHS022 is organized with A1 through A18 in the top row, B1 through B18 in the middle row, and C1 through C18 in the bottom row, providing clear and systematic wiring access.
The I/O module mounts vertically (perpendicular to the DIN rail) on IC200CHS022, with the carrier snapping easily onto a standard 7.5 mm × 35 mm DIN rail. The DIN rail must be electrically grounded to provide EMC protection and must have a conductive (unpainted) corrosion-resistant finish.
IC200CHS022 features 36 IEC box-style terminals arranged in three rows of 18 terminals each, supporting wiring for up to 32 I/O points and 4 common or power connections. Each terminal of IC200CHS022 accommodates one solid or stranded AWG #14 (average 2.1 mm² cross section) to AWG #22 (average 0.36 mm² cross section) wire, or two wires up to AWG #18 (average 0.86 mm² cross section). The terminal arrangement of IC200CHS022 is organized with A1 through A18 in the top row, B1 through B18 in the middle row, and C1 through C18 in the bottom row, providing clear and systematic wiring access.
The I/O module mounts vertically (perpendicular to the DIN rail) on IC200CHS022, with the carrier snapping easily onto a standard 7.5 mm × 35 mm DIN rail. The DIN rail must be electrically grounded to provide EMC protection and must have a conductive (unpainted) corrosion-resistant finish.
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Application Notes
Product Applications
Field Wiring Connections
Features:
- 36 IEC Box-Style Terminals for 32 I/O Points and 4 Common/Power Connections
- Vertical Module Mounting on DIN Rail
- Easily-Set Keying Dials for Module Type Verification
- Carrier-to-Carrier Mating Connectors for Backplane Communication
- Built-In Wiring Card Holder for Documentation
- High Current and Voltage Capacity (2 A per Point, 264 V AC)
The GE Fanuc IC200CHS022L provides 36 field wiring terminals arranged as A1–A18 and B1–B18. Each terminal supports copper solid or stranded wire from AWG #14 (2.1 mm²) to AWG #22 (0.36 mm²). When using two wires in one terminal, the carrier supports up to AWG #18 (0.86 mm²) wiring. The terminal design simplifies field wiring installation for digital and analog VersaMax I/O modules.
The IC200CHS022L GE Compact Box-Style I/O Carrier may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200CHS022L Compact Box-Style I/O Carrier Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE Fanuc IC200CHS022L supports electrical loads up to 2 A per I/O point and up to 8 A per power and ground connection. The IC200CHS022L is rated for operating voltages up to 264 VAC and can withstand voltage transients up to 300 VAC without damage. These electrical ratings allow the carrier to support various industrial I/O applications including sensor connections, actuator control, and process monitoring systems.
The GE Fanuc IC200CHS022L includes a built-in hinged wiring card holder that allows the printed wiring card supplied with the I/O module to be inserted for easier terminal identification and maintenance. During normal system operation, the card holder should remain in the retracted position. The IC200CHS022L also incorporates mechanical keying features to help prevent installation of incorrect I/O modules on the carrier.
- Packaging/Handling: Supports rapid I/O for conveyors, sorters, and picking arms in compact layouts
- Water/Wastewater: Used in pump stations, valve positioning, and monitoring panels with high-density wiring
- Food/Beverage: Deployed in mixing/bottling/temperature machinery for quick module swapping
- Automotive Assembly: Integrated into nodes for sensors, pneumatic valves, and motion control
- Oil/Gas/Chemical: Mounted in enclosures for distributed acquisition, resisting heavy vibrations
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Terminal Block: Features 36 IEC box-style terminals for secure industrial connections.
Compatible Wire Sizes:
Single Wire: AWG #14 to AWG #22
Two Wires: AWG #18
Wiring Card: Equipped with an inbuilt card holder that pivots to display the foldable printed wiring card provided with the I/O module. During operation, this cardholder should be pulled back.
Alternative Names
1C200CHS022N
IC2O0CHS022N
1C2OOCHSO22N
IC2OOCHSO22N
IC200CHSO22N
IC20OCHS022N
Technical notes
The GE IC200CHS022N Compact Box-Style I/O Carrier is a The electrical capacity of IC200CHS022 accommodates current levels up to 2 A per point or 8 A per each power and ground connection. The voltage range of IC200CHS022 is up to 264 V AC, with voltage transients up to 300 V AC that will not damage the carrier. These ratings of IC200CHS022 ensure reliable operation with a wide range of industrial field devices including sensors, actuators, and power distribution components.
FAQs
-
How many I/O points does it support?
+It accommodates up to 32 I/O points and includes 4 common power connections. -
What type of module is it compatible with?
+It is designed exclusively for the GE VersaMax series I/O modules. -
Are tools required to connect to the backplane?
+No. The carrier uses male-female connectors that facilitate quick backplane installation without the need for additional tools or cables. -
What is the terminal wiring style?
+It features 36 IEC box-style terminals and comes with a foldable printed wiring card that fits into an inbuilt, pivoting card holder.
