Technical specifications for IC200MDL740
-
Product ModelIC200MDL740
-
Product ParametersDiscrete Output Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size11x5.8x6.5cm
-
ManufacturerGeneral Electric
-
Weight0.12 kg
-
Product DescriptionDiscrete Output Module
-
Backplane Current Consumption5 Volts, 45 milliamps
-
External Power Supply10.2 to 30 VDC, 12/24 VDC nominal
-
Output leakagecurrent0.5mA at 30VDC maximum
-
ProtectionNo internal fuses
Description
IC200MDL740
OUTPUT MODULE
VERSAMAX
DISCRETE
24 VDC POSITIVE LOGIC
0.5 AMP PER POINT
16 POINT
OUTPUT MODULE
VERSAMAX
DISCRETE
24 VDC POSITIVE LOGIC
0.5 AMP PER POINT
16 POINT
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Wiring Guidelines
Features:
- 16 DC Output Points
- Fast Response with Configurable Filtering
- Rack-Mountable and Hot-Swappable
- LED Status Indicators
- External Power Supply for Loads
- Versatile Installation Options

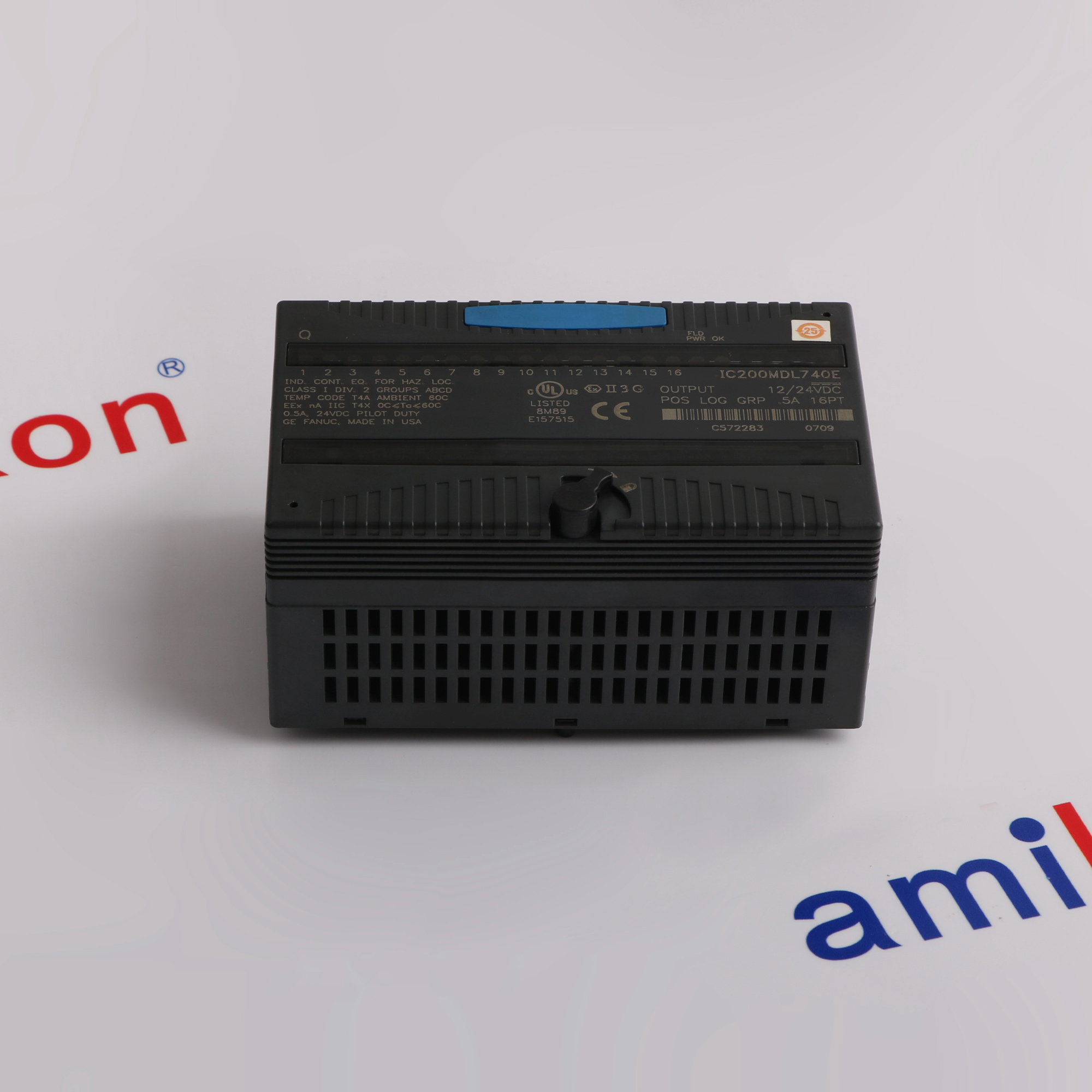

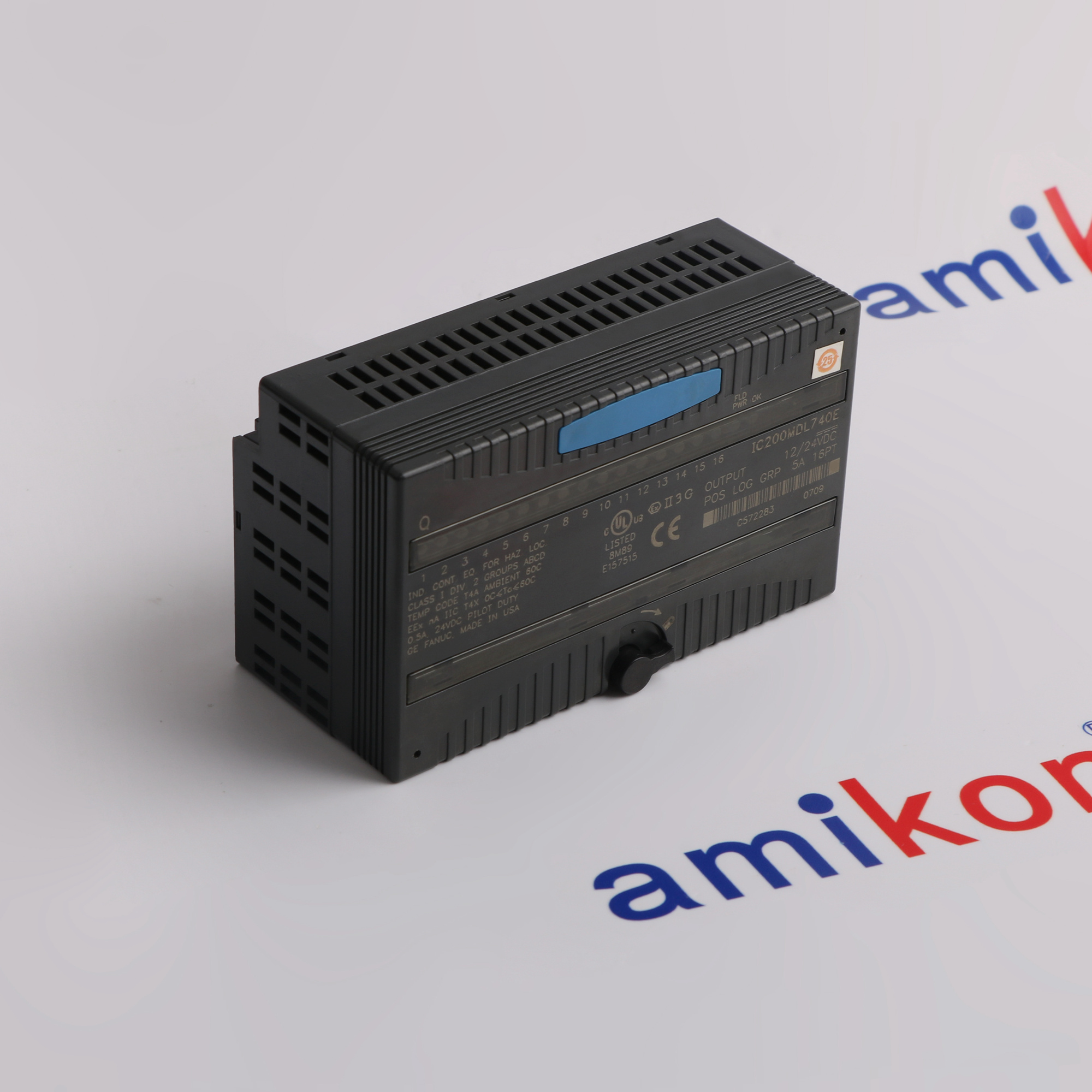

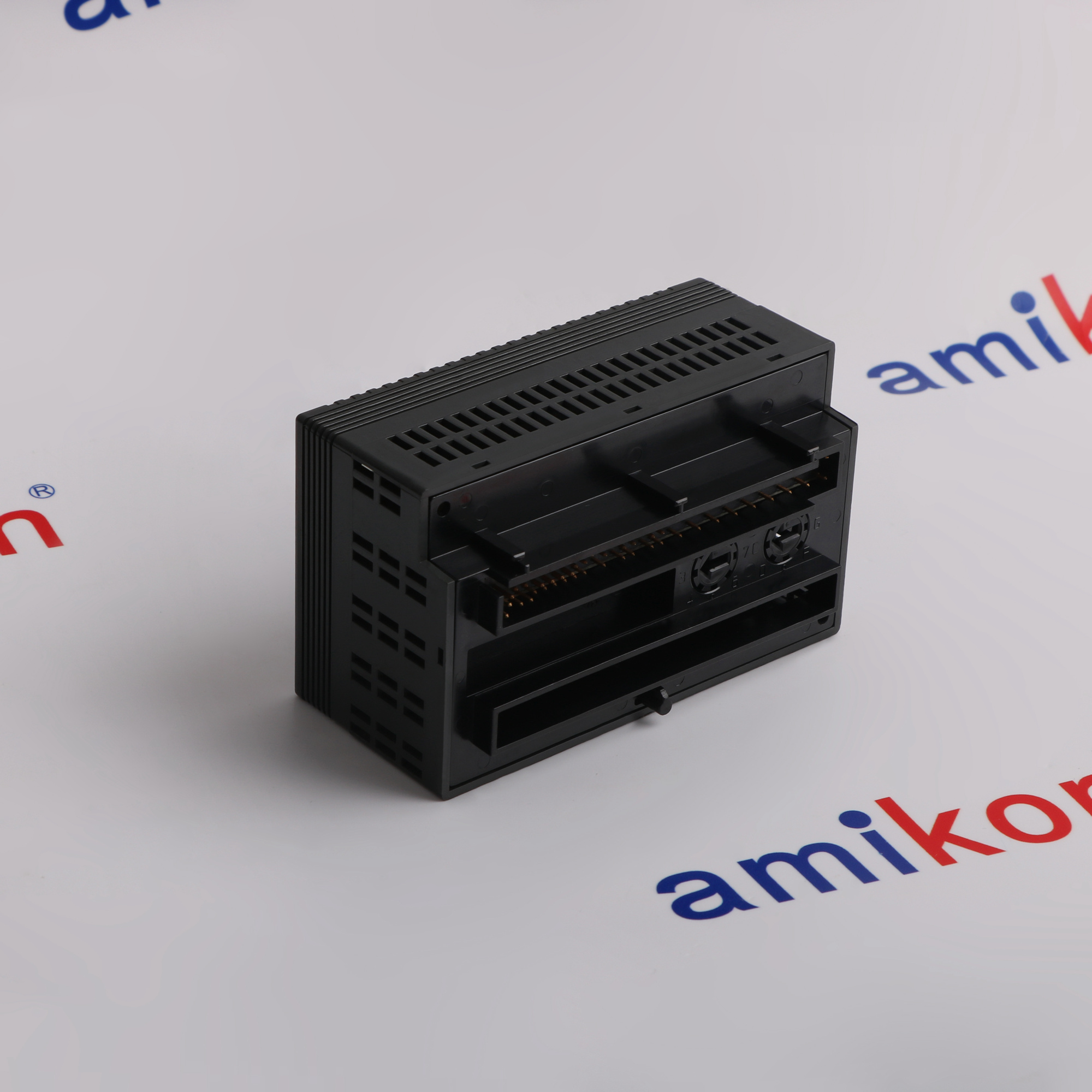

The IC200MDL740 Discrete Output Module is a GE Fanuc 12/24 Volts DC Versamax Positive Logic Output Module that has 1 group of 16 sourcing type outputs. It features a rack mounting option, and a compact design with hot insertion facilities which helps the users to replace it easily without changing the field wiring. The IC200MDL740 Discrete Output Module has LEDs to indicate the status of each of the output points. There are 3 types of carriers available for easily installing or replacing the output module in a system without interrupting the operation. It has a configurable filter time, 0.2 milliseconds of maximum on response time, and 1.0 milliseconds of maximum off response time. It also provides an external power supply to the load side and it operates with backplane power.
The IC200MDL740 GE Discrete Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200MDL740 Discrete Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The IC200MDL740 DC Positive Logic Output Module has one group of outputs with DC+ and DC- terminals. An external suppression circuit must be used with inductive loads at the output. This external suppression circuit can be connected across the actual load or to each output point which drives the inductive load. It is recommended to use a shorting bar with 2 Amps of current carrying capacity with the B Terminal to add extra bused terminals. A wide range of carriers allows the users to install the right carrier without using any tools. These easy connection facilities reduce the training time and lifecycle costs necessary to use this output module. It also comes with configuration software to easily perform the hardware and network configurations. The IC200MDL740 Discrete Output Module is a universally distributed product that is designed for industrial and commercial automation as well as for industrial control applications.
- Packaging & Bottling Plants:Rapid on/off solenoid control for baggers, labelers & cappers
- Material Handling Facilities:Manages pneumatic gates & starters on sorters, conveyors & palletizers
- Water & Wastewater Treatment:Operates pilot valves, dosing pumps & status indicators.
- Energy & Oil/Gas Facilities:Class I Div 2: remote monitoring & switching in distributed I/O nodes
- Consumer Packaged Goods (CPG):Drives actuators for assembly & quality feedback
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
External Power: You must provide an external DC power supply (+10.2 to +30VDC) to switch power to the loads.
Termination: Connect the positive side of the supply to the DC+ terminal and the negative to the DC- terminal.
Inductive Loads: When controlling solenoids or motor starters, use external suppression circuits (like flyback diodes) to protect the module from voltage spikes.
Shorting Bars: If you need additional bussed terminals, use a shorting bar with a maximum current capacity of 2A per point.
FAQs
-
What is the IC200MDL740 module?
+It is a 16-point, 24VDC positive logic (sourcing) output module from the VersaMax family. It switches loads to the positive side of the DC supply. -
What is the required power supply?
+The module operates with a 24VDC nominal external power supply, with an operating range of 10.2 to 30VDC. -
Does the IC200MDL740 provide isolation?
+The IC200MDL740 does not have inter-group isolation, but it has optical isolation with the backplane. -
What is the response time?
+The output response time is 0.2 milliseconds maximum for "on" and 1.0 millisecond maximum for "off". -
What is the backplane current consumption?
+It consumes a maximum of 45mA from the 5V output power supply.
