- F60 AO 8 01
In Stock
Ships by Sunday, July 19
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for F60 AO 8 01
-
Product ModelF60 AO 8 01
-
Spare ModelF60AO801
-
Product ParametersAnalog Output Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x18.6x26.1cm
-
ManufacturerHIMA
-
Weight0.3 kg
-
Voltage Output Range0...±10 V
-
Current Output Range0/4...20 mA
-
Operating Voltage24 VDC
-
Max. Peak Voltage35V
-
Operating Temperature0°C...+60°C
-
Storage Temperature-40°C...+85°C
Description

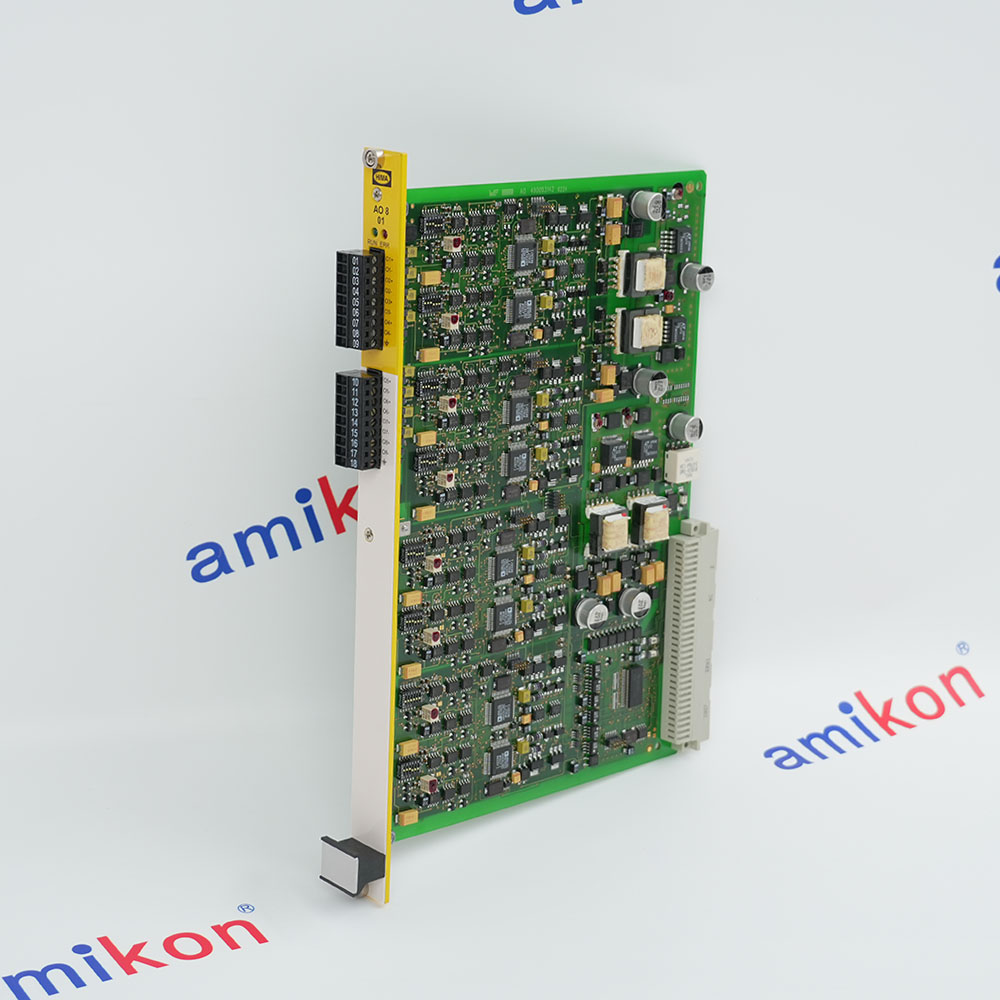

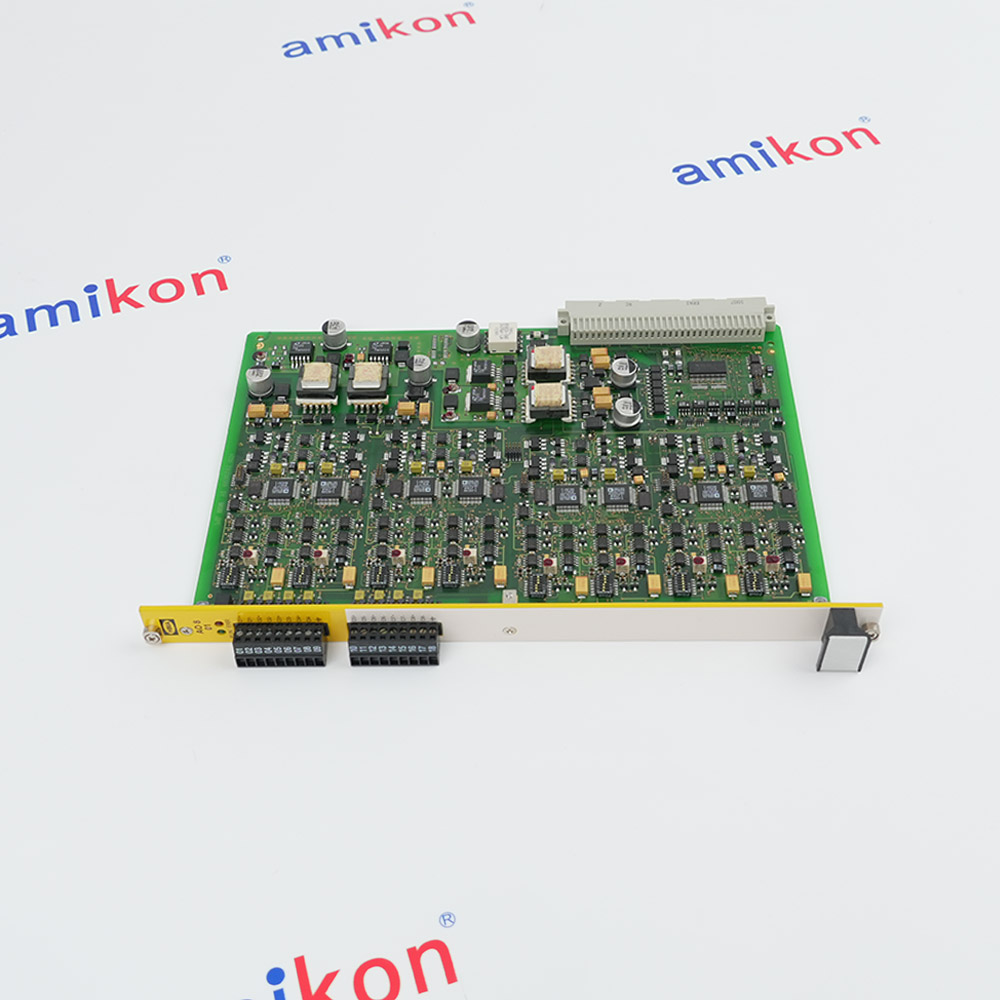

The HIMA F60AO801 is an 8-channel analog output module used within HIMatrix safety-related automation systems. It provides reliable transmission of analog control signals from the safety controller to field devices such as control valves, actuators, positioners, variable speed drives, and process instrumentation. The module is intended for applications requiring high operational integrity and continuous monitoring of output signals.
The module supports industry-standard analog output ranges including 0–20 mA, 4–20 mA, and 0–10 V, allowing integration with a wide variety of industrial equipment. Each output channel is continuously monitored by internal diagnostics to detect wiring faults, output deviations, and channel-related abnormalities. This diagnostic capability contributes to higher system availability and reduced maintenance time.
The module supports industry-standard analog output ranges including 0–20 mA, 4–20 mA, and 0–10 V, allowing integration with a wide variety of industrial equipment. Each output channel is continuously monitored by internal diagnostics to detect wiring faults, output deviations, and channel-related abnormalities. This diagnostic capability contributes to higher system availability and reduced maintenance time.
Information
Overview
Manuals
Technical notes
Product Applications
Installation and Mounting
Features:
- HIMatrix F60
- 8-Channel Analog Output
- Voltage/Current configurable
The F60AO801 HIMA8-Channel Analog Output may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
HIMA F60AO801 8-Channel Analog Output Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The F60 AO 8 01 is an 8-channel analog output module designed for the HIMatrix F60 modular safety control system. This module provides configurable voltage or current outputs for safety-related applications up to SIL 3 according to IEC 61508.Voltage and current output configurable per channel via DIP switches.Integrated line monitoring for open-circuit and short-circuit detection
- Emergency Shutdown Systems:Safely transitions equipment to non-hazardous state during failure
- Burner Management Systems:Controls valves & fuel-air ratios for safe ignition/operation
- Fire and Gas Systems:Activates extinguishing or ventilation on hazard detection
- High-Integrity Pressure Protection Systems:Shuts off pressure to prevent vessel over-pressurization
- Turbomachinery Control:Monitors/regulates turbines & compressors in power & oil/gas
- Machine Safety & Logistics:Controls safety-critical movements in conveyors, cranes & robots
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Subrack Placement: The module must be inserted into a GEH 01 subrack.
Orientation: Mount the subrack on horizontal DIN rails to ensure effective cooling via the built-in fans.
Clearance: Maintain a minimum distance of 100 mm above and below the subrack for ventilation.
ESD Safety: Only personnel trained in ESD protective measures should handle the module. Use an ESD wrist strap during installation.
Alternative Names
F60AO0801
F60 AO 8 01
F6O A0 8 O1
F60AO80I
F60 AO 801
F60 A0 801
Technical notes
Each of the 8 output channels can be individually configured as either a voltage output (±10 V DC, max. ±10.25 V DC) or a current output (0 ... 20 mA, max. 0 ... 21 mA) using DIP switches located on the printed circuit board next to the front plate. The switches are arranged top-down corresponding to channels 1 through 8, with 6 switch functions per channel.
FAQs
-
What is F60AO801 ?
+HIMA HIMatrix F60 AO 8 01 is an 8-channel analog output module for the F60 modular safety system. It is used in safety-related applications up to SIL 3 (IEC 61508). -
What are the functions of the F60AO801?
+It is an analog output module with 8 channels that can provide current or voltage signals. -
What is the resolution?
+The module has a 12-bit or better resolution, providing precise control. -
What is the operating voltage?
+The system operates on 24 VDC.
