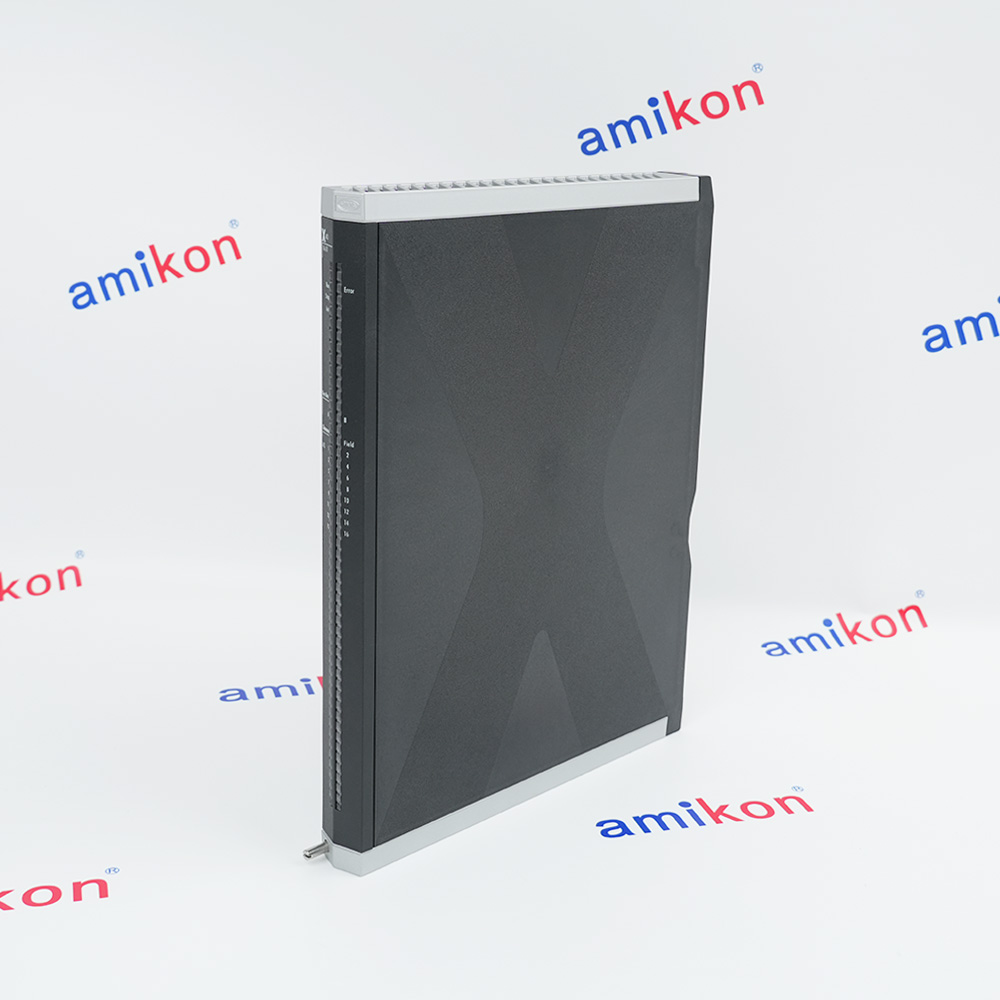

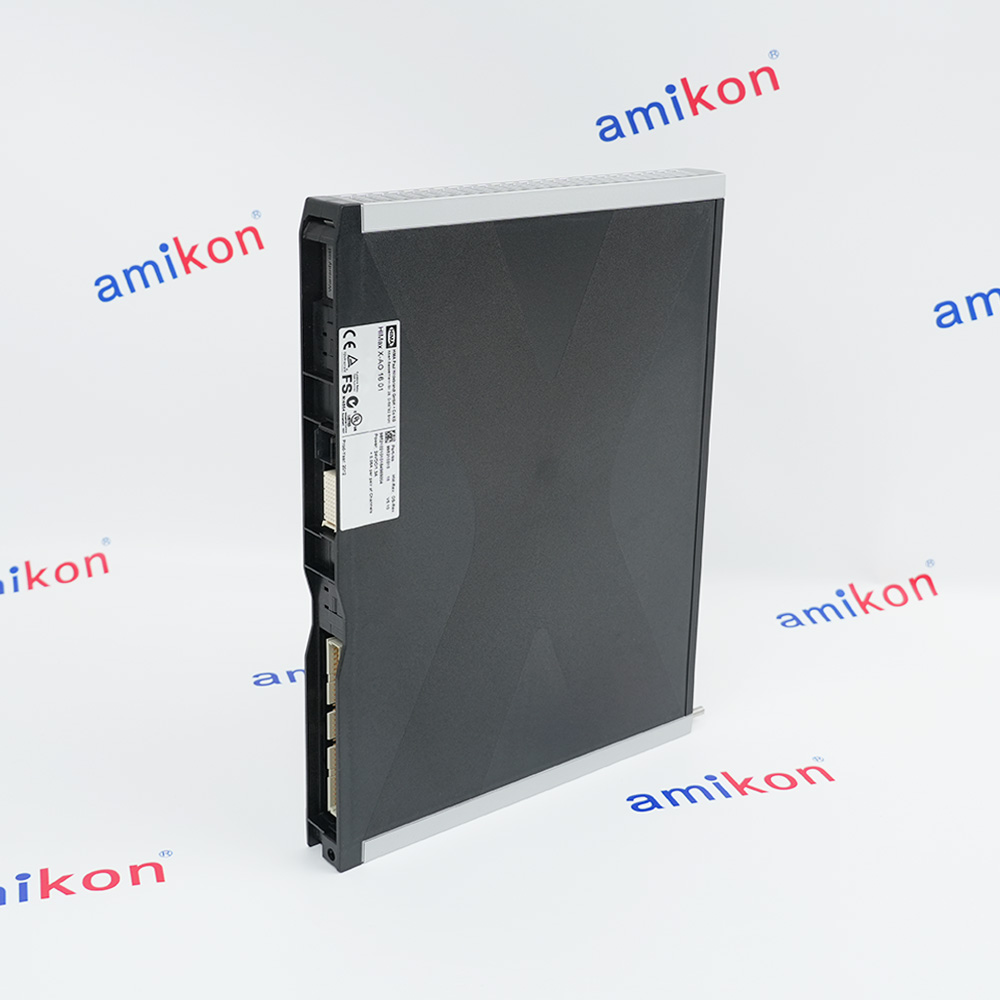

HIMAX X-AO 16 01

Name: HIMAX X-AO 16 01
Brand: HIMA
SKU: HIMAX X-AO1601

Call us: +86-18020776786

Delivery time
Please indicate your delivery time

Product image is representative; revision or series may vary. Contact us to request a specific version.

Product Information

Product Describe

HIMAX X-AO1601
Analog Output Module
16 channels, 4…20 mA
pairwise galvanically isolated

Technical specifications for HIMAX X-AO 16 01

Product Model

HIMAX X-AO 16 01
Spare Model

HIMAX X-AO1601
Product Parameters

Analog Output Module
Tariff Code

8537101190
Country of origin

Germany
Place of shipment

Xiamen, China
Estimated Shipping Size

2.8x24x31cm
Manufacturer

HIMA
Weight

1.05 kg
Operating voltage

24 VDC
Current input

min. 0.6 A
Current input per channel pair

80 mA
Nominal range

4 … 20 mA
Output current operating range

0 … 23 mA
Resolution

16 bit (10 000 digit in SILworX)
Value of LSB

≤ 2 μA
Ohmic load

max. 600 Ω
Measurement accuracy at 25 °C, max.

≤ 0.2% of fi nal value
Temperature coeffi cient

≤ ±0,05 of fi nal value
Accuracy with HART communication

2 % of fi nal value
Linearity error

≤ ±0.1%

Warranty Period & Disclaimer

Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.

FAQs

What is the X-AO 16 01 module?+

It is a 16-channel analog output module for the HIMax safety system, used to control field devices with analog signals.
What safety rating does it have?+

The module is for safety-related applications up to SIL 3.What signals does the module output?
What signals does the module output?+

It outputs current signals, typically in the range of 0/4...20 mA.
Does the module support redundancy?+

Yes, the HIMax system supports redundant module configurations to increase availability.

Get a quick price fo HIMAX X-AO 16 01

*Quantity

*E-mail

Company

*Mobile

*Content

Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Get a Quote

For more information on how your data is processed and stored by Amikong please read our privacy policy.

Inquiry

Control system parts

Required delivery time

ask

Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions

Product

MORE INFORMATION

Overview Manuals Technical notes Product Applications Installation & Operation Instructions

Features:

Analog Output Module
16 current outputs
output nominal range is 4 to 20 mA

The X-AO 16 01 analog module is equipped with 16 current outputs with single-channel wiring and with 8 current outputs withredundant wiring. The output nominal range is 4 to 20 mA. The analog outputs are suitable for connecting ohmic, inductiveand capacitive loads and lamps.for use within the HIMax programmable electronic system (PES). It is a safety-related component typically used in critical control applications such as those in the power and petrochemical industries

The HIMAX X-AO 16 01 HIMA Analog Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).

HIMAHIMAX X-AO 16 01 Analog Output Module Manuals, Datasheets, Drivers, Link

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

The HIMA HIMax X-AO 16 01 module is a safety-critical analog output component. Each channel pair includes a dedicated safety switch. This switch is designed to open automatically if the system detects a failure, ensuring the output moves to a safe state.Standard practice for HIMax analog modules typically requires specific termination or software configuration for unused channels to avoid open-circuit diagnostic errors

Emergency Shutdown Systems :Safely controls valves to reach safe state on hazard detection
Burner Management Systems (BMS):Analog control for fuel/air valves in furnaces & boilers
Fire & Gas Systems (F&G):Drives alarms or fire suppression based on sensor data
Turbo Machinery Control (TMC):High-speed precise control for turbine governors & compressors
High Integrity Pressure Protection Systems (HIPPS):Operates isolation valves to prevent downstream overpressure
Pipeline Automation & Protection:Manages pressure & flow across long-distance networks

This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

Mounting: The module can be inserted into any base plate slot except for those reserved for system bus modules. It must be used with a compatible connector board, such as the X-CB 014 03 (single) or X-CB 014 04 (redundant).

Unused outputs should be wired according to standard safety practices to avoid faults.

Modules can be replaced during operation (hot-swapping) if the system is designed for it, but safety precautions must be observed.
