Honewell FSC

I/O bus in extension cabinet

Type number: FS-IOBUS-CPIOX
Approvals: UL, CSA
Connector (top): 34 pole latch (male)
Connectors (other): 34 pole latch (female)
The IOBUS-CPIOX6 is used for
connection between controller chassis
and I/O chassis in position 1,2, 3, 4, 5, and 6.

Power Distribution Board

Type numbers: FS-PDB-IO05
Approvals: CE, UL, TUV, CSA
5V-x: 4 pos, action pin, header
WdPx: 8 pole, pin header
DIN EN rails: TS32 / TS35 × 7.5
Used rail length: 171 mm (6.73 in)

Redundant I/O Module

Input Power:
5 VDC, Max. 2.56 A (1 slot)
Output Power:
24 VDC, Max. 2 A (up to 54 slots)
Operating Temperature:
Maximum surrounding operating temperature: 70°C

Redundant I/O Module

Input Power:
5 VDC, Max. 2.56 A (1 slot)
Output Power:
24 VDC, Max. 2 A (up to 54 slots)
Operating Temperature:
Maximum surrounding operating temperature: 70°C

IVEONET QMR Chassis

Input Voltage: 24 VDC
Output Voltage: 5 VDC
Compliance and Approvals: CE, UL, CSA, TUV, FM

SC SIC CABLE

Model Number: FC-SIC2200
Description: SC SIC Cable with two connectors
Length: 20 meters

Safety Manager SC Hardware

Power Supply: 24 VDC
Input Voltage Range: 0–30 VDC
Output Current: 5 A to 16 A
Operating Temperature: -20°C to +60°C

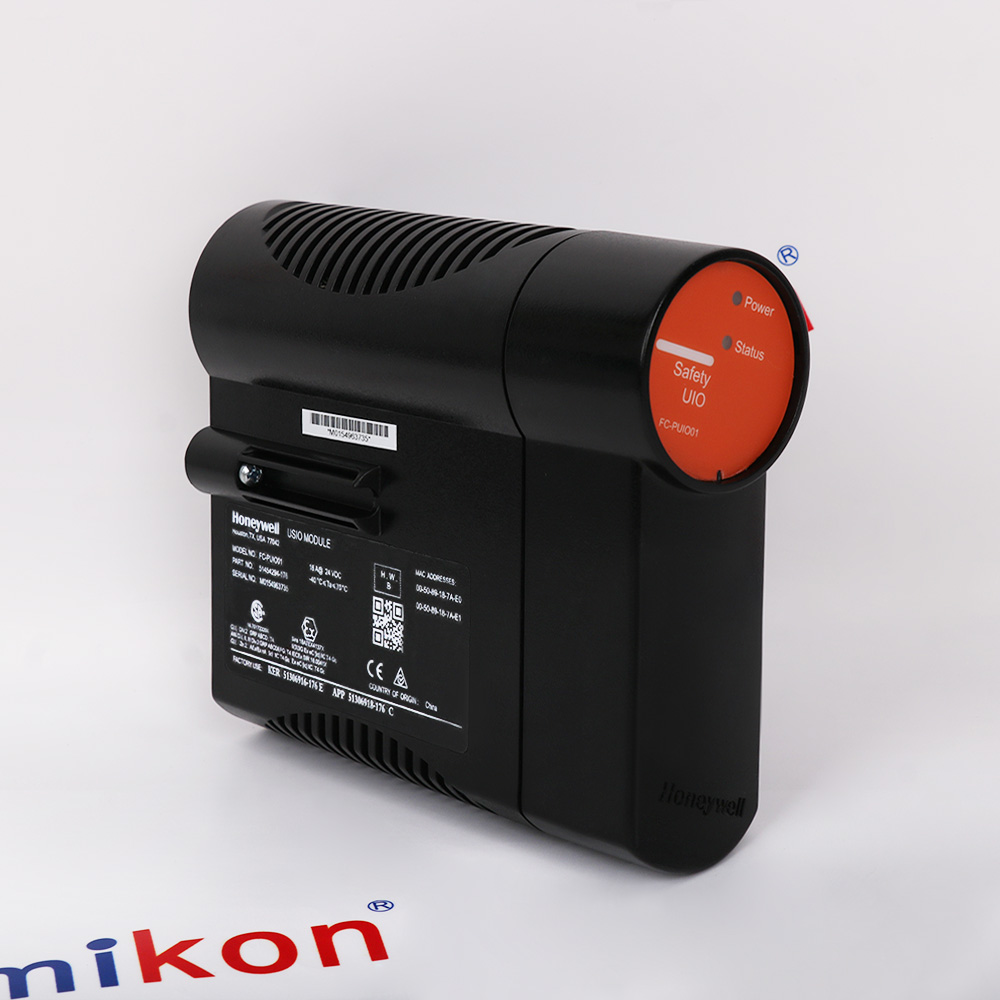

Safety Universal I/O module

Power supply 24V DC
Rated Current 55mA at 24V
Power dissipation 1.22W at 24V DC with
20mA loop current & 250 Ohm load
Power Indication Green LED
Power/DCS to Field 1500 VAC
Voltage Input 24V DC
Interface to DCS 4 to 20mA with HART
Transfer accuracy at 200C +/- 20uA

Universal Safety I/O Module

Maximum Safe Voltage (Um) 250V
Uo 25.2 V
Io 110.1 mA
Po 693.6 mW

Analog Output Module

Output Channels 16
Output Ripple < 100 mV peak-to-peak at
power line frequency, across 250 load
Output Temperature Drift 0.005% of Full Scale/°C
Output Readback Accuracy ±4% of Full Scale
Output Current Linearity ± 0.05% of Full Scale nominal
Resolution ± 0.05% of Full Scale
Calibrated Accuracy ± 0.35% of Full Scale (25oC) including linearity
Output Current Range 0 mA, 2.9 mA to 21.1 mA

Power Distribution Cable

FSPDCIOEP3A
Power Distribution Cable

Power Distribution Cable

FSPDCIOIP1A
Power Distribution Cable

I/O BUS CPCHAS

Rack-mountable unit
180 VA power consumption
20 kg weight
24 V DC power supply

SM RIO Module

Power Supply:24V DC
Current and Voltage Ratings: 0-10V or 4-20mA
Operating Temperature: -20°C to 60°C
Communication Ports: RS-485, RS-232

Analog Output Module

Output Type:4-20 mA
Output Channels:16
Output Temperature Drift:0.005% of Full Scale/°C
Output Readback Accuracy:±4% of Full Scale
Resolution:± 0.05% of Full Scale
Directly Settable Output Current Range:0 mA, 2.9 mA to 21.1 mA
Maximum Resistive Load:800 ohms
Maximum Open Circuit Voltage:22 V

Industrial Current Sensors

Current Rating:300 A
Sensor Type:Closed Loop
Brand:Honeywell
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Product Type: Industrial Current Sensors
Subcategory: Sensors

I/O Communication

Modbus RTU/ASCII or Modbus TCP
Ethernet/IP
Profibus or Profinet
RS-232/RS-485 serial communication

Analog Input Module

Universal Input Output IOTA
Input Channels 1 16 Channels
Common Mode Voltage, dc to 60 Hz -6 to +5 V peak
A/D Converter Resolution 16 bits
Normal Mode Rejection Ratio, at 60 Hz 19 dB
Normal Mode Filter Response Single-pole RC, -3 dB @ 6.5 Hz
Input Impedance (voltage inputs) > 10 M Ω powered
Input Scan Rate 50 ms

High-Speed Network Communication Modules

Supports fiber-optic medium
NFPA Class B or Class A operation
Data is immune to all environmental noise
Optical isolation prevents ground loops
High-Speed NFN fiber-optic medium
Fiber type: 62.5/125 micrometers (multi-mode);
50/125 micrometers (multimode),
or 9/125 micrometers (single mode)
Maximum attenuation: 10 dB with 62.5/125 μm cable, 6

Pulse Input Processor

CE-compliant, not conformally coated
Redundancy not supported
Input Channels: 8
Input Scan Rate: 32 samples per second
Available Input Types:
Rectangular
Sine Wave

Analog Input Module

51309136125
PLC MODULE
SIZE A
HIGH LEVEL ANALOG INPUT
16 INPUTS
SCREW TERMINALS

Analog Output Module

900B160001
MODULE
PLC MODULE
16 CHANNEL
ANALOG OUTPUT

Digital Input Module

Input Channels 32
Galvanic Isolation 1500 VAC RMS or ±1500 VDC
Isolation Technique Optical (in IOM)
DI Power Voltage Range 18 to 30 VDC
ON Sense Voltage/Current 13 VDC (min) or 3 mA (min)
OFF Sense Voltage/Current 5 VDC (max) or 1.2 mA (max)
Input Impedance 4.2
Absolute Delay Across Input Filter and Isolation 5 ms ± 20%
Field Resistance for Guaranteed ON Condition 300 max @ 15 VDC

Analog Input Module

Output Type 4-20 mA
Output Channels 16
Output Ripple < 100 mV peak-to-peak at
power line frequency, across 250 load
Output Temperature Drift 0.005% of Full Scale/°C
Output Readback Accuracy ±4% of Full Scale
Output Current Linearity ± 0.05% of Full Scale nominal
Resolution ± 0.05% of Full Scale
Calibrated Accuracy ± 0.35% of Full Scale (25oC) including linearity
Directly Settable Output Current Range 0 mA, 2.9 mA to 21.1 mA
Maximum Output Compliant Voltage 16 V

Analog Input Module

Common Mode Rejection Ratio, dc to 60 Hz 70 dB
Common Mode Voltage, dc to 60 Hz -6 to +5 V peak
A/D Converter Resolution 16 bits
Normal Mode Rejection Ratio, at 60 Hz 19 dB
Normal Mode Filter Response Single-pole RC, -3 dB @ 6.5 Hz
Maximum Normal Mode Input  ± 30 Volts
Crosstalk, dc to 60 Hz -60 dB
Input Impedance (voltage inputs) > 10 M Ω powered
Input Scan Rate 50 ms
