Technical specifications for CC-PDIL01 51405040-176
-
Product ModelCC-PDIL01 51405040-176
-
Spare ModelCC-PDIL01
-
Product ParametersDigital Input Module 24VDC
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6x15.2x14.3cm
-
ManufacturerHoneywell
-
Weight0.35 kg
-
Input Channels32
-
Galvanic Isolation1500 VAC RMS or ±1500 VDC
-
Isolation TechniqueOptical (in IOM)
-
DI Power Voltage Range18 to 30 VDC
-
ON Sense Voltage/Current13 VDC (min) or 3 mA (min)
-
OFF Sense Voltage/Current5 VDC (max) or 1.2 mA (max)
Description

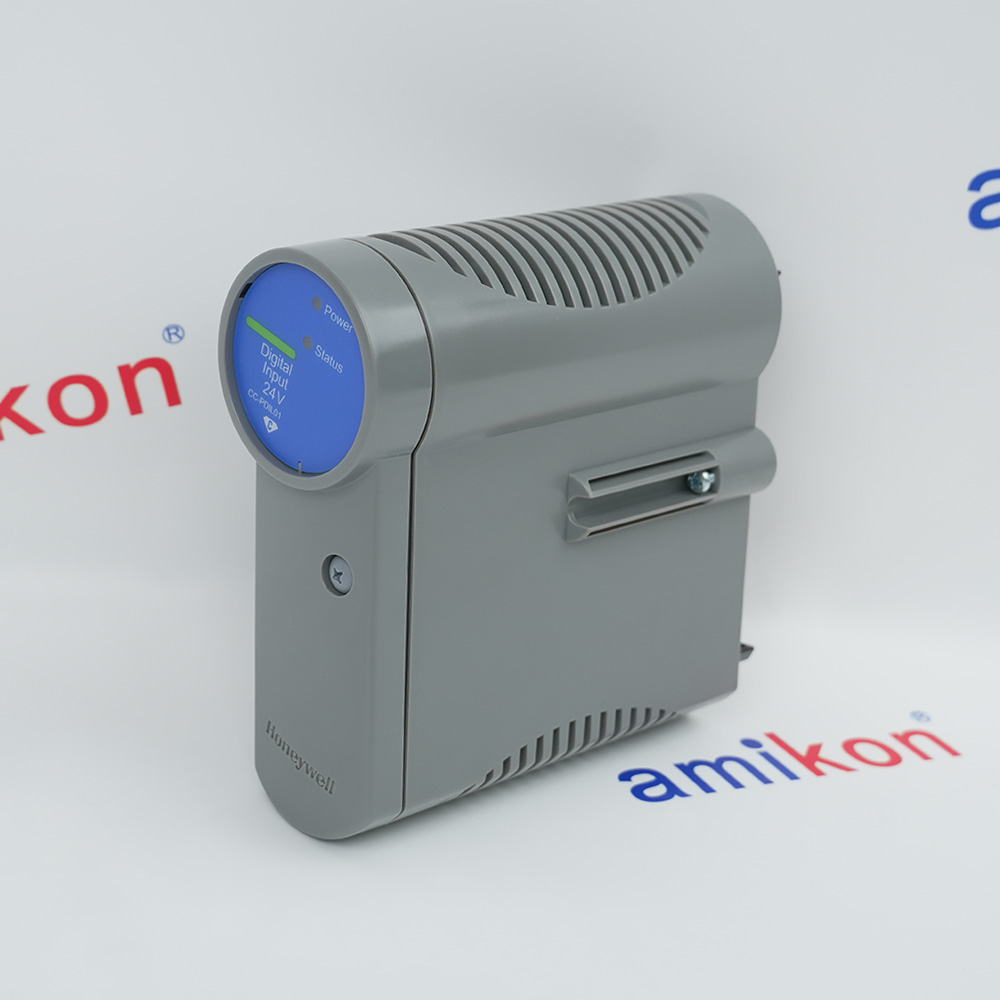

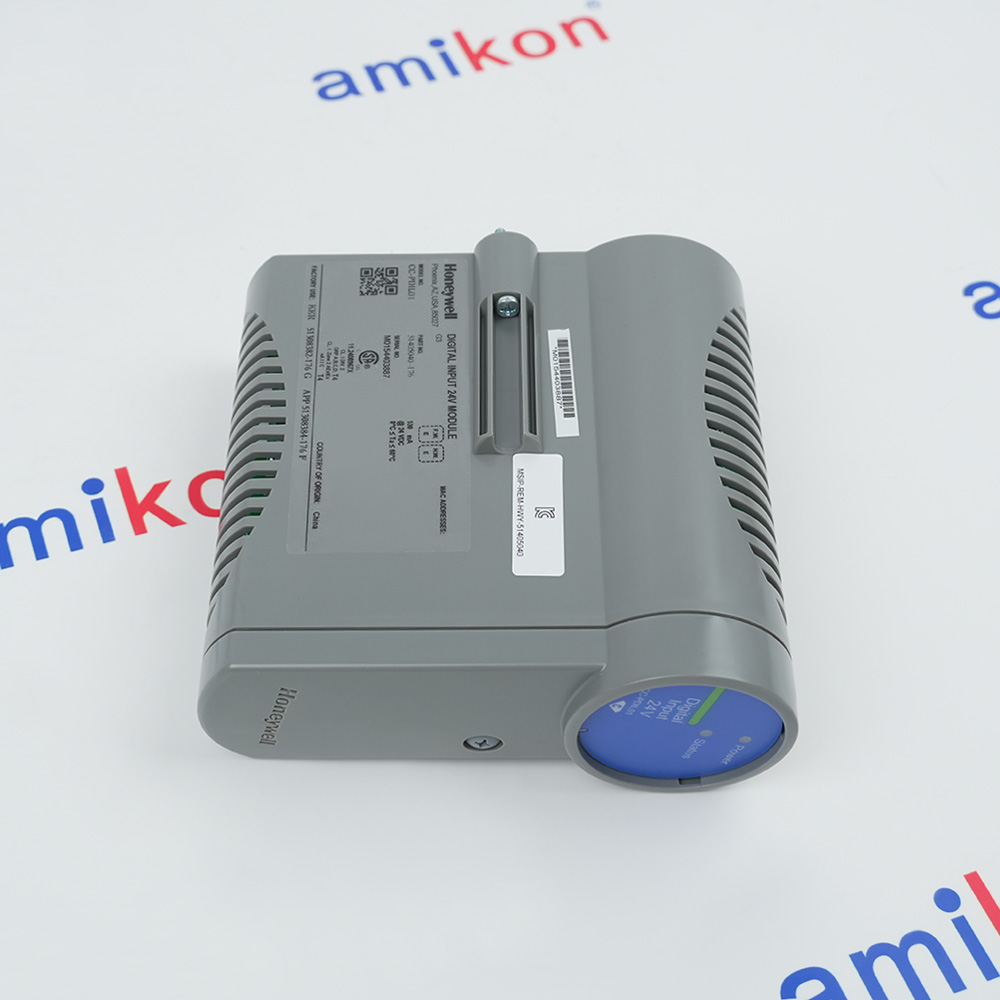

The Honeywell CC-PDIL01 is a Digital Input 24VDC module in the Honeywell Experion Series-C I/O family. The Honeywell CC-PDIL01 accepts 24VDC signals as discrete inputs. The Honeywell CC-PDIL01 is part number 51405040-176.
The Honeywell CC-PDIL01 incorporates extensive internal diagnostics for data integrity. The Honeywell CC-PDIL01 supports open wire detection. The Honeywell CC-PDIL01 detects and annunciates open field wire conditions. A seemingly-valid PV from a channel diagnosed as having an open wire on the Honeywell CC-PDIL01 provides a status of "invalid". This prevents incorrect control action from PV values that are invalid due to an open field wire.
Information
Overview
Manuals
Engineering Considerations
Product Applications
Hardware Setup & Mounting
Features:
- Extensive internal diagnostics for data integrity
- Open wire detection
- Optional redundancy
- Internal or external field power selection
- On board excitation power (no need formarshalling power)
The Honeywell CC-PDIL01 supports internal or external field power selection. The Honeywell CC-PDIL01 has on-board excitation power. No marshalling power is needed for the Honeywell CC-PDIL01. The Honeywell CC-PDIL01 supplies non-incendive field power. This protection on the Honeywell CC-PDIL01 supports Division 2 hazardous protection non-incendive power requirements.
The CC-PDIL01 51405040-176 Honeywell Digital Input 24VDC may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-PDIL01 51405040-176 Digital Input 24VDC Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Honeywell CC-PDIL01 provides direct/reverse input indication. The Honeywell CC-PDIL01 provides galvanic isolation. The Honeywell CC-PDIL01 plugs into the Input Output Termination Assembly (IOTA). The IOTA for the Honeywell CC-PDIL01 holds the module and the connections for field wiring. The Honeywell CC-PDIL01 receives power from the IOTA. Field power for the Honeywell CC-PDIL01 is supplied through the IOTA.
The Honeywell CC-PDIL01 is part of the Series-C I/O system. The Series-C I/O system including the Honeywell CC-PDIL01 features an innovative form that supports enhanced heat management. The Honeywell CC-PDIL01 provides significant reduction in overall size compared to equivalent functionality in previous generations. The I/O Module and field terminations for the Honeywell CC-PDIL01 are combined in the same area. The Honeywell CC-PDIL01 is plugged into the IOTA to eliminate the need for a separate chassis to hold the electronics assemblies.
- Oil Refining & Petrochemicals:Valves/ESD interlocks in flammable zones
- Power Generation:Breaker/utility status & generator states
- Chemical Manufacturing:Pipeline states & batch limits
- Water & Wastewater Treatment:Pump/tank/flow contacts
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
IOTA Requirement: The module cannot be mounted independently; it must be plugged into its matching Input Output Termination Assembly (IOTA) baseboard, specifically the CC-TDIL01 model.
Redundancy Allocation: If you utilize a redundant IOTA configuration for high availability, non-redundant versions of this module must be inserted strictly into the upper IOM slot of the redundant IOTA.
No Separate Chassis: The IOM plugs directly into the IOTA, eliminating the footprint and cost of an independent sub-chassis.
Alternative Names
CC-PDIL01
51405040-176
51405040 176
CC PDIL01
CC-PDILO1 51405040-176
CC-PDIL0I 5I405040-I76
CC-PDILO1-51405040-176
Technical notes
This Series C IO function will be able to detect and annunciate Open field wire. In addition, a seemingly-valid PV from achannel diagnosed as having a Open-wire will provide a status of “invalid” (thus preventing incorrect control action)
FAQs
-
What is the CC-PDIL01?
+The Honeywell CC-PDIL01 is a high-density, 32-channel digital input module designed for the Honeywell Experion Series C and C300 distributed control systems (DCS). It -
Does the module support field-level diagnostics?
+Yes, each channel is equipped with status LEDs for real-time signal monitoring, and the module features built-in diagnostics to minimize troubleshooting time and system downtime -
What is the standard input operating voltage range?
+The normal operating range is 18 to 30 VDC. -
Does it support optical isolation?
+Yes, it features galvanic optical isolation rated at 1500 VAC RMS or ±1500 VDC.
