- CC-TDI220 51308394-275
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for CC-TDI220 51308394-275
-
Product ModelCC-TDI220 51308394-275
-
Product ParametersDigital Input Mdodule
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size22x12x6.5cm
-
ManufacturerHoneywell
-
Weight0.35 kg
-
Nominal Voltage240VAC
-
Digital Input Pwr. Range180-264 V AC RMS
-
Sense Current1.11 mA RMS
-
Pick Up Voltage180 VAC RMS
-
Drop Out Voltage50 VAC RMS
-
Absolute Delay Across InputFilter and Isolation25 ms maximum
-
Frequency Range47-63 Hz
Description
DI 220VAC IOTA
NonRedundant
1500 VAC RMS or ±1500 VDC
Extensive internal diagnostics to ensure dataintegrity
NonRedundant
1500 VAC RMS or ±1500 VDC
Extensive internal diagnostics to ensure dataintegrity
Information
Overview
Manuals
Technical notes
Product Applications
Electrical Protection Mechanisms
Internal Series-C Cross-Reference
Features:
- Extensive internal diagnostics to ensure dataintegrity
- Optional redundancy (except CC-TDI151)
- Input direct/reverse
- Galvanic isolation
The CC-TDI220 51308394-275 Honeywell Digital Input Mdodule may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell CC-TDI220 51308394-275 Digital Input Mdodule Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

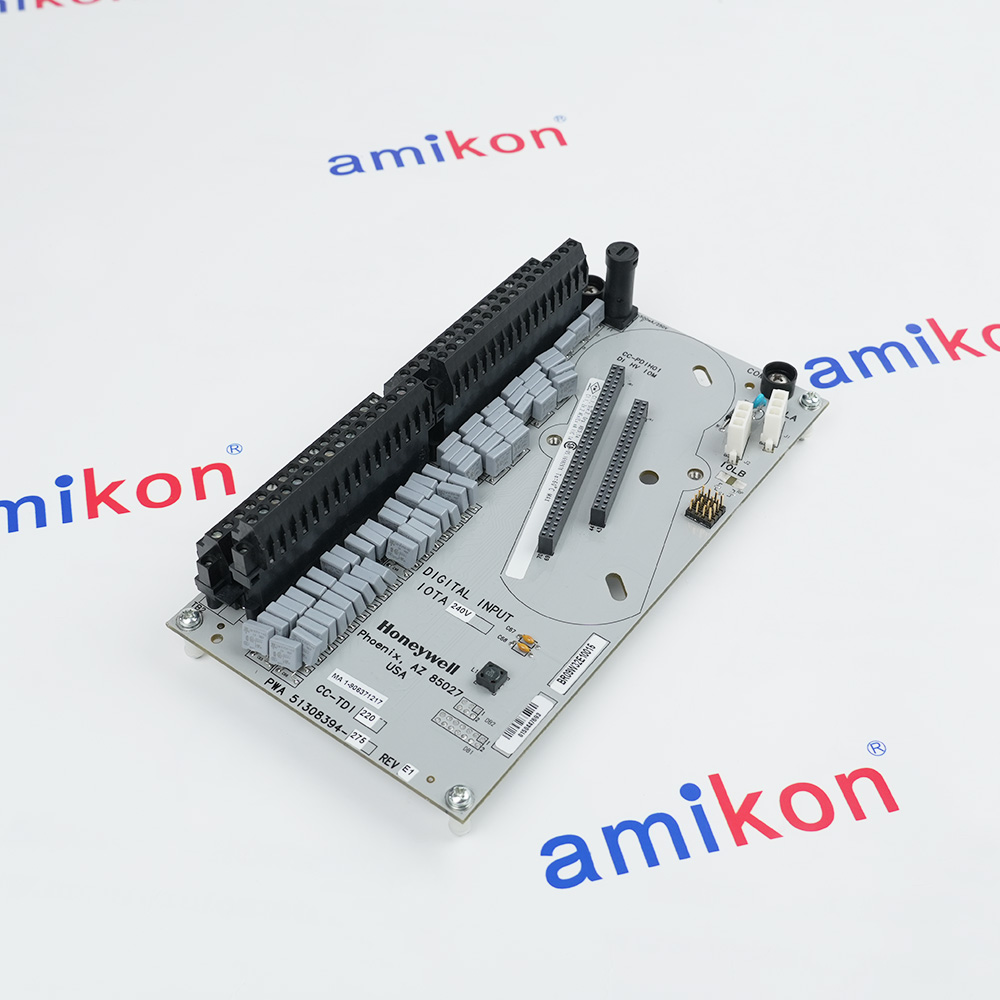

The Honeywell CC-TDI220 is a high-voltage Digital Input Module designed for use within the Experion PKS Series-C Distributed Control System (DCS). It is specifically engineered for monitoring field devices that operate at 220V AC,Non-Redundant, 9-inch (228 mm) IOTA,It is part of the Series-C I/O family, where the I/O Module (IOM) plugs directly into an Input Output Termination Assembly (IOTA).
- Oil and gas: Large-scale control systems for refineries, liquefied natural gas (LNG) terminals, offshore platforms and oil pipelines.
- Petrochemicals: Distillation tower control and fertilizer production lines.
- Electricity and energy: Auxiliary control systems for power plants, boiler control and power distribution monitoring.
- Papermaking and metallurgy: Large-scale paper machines, rolling steel lines.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Optical Isolation: Each channel is optically isolated from other channels and from the internal power supply. This provides excellent noise immunity and prevents damage from common mode voltage transients or ground loops.
Surge Resistance: The module is engineered with built-in resistance to electrical transients and surges commonly found in industrial environments.
High Voltage Handling: It is specifically designed to safely monitor high-voltage signals (up to 220V AC) without requiring additional external signal conditioning for standard discrete inputs.
The Honeywell CC-TDI220 is a specific variant of the High Voltage Digital Input (DIHV) module family within the Experion Series-C I/O platform. Cross-referencing this module typically involves identifying its redundancy options, voltage alternatives, or predecessor equivalents.
The CC-TDI220 module is defined by the combination of a common I/O Module (IOM) and a specific Termination Assembly (IOTA). The same electronic module (CC-PDIH01) is used across several high-voltage configurations.
FAQs
-
What is CC-TDI220 51308394-275 ?
+The Honeywell CC-TDI220 (51308394-275) is a High Voltage Digital Input IOTA (Input Output Termination Assembly) used in the Experion PKS C300 system -
What is the voltage rating for the CC-TDI220?
+It is a high-voltage Digital Input module, designed for 240VAC input signals. -
What is the function of the IOTA?
+The Input/Output Termination Assembly (IOTA) facilitates the connection between field wiring and the module, supporting 316L SS housing options and IP66-rated cabinets for harsh (GX) environments. -
Is this CC-TDI220 compatible with C-Series I/O?
+Yes, the CC-TDI220 is part of Honeywell's C-Series I/O product line. -
What is the difference between IOTA and Module?
+The CC-TDI220 typically refers to the IOTA board, which includes field wiring terminals, while the I/O module plugs into it.
