PRODUCT DESCRIPTION
Non-RoHS expander processing for a verified Trusted configuration

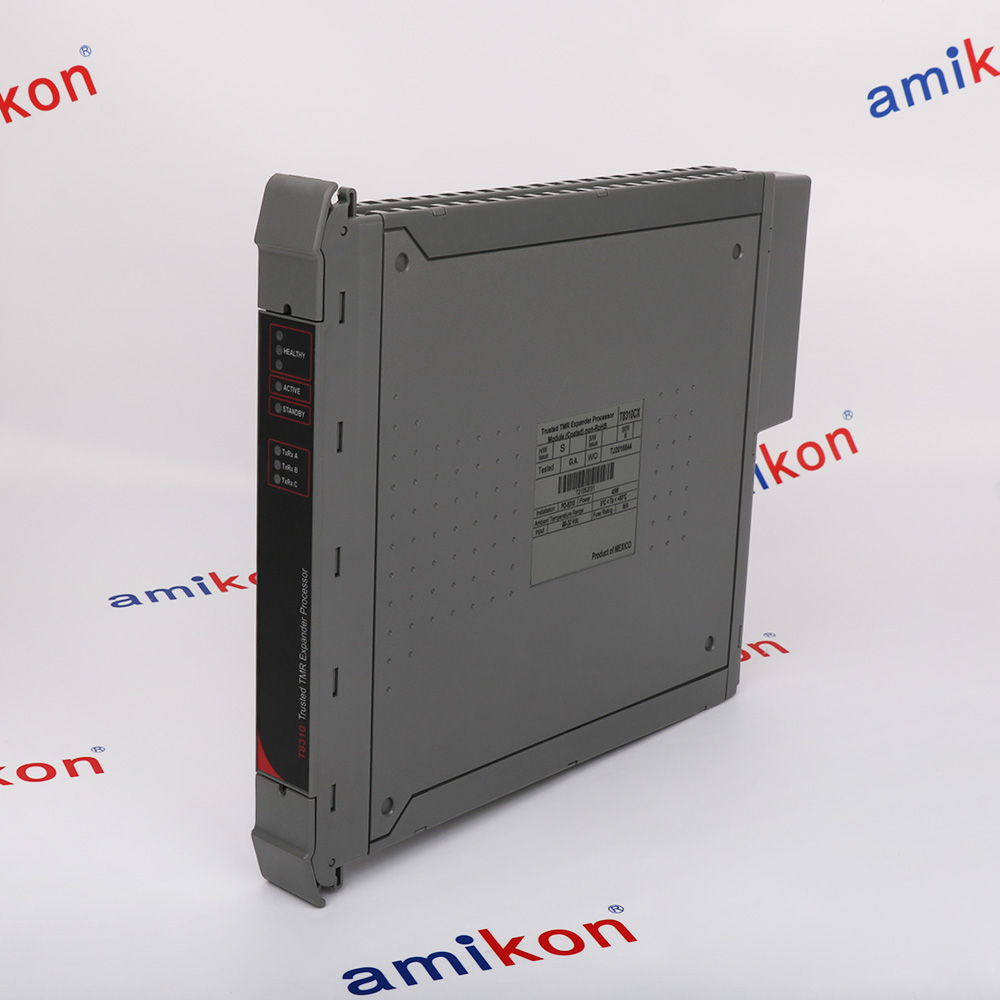

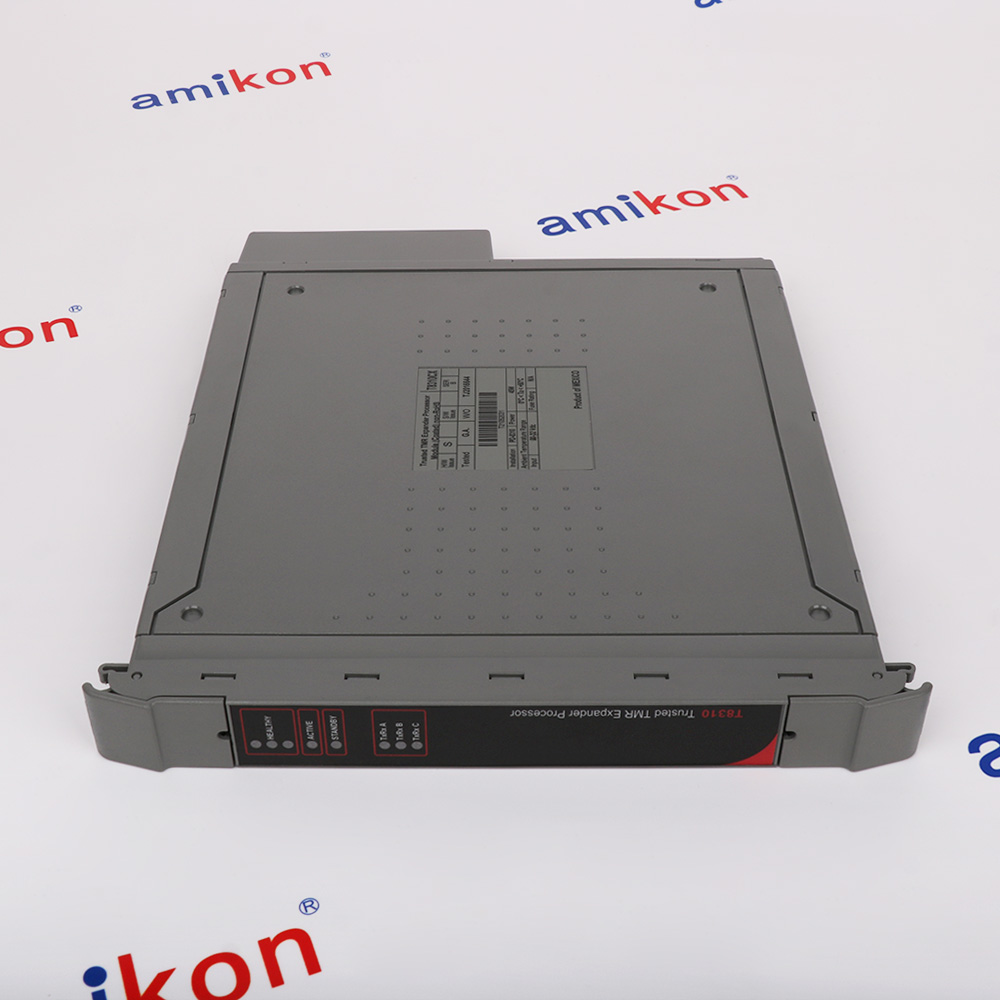

ICS Triplex T8310CX is the manufacturer-identified non-RoHS, conformal-coated Trusted expander processor. It occupies the dedicated processor position in an expander chassis and links the triplicated expander bus to the backplane serving the installed expansion modules and their communications.
The triplicated architecture contains faults within the expander bus, module or chassis. Onboard hardware and software diagnostics monitor operation and identify faults, while front-panel indicators display module condition. Standby and spare-module configurations support the documented fault-tolerant expansion arrangement.
The triplicated architecture contains faults within the expander bus, module or chassis. Onboard hardware and software diagnostics monitor operation and identify faults, while front-panel indicators display module condition. Standby and spare-module configurations support the documented fault-tolerant expansion arrangement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8310CX Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · POWER GENERATION
Power Production Stations and Electricity Supply Plant Facilities
Power production stations with steam turbines and boiler equipment.Electricity supply plant facilities with cooling and fuel handling. -
02 · OIL & GAS
Oil Production Plants and Gas Treatment Operating Areas
Oil production plants with crude separation and transfer facilities.Gas treatment operating areas with compression equipment and separators. -
03 · CHEMICAL PROCESSING
Industrial Chemical Plants and Petrochemical Feedstock Production Facilities
Industrial chemical plants with reaction equipment and mixing processes.Petrochemical feedstock production facilities with separation and storage equipment.
Technical specifications for T8310CX
-
Product ModelT8310CX
-
Product ParametersTrusted TMR expander processor
-
In stock1 unit
-
ManufacturerICS Triplex
-
Backplane supply20 to 32 Vdc
-
Internal supply arrangementDual redundant nominal 24 Vdc feeds from the expander backplane
-
Documented power rating45 W for the Series B configuration listed in T8000-CT001
-
Permitted locationT8300 expander processor slots PL1 or PL2 only
-
ArchitectureHIFT TMR; three main fault containment regions
-
Companion-slot linkDouble-width cable hood connects the two processor positions
-
Copper expander distanceUp to 30 m using the documented TC-301 arrangement
-
Optical expander distanceUp to 10 km using the documented T8314 fibre arrangement
-
IMB connector SK1185-way DIN 41642 type
-
Internal fusingNot user serviceable
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Relative humidity10-95%, noncondensing
-
Equipment dimensions266 x 31 x 303 mm (H x W x D)
-
Equipment mass1.33 kg in PD-T8310; not shipping gross weight
View all additional
Alternative Names
T8310CX Trusted TMR expander processor
ICS Triplex T8310CX Trusted expander processor module
T8310CX Trusted expander chassis communications processor
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match T8310CX to the documented Trusted configuration
T8310CX connects the expander bus to the expander chassis IMB. It is not the main controller processor or a general Ethernet interface. Use the two designated processor positions, their common cable hood and the approved local or optical expander route.
Use expander processor slots PL1 or PL2; other module positions are prohibited. Check dual backplane feeds, actual series power rating and the approved thermal arrangement.
Verify chassis address and I/O Connection table; never remove a module indicating ACTIVE.
Features:
- Triplicated expander bus connection
- Dedicated expander processor positions
- Active and standby companion slots
The ICS Triplex T8310CX trusted tmr expander processor requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the complete T8310CX identity and compare its hardware revision with the installed item. Retain the complete T8310CX non-RoHS order and actual hardware revision. The exact Series B entry specifies 45 W; do not apply the 20 W rating of the separately listed T8310 Series C. Confirm release, site approval and export requirements independently.
Use expander processor slots PL1 or PL2; other module positions are prohibited. Verify chassis address and I/O Connection table; never remove a module indicating ACTIVE.
Use the controlled manufacturer procedure and the approved maintenance plan. Never remove a module indicating ACTIVE: expansion modules may enter their default shutdown state. Confirm the companion module and approved changeover sequence first.
Features:
- Complete order identity retained
- Companion equipment and configuration checked
- No unconditional substitution claim
The ICS Triplex T8310CX trusted tmr expander processor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8310CX trusted tmr expander processor must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8310CX
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this module the main Trusted controller processor?
No. It connects the expander bus to the expander chassis backplane. The main controller and expander interface perform different roles; a similar front panel does not establish interchangeability. -
Does T8310CX carry the newer twenty-watt expander rating?
The exact T8310CX Series B entry in T8000-CT001 specifies 20-32 Vdc and 45 W. PC002G lists 20 W for T8310 hardware Series C. Do not transfer that rating to the CX order or infer the supplied hardware series from its suffix. -
Which chassis positions are permitted?
Only the two dedicated processor positions PL1 and PL2 in the expander chassis. The manual prohibits installation in other module locations because damage may result. -
Can a module showing ACTIVE be removed during replacement?
No. Complete the manufacturer changeover and confirm that the original module is in Standby and the replacement is Active. Removing an active module can cause expansion modules and the process program to enter shutdown states. -
Does module hot replacement permit cable-hood replacement online?
No. The manufacturer requires shutdown for replacement of the complete cable assembly and requires the associated chassis positions to be unoccupied. These are separate procedures. -
How are local and optical expansion connected?
The local arrangement uses TC-301 through T8312. The remote optical arrangement uses T8314 with TC-302 on the interface side and TC-303 on the expander side. Match the full route, hardware and documented distance limits. -
Why can the standby module have no transmit indication?
The manual states that no red transmit activity is observed in standby. Green indicates receive activity. Confirm healthy indicators, the intended operating state and diagnostic information before treating this as a fault. -
Does non-RoHS mean unrestricted replacement or site approval?
No. The manufacturer specifically identifies this order as non-RoHS. Confirm the actual item, approved system release and destination requirements. An exact model entry in a certificate does not by itself establish compliance of a particular supplied unit or installation.
