PRODUCT DESCRIPTION
Forty-channel analog input for the Trusted safety platform

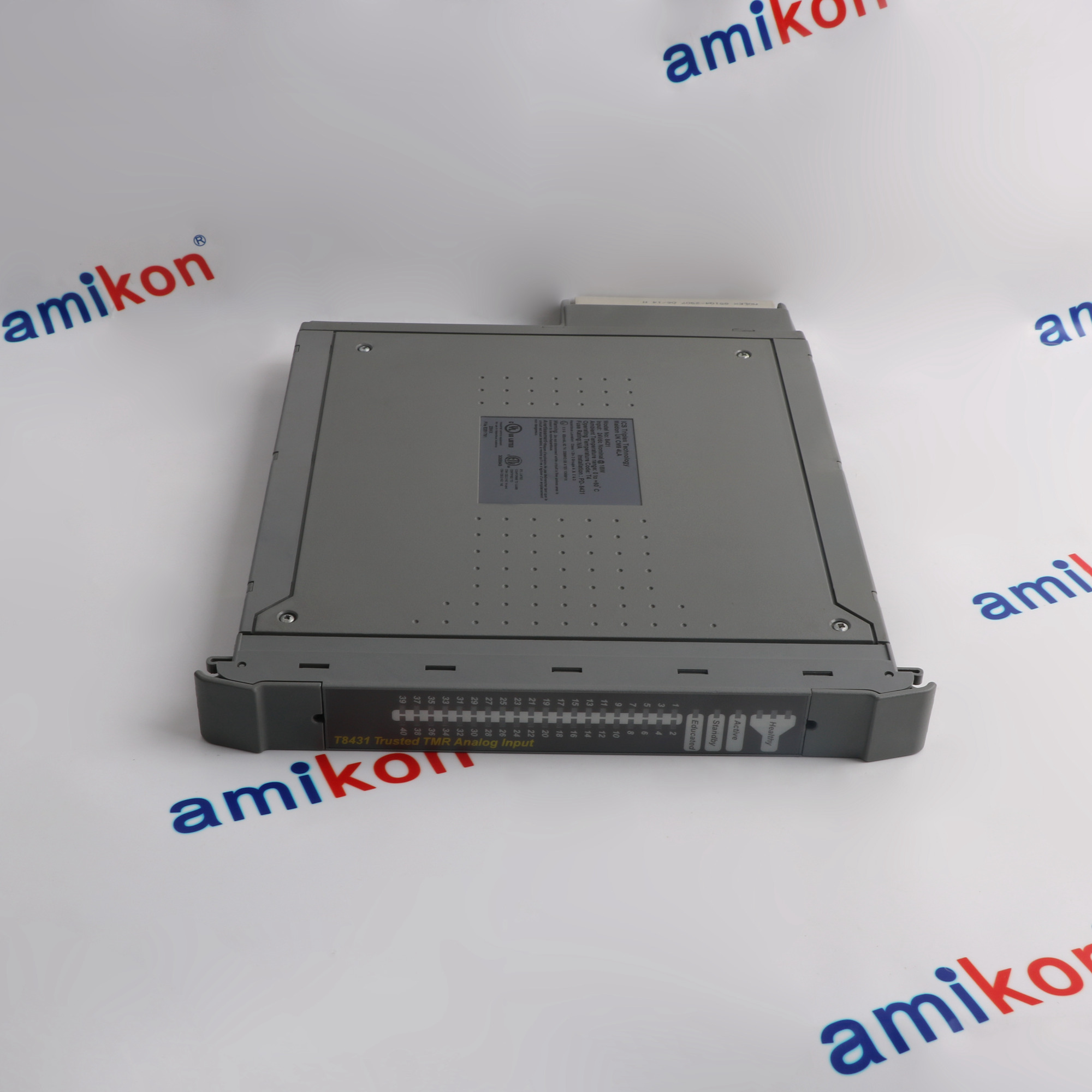

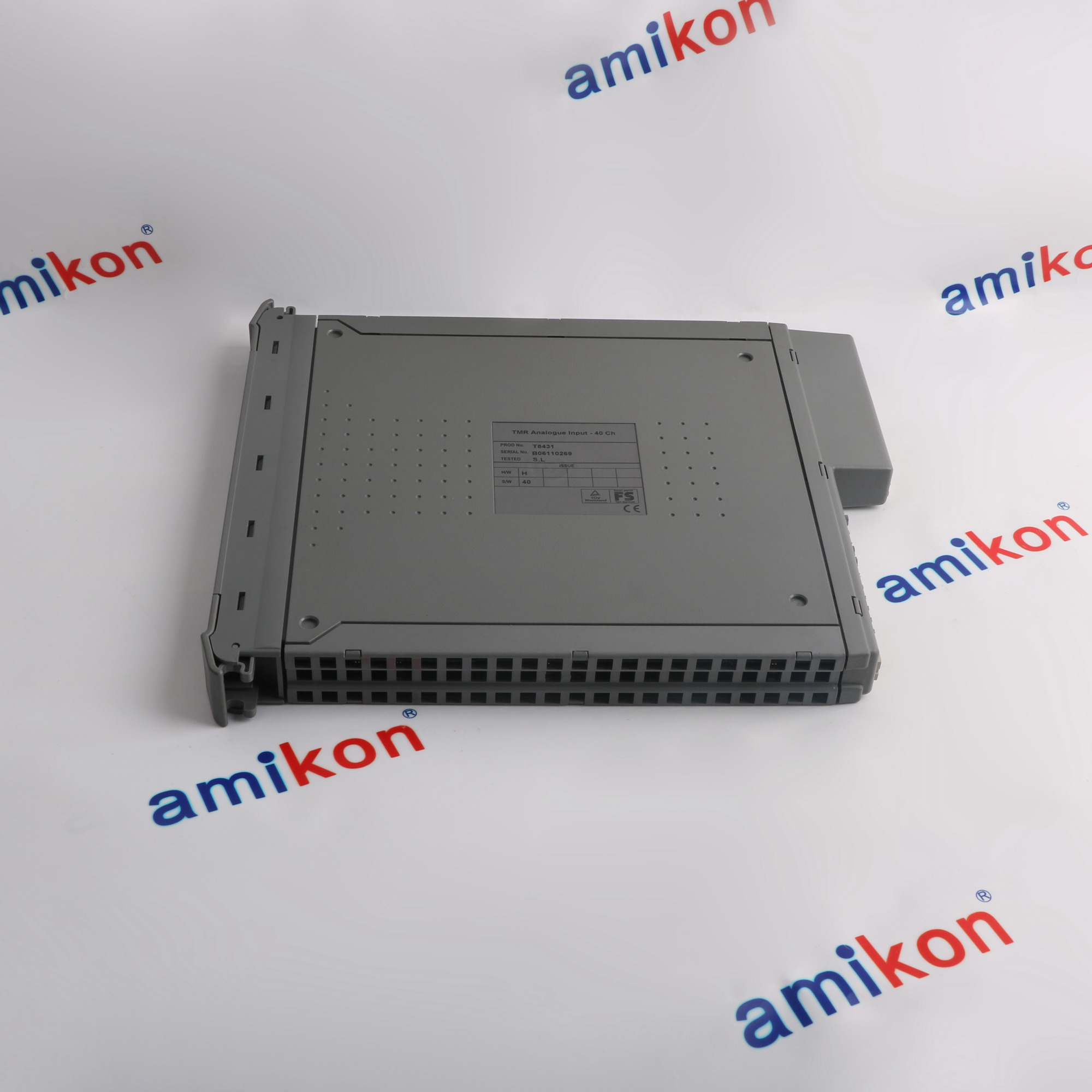

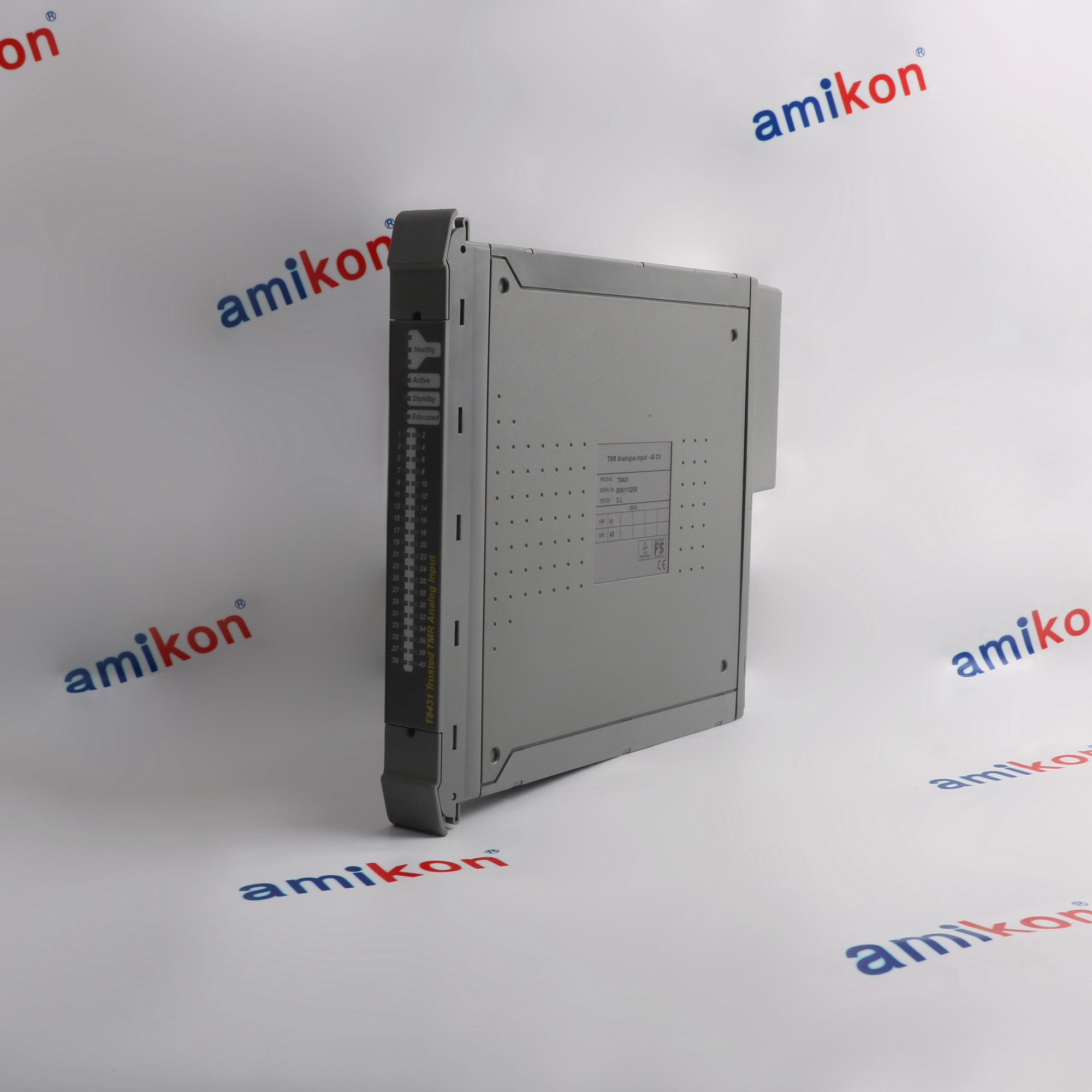

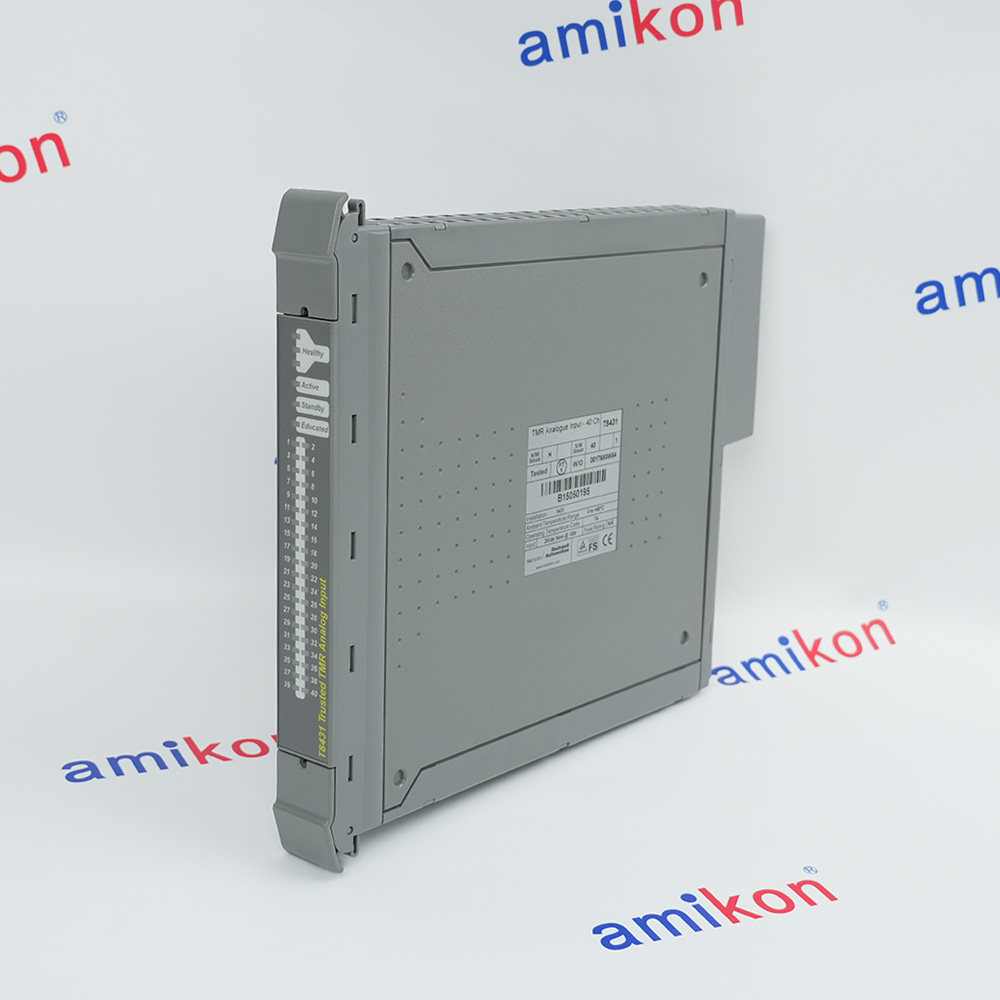

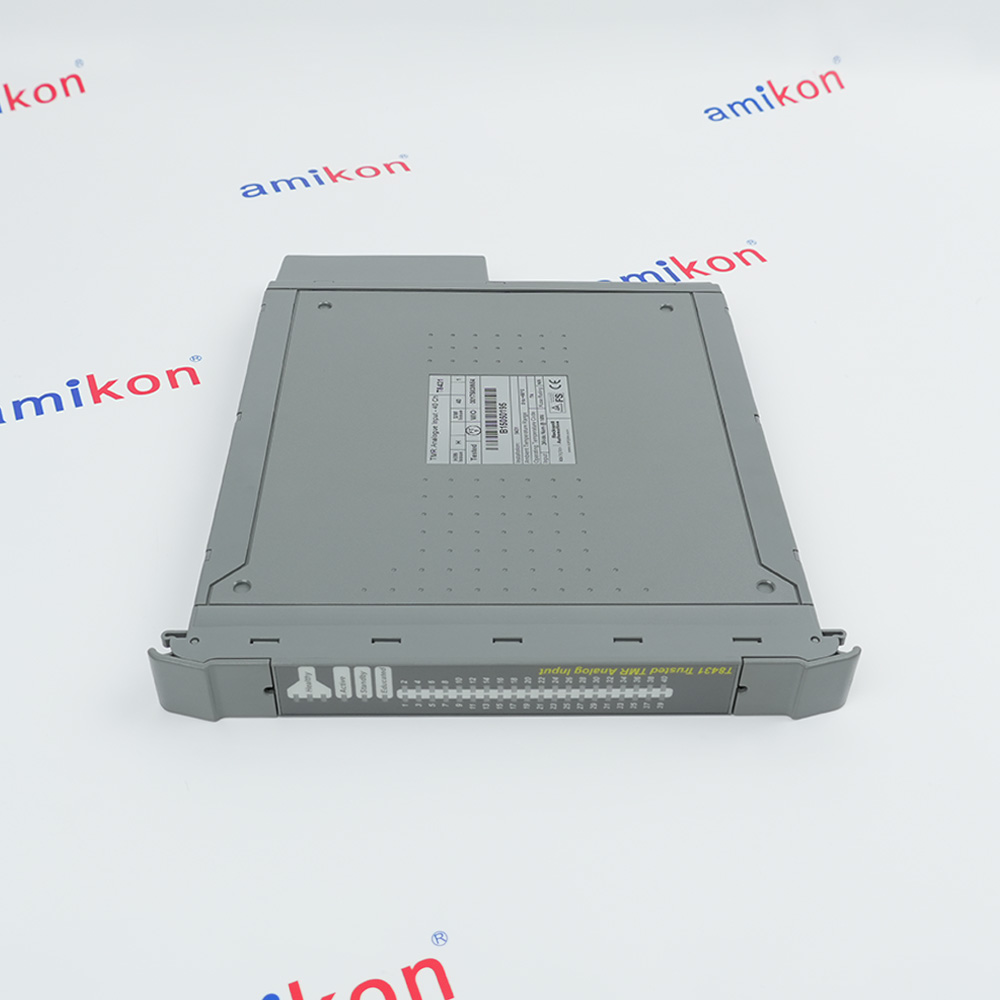

ICS Triplex T8431 is a Trusted TMR analog input module that receives signals from forty sourcing field devices. Each channel uses three independent processing paths, with diagnostic testing and configurable line monitoring to identify input faults and field-wiring problems.
Line monitoring can detect open and shorted field wiring when each channel is appropriately configured. State changes generate event records with one-millisecond resolution, while configurable voltage thresholds and front-panel indicators support channel status reporting and fault investigation.
Line monitoring can detect open and shorted field wiring when each channel is appropriately configured. State changes generate event records with one-millisecond resolution, while configurable voltage thresholds and front-panel indicators support channel status reporting and fault investigation.
BEFORE YOU BUY
Confirm the complete TMR analog input module
ACTUAL APPLICATIONS
Where T8431 Fits Across Major Industrial Operating Areas
Typical uses span oil, chemical and power facilities, subject to compatible field signals and the approved safety configuration.
-
01 · OIL & GAS
Oil Production, Gas Processing and Petroleum Refining
Wellhead facilities and offshore platforms supporting oil production operations.Gas processing plants and petroleum refineries handling hydrocarbon products. -
02 · CHEMICAL & PETROCHEMICAL
Chemical Processing and Continuous Petrochemical Manufacturing Facilities
Chemical reactors and distillation units in continuous manufacturing plants.Mixing vessels and processing equipment supporting specialty chemical production. -
03 · POWER GENERATION
Thermal Power Generation and Industrial Energy Production
Boilers and steam turbines at conventional thermal power plants.Gas turbine generating units supplying electricity for industrial facilities.
Technical specifications for T8431
-
Product ModelT8431
-
Product ParametersTMR analog input module
-
In stock1 unit
-
ManufacturerICS Triplex
-
Input channels40 TMR analog inputs
-
Backplane supply20 to 32 V DC
-
Maximum power dissipation20 W
-
Input current range0 to 22 mA
-
Input voltage range0 to 5.5 V DC
-
FTA input impedance250 ohms
-
Module input impedance16.967 kohms; effective impedance halves with partner modules
-
Input resolution3.906 microamps per LSB
-
Safety accuracy+/-200 microamps
-
SOE event resolution1 ms
-
SOE timestamp accuracy+/-10 ms
-
Channel-to-channel isolationNone
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Humidity10 to 95%, non-condensing
View all additional
Alternative Names
T8431
ICS Triplex TMR analog input module
Trusted safety and control systems TMR analog input module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Match T8431 to the installed Trusted safety and control systems
T8431 belongs to the Trusted TMR I/O architecture and occupies an I/O module slot in a T8100 or T8300 chassis. Its forty inputs receive sourcing field-device signals; an FTA or VFTA and the appropriate field cable form part of the installed interface.
Configure the input variables, chassis and slot assignment, thresholds, noise filtering and LED modes through the Trusted engineering tools. The TMR processor configures the module from the application and System.INI data; there is no physical module configuration switch to set.
Select field cables and terminations from ICSTT-RM311 or ICSTT-RM313 and follow the T8431 installation instructions. Check static handling, connector condition and cable keying. Intrinsically safe circuits require external barriers; channel-to-channel isolation is not provided.
Features:
- T8100 or T8300 I/O-slot installation
- FTA and cable selection are part of compatibility
- Thresholds and filtering configured in engineering tools
The ICS Triplex T8431 requires documented system integration before energising the equipment.
REPLACEMENT CONTROL
Verify the complete T8431 identity before exchange
Match the T8431 designation, supplied hardware revision, termination assembly and installed channel configuration before replacement. A T8431C listing or another forty-channel module is not treated as an unconditional substitute solely because its description looks similar.
The official manual supports Companion Slot and SmartSlot replacement arrangements. Validate the configured spare arrangement and follow the controlled active/standby procedure so that the required system safety and availability are maintained.
The reviewed official T8431 manual does not establish an exact-order discontinuation date or an unconditional successor. Publication revision Q and PD-T8431 Issue 19 identify the document, not the hardware revision of the offered unit.
Features:
- Check full module and termination identity
- Use the documented spare-slot procedure
- Do not infer hardware revision from a manual issue
The ICS Triplex T8431 requires documented replacement verification before energising the equipment.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and the manufacturer-hosted manual are listed here. Confirm document applicability; accessories and additional documents are included only when expressly listed in the quotation.Features:
- Technical data prepared for T8431
- Product family: Trusted safety and control systems
- Exact ICS Triplex identity required before service
Documentation for ICS Triplex T8431 must match the installed equipment and complete product identity; confirm document applicability before service.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size39.0 × 31.0 × 9.0 cm
-
Shipping weight1.70 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8431
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is the T8431 and how many analog channels does it provide?
T8431 is a Trusted TMR analog input module with 40 channels. It acts as a current sink for sourcing field devices; it is not a field termination assembly or a complete safety controller. -
What input range and resolution should be configured for T8431?
The official specification lists 0 to 22 mA, 0 to 5.5 V DC and 3.906 microamps per LSB. Configure scaling and thresholds for the actual field device and termination arrangement rather than copying another input module configuration. -
Which chassis and field cables are compatible with T8431?
The module uses an I/O module slot in a T8100 or T8300 chassis. Select the compatible FTA or VFTA and Companion Slot or SmartSlot cable using the manufacturer cable manuals ICSTT-RM311 and ICSTT-RM313. -
Can T8431 detect an open or shorted field circuit?
Yes. Line monitoring can be configured independently for each channel. Diagnostic behavior depends on the selected channel thresholds, wiring and field termination configuration. -
Can T8431 be used for emergency-shutdown process measurements?
Trusted is documented for emergency-shutdown applications. T8431 can provide the analog input stage for suitable sourcing transmitters in that architecture, but the complete safety function, signal conditioning and proof-test arrangements must be engineered and validated. -
What should be checked before installing a T8431?
Inspect the housing and connector pins, observe static-handling precautions and verify the field cable is correctly located and keyed. Do not force the module into the chassis or install a unit with bent connector pins; follow the official installation procedure. -
Is T8431 intrinsically safe without an external barrier?
No. The module specification states that external barriers are required for intrinsically safe field circuits. Its internal isolation must not be treated as an intrinsic-safety barrier. -
Can a T8431 be replaced while the system is operating?
The manufacturer describes online replacement using a correctly configured Companion Slot or SmartSlot arrangement. Confirm the installed arrangement and follow the controlled replacement procedure; a hot-replacement feature is not permission to remove an active module without the required checks.
