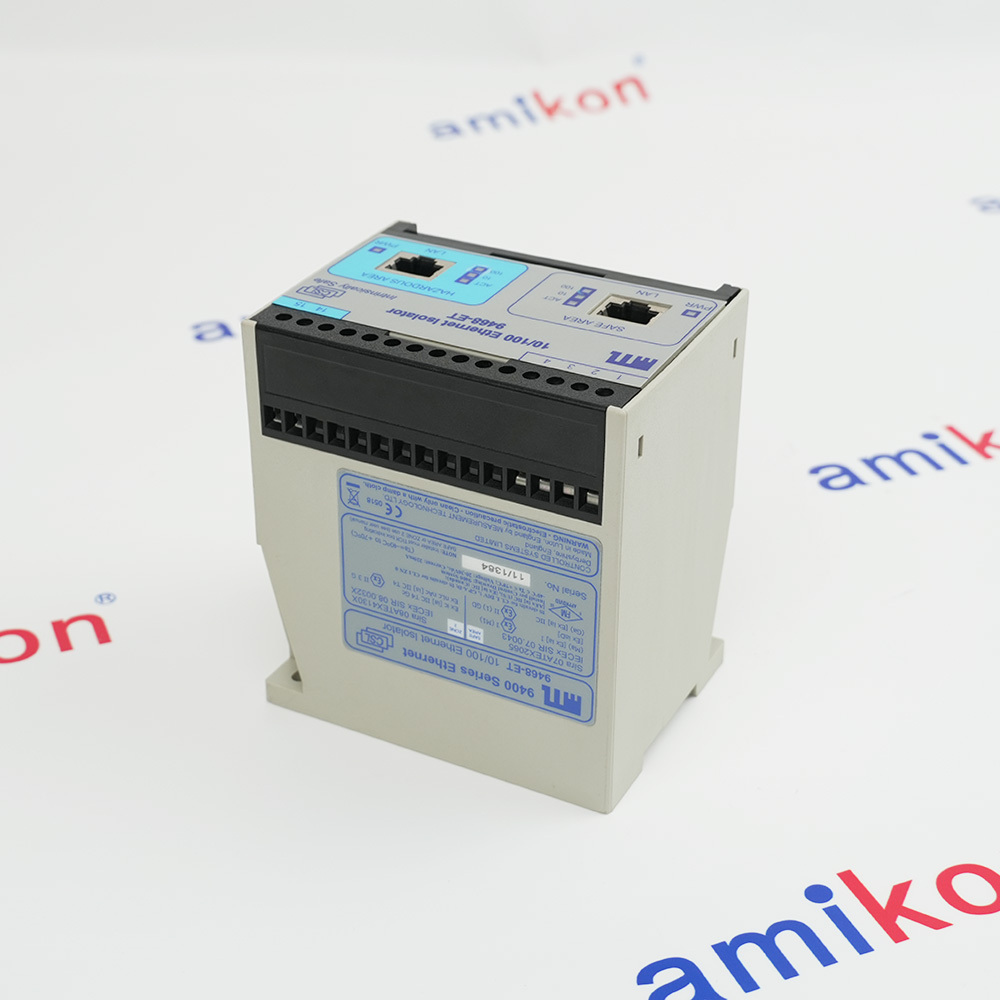

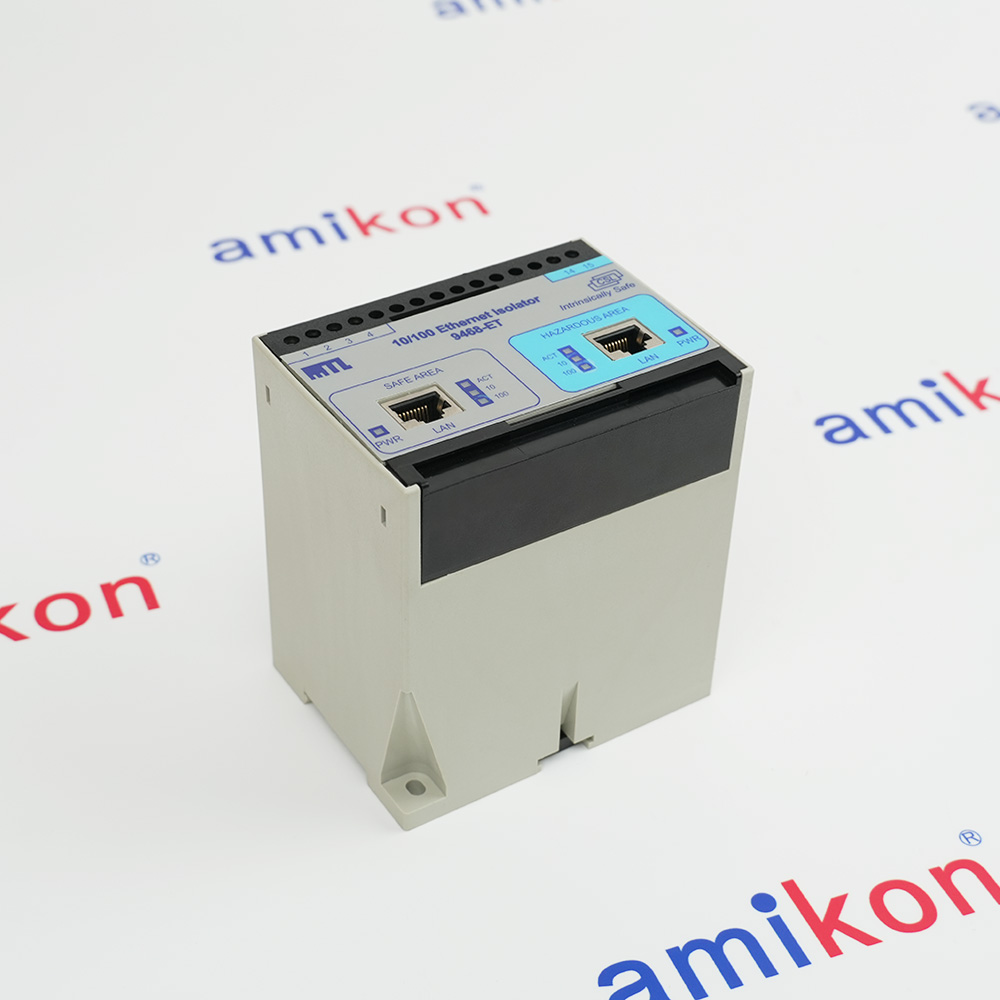

9468-ET
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product image is representative; revision or series may vary. Contact us to request a specific version.
Product Information
Product Describe
Zone 2 mountable for connections toZone 0 and 1
Galvanically isolated RJ45 ports
Transparent operation
Compact alternative solution to
fibreoptics and media converters
ATEX / IECEx certified
FM / FMC approved
Wide temp. range –40°C to +70°C
Single 20–30V DC power supply
Status LEDs to show activity
Galvanically isolated RJ45 ports
Transparent operation
Compact alternative solution to
fibreoptics and media converters
ATEX / IECEx certified
FM / FMC approved
Wide temp. range –40°C to +70°C
Single 20–30V DC power supply
Status LEDs to show activity
Technical specifications for 9468-ET
-
Product Model9468-ET
-
Product ParametersPOEX INTRINSICALLY SAFE ETHERNET
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size10x11x7.5cm
-
ManufacturerMTL Insturments Group
-
Weight0.3 kg
-
Input voltage24V DC (20–30V)
-
Input current220mA
-
Input protectionFuse + supply reversal diode
-
GENERAL PURPOSE ETHERNET10/100 base T
-
IS ETHERNETIntrinsically Safe 10/100 base T
-
Operating–40°C to +70°C
-
Storage–40°C to +70°C
-
Relative Humidity5 to 95% RH (non-condensing)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the primary purpose of the 9468-ET?+It serves as a 10/100Mbps Ethernet isolator (barrier) that allows safe area/Zone 2 equipment to connect to devices in hazardous zones (Zones 0, 1, or 2). It is a compact alternative to fiber optics when using Cat5e cables.
-
What is the MTL9468-ET ?+The MTL9468-ET Ethernet Isolator is a device designed to connect safe area or Zone 2 Ethernet devices to intrinsically safe 9400-series Ethernet networking products in hazardous areas.
-
What are the power requirements?+The module requires a single 20–30V DC power supply, with a consumption of approximately 220mA.
-
How is it mounted?+It is designed for DIN rail mounting.
Get a quick price fo 9468-ET
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation
Features:
- Zone 2 mountable for connections toZone 0 and 1
- Galvanically isolated RJ45 ports
- Transparent operation
- Compact alternative solution to fibreoptics and media converters
- ATEX / IECEx certified
- FM / FMC approved
The 9468-ET is designed for Zone 2 hazardous-area mountinginside a suitable enclosure and has intrinsically safe ATEX andIECEx approvals, together with IS approval for USA and Canada. FMDivision 2 mounting approval is pending. The ATEX and IECExapprovals cover both surface industry and mining applications.
The 9468-ET MTL Intrinsically Safe EthernetIsolator may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
MTL 9468-ET Intrinsically Safe EthernetIsolator Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
10/100Mb Ethernet twisted pair (Cat5e) RJ45 connections (100metreslength max.). These RJ45 ports provide total galvanic isolation(Um=253Vac) from safe to hazardous areas.
The module operates from a single supply in the Safe Area of20…30Vdc at approx. 220mA.Transparent operation - 10/100Mbps, Full/Half Duplex with AutoNegotiation. Supports IEEE 802.3: 10Base-T and 100Base-TX.The module is supplied as a DIN-rail mounting device.
- Petrochemical Refineries & Gas Plants:Bridges safe-area controls with field instruments on columns/skids
- Pharmaceutical & Chemical Factories:Batch processing: reactors & tanks handling volatile chemicals/solvents
- Surface & Underground Mining:M1 certified for coal faces & underground systems with explosive dust
- Distilleries & Grain Handling:Safe networking for fine powders/high-proof alcohols (explosive dust/vapor)
- Wastewater Treatment Facilities:Methane-prone areas: digester tanks & pump stations
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The module "snap-fits" onto standard 35mm DIN rail (TS35). Alternatively, it can be flat-panel mounted using two M3.5 screws.Enclosure: For Zone 2 mounting, it must be placed inside an enclosure providing at least IP6x protection (dust-tight).Clearance: Ensure adequate height off the rail—approximately 106mm—to accommodate connectors.Labeling: After installation, use an indelible marker to tick the appropriate box on the product label indicating if it is mounted in a "Safe Area" or "Zone 2".
