- 3RT6025-1AN20
In Stock
Ships by Sunday, August 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3RT6025-1AN20
-
Product Model3RT6025-1AN20
-
Spare ModelNot available
-
Product ParametersSIRIUS 3RT6 power contactor, 17 A AC-3 at 400 V, 7.5 kW, 220 V AC coil, 3-pole, size S0
-
Tariff CodeNot available
-
Country of originNot available
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping SizeNot available
-
ManufacturerSiemens
-
Weight0.39 kg
-
Product brandSIRIUS
-
Product designationPower contactor
-
Product type3RT6
-
Contactor sizeS0
-
Auxiliary switchYes
-
AC-3 current at 400 V17 A
-
AC-3 power at 400 V7.5 kW
-
Control supply220 V AC, 50/60 Hz
-
Main poles3
-
Main NO contacts3
-
Auxiliary NO contacts1
-
Auxiliary NC contacts1
-
Rated insulation voltage690 V
-
Rated surge withstand6 kV
-
Mechanical service life10,000,000 operating cycles
-
Operating temperature-25 to +60 C
-
Mounting methodScrew or 35 mm DIN rail
-
Front protectionIP20
Description

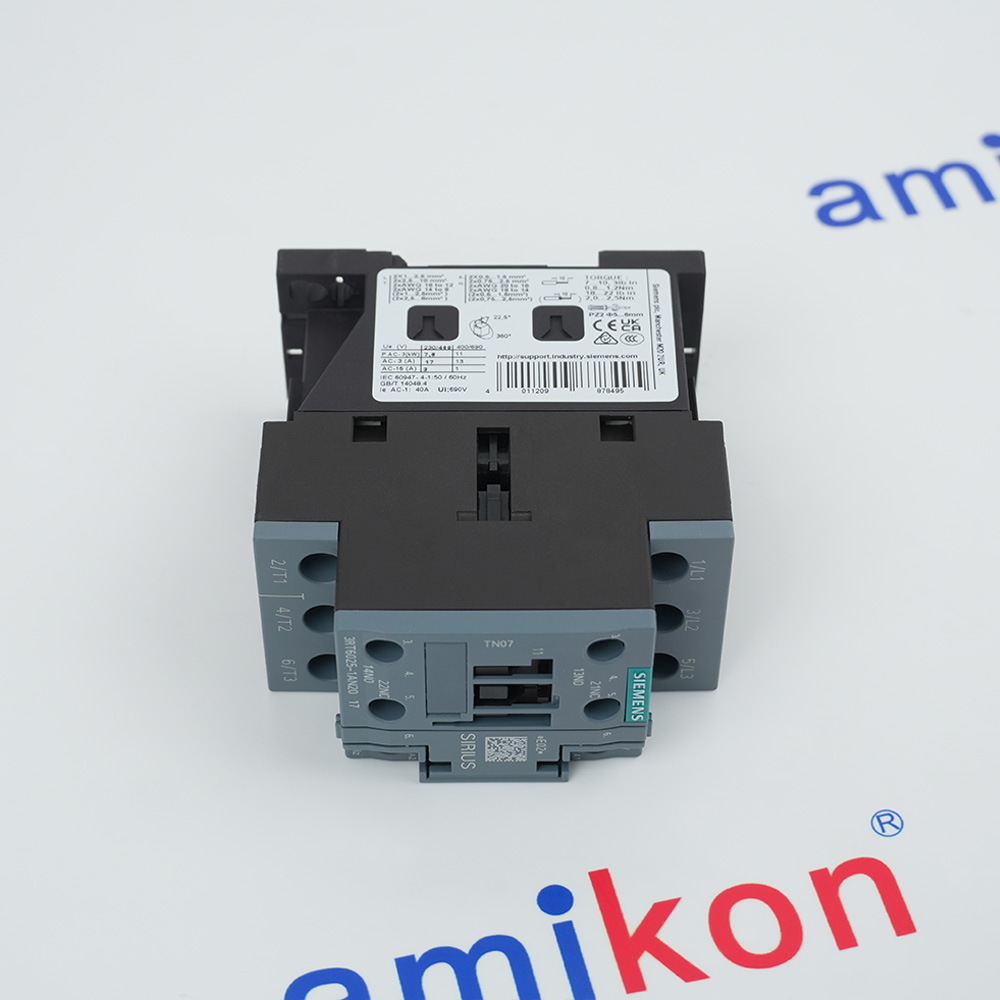

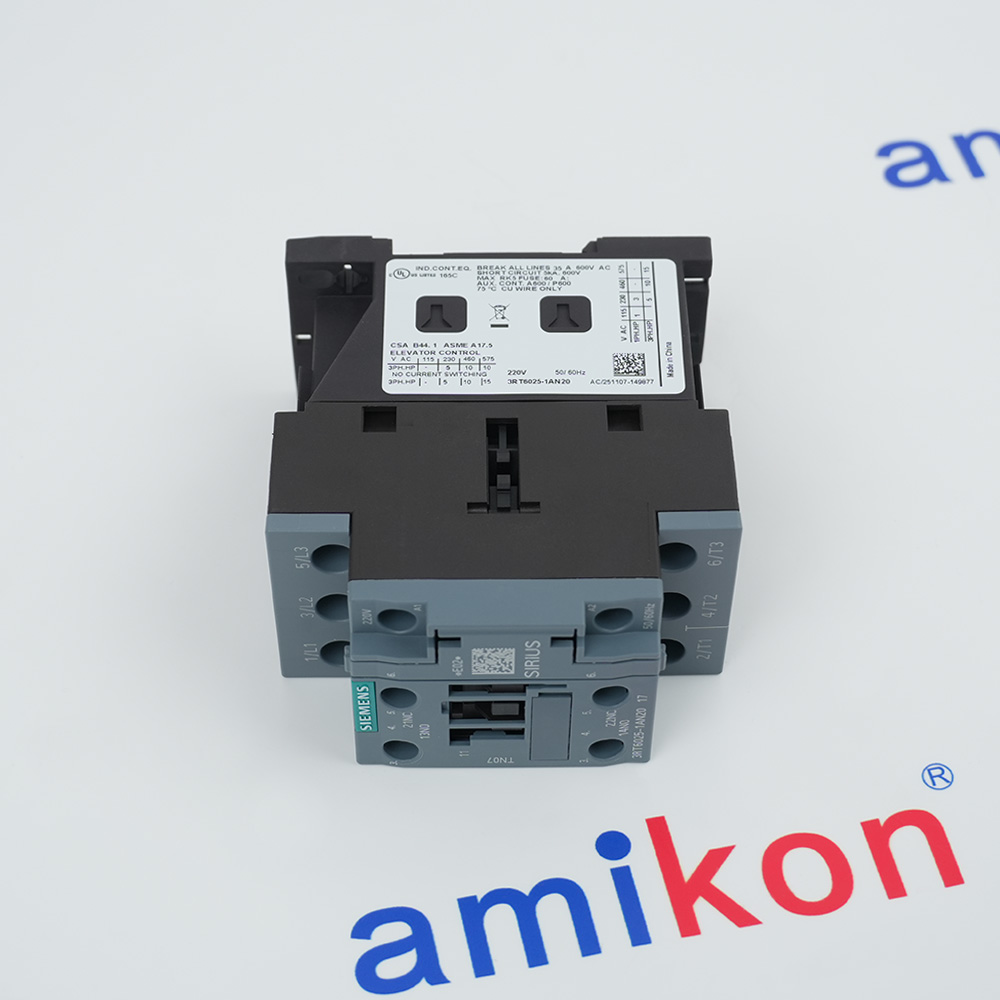

Siemens 3RT6025-1AN20 is a SIRIUS 3RT6 power contactor in size S0 with screw terminals.
It is rated at 17 A AC-3 and 7.5 kW at 400 V.
The control coil uses 220 V AC at 50 or 60 Hz.
The contact arrangement includes three main NO contacts, one auxiliary NO contact and one auxiliary NC contact.
The rated insulation voltage is 690 V, the surge withstand is 6 kV, and the typical mechanical service life is 10,000,000 operating cycles.
Verify the coil supply, motor duty, contact arrangement, mounting, upstream protection and conductor sizes before replacement. AMIKONG can assist with checking availability of the exact article.
Information
Product Information
Key Features
Applications
Engineering & Compatibility
Lifecycle & Replacement
Siemens 3RT6025-1AN20 is a SIRIUS 3RT6 power contactor.
The contactor is size S0 with screw terminals.
Its AC-3 rating at 400 V is 17 A and 7.5 kW.
The control supply is 220 V AC at 50 or 60 Hz.
It has three main NO contacts, one auxiliary NO contact and one auxiliary NC contact.
The front protection is IP20 and mounting is by screws or a 35 mm DIN rail.
SIRIUS 3RT6 power contactor.
Size S0 construction.
17 A AC-3 at 400 V.
7.5 kW AC-3 at 400 V.
220 V AC 50/60 Hz coil.
Three main NO plus one auxiliary NO and one auxiliary NC contact.
Screw terminals with IP20 front protection.
Starting and stopping motors rated within the verified AC-3 values.
Three-phase motor-control circuits using three main NO contacts.
Control circuits requiring one auxiliary NO and one auxiliary NC contact.
Panels using a 220 V AC 50/60 Hz contactor coil.
S0 motor-starter assemblies with screw or 35 mm DIN-rail mounting.
Confirm that the exact article is 3RT6025-1AN20 and the required product type is SIRIUS 3RT6.
Verify the 220 V AC 50/60 Hz control supply and coil wiring.
Match the 17 A and 7.5 kW AC-3 ratings at 400 V to the motor duty.
Confirm the three main NO, one auxiliary NO and one auxiliary NC contact arrangement.
Select upstream short-circuit protection and conductor sizes according to the verified circuit design.
Confirm the S0 fit, 45 x 85 x 97 mm device size and screw-terminal access.
Use screw mounting or a 35 mm DIN rail and provide an IP20 cabinet environment.
Review interlocking, overload protection and current Siemens documentation before commissioning.
The exact Siemens technical record identifies 3RT6025-1AN20 as a SIRIUS 3RT6 power contactor.
A manufacturer-designated successor has not been verified from the exact technical record used for this page.
A different 3RT article must not be treated as an automatic direct replacement.
The coil voltage, AC-3 rating, contact arrangement, size and terminals must all match.
Upstream protection, overload relay, conductor sizes and mounting must be rechecked for any replacement.
AMIKONG can assist with locating available exact units and reviewing candidate replacements for the verified motor-control circuit.
Alternative Names
Technical notes
Confirm the exact 3RT6025-1AN20 article, 220 V AC 50/60 Hz control supply, 17 A AC-3 current at 400 V, 7.5 kW motor rating, three main NO poles, one auxiliary NO and one auxiliary NC contact, S0 mechanical fit, screw terminals, 35 mm DIN-rail or screw mounting, upstream short-circuit protection, conductor sizes and IP20 enclosure before installation or replacement.
FAQs
-
What is Siemens 3RT6025-1AN20?
+It is a SIRIUS 3RT6 power contactor in size S0 with screw terminals. -
What is the AC-3 motor rating at 400 V?
+Siemens specifies 17 A AC-3 and 7.5 kW at 400 V. -
What control-coil supply is required?
+The magnet coil requires 220 V AC at 50 or 60 Hz. -
How are the main and auxiliary contacts configured?
+It has three main NO contacts, one auxiliary NO contact and one auxiliary NC contact. -
What are the insulation and surge ratings?
+The rated insulation voltage is 690 V and the rated surge withstand is 6 kV. -
How can the contactor be mounted?
+It supports screw mounting or snap-on mounting to a 35 mm DIN rail. -
What are the device dimensions and net weight?
+The device dimensions are 45 x 85 x 97 mm and the exact Siemens technical record gives a net weight of 0.39 kg. -
What must be checked before replacement or installation?
+Confirm the article, coil supply, AC-3 current and power, contact configuration, S0 fit, terminals, mounting, upstream protection, conductor sizes and IP20 enclosure.
