PRODUCT DESCRIPTION

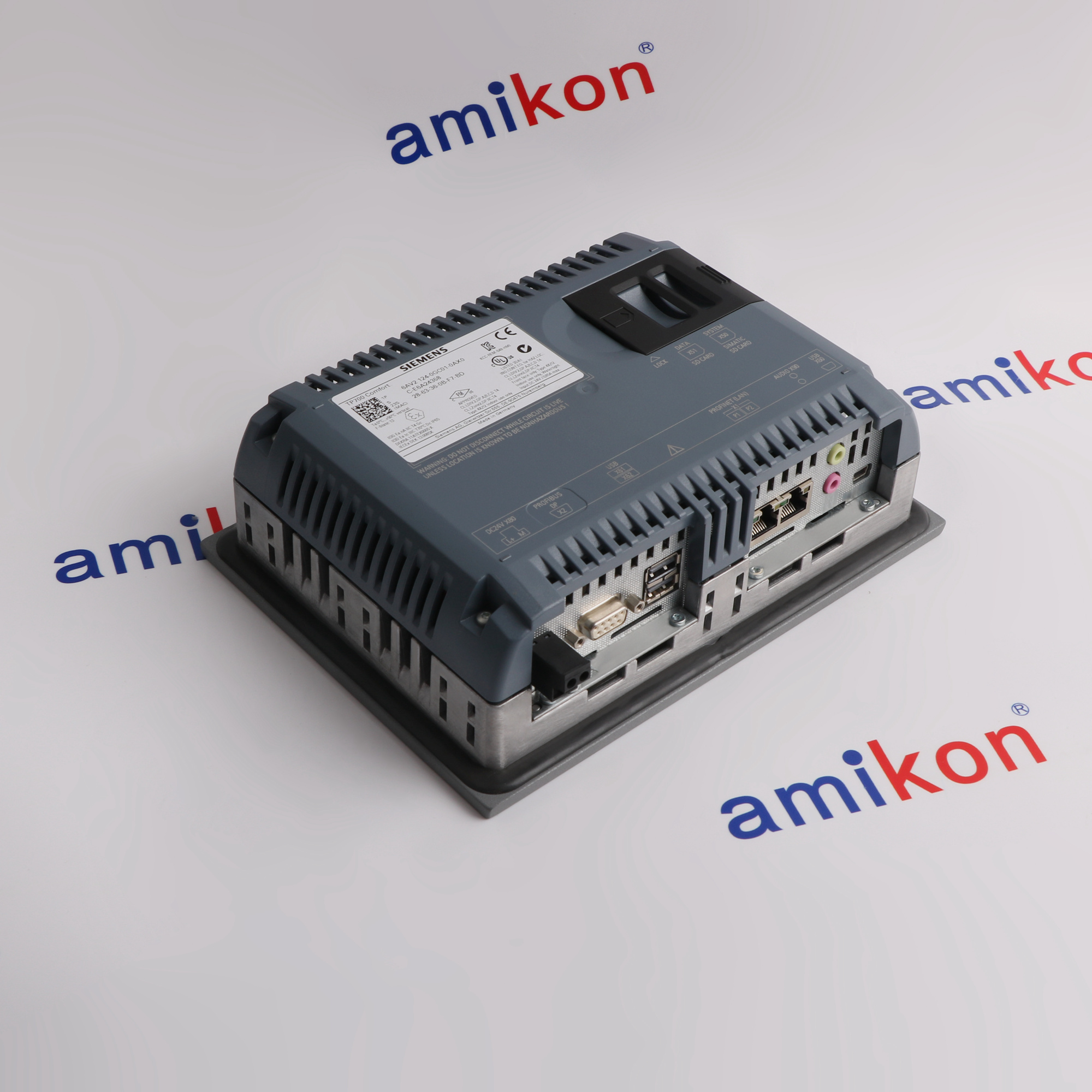

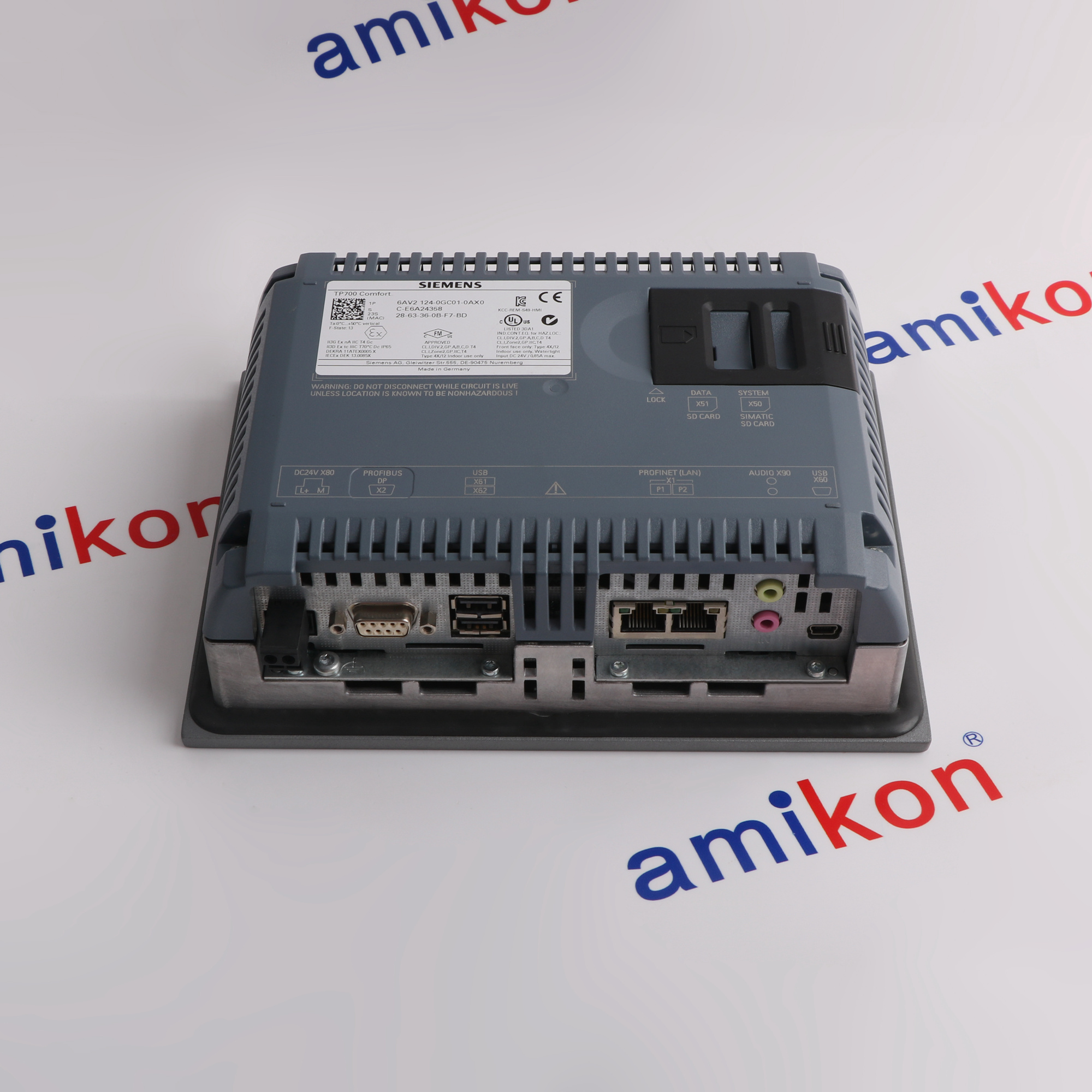

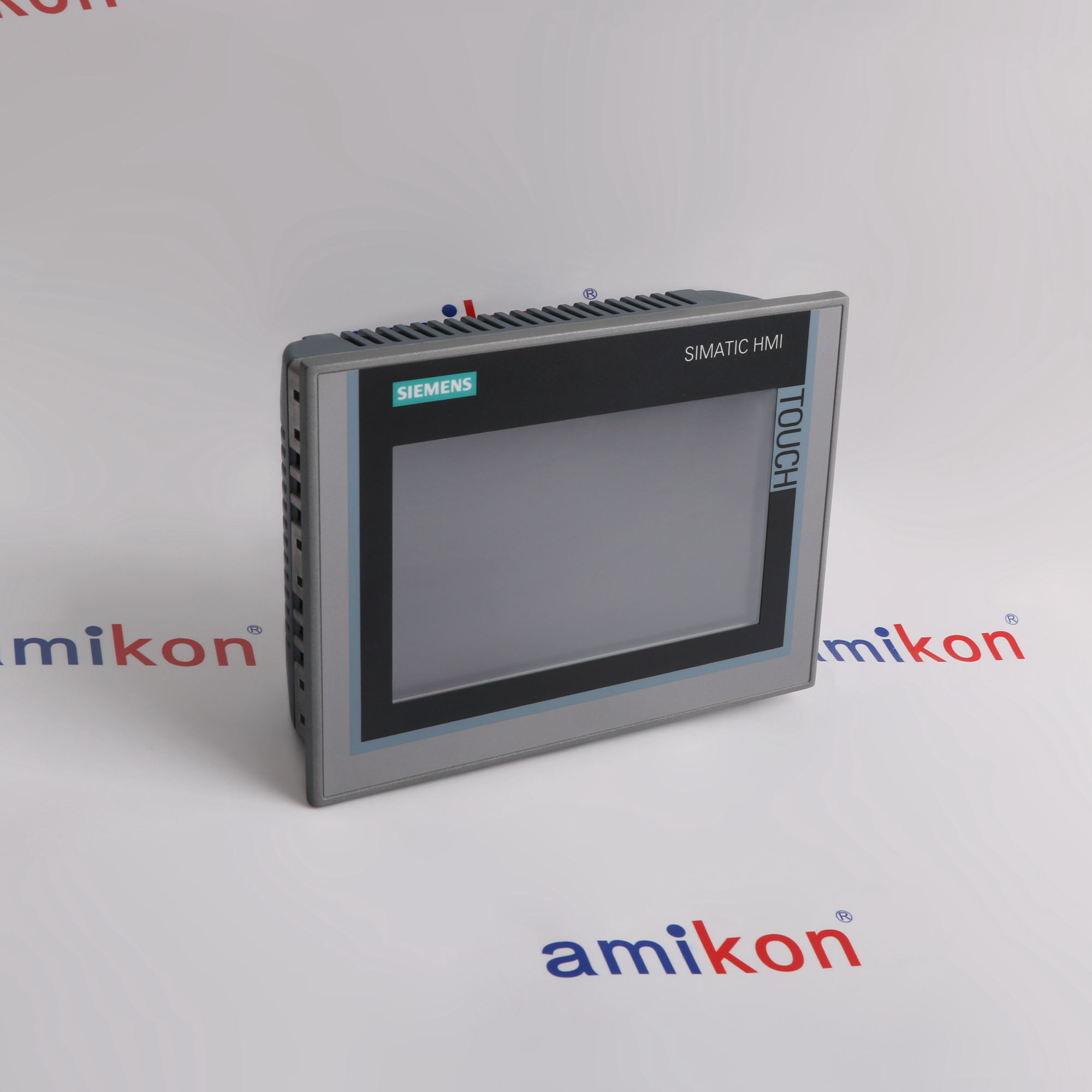

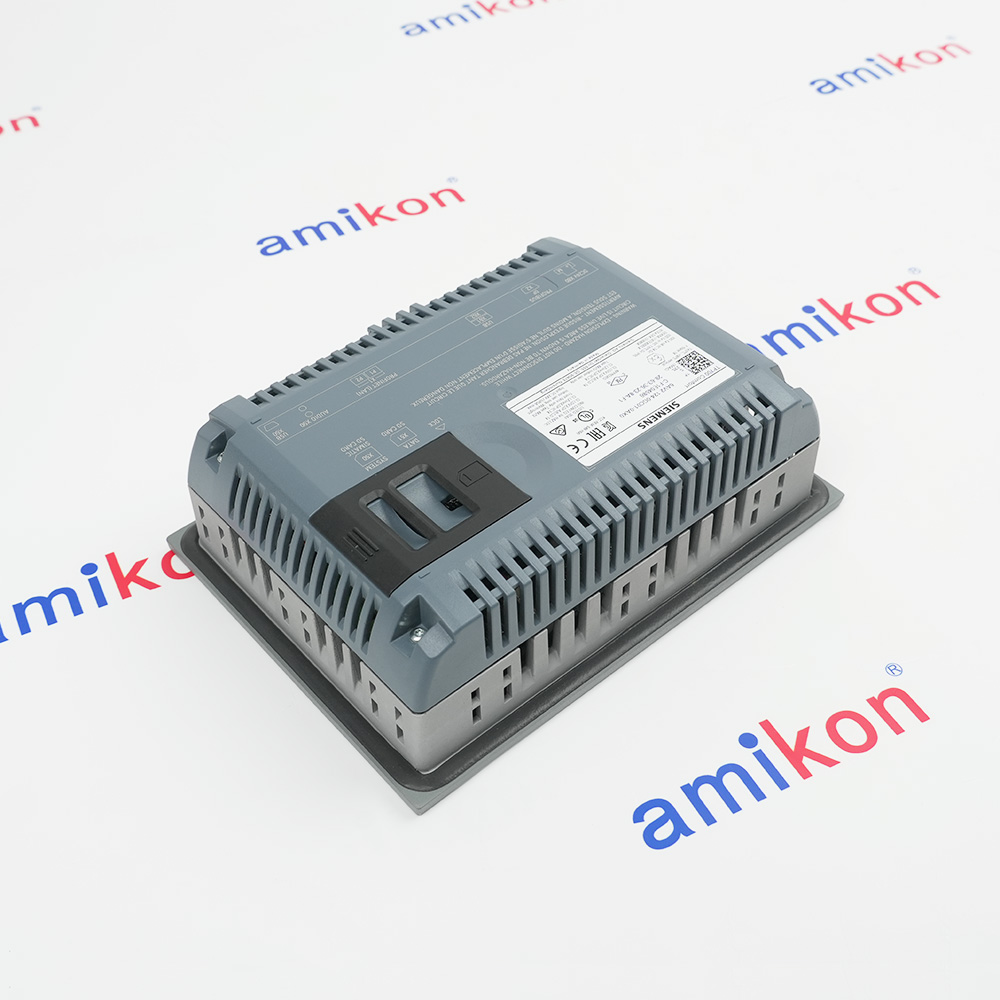

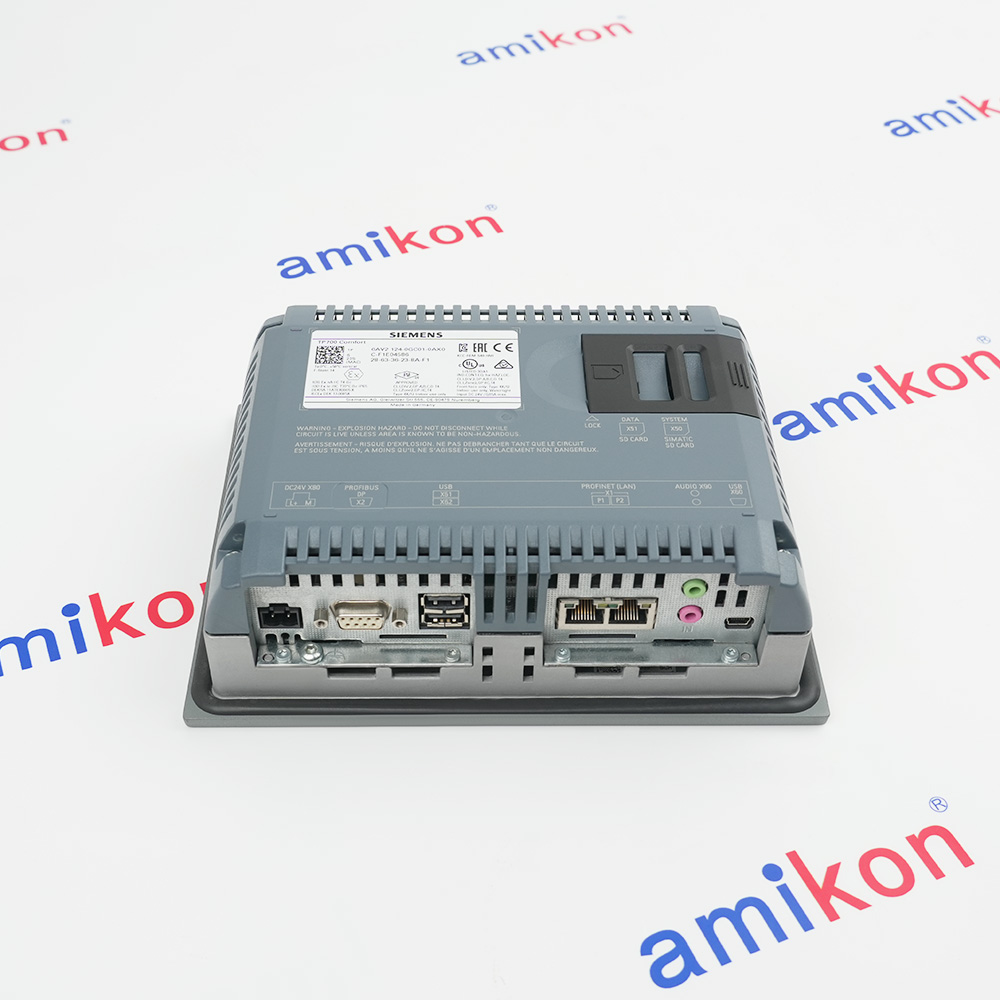

6AV2124-0GC01-0AX0 TP700 Comfort touch operator panel
Siemens 6AV2124-0GC01-0AX0 is the SIMATIC HMI TP700 Comfort touch operator panel. It belongs to the Comfort Panels range and provides machine-level operator control and process visualization for compatible industrial automation projects.
The panel combines a 7-inch widescreen TFT display with analog-resistive touch input, 800 × 480 resolution and 16 million colors. PROFINET and MPI/PROFIBUS DP interfaces connect it to compatible controllers, while USB and memory-card interfaces support project handling. It provides 12 MB configuration memory, runs Windows CE 6.0 and is configurable from WinCC Comfort V11.
The panel combines a 7-inch widescreen TFT display with analog-resistive touch input, 800 × 480 resolution and 16 million colors. PROFINET and MPI/PROFIBUS DP interfaces connect it to compatible controllers, while USB and memory-card interfaces support project handling. It provides 12 MB configuration memory, runs Windows CE 6.0 and is configurable from WinCC Comfort V11.
BEFORE YOU BUY
Confirm the complete tp700 comfort touch operator panel
ACTUAL APPLICATIONS
Application context for 6AV2124-0GC01-0AX0
6AV2124-0GC01-0AX0 is a TP700 Comfort touch panel for machine-level operation and process visualization. Its configurable HMI supports industrial manufacturing, packaging and food production. Application suitability depends on the controller connection, WinCC project and operating environment.
-
01 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Production Process Automation
Discrete Manufacturing Process AutomationIndustrial Production Line Operation -
02 · PACKAGING
Packaging Production and Material Handling Automation
Automated Packaging Process OperationPackaging Material Production Automation -
03 · FOOD & BEVERAGE
Food and Beverage Production Process Automation
Food Production Process OperationBeverage Manufacturing Process Automation
Technical specifications for 6AV2124-0GC01-0AX0
-
Product Model6AV2124-0GC01-0AX0
-
Product ParametersTP700 Comfort touch operator panel
-
In stock3 units
-
ManufacturerSiemens
-
Supply voltage24 V DC; 19.2 to 28.8 V
-
Rated current consumption0.5 A
-
Typical active power12 W
-
Display diagonal7 in
-
Display resolution800 × 480 pixels
-
Display colors16,777,216
-
Active display area152.4 × 91.4 mm
-
Backlight MTBF80,000 h at 25 ℃
-
Backlight dimming0 to 100%
-
Touch technologyAnalog-resistive
-
Touch direct keys32
-
User configuration memory12 MB
-
Industrial Ethernet interface1 interface with 2 switch ports
-
Serial interface1 combined RS422/RS485
-
USB interfaces2 × USB 2.0; 1 × 5-pole Mini-B
View all additional
Alternative Names
6AV2124-0GC01-0AX0
SIMATIC HMI Comfort Panels TP700 Comfort touch operator panel
HMI Comfort Panels 24 V DC; 19.2 to 28.8 V supply voltage
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate 6AV2124-0GC01-0AX0 tp700 comfort touch operator panel
Siemens 6AV2124-0GC01-0AX0 is the SIMATIC HMI TP700 Comfort touch operator panel. It belongs to the Comfort Panels range and provides machine-level operator control and process visualization for compatible industrial automation projects.
Match the documented SIMATIC HMI Comfort Panels configuration, supply, connectors and software before connection. The specified supply is 24 V DC; 19.2 to 28.8 V; preserve the installed addressing and network settings.
Use the applicable SIMATIC HMI Comfort Panels manufacturer instructions for wiring and commissioning. Check communication, diagnostic indications and the configured functions, then retain the accepted configuration and test results.
Features:
- Supply voltage: 24 V DC; 19.2 to 28.8 V
- Rated current consumption: 0.5 A
- Typical active power: 12 W
The 6AV2124-0GC01-0AX0 tp700 comfort touch operator panel requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify 6AV2124-0GC01-0AX0 tp700 comfort touch operator panel
Match the complete 6AV2124-0GC01-0AX0 identity, hardware version and documented SIMATIC HMI Comfort Panels configuration before exchange. Related family designations do not establish interchangeability.
Record the nameplate, connectors, wiring and module position before removal. Back up the applicable project and configuration, and isolate supplies according to the equipment instructions.
Fit the verified article, restore the approved configuration and check every affected communication or signal path. Retain the acceptance record after the documented functional test.
Features:
- Supply voltage: 24 V DC; 19.2 to 28.8 V
- Rated current consumption: 0.5 A
- Typical active power: 12 W
The 6AV2124-0GC01-0AX0 tp700 comfort touch operator panel requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 6AV2124-0GC01-0AX0 tp700 comfort touch operator panel must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size21.4 × 15.8 × 6.3 cm
-
Shipping weight1.40kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6AV2124-0GC01-0AX0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
6AV2124-0GC01-0AX0: What is the specified supply voltage?
6AV2124-0GC01-0AX0: The applicable manufacturer data specify 24 V DC; 19.2 to 28.8 V. -
6AV2124-0GC01-0AX0: What is the specified rated current consumption?
6AV2124-0GC01-0AX0: The applicable manufacturer data specify 0.5 A. -
6AV2124-0GC01-0AX0: What is the specified typical active power?
6AV2124-0GC01-0AX0: The applicable manufacturer data specify 12 W. -
6AV2124-0GC01-0AX0: What is the specified display diagonal?
6AV2124-0GC01-0AX0: The applicable manufacturer data specify 7 in. -
6AV2124-0GC01-0AX0: What is the specified display resolution?
6AV2124-0GC01-0AX0: The applicable manufacturer data specify 800 × 480 pixels. -
6AV2124-0GC01-0AX0: What is the specified display colors?
6AV2124-0GC01-0AX0: The applicable manufacturer data specify 16,777,216. -
What identifies a replacement for 6AV2124-0GC01-0AX0?
Match the complete 6AV2124-0GC01-0AX0 label, connector allocation, hardware version and installed SIMATIC HMI Comfort Panels configuration. -
6AV2124-0GC01-0AX0: What should be checked on receipt?
6AV2124-0GC01-0AX0: Check the complete article label, connectors, housing and supplied condition against the purchase order before installation.
