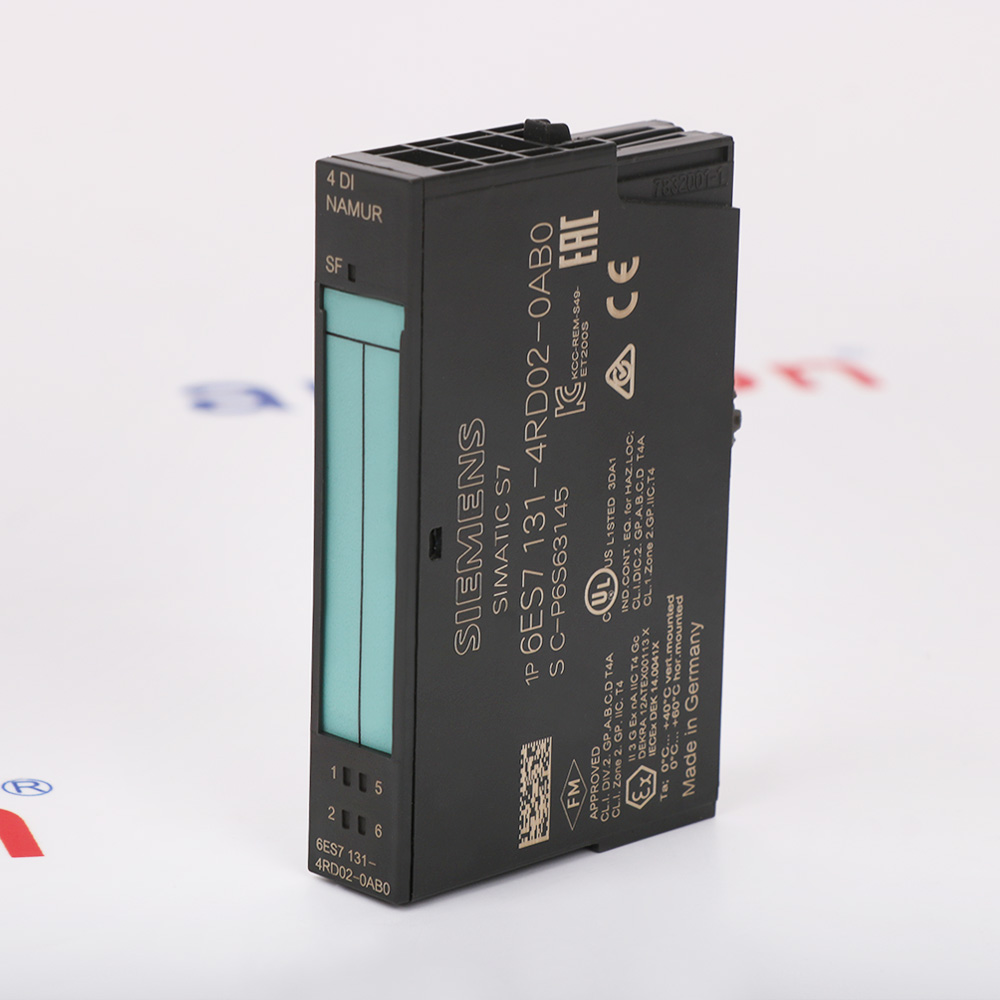

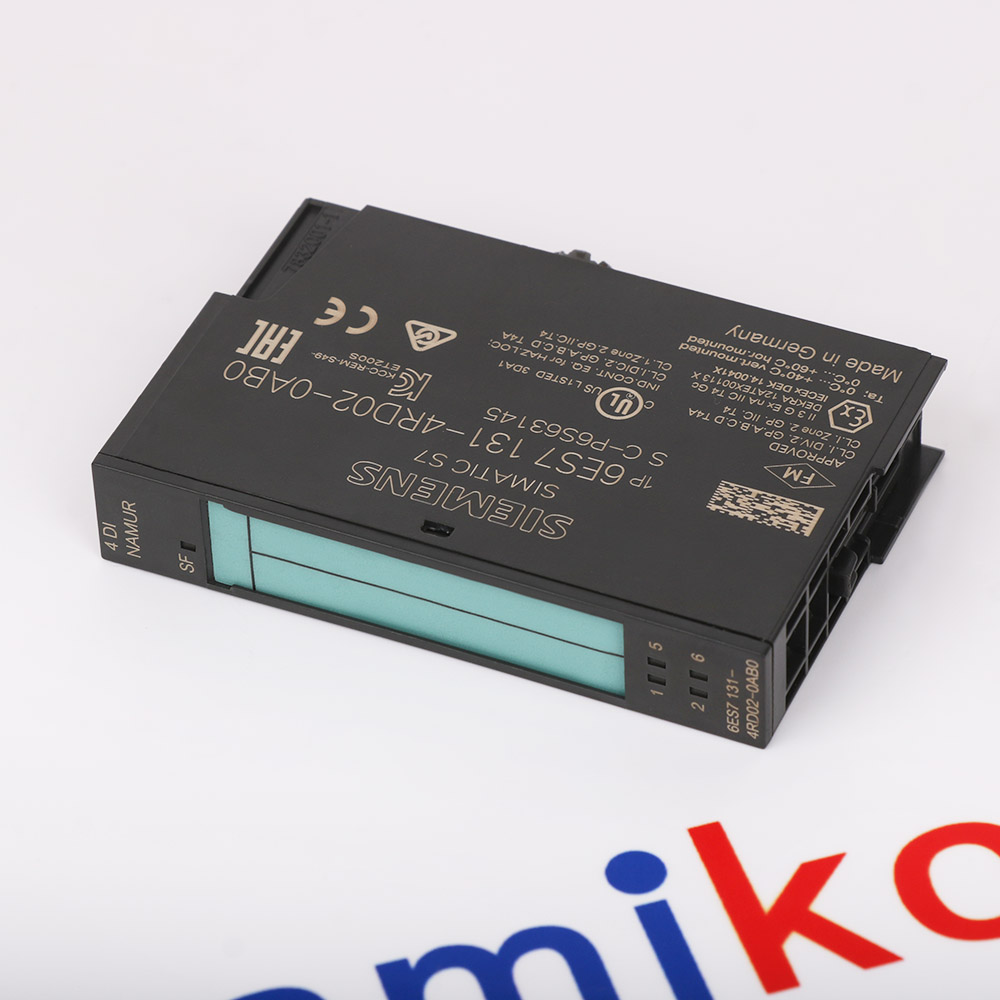

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
Four NAMUR inputs with configurable contact monitoring
Siemens 6ES7131-4RD02-0AB0 is an ET 200S digital electronics module with four inputs for NAMUR sensors and documented mechanical contact arrangements. It provides an 8.2 V DC sensor supply and transfers input signals together with their validity information.
Parameter settings select the sensor type, pulse stretching and chatter monitoring. Diagnostic options cover wiring and sensor-supply conditions within the supported circuit types. Changeover-contact operation uses paired channels and checks their switching relationship rather than treating all four channels as independent contact values.
Parameter settings select the sensor type, pulse stretching and chatter monitoring. Diagnostic options cover wiring and sensor-supply conditions within the supported circuit types. Changeover-contact operation uses paired channels and checks their switching relationship rather than treating all four channels as independent contact values.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7131-4RD02-0AB0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · TEXTILE MANUFACTURING
Textile Material Production and Commercial Fabric Finishing
Fiber processing and yarn manufacturing for industrial textile production.Fabric production and finishing for commercial textile product supply. -
02 · PLASTICS PROCESSING
Plastics Manufacturing for Packaging and Industrial Goods
Extrusion and molding of plastics for manufactured product supply.Processing plastic materials for commercial packaging and industrial goods. -
03 · METALS PRODUCTION
Industrial Metal Rolling and Aluminum Material Production
Industrial metal processing and rolling for commercial material supply.Aluminum sheet manufacturing and finishing for downstream production needs.
Technical specifications for 6ES7131-4RD02-0AB0
-
Product Model6ES7131-4RD02-0AB0
-
Product ParametersET 200S NAMUR Input Module
-
In stock1 unit
-
ManufacturerSiemens
-
Input channels4; changeover contacts use channel pairs
-
Sensor supply voltage8.2 V DC
-
Sensor supply output current45 mA rated
-
Input signal current, NAMURSignal 1: 2.1–7 mA; signal 0: 0.35–1.2 mA
-
Input delayMaximum 4.6 ms for both transitions
-
Shielded cable lengthMaximum 200 m
-
Power dissipationTypically 1.6 W
-
Address space2 bytes, including input value status
-
Parameter length12 bytes
-
Pulse stretchingNone, 0.5 s, 1 s or 2 s
-
Chatter monitoring2–31 signal changes; monitoring window 0.5 s or 1–100 s
-
Changeover contact timeFixed tolerated transition time 300 ms
-
Diagnostic thresholdsShort circuit above 7 mA; wire break below 0.35 mA for applicable sensor types
-
IsolationChannels not mutually isolated; channels isolated from backplane and load voltage
-
Additional sensor supplyRedundant external supply not permitted
View all additional
Alternative Names
6ES7 131-4RD02-0AB0
6ES7131 4RD02 0AB0
6ES7 131 4RD02 0AB0
6ES7 131-4RDO2-OABO
6ES7 I3I-4RD02-0AB0
6ES7-131-4RD02-0AB0
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S NAMUR SIGNALS
Sensor-state acquisition with validity and contact diagnostics
The four inputs serve NAMUR sensors and defined mechanical-contact circuits. The selected sensor type determines the correct resistor arrangement and diagnostic interpretation.
Input signals and their validity states occupy two process-image bytes. The application logic must account for both the state and its validity rather than using an invalid signal as normal process information.
Chatter monitoring and pulse stretching are configurable. Changeover-contact pairs are checked against a fixed 300 ms switching allowance, with paired-channel behavior defined by the manual.
Features:
- NAMUR and contact configurations
- Two-byte signal and validity image
- Chatter and changeover monitoring
The Siemens 6ES7131-4RD02-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Verify the full order number and the installed terminal module. Similar ET200S digital-input housings do not establish compatible sensor voltage or diagnostic behavior.
Record sensor-type parameters, pulse-stretching settings and any paired changeover channels. Preserve the correct circuit resistors and do not add a redundant sensor supply.
After replacement, check SF and channel indicators and validate the reported input quality. Open-contact configurations cannot provide the same fault discrimination as NAMUR circuits.
Features:
- Exact NAMUR identity retained
- Sensor parameters preserved
- Signal-quality checks after fitting
The Siemens 6ES7131-4RD02-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- NAMUR and mechanical-contact terminal diagrams with configuration-specific wiring, sensor-supply limits and paired-contact diagnostics.
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7131-4RD02-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7131-4RD02-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this a standard 24 V digital input module?
No. It is a NAMUR input module with an 8.2 V sensor supply and current thresholds specified for its supported sensor types. -
Can the sensor supply be backed up by an additional supply?
No. The manufacturer explicitly states that an additional redundant sensor supply is not permitted. -
Are all four channels independent when using changeover contacts?
No. Changeover contacts use channel pairs. The normally open channel carries the updated input and validity state; the paired normally closed channel is used for plausibility checking. -
What does value status mean?
A value status of 1 marks a valid input and 0 an invalid input. Wiring checks, chatter monitoring, pulse stretching and changeover-contact checks can influence it. -
Do open contacts provide the same wiring diagnostics as NAMUR sensors?
No. For an open changeover contact, the manual states that signal 0 cannot be distinguished from wire break, or signal 1 from short circuit. -
Can the inputs be connected in parallel?
No. The technical data explicitly disallow parallel input connection. Select and wire each supported sensor arrangement as shown in the original diagrams.
