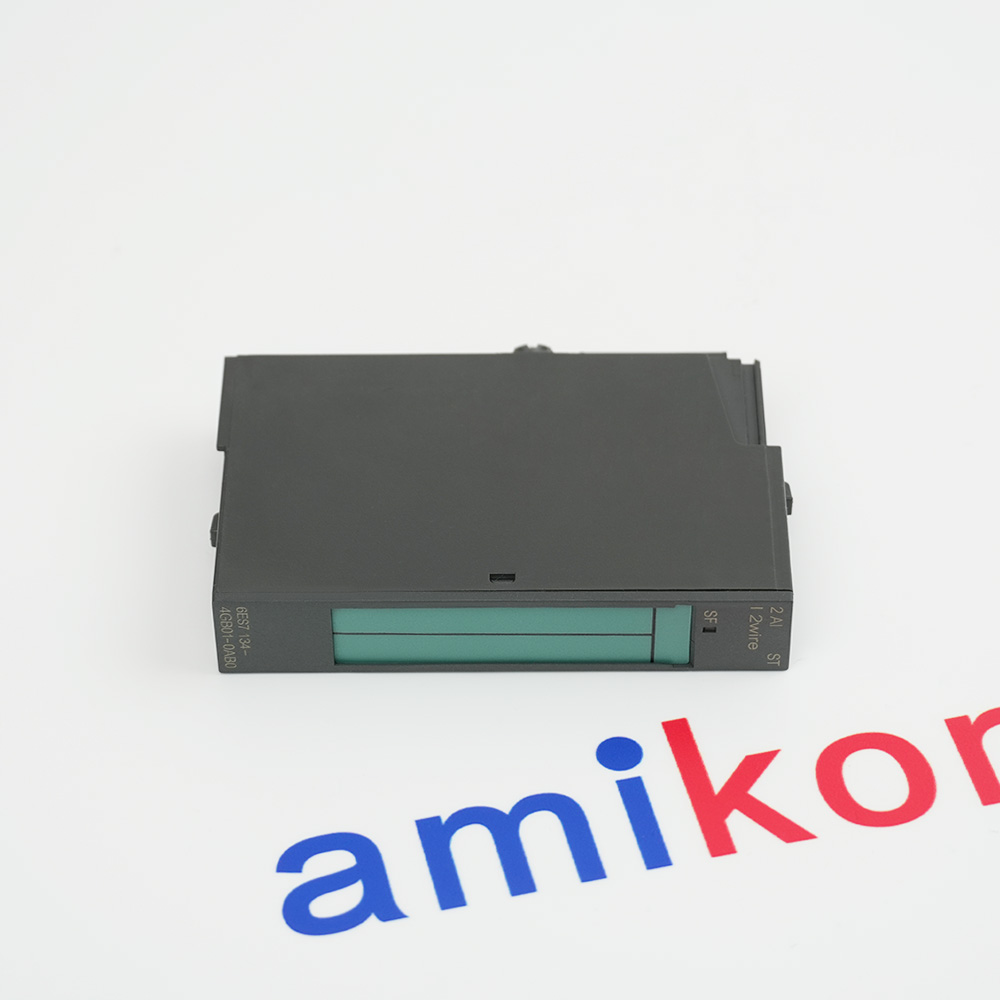

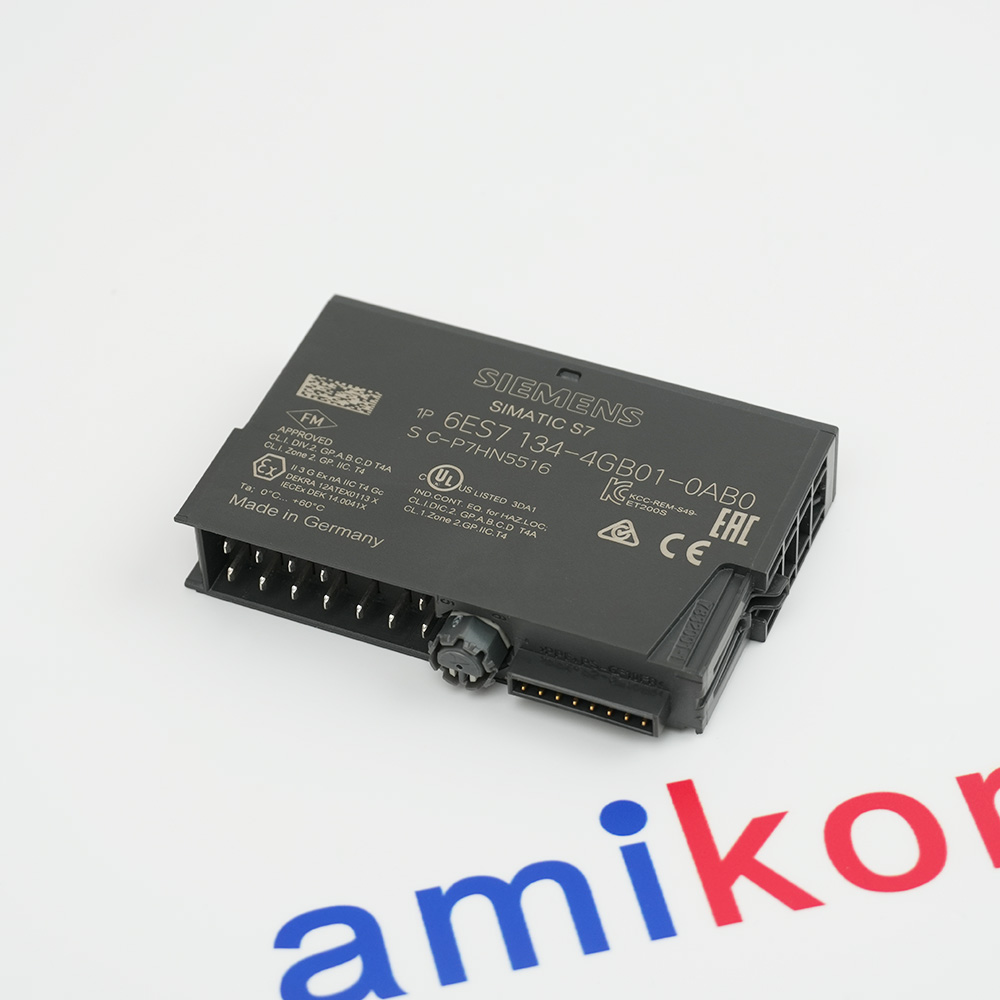

- 6ES7134-4GB01-0AB0
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7134-4GB01-0AB0
-
Product Model6ES7134-4GB01-0AB0
-
Product ParametersAnalog Input Module - 2AI
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.4x5.5x8.3cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Rated value (DC)24 V; From power module
-
Reverse polarity protectionYes; Destruction limit 35 mA per channel
-
from load voltage L+ (without load), max80 mA
-
from backplane bus 3.3 V DC, max.10 mA
-
Power loss, typ.0.6 W
-
Address space per module, max.4 byte
Description
SIMATIC DP
ELECTRONIC MODULE
FOR ET 200S, 2 AI STAND
I-2DMU 15 MM WIDE
4 .. 20MA; 13 BIT FOR
2-WIRETRANSDUCER CYCLE
TIME 65 MS/CHANNEL
WITH LED SF(GROUP FAULT)
ELECTRONIC MODULE
FOR ET 200S, 2 AI STAND
I-2DMU 15 MM WIDE
4 .. 20MA; 13 BIT FOR
2-WIRETRANSDUCER CYCLE
TIME 65 MS/CHANNEL
WITH LED SF(GROUP FAULT)
Information
Overview
Manuals
Technical notes
Product Applications
Hardware Mechanical Installation
Features:
- 2-Channel Analog Current Input for 2-Wire Transducers
- 13-Bit Resolution with 65 ms Cycle Time per Channel
- Compact 15 mm Form Factor for ET 200S
- Integrated Diagnostics with SF LED Group Fault Indication
- Parameterizable Digital Smoothing/Filtering
- Electrical Isolation & Reverse Polarity Protection
The 6ES7134-4GB01-0AB0 Siemens ELECTRONIC MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7134-4GB01-0AB0 ELECTRONIC MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6ES7134-4GB01-0AB0 is distinguished by its ultra-compact 15 mm width, allowing maximum I/O density in ET 200S installations. It draws 24 V DC load voltage from the ET 200S power module and includes reverse polarity protection (destruction limit 35 mA per channel) to safeguard against wiring errors. The module consumes a maximum of 80 mA from the load voltage and 10 mA from the 3.3 V backplane bus, with a typical power loss of only 0.6 W.
- Water and Wastewater Treatment:Pump pressure & chemical dosing levels
- Chemical and Petrochemical Processing:Remote input tracking in certified enclosures
- Marine & Maritime Equipment:ClassNK certified auxiliary monitoring
- Pressure Monitoring:Hydrostatic, differential & pipeline load cells
- Level Measurement:Ultrasonic/radar/guided-wave for chemical/water tanks
- Flow Tracking:Electromagnetic/vortex flow meters
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the Rail: Secure a standard 35mm DIN rail horizontally inside the electrical enclosure.
Slide and Click: Snap the terminal module onto the DIN rail. Slide it laterally to the left until it firmly clicks into the adjoining ET 200S interface or power module to establish the internal backplane bus link.
Insert Electronics: Line up the 6ES7134-4GB01-0AB0 electronic module with the terminal module guide rails. Push straight down until it locks in place.
FAQs
-
What is the current consumption of the 6ES7134-4GB01-0AB0 module itself?
+The maximum current drawn from a 24V load power supply L+ of the 6ES7134-4GB01-0AB0 is approximately 80mA (no load condition). -
What is the maximum input current per channel of the 6ES7134-4GB01-0AB0?
+The maximum damage limit for the 6ES7134-4GB01-0AB0 is approximately 40mA. -
What are the fault/diagnostic indicators for the 6ES7134-4GB01-0AB0?
+The 6ES7134-4GB01-0AB0 module has an SF (Group Fault) LED indicator to display group-level errors (such as open circuits, faults, etc.). -
What type of signals does this module accept?
+It accepts analog current signals, specifically designed for 2-wire transducers in the range of 4 mA to 20 mA -
What is the 6ES7134-4GB01-0AB0？
+The Siemens 6ES7134-4GB01-0AB0 is a SIMATIC DP Electronic Module for the ET 200S distributed I/O system, specifically a 2AI Standard I-2DMU designed for 2-wire transducers.
