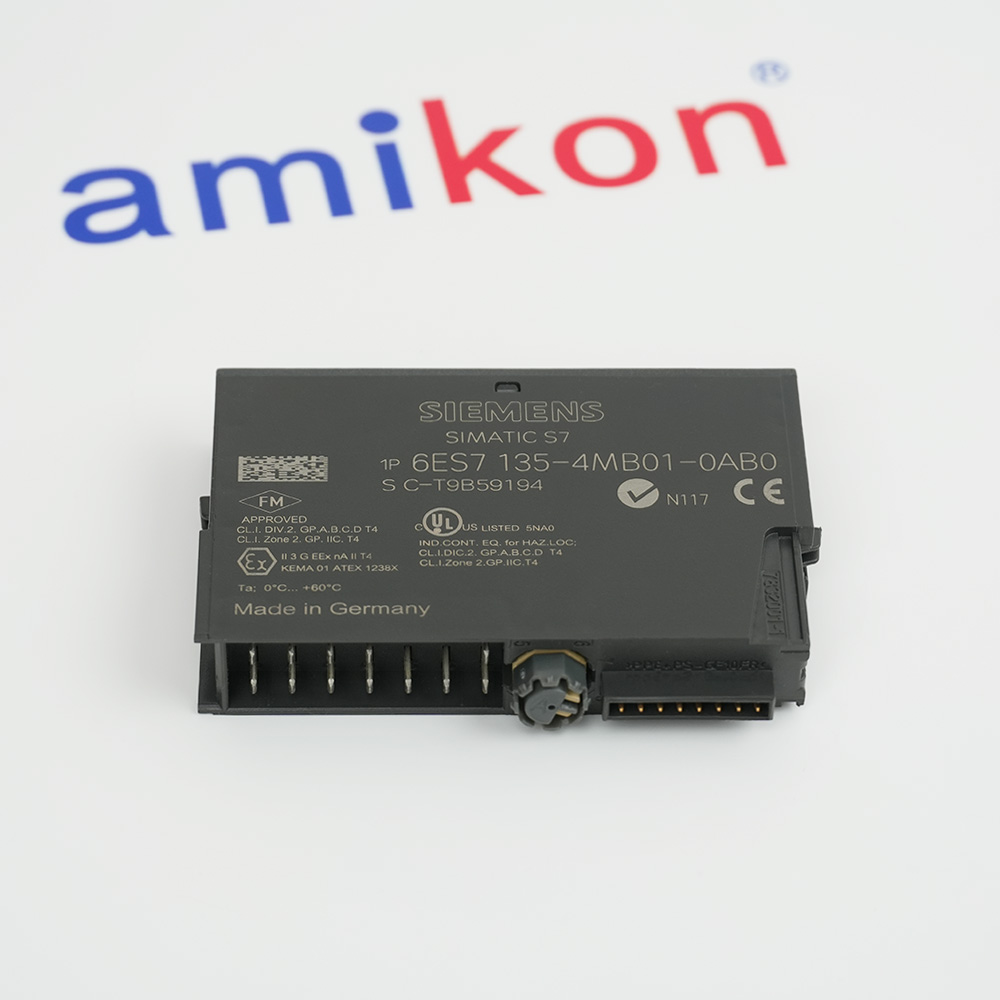

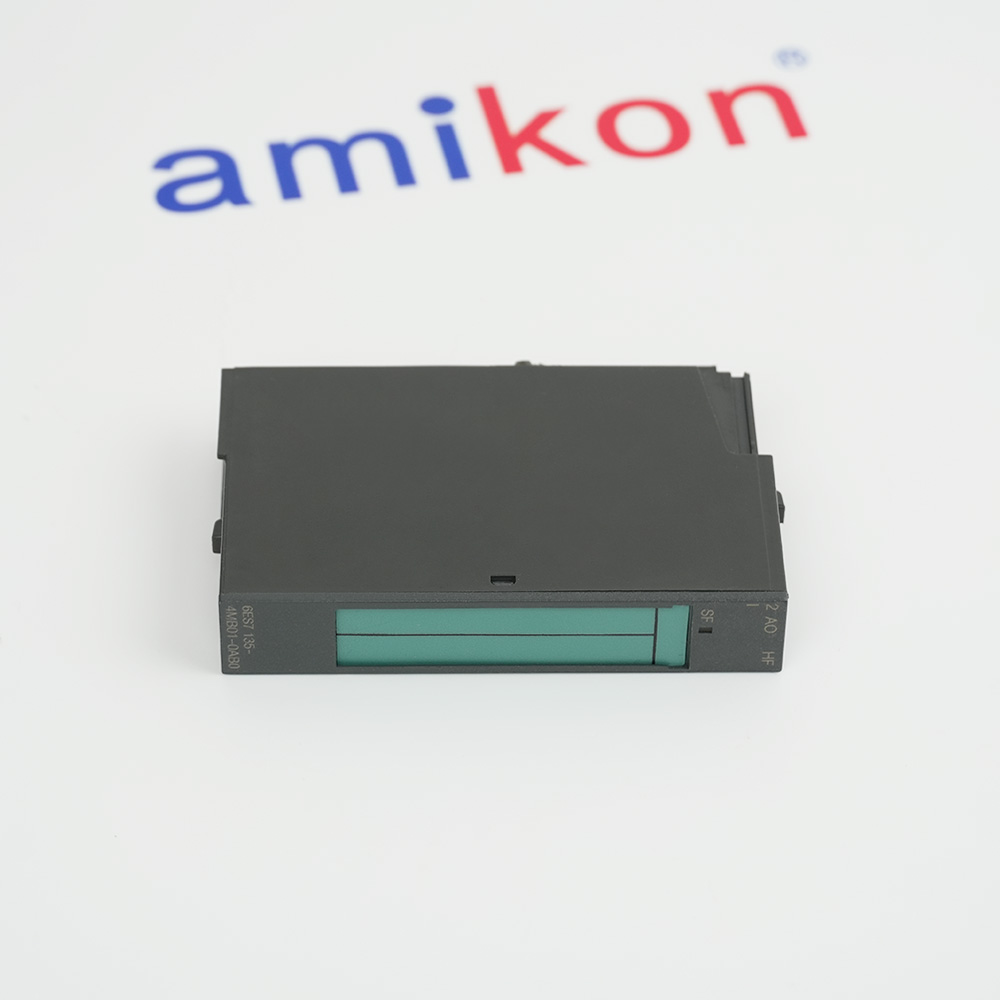

· Product image is representative; revision or series may vary. Contact us to request a specific version.
- Customs & Documentation
- We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
Documents checked before dispatch · Shipment details confirmed · Global tracking provided
- Payment
- Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
- Product Condition
- Factory New These are new and current items that are procured directly from the manufacturer.
New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
-
20+
years in automation -
ISO 9001
certified quality system -
12 months
amikon warranty -
2-hour reply
from your account manager -
Success Story
solutions in action
-
Please try to be as accurate as possible with your search.
-
We can quote you on 1000s of specialist parts, even if they are not listed on our website.
-
We can't find any results for “”.
SEE PRODUCTS IN SEARCH PAGE ()
PRODUCT DESCRIPTION
High-resolution current outputs with clocked-operation support
Siemens 6ES7135-4MB01-0AB0 is a SIMATIC ET 200S High Feature electronic module with two analog current outputs. It supports ±20 mA with 15 bits plus sign, or 4-20 mA with 15-bit resolution. The exact manual also documents clocked operation.
The module uses a 24 V DC supply and permits current-loop loads up to 500 ohm. Interface compatibility depends on product version: the IM151-3 PN HIGH FEATURE manual excludes this order number through version 3. Confirm the installed interface and version before procurement.
The module uses a 24 V DC supply and permits current-loop loads up to 500 ohm. Interface compatibility depends on product version: the IM151-3 PN HIGH FEATURE manual excludes this order number through version 3. Confirm the installed interface and version before procurement.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · PLASTICS PROCESSING
Extruded and Thermoformed Plastics
Plastic extrusion for material production within the plastics industry.Thermoforming as a manufacturing route for shaped plastic products. -
02 · METAL FORMING
Sheet Metal and Wire Processing
Sheet metal processing within the broader metal forming industry.Wire processing for metal products across industrial manufacturing sectors. -
03 · TEXTILE MANUFACTURING
Natural and Manufactured Fibers
Natural fiber production and processing within the textile industry.Manufactured fiber production for the wider textile manufacturing sector.
Technical specifications for 6ES7135-4MB01-0AB0
-
Product Model6ES7135-4MB01-0AB0
-
Product ParametersTwo-channel High Feature Current Output
-
ManufacturerSiemens
-
Analog outputs2 current channels
-
Output ranges±20 mA and 4-20 mA
-
Resolution15 bits plus sign at ±20 mA; 15 bits at 4-20 mA
-
Rated electronics supply24 V DC; reverse-polarity protection
-
Maximum supply current150 mA from L+
-
Maximum power dissipation2 W
-
Clocked operationSupported; minimum clocked DP cycle 3.75 ms
-
Minimum clocked output conversion timeTWAmin: 1.5 ms
-
Maximum conversion time per channel1.0 ms; distinct from clocked TWAmin
-
Load limitsMaximum 500 ohm resistance; 1 mH inductance
-
No-load output voltage18 V
-
Shielded cable lengthMaximum 200 m
-
Operational error limit±0.07% of output range; basic error ±0.03% at 25 °C
-
Electrical isolationFrom backplane and electronics supply; not between channels
-
Module dimensions15 x 81 x 52 mm; bare module, not packaging
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S HIGH FEATURE CURRENT OUTPUT
Check timing and interface compatibility before commissioning
The High Feature module supports clocked operation, but its timing quantities describe different constraints. The manual lists a minimum clocked DP cycle of 3.75 ms and a minimum output conversion time of 1.5 ms for that mode; the separate technical table gives a maximum per-channel conversion time of 1.0 ms. Keep those quantities distinct when reviewing the controller, interface and synchronized station configuration.
Select the terminal drawing that matches the installed base, including its auxiliary-contact arrangement. The current channels use QI and analog-return connections, with two-conductor actuator wiring. Their documented load limits are 500 ohm and 1 mH, and the two channels are not mutually isolated. Evaluate the complete field circuit and reference potentials before treating the shielded 200 m cable allowance as an achievable installation distance.
Assign the required current range per channel and coordinate wire-break reporting with the module-wide controller-STOP response. The shared parameter table allows deenergization, valid substitutes or retained output values, and separately addresses loss of interface supply while output power remains available. That power arrangement can produce substitute outputs even though the output electronics remain energized, so the intended process response must be checked beyond normal running commands.
Features:
- Separate clocked timing quantities
- Terminal-specific loop and reference checks
- Range and fault-response coordination
The Siemens 6ES7135-4MB01-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Identify both the output module's product version and the exact interface before approving the spare. Siemens lists 6ES7135-4MB01-0AB0 through product version 3 as incompatible with IM151-3 PN HIGH FEATURE in the manual for interface 6ES7151-3BA23-0AB0. Check the actual hardware against the applicable interface documentation. A matching output range or High Feature designation is not enough to establish a supported replacement combination.
Retain the installed terminal-module identity and follow the system's same-type exchange procedure. The manual describes mechanical type coding and warns that recoding can create dangerous conditions. An exchange during operation additionally depends on the supported interface and configured removal/insertion behavior, including the single-gap restriction. Apply the site's isolation procedure and do not interpret the electronic module's clocked-operation feature as permission for an unrestricted live exchange.
Restore the channel ranges, synchronized timing configuration, wire-break options and STOP substitutes before accepting the replacement. Verify current at the connected load and confirm that the loop remains inside the stated resistance and inductance limits. Review the diagnostic indication and the response to the approved stopped-controller test condition, since a correct normal setpoint alone does not demonstrate that the restored fault behavior matches the original installation.
Features:
- Interface and version restriction review
- Same-type coded module exchange
- Timing, load and substitute validation
The Siemens 6ES7135-4MB01-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7135-4MB01-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7135-4MB01-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How does its resolution differ between the two current ranges?
The bipolar ±20 mA range is specified as 15 bits plus sign, while 4-20 mA uses 15 bits. Do not import the lower resolution of a Standard current-output variant. -
Does the 1.0 ms conversion specification describe the clocked DP cycle?
No. It is the maximum conversion time per channel. The exact features list separately specifies a minimum clocked DP cycle of 3.75 ms and a minimum clocked output conversion time, TWAmin, of 1.5 ms. -
Can every version be used with IM151-3 PN HIGH FEATURE?
No. The 08/2010 manual for interface 6ES7151-3BA23-0AB0 lists this output-module order number through product version 3 among unsupported modules. Verify the actual version and interface; this restriction is not proof that every later combination is supported. -
Are the two current channels isolated from each other?
No. The manufacturer specifies isolation from the backplane bus and electronics supply, but not mutual channel isolation. Review the receiving circuits and analog-reference arrangement accordingly. -
Which output fault diagnosis applies to this current module?
The shared parameter table assigns wire-break diagnosis to current-output Standard and High Feature modules. Its short-circuit-to-M column belongs to the voltage variants and must not be treated as a capability of this current module. -
What output behavior can be configured for controller STOP?
The choices are deenergized outputs, a substitute value or retention of the last value. Substitutes must be within the nominal range. If the interface loses power while the output module stays supplied, configured substitutes are output.
