PRODUCT DESCRIPTION
Eight sourcing outputs with configurable diagnostics and substitute values

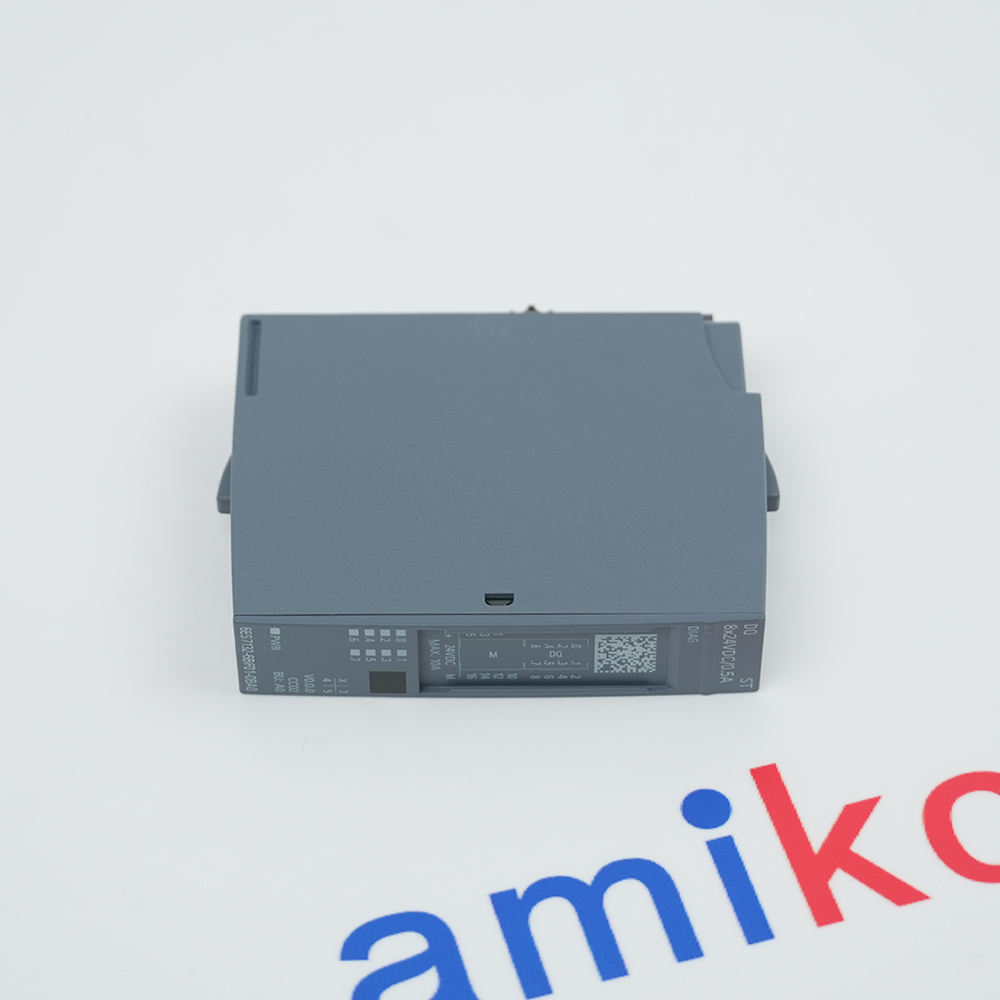

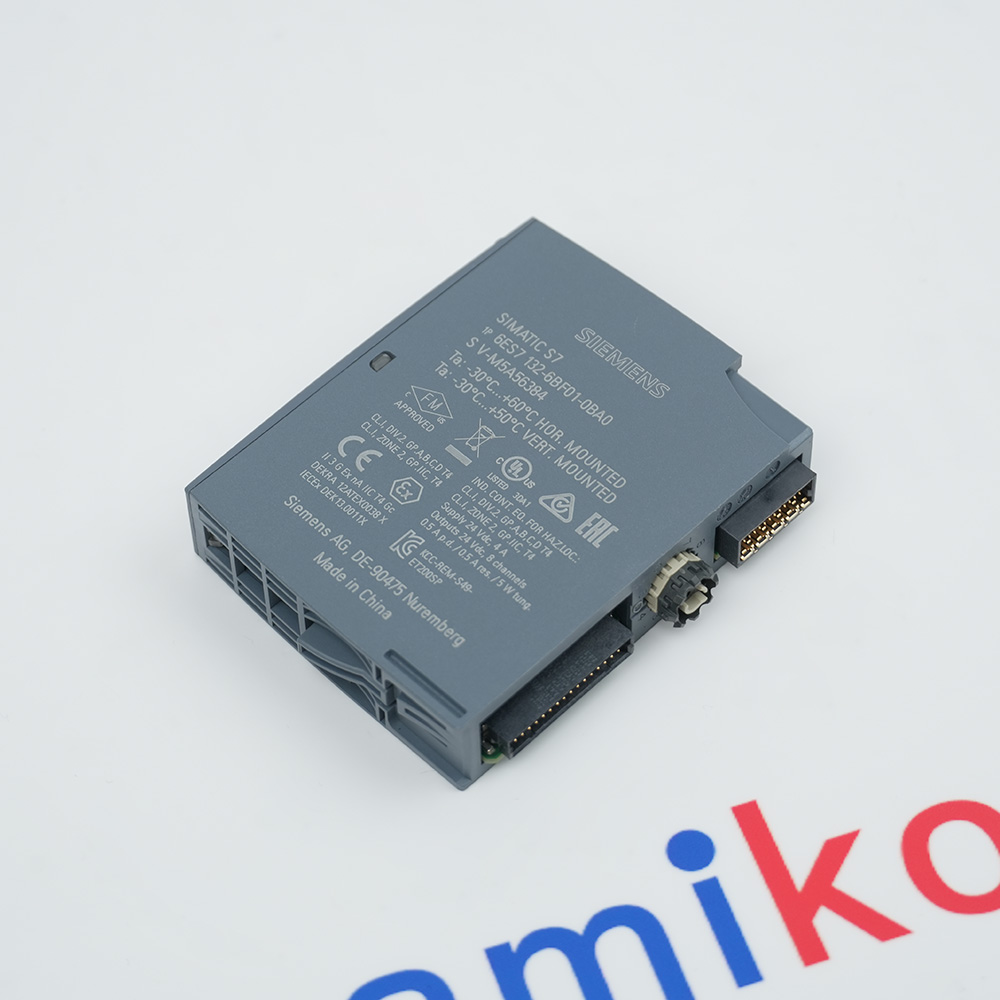

Siemens 6ES7132-6BF01-0BA0 is a SIMATIC ET 200SP Standard digital output module with eight 24 V DC sourcing outputs. Each channel switches up to 0.5 A, while the module supports configurable substitute values and diagnostic reporting for the connected output circuits.
The module fits BaseUnit type A0 and uses the CC02 terminal identification code. One output byte carries the eight commands; an optional input byte supplies quality information. Supply, channel and module indicators support commissioning alongside the configurable diagnostic messages in the automation project.
The module fits BaseUnit type A0 and uses the CC02 terminal identification code. One output byte carries the eight commands; an optional input byte supplies quality information. Supply, channel and module indicators support commissioning alongside the configurable diagnostic messages in the automation project.
BEFORE YOU BUY
Confirm the complete installed configuration
- Match the complete Standard -0BA0 code and the unit's actual hardware status.
- Confirm BaseUnit A0, CC02 labeling and the required actuator wiring arrangement.
- Compare the configured output byte, QI option and CPU STOP behavior.
- Check load current and inductive switching limits against the applicable hardware documentation.
ACTUAL APPLICATIONS
Where 6ES7132-6BF01-0BA0 Fits Across Industrial Sectors
Industrial uses span production, processing and utility operations, subject to compatible configuration and the applicable engineering requirements.
-
01 · FOOD & BEVERAGE
Food Manufacturing and Commercial Beverage Production
Food processing and preparation for packaged consumer food products.Beverage production and filling for commercial drinks manufacturing operations. -
02 · PACKAGING
Consumer Goods Packaging and Industrial Product Packing
Consumer goods packaging for retail distribution and product presentation.Industrial product packing and handling across commercial manufacturing operations. -
03 · WATER & WASTEWATER
Drinking Water Supply and Municipal Wastewater Treatment
Drinking water production and distribution for municipal supply services.Wastewater collection and treatment across municipal and industrial operations.
Technical specifications for 6ES7132-6BF01-0BA0
-
Product Model6ES7132-6BF01-0BA0
-
Spare ModelNot available
-
Product ParametersEight Channel Standard Digital Output
-
In stock1 unit
-
ManufacturerSiemens
-
Output channels8 digital sourcing outputs (PNP)
-
Load supply24 V DC nominal; permissible range 19.2-28.8 V DC
-
Channel switching currentMaximum 0.5 A per channel
-
Total output currentMaximum 4 A; horizontal to 60 C or vertical to 50 C
-
Lamp loadMaximum 5 W per output
-
Output delay at rated resistive loadMaximum 50 microseconds ON; 100 microseconds OFF
-
Off-state residual currentMaximum 0.1 mA
-
Load resistance48 ohm to 12 kohm
-
Short-circuit protectionElectronic; typical response threshold 1 A, range 0.7-1.3 A
-
BaseUnit and terminal codeBU type A0; CC02
-
Process-image allocation1 output byte; an additional input byte when QI is enabled
-
Diagnostic reportingSupply-voltage, wire-break, short-to-M and short-to-L+ monitoring; module-wise diagnostics
-
Channel isolationIsolated from backplane bus; no channel-to-channel or channel-to-load-supply isolation
-
Firmware updatingNot supported; documented firmware V0.0
-
TIA Portal engineeringV14 with HSP0222; integrated from V15
View all additional
Alternative Names
6ES7132-6BF01-0BA0
SIMATIC ET 200SP
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200SP OUTPUT INTEGRATION
Coordinate field wiring, process data and output behavior
Connect the eight sourcing outputs through a type A0 BaseUnit, matching the CC02 terminal assignments to the actuator wiring. The load group must start with a light-colored BaseUnit; dark-colored units continue the preceding supply group. Siemens provides separate drawings for one-wire, two-wire and three-wire arrangements, so AUX-terminal requirements should be established before wiring.
Allocate one byte for output commands and, where the selected PROFINET configuration supports it, one additional input byte for quality information. In the configuration described by Siemens' 2019 manual, a fault on one channel forces all eight QI bits to zero. This historical behavior is not asserted for every current FS21 configuration; match quality evaluation to the installed revision and its documentation.
Set channel activation and the required CPU STOP response in the hardware configuration: outputs can turn off, retain their last state or apply substitute value one. Runtime changes use WRREC data record 128, but do not rewrite the CPU's stored STEP 7 configuration. Following a restart, the stored configuration becomes effective again; rejected records leave the previous parameters active.
Features:
- A0 wiring and potential-group planning
- Separate command and quality data
- Defined CPU STOP and restart behavior
The Siemens 6ES7132-6BF01-0BA0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Identify the full 6ES7132-6BF01-0BA0 order number, the Standard function class and the hardware status on the actual module. Retain the A0 BaseUnit and verify its CC02 output-and-reference layout before reconnecting loads. The documented V0.0 firmware cannot be field-updated, so compatibility must be established through the correct module identity and engineering configuration rather than an assumed firmware upgrade.
Recheck the connected loads against both the 0.5 A channel limit and the 4 A module total, including the mounting-temperature limits. Current FS21 documentation specifies 0.1 Hz for inductive loads unless the newer manual's load-dependent calculation supports more. Do not carry the older unconditional 2 Hz figure or historical safety-related shutdown claims into a replacement specification.
Restore the intended diagnostic enables, output addresses, QI selection and CPU STOP response, then compare the PWR, channel and DIAG indications with the commissioned project. Investigate supply loss, short circuits and open circuits using the module diagnostic information. Check the stored STEP 7 settings as well as runtime parameters, because a restart reinstates the stored configuration.
Features:
- Exact suffix and hardware identification
- Load limits checked by revision
- Address and diagnostic restoration
The Siemens 6ES7132-6BF01-0BA0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7132-6BF01-0BA0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7132-6BF01-0BA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is this the Standard eight-output module or a Basic version?
The complete 6ES7132-6BF01-0BA0 code identifies the eight-channel Standard DQ module. Its configurable diagnostics, substitute values and QI option must be matched to the project; a similar -0AA0 ordering code is not the same product identity. -
Which BaseUnit is required for two-wire and three-wire actuators?
One-wire and two-wire connections use BaseUnit A0. A three-wire arrangement needs an A0 BaseUnit with AUX terminals or the documented potential-distributor arrangement. The 2019 original drawings show the A0 terminal assignments and the light-colored group-supply BaseUnit. -
Does enabling QI change the process-image size?
Yes. The module uses one output byte; QI adds one input byte. Siemens' 2019 manual lists a QI variant for PROFINET, not its PROFIBUS GSD column. Within that documented configuration, a fault on one channel sets all eight quality bits to zero; this historical behavior is not asserted for every current FS21 configuration. -
Can the outputs be paralleled to obtain more than 0.5 A?
No. Siemens does not permit parallel outputs for uprating. The per-channel limit remains 0.5 A and the module total remains 4 A. A separately documented redundant-load arrangement is not permission to increase current capacity. -
Is the old 2 Hz inductive-load figure sufficient for a current replacement?
No. The 2025 datasheet states 0.1 Hz and refers higher frequencies to the newer manual's inductance-dependent limits. The historical 2019 manual and local 2022 datasheet contain different ratings; use documentation applicable to the supplied hardware, not an unconditional 2 Hz claim. -
Can this Standard module be specified as a fail-safe output?
No. The 2025 FS21 datasheet explicitly says it is unsuitable for safety functions and for safety-related tripping of standard modules. Historical shutdown statements must not be generalized to the current hardware; this product page does not assign it a SIL or PL rating.
