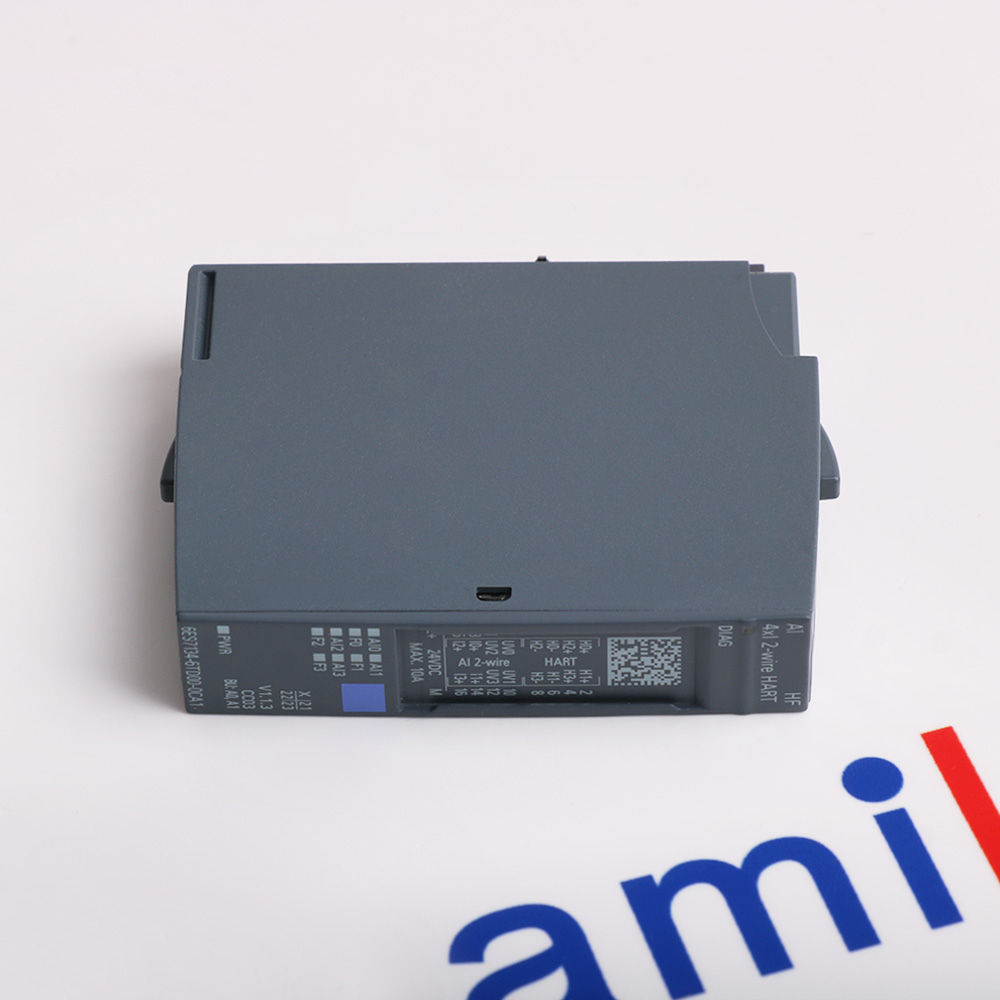

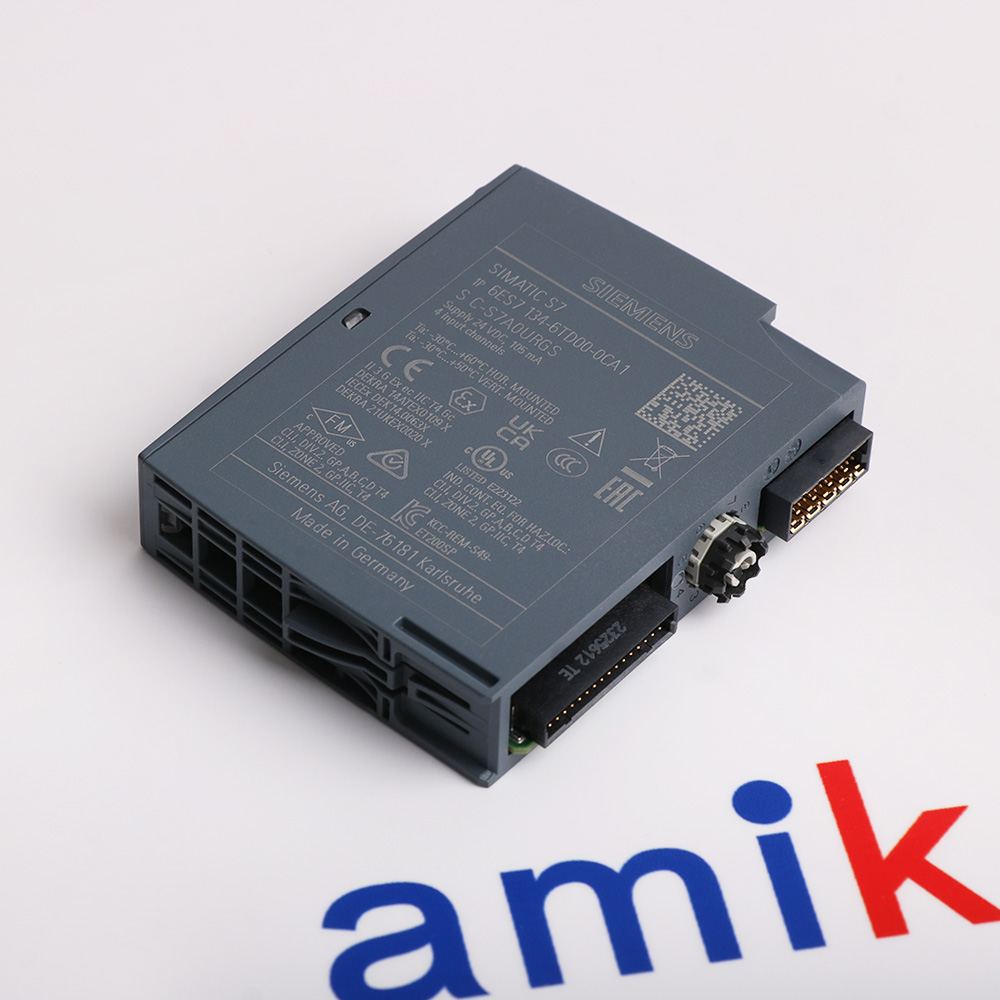

      Siemens 6ES7134-6TD00-0CA1
      Siemens 6ES7134-6TD00-0CA1
      Siemens 6ES7134-6TD00-0CA1
      Siemens 6ES7134-6TD00-0CA1
      Siemens 6ES7134-6TD00-0CA1
      Siemens 6ES7134-6TD00-0CA1
      · Product image is representative; revision or series may vary. Contact us to request a specific version.
      Ships by Saturday, November 14

      6ES7134-6TD00-0CA1

      ET 200SP HART Input Module

      Require for Quote:

      Shipping Information

      • For inventory products, we support same day shipping upon payment.
      • For urgent needs, we offer same-day shipping on most items for orders placed before 2:00 PM UTC+8 Simply mention your preferred next-day shipping when place the order, and your order will be prioritized to minimize downtime.
      • For indent items, typical turnaround is 1-3 weeks, depending on parts availability and scarcity.
      Customs & Documentation
      We prepare clear, order-specific documentation for every international shipment, including the commercial invoice, packing list and available product or compliance documents. Before dispatch, our logistics team confirms the consignee details, declared value, shipping terms and destination requirements with you. Tracking information is provided after shipment, helping your team prepare for import clearance with confidence.
      Documents checked before dispatch · Shipment details confirmed · Global tracking provided
      Payment
      Payment is by bank wire only in RMB/CNY, GBP, EUR or USD. Amikon does not accept credit cards or provide credit terms. Cleared payment is required before shipment unless the written quotation expressly states otherwise.
      Product Condition
      Factory New These are new and current items that are procured directly from the manufacturer.
      New In Sealed Package Parts are new. They have not been used and still have their original package seal intact.
      New in Original Package These parts are new. The packages were not originally sealed by their original manufacturer.
      Quantity
      Mobile *
      Country/Region *
      E-mail *
      Company
      Content *
      Upload
      (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
      Get a Quote
      For more information on how your data is processed and stored by Amikong please read our privacy policy.

      • 20+

        years in automation

      • ISO 9001

        certified quality system

      • 12 months

        amikon warranty

      • 2-hour reply

        from your account manager

      • Success Story

        solutions in action
      PART NUMBER SEARCH

      Find another automation part

      • Please try to be as accurate as possible with your search.
      • We can quote you on 1000s of specialist parts, even if they are not listed on our website.
      • We can't find any results for “”.
        SEE MORE
          SEE PRODUCTS IN SEARCH PAGE ()
          PRODUCT DESCRIPTION

          Four current loops with access to HART field-device information

          Siemens 6ES7134-6TD00-0CA1 is a SIMATIC ET 200SP analog input module for four 4-20 mA HART transmitters. It combines 16-bit current measurement with HART revisions 5 to 7, allowing the controller and supported engineering tools to access additional field-device information.

          Each channel can acquire its current signal with or without HART communication. Configurable diagnostics cover loop wiring, supply and field-device conditions, while optional quality information identifies invalid analog values. The selected configuration determines whether HART variables are also mapped into the controller's input address space.
          BEFORE YOU BUY

          Confirm the complete installed configuration

          Send a label photo for review >>
          ACTUAL APPLICATIONS

          Industrial Production and Service Sectors

          These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
          • 01 · WATER & WASTEWATER

            Desalination and Water Distribution

            Seawater desalination for additional freshwater supply within water utilities.Drinking water distribution through networks serving public supply needs.
          • 02 · TEXTILE MANUFACTURING

            Manufactured Fibers and Textile Finishing

            Manufactured fiber production for the wider textile manufacturing sector.Textile finishing for materials within the commercial fabric industry.
          • 03 · PACKAGING

            Food and Beverage Packaging

            Food product packaging across the commercial food manufacturing sector.Beverage packaging for finished products in the drinks industry.

          Technical specifications for 6ES7134-6TD00-0CA1

          • Product Model
            6ES7134-6TD00-0CA1
          • Product Parameters
            ET 200SP HART Input Module
          • In stock
            1 unit
          • Manufacturer
            Siemens
          • Analog channels
            4 differential current inputs
          • Input range and resolution
            4-20 mA, with or without HART; 15 bits plus sign
          • HART protocol support
            Revisions 5 to 7; one field device per channel, monodrop
          • HART variable access
            Up to 4 variables per channel via data record 121; up to 4 selected variables per module directly mapped
          • Input address allocation
            8 bytes analog; optional 1-byte QI and 20-byte HART-variable area
          • Compatible BaseUnits
            Type A0 and A1; color identification CC03
          • Supply voltage
            24 V DC rated; 19.2-28.8 V DC permissible
          • Module current consumption
            Maximum 25 mA, excluding sensor supply
          • Sensor supply
            24 V, short-circuit protected; 20 mA maximum, or 50 mA per channel for less than 10 seconds
          • Typical power loss
            0.65 W, excluding sensor supply
          • Input resistance
            280 ohm plus approximately 0.35 V diode forward voltage
          • Shielded cable length
            Maximum 800 m
          • Interference suppression
            10, 50 or 60 Hz; selectable by channel within configuration constraints
          • Wire-break thresholds
            Selectable 1.185 mA or 3.6 mA; 3.6 mA setting restores validity above 3.8 mA
          • Current measurement error
            ±0.3% at 25°C; ±0.5% over operating temperature, relative to input range
          View all additional
          View as PDF Ask for Quote

          Alternative Names

          6ES7134-6TD00-0CA1 SIMATIC ET 200SP AI 4xI HART Four-Channel HART Input Module
          SYSTEM & REPLACEMENT CHECK

          Information needed before ordering

          Three direct checks to secure your system integration and minimize ordering risks.

          Information

          System integration Replacement check Manuals & support
          ET 200SP CURRENT AND HART ACQUISITION

          Plan analog words, HART variables and diagnostic validity separately

          The four current measurements occupy eight input bytes. QI adds one byte where supported, and mapping any HART variable allocates a further twenty bytes for four values and their quality codes. Up to four variables per channel remain accessible through data record 121, but the direct process image has only four mapped variables across the module; plan this distinction before assigning controller tags.
          The module mounts on an A0 or A1 BaseUnit and receives power through the associated potential group, which begins with a light-colored BaseUnit. Follow the original drawing for the transmitter supply, input and HART test terminals. The drawing also identifies a specific non-isolated four-wire arrangement; it does not authorize arbitrary wiring changes or imply electrical isolation between the input channels.
          HART communication is processed consecutively across channels, so retry settings and successive-command sequences affect how frequently other field devices are serviced. Coordinate the engineering client with any programmed HART requests and evaluate each response before issuing another. In the controller, treat analog QI and HART variable quality codes as separate validity signals; a plausible numerical value alone does not establish fresh, usable process data.

          Features:

          • Separate analog and HART address planning
          • Documented loop and test-terminal wiring
          • Coordinated HART access and validity checks
          The Siemens 6ES7134-6TD00-0CA1 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
          INTERCHANGEABILITY

          Verify the complete replacement identity before commissioning

          Match the complete module order number and installed interface before choosing a spare. The manual distinguishes configurations with and without QI or mapped HART variables, and limits some of them according to the station hardware. It also lists controller restrictions. Preserve the existing configuration choice and verify those conditions rather than treating another four-channel ET 200SP current module as an equivalent HART replacement.
          Capture the channel measurement mode, wire-break threshold, enabled diagnostics and HART variable assignments before restoring the installation. A standard 4-20 mA mode can produce an analog reading without providing the expected HART information. The selected wire-break threshold also changes when a low-current signal becomes invalid, so restoring only the physical connections is not sufficient to preserve the controller's fault interpretation.
          After replacement, verify the supply and loop measurement, then inspect both module diagnostics and field-device HART status. A configuration-changed message can follow legitimate field-device parameter reassignment and is described as informational, whereas communication or device-fault messages require a separate investigation. Confirm mapped variables and their quality codes, and ensure the device is not left in simulation or fixed-output operation before releasing the measurement.

          Features:

          • Exact module and station configuration
          • Loop diagnostics and HART mapping retained
          • Analog and digital field-device checks
          The Siemens 6ES7134-6TD00-0CA1 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
          DOCUMENTATION STATUS

          Browse the Manuals, Datasheets, Official Documents, Links

          Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.

          Features:

          • Exact-model manufacturer data and relevant original manual pages
          • Original terminal diagrams, configuration details and manufacturer safety context
          • Accessories and supplied documentation follow the written quotation
          Documentation for the Siemens 6ES7134-6TD00-0CA1 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.

          Also searched as

          6ES7134-6GF00-0AA1 6ES7132-6BH00-0BA0 6ES7134-6HD00-0BA1 6ES7193-6BP00-0DA1 6ES7134-6HD01-0BA1

          Important notice

          Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
          This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
          BUYER INFORMATION

          Commercial terms without hidden steps

          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
          • 01

            Shipping & delivery

            Dispatch
            Eligible stock: same / next day
            Carriers
            DHL, FedEx or UPS
            Ship from
            Xiamen, China
            Packed size
            Confirm final packed dimensions
            Shipping weight
            Confirm final packed weight
          • 02

            Payment & customs

            Payment
            Bank transfer (T/T)
            Currencies
            USD · EUR · GBP · RMB
            Credit cards
            Not accepted
            HS reference
            8538900000
            Origin
            Confirm supplied-unit origin
          • 03

            Warranty & returns

            Warranty
            12 months from AMIKON
            Inspection
            Label, condition and packing checks
            Returns
            Prior RMA authorisation required
            Compatibility
            Confirm before order
            OEM warranty
            Does not apply
          Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.

          • Part checked

            Full suffix recorded

          • Condition checked

            Label and appearance

          • Packing checked

            Antistatic protection

          • Tracking supplied

            Established couriers

          • Sandy Lin

            Dedicated account manager · 15+ years
          FREQUENTLY ASKED QUESTIONS

          Questions buyers ask about 6ES7134-6TD00-0CA1

          Direct answers about identity, compatibility, stock, warranty, payment and shipping.

          • Can 6ES7134-6TD00-0CA1 measure 0-20 mA or voltage signals?

            No. Its documented measurement choices are 4-20 mA with HART, 4-20 mA without HART, or a disabled channel. The specification explicitly excludes 0-20 mA, ±20 mA and voltage measurement.

          • Can all sixteen possible HART variables appear directly in the process image?

            No. The module can read up to four variables from each channel and store them in data record 121, but only four selected variables for the whole module can be directly mapped to the input address space. Each mapped variable includes a value and quality code.

          • Does QI work in a PROFIBUS DP station?

            The manual states that value status is not available for a PROFIBUS DP station. It also documents restrictions for a Standard IM V1.1, so select the configuration against the installed interface and engineering environment rather than assuming all four variants are available.

          • What distinguishes a 3.6 mA wire-break setting from 1.185 mA?

            At the 3.6 mA setting, the measurement becomes invalid below 3.6 mA and valid again above 3.8 mA. The 1.185 mA setting has no hysteresis. Diagnostics and QI handling must be checked alongside the chosen limit.

          • Can several HART clients issue commands to one channel simultaneously?

            The manual permits only one client per channel because the module does not provide client management. A client must finish reading the response to its request before sending another request; otherwise the response can be overwritten or a busy state encountered.

          • Does this module support HART burst mode?

            No. HART commands with the burst bit set are ignored and are not forwarded. Successive HART Command sequences are a different function; they can temporarily reserve communication processing and stop HART-variable updates on the other channels.
