PRODUCT DESCRIPTION

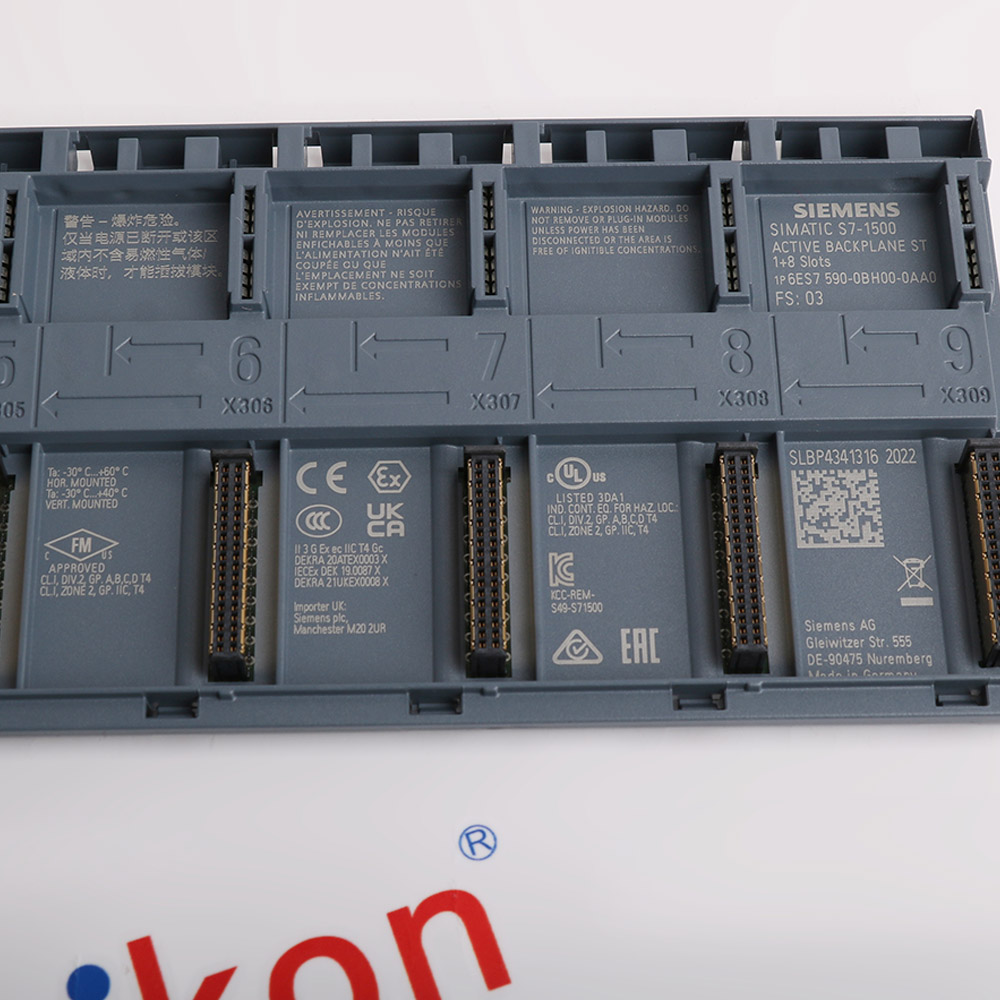

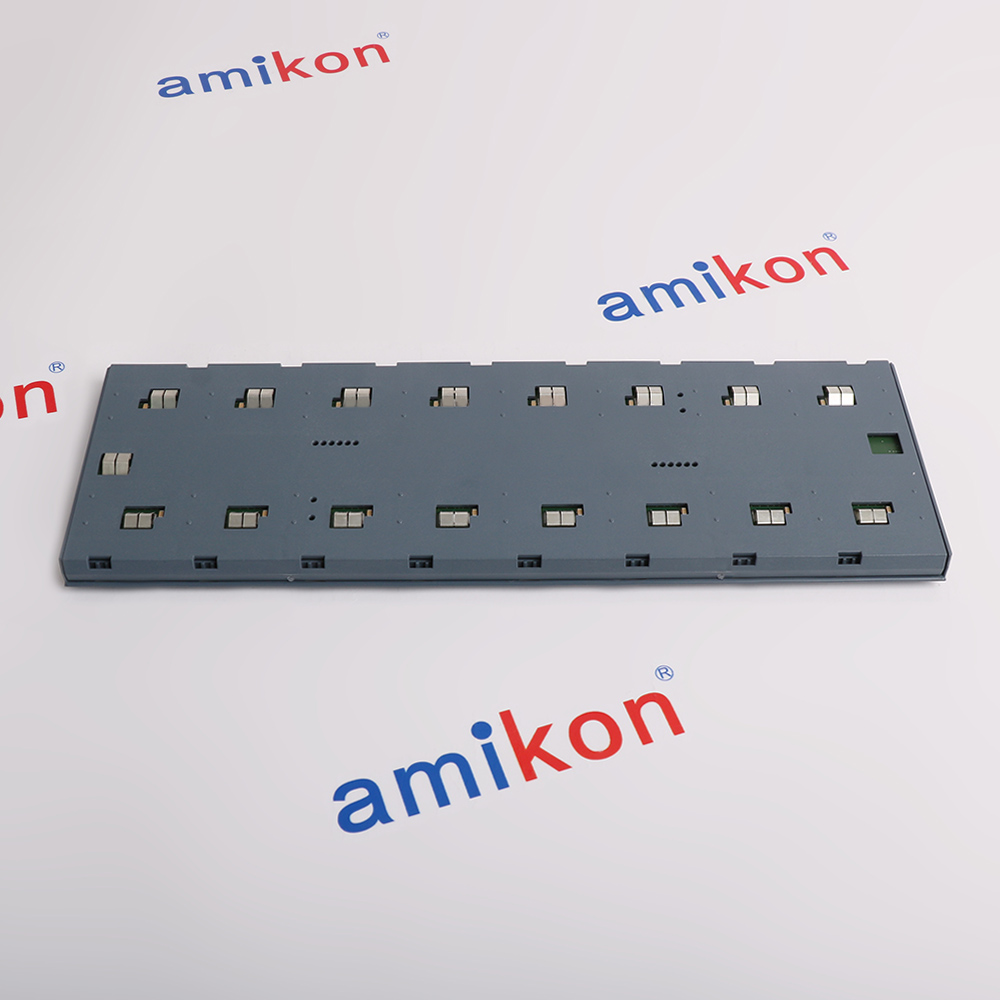

Active backplane for maintainable modular stations
Siemens describes 6ES7590-0BH00-0AA0 as an active backplane bus with eight module positions for SIMATIC S7-1500 and ET 200MP equipment. It supports occasional removal and insertion of compatible I/O modules, helping maintain station availability during permitted maintenance or expansion.
The ST 1+8 version accommodates an interface module or supported H-CPU alongside the module positions. Compatibility depends on the exact module types, firmware and engineering configuration. Mounting rails and protection covers for unused slots are ordered separately.
The ST 1+8 version accommodates an interface module or supported H-CPU alongside the module positions. Compatibility depends on the exact module types, firmware and engineering configuration. Mounting rails and protection covers for unused slots are ordered separately.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where 6ES7590-0BH00-0AA0 Fits in Industrial Automation
Used in logistics, oil production and continuous processing, subject to compatible modules, firmware and the approved station configuration.
-
01 · LOGISTICS & WAREHOUSING
Automated Warehouses and Airport Baggage Handling Facilities
High-bay storage facilities requiring continued operation during module maintenance.Airport baggage conveyors and postal sorting equipment handling continuous traffic. -
02 · OIL & GAS
Offshore Production Facilities and Gas Transmission Pipeline Equipment
Offshore oil production facilities operating with limited onsite maintenance.Gas pipeline compressors maintaining working pressure throughout transmission networks. -
03 · CHEMICAL & PHARMACEUTICAL
Chemical Processing Plants and Continuous Pharmaceutical Production Facilities
Chemical production facilities where continuous processes require high availability.Pharmaceutical production equipment requiring process continuity during maintenance activities.
Technical specifications for 6ES7590-0BH00-0AA0
-
Product Model6ES7590-0BH00-0AA0
-
Product ParametersActive Backplane Bus Module
-
ManufacturerSiemens
-
Supported station familiesSIMATIC ET 200MP and S7-1500H
-
Slot arrangementOne CPU or interface-module position plus eight module positions
-
Module grid35 mm pitch; 25/35 mm modules use one position, 70 mm modules use two
-
Identification dataI&M0 to I&M3
-
Firmware updatingSupported
-
Typical power loss2 W
-
Operating ambient temperatureHorizontal: -30 to +60 degrees C; vertical: -30 to +40 degrees C
-
Storage and transport temperature-40 to +70 degrees C
-
Maximum operating altitude5000 m; additional installation restrictions above 2000 m
-
S7-1500H firmware requirementsBackplane V1.1.0 or later; supported H-CPU V3.1 or later
-
ET 200MP engineeringTIA Portal V16 with HSP0334 or GSDML V2.35; MF HF requires later versions
-
S7-1500H engineeringTIA Portal V19 or later
-
Prioritized startupSupported for ET 200MP
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ACTIVE BACKPLANE CONFIGURATION
Match the station, firmware and module arrangement
The ST 1+8 active backplane provides one position for an interface module or supported H-CPU and eight module positions. It is used in ET 200MP and specified S7-1500H configurations; it is not a universal replacement for every standard backplane arrangement.
Confirm the exact interface module or H-CPU, its firmware and the active backplane firmware before engineering the station. Module width affects the physical layout: approved 25 mm and 35 mm modules occupy one position, while a 70 mm module occupies two.
Plan the station power balance, rail length, unused-slot protection and software configuration together. Reaction-free I/O removal is subject to operating-mode restrictions and interrupt handling. Isochronous operation does not permit reaction-free hot swapping, and the interface module must not be removed under load.
Features:
- Check the exact CPU or interface-module compatibility
- Match firmware, engineering version and slot layout
- Review power balance, OB 83 and operating restrictions
The Siemens 6ES7590-0BH00-0AA0 active backplane requires the station hardware, firmware and configured operating mode to be checked before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match the complete backplane order number, module count and physical rail layout before selecting a replacement. The eight-position version has specific support for ET 200MP and S7-1500H. A larger backplane is not automatically suitable for every H-CPU installation.
Record the CPU or interface-module identity, firmware levels, engineering project and position of every module. Back up the approved project and confirm compatible module revisions. Do not interpret I/O hot-swap capability as permission to replace the complete backplane or interface module while energized.
Follow the original installation and operational safety instructions. Verify module seating, screw fastening, slot covers, station power balance and interrupt handling. Test the intended operating state and diagnostics before releasing the equipment for service; firmware updates can restart the station.
Features:
- Match the exact backplane and station configuration
- Confirm firmware, rail length and module widths
- Test diagnostics and permitted replacement behavior
The Siemens 6ES7590-0BH00-0AA0 active backplane requires replacement verification based on exact station compatibility, firmware levels, rail layout and approved operating procedures.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact ST 1+8 data and manufacturer compatibility tables
- Installation reference includes original mounting and dimension drawings
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7590-0BH00-0AA0 active backplane includes selected manufacturer pages and installation guidance; confirm the hardware and firmware requirements against the delivered equipment and approved engineering project.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size30.6 x 11.6 x 3.2 cm (L x W x H)
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginGermany
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7590-0BH00-0AA0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does the active backplane bus provide?
It permits occasional replacement or addition of supported I/O modules while other station modules continue operating, subject to the manufacturer conditions, operating mode and project configuration. -
Can this eight-position version be used with S7-1500H?
Yes, for the supported H-CPUs listed by Siemens. The manual requires active backplane firmware V1.1.0 or later, a compatible H-CPU firmware version and TIA Portal V19 or later. Check the exact CPU order number. -
Which ET 200MP interface modules are supported?
Siemens lists IM 155-5 PN HF and IM 155-5 MF HF. The current catalog specifies PN HF firmware from V4.4.1. MF HF requires its documented firmware, active backplane and engineering versions; consult the original compatibility table. -
Is hot swapping available in isochronous mode?
No. The manual excludes reaction-free pulling and plugging in isochronous mode. Removing or inserting a module in that configuration interrupts accessibility while the controller connection is re-established. -
Are the mounting rail and empty-slot covers included?
They are ordered separately. Choose a rail with enough space for the complete station and fixing screws, and fit slot protection to every unused backplane position. -
How do module widths affect available positions?
The grid is 35 mm. Approved 25 mm and 35 mm modules use one position; a 70 mm module occupies two positions. Check the physical layout as well as the configured slot arrangement. -
Why must the pull/plug interrupt be considered?
The manual states that removing a configured module in RUN calls OB 83. If OB 83 is not programmed, the CPU changes to STOP. Review interrupt handling before planned module replacement. -
Can connectors or the interface module be removed under load?
Do not remove the interface module under load. I/O front connectors and power supply modules must be de-energized before removal. Additional restrictions apply in potentially explosive atmospheres; follow the original safety instructions.
