PRODUCT DESCRIPTION
Maintain serial communication with the correct DF00 configuration

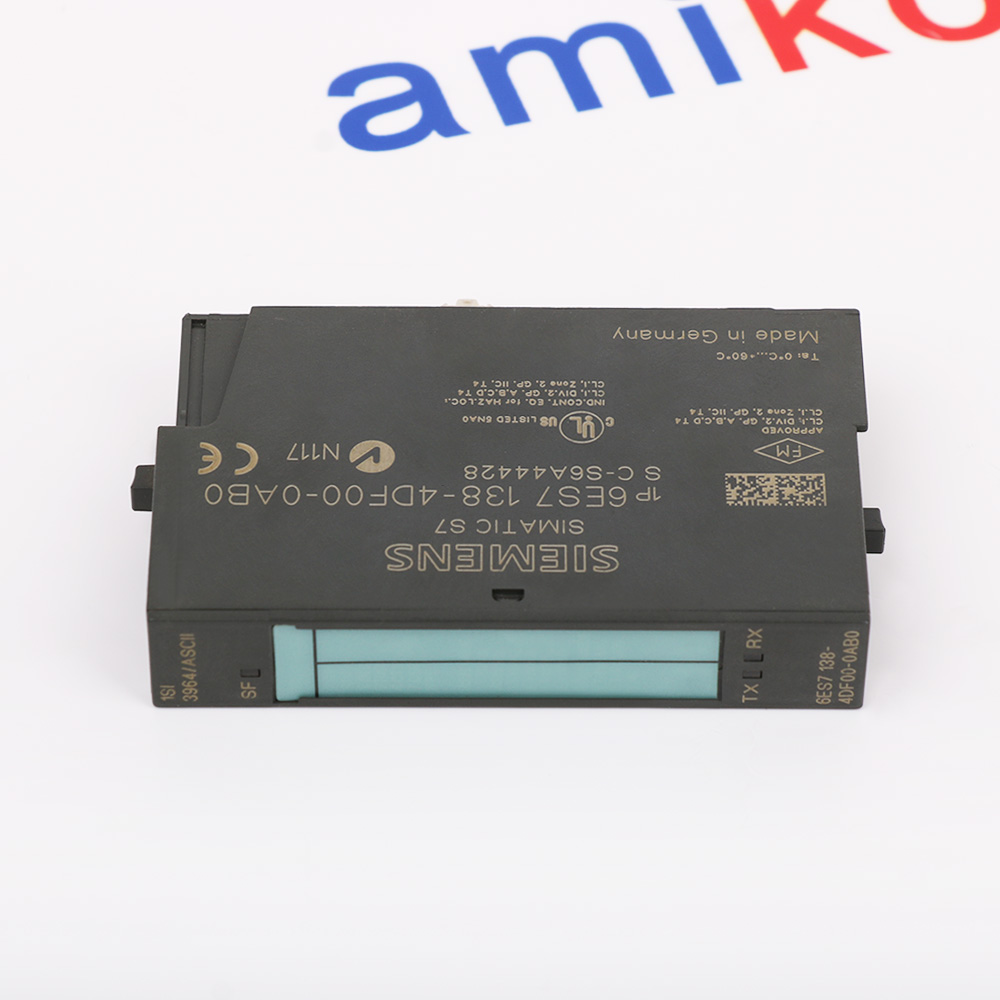

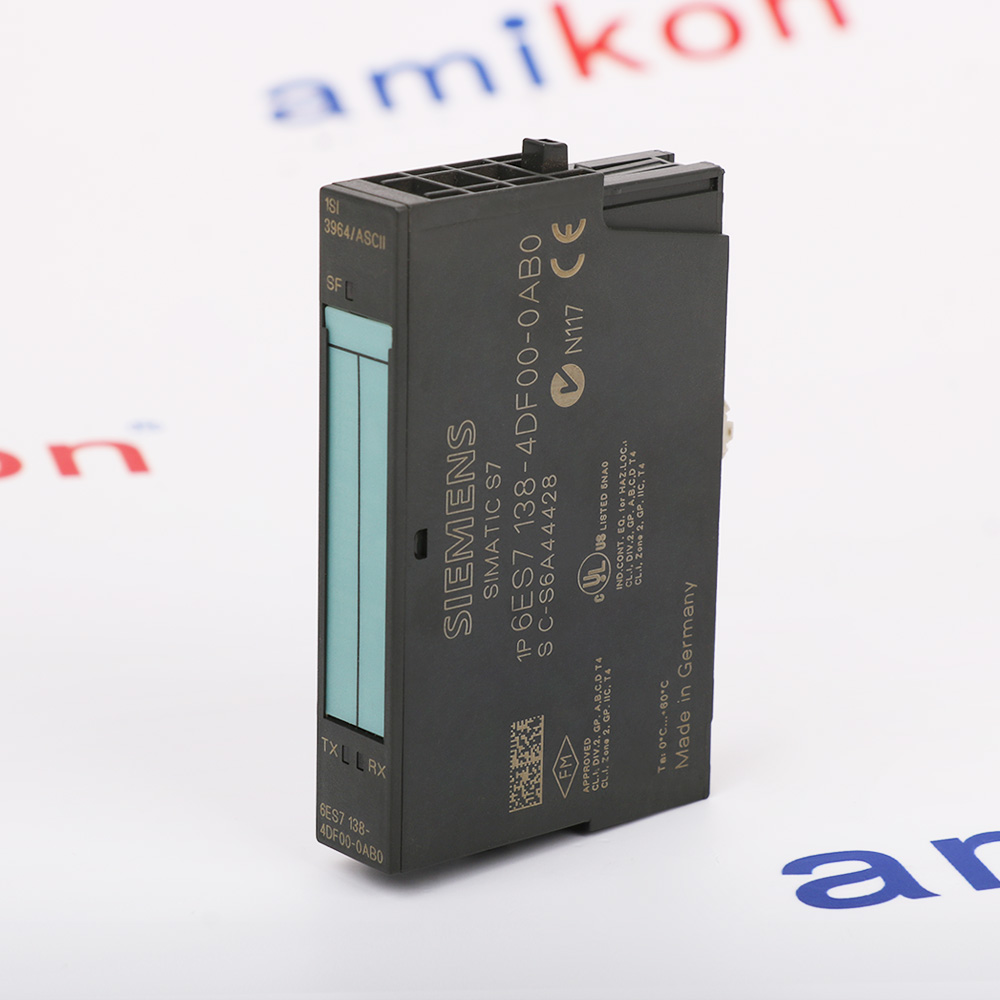

Siemens 6ES7138-4DF00-0AB0 is a single-channel ET 200S serial interface for exchanging asynchronous messages with a configured communication partner. It supports RS232C, RS422 or RS485 hardware, with ASCII and 3964(R) capabilities determined by the selected interface.
This DF00 variant uses discrete baud settings up to 19.2 kbit/s and a four-byte or eight-byte process-data configuration. Maintenance work should preserve the partner's wiring, message framing and controller blocks while checking the installed module version against the station's interface-module restrictions.
This DF00 variant uses discrete baud settings up to 19.2 kbit/s and a four-byte or eight-byte process-data configuration. Maintenance work should preserve the partner's wiring, message framing and controller blocks while checking the installed module version against the station's interface-module restrictions.
BEFORE YOU BUY
Confirm the complete installed configuration
- Confirm the complete DF00 order code and the supplied unit's product version.
- Match the station IM order number and its permitted module versions.
- Identify the required physical interface, protocol and cable termination.
- Record the installed process-data size, message framing and function-block version.
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · PACKAGING
Pharmaceutical and Non-food Packaging
Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets. -
02 · METAL FORMING
Sheet Metal and Wire Processing
Sheet metal processing within the broader metal forming industry.Wire processing for metal products across industrial manufacturing sectors. -
03 · FOOD & BEVERAGE
Beer and Soft Drink Production
Beer production within the brewing sector of beverage manufacturing.Soft drink manufacturing for the wider commercial beverage industry.
Technical specifications for 6ES7138-4DF00-0AB0
-
Product Model6ES7138-4DF00-0AB0
-
Product ParametersET 200S Serial Interface
-
ManufacturerSiemens
-
Serial channel1 configurable interface: RS232C, RS422 or RS485
-
Protocol supportASCII on all three interfaces; 3964(R) on RS232C and RS422 only
-
Baud-rate settings110, 300, 600, 1200, 2400, 4800, 9600 or 19,200 bit/s
-
Duplex operationASCII supports full duplex on RS232C/RS422; RS485 is half duplex; 3964(R) is half duplex
-
Process-data configuration4-byte or 8-byte ASCII/3964R variants
-
Message lengthUp to 200 bytes; S_SEND LEN range 1 to 200 bytes
-
Character format7 or 8 data bits, 1 or 2 stop bits; none, odd, even or any parity
-
ASCII receive delimiterCharacter-delay expiration, defined end characters or fixed message length
-
Flow controlRTS/CTS on RS232C; XON/XOFF on RS232C or RS422; unavailable on RS485
-
Shielded cable limitsRS232C: 15 m; RS422/RS485: 1200 m at 19,200 bit/s with the specified cable and termination
-
Rated electronics supply24 V DC, with reverse-polarity protection
-
Supply currentBackplane: maximum 10 mA; L+: maximum 120 mA, typical 50 mA
-
Power dissipationTypical 1.2 W
-
Interface isolationRS232C and RS422/RS485 signals isolated from the internal ET 200S power supply
-
DiagnosticsGreen TX/RX and red SF LEDs; function-block STATUS and PROFIBUS slave diagnostics
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
DF00 SERIAL COMMUNICATION
Match the partner and station before choosing the serial configuration
Select the physical interface and protocol as a pair. ASCII is supported on RS232C, RS422 and RS485, while 3964(R) is restricted to RS232C and RS422. The eight-position terminal connection must be wired for the chosen interface. Apply the original cable, shielding and termination guidance rather than assuming the communication partner's D-sub pinout matches the module terminals.
Use the DF00 hardware-catalog entry with the required four-byte or eight-byte process-data size. This allocation is separate from the 200-byte message limit. Match baud rate, parity, stop bits, receive delimiter and permissible handshake settings to the partner. The documented maximum baud rate is 19.2 kbit/s, not the higher values associated with later serial modules.
Check the station interface module as well as the serial module. Siemens excludes DF00 product versions through version 4 from the IM151-3 PN HIGH FEATURE 6ES7151-3BA22-0AB0 configuration. Retain the application's matching communication library and instance blocks, and wait for initialization before validating send and receive transactions. This restriction must not be generalized into an approval for every other IM version.
Features:
- Interface-specific terminal wiring
- Matched framing and process-data size
- IM and product-version compatibility checks
The Siemens 6ES7138-4DF00-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the full 6ES7138-4DF00-0AB0 order number and product version before sourcing a replacement. Also identify the installed IM order code and the existing hardware-catalog entry. DF00 modules through version 4 are specifically excluded with the documented IM151-3 PN HIGH FEATURE 3BA22 interface, so a visually similar spare is not sufficient evidence of station compatibility.
Preserve the installed interface selection and the approved station wiring record before replacement. The original manual connects DF00 through an eight-position terminal arrangement; partner-side D-sub diagrams are not an integral module socket. Restore the matching protocol, message delimiter, framing, process-data size and installed function-block library. Obtain complete, legible manufacturer installation instructions before any wiring change.
Plan the maintenance procedure around interrupted and buffered messages. Reparameterization restarts the driver and loses stored frames; CPU startup can also clear the receive buffer according to its setting. After the station is safely restored, exercise representative transactions and inspect function-block status and TX, RX and SF indications. This reference does not replace the complete station safety and installation documentation.
Features:
- Order code and product version confirmed
- DF00 terminal assignment retained
- Restart buffers and real transactions checked
The Siemens 6ES7138-4DF00-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model source editions and applicable later product information
- Product data sheet and selected original manufacturer pages
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7138-4DF00-0AB0 provides product references with source editions identified. Installation documentation with unresolved conflicts is not provided . Confirm supplied hardware and the approved project documentation before maintenance.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7138-4DF00-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Can DF00 be configured with the DF01's 32-byte interface?
The exact DF00 manual lists four-byte and eight-byte ASCII and 3964R configurations. Do not select a 32-byte variant on that basis. Preserve the existing DF00 hardware configuration and verify the actual module and station before considering any change of order code. -
Does this module support 3964(R) over RS485?
No. Siemens' exact driver table permits 3964(R) on RS232C and RS422, but not RS485. RS485 uses ASCII in half-duplex mode, without the module's flow-control functions. A grouped RS422/RS485 data-sheet heading is not permission to apply every listed protocol to both interfaces. -
Is any DF00 suitable for an IM151-3 PN HIGH FEATURE station?
No. The manual for IM151-3 PN HIGH FEATURE 6ES7151-3BA22-0AB0 specifically excludes DF00 modules through product version 4. Check the complete interface-module code and the actual DF00 version; common ET 200S branding does not establish compatibility. -
Does the serial module have its own nine-pin D-sub socket?
The documented ET 200S connection is an eight-position terminal arrangement. The manual's nine-pin and 25-pin D-sub diagrams describe the communication-partner end of the cable, not an integral socket on DF00. Use the exact terminal and partner pin assignments shown for the selected interface. -
Which program blocks send and receive messages?
The manual identifies FB3 S_SEND and FB2 S_RCV, with P_SEND and P_RCV shown as their former names. Preserve the correct installed library and its instance data blocks. Communication blocks require cyclic application calls and initialization; their status values should be evaluated during commissioning. -
Why should message buffers be checked after a restart?
Reconfiguration initializes the protocol driver and discards stored send and receive frames. The startup setting controls whether the receive buffer is cleared when the CPU changes from STOP to RUN. Restore the intended setting and test actual message exchange after initialization, not only the LED state.
