Technical specifications for AAP135-S50 S2
-

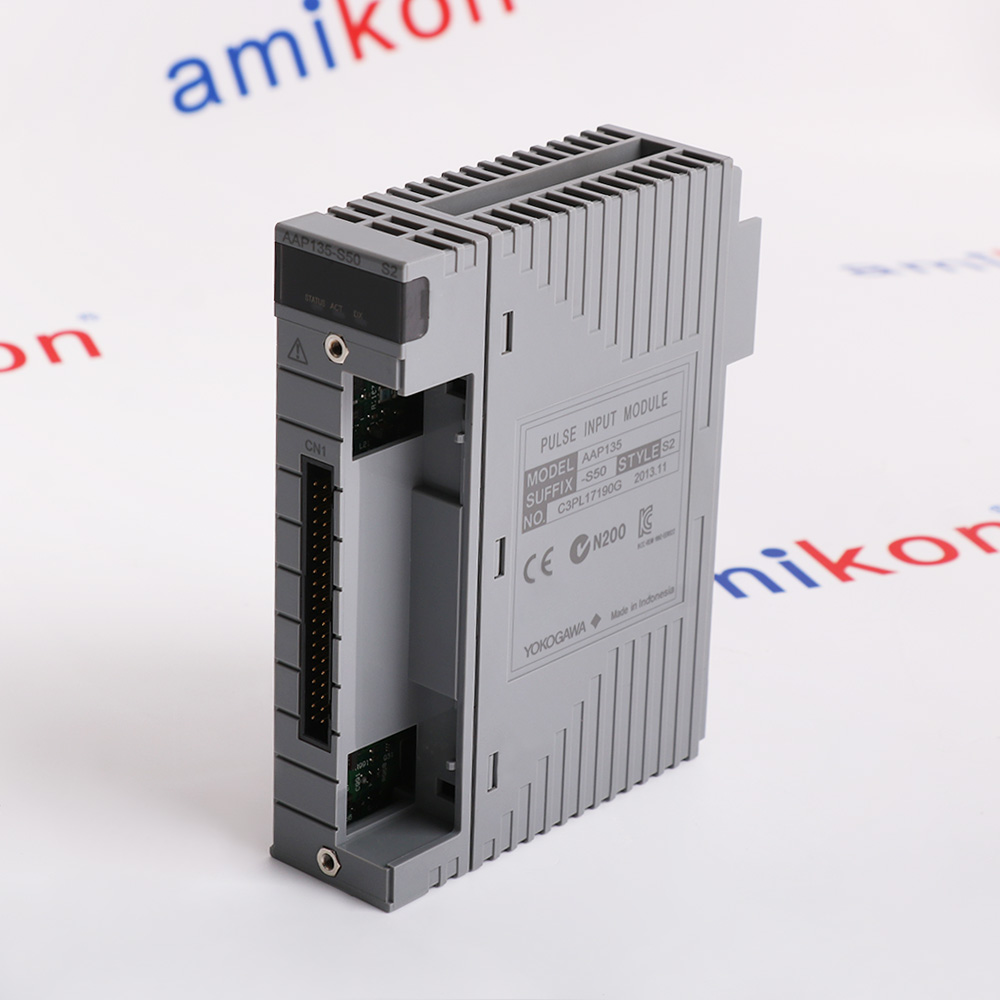

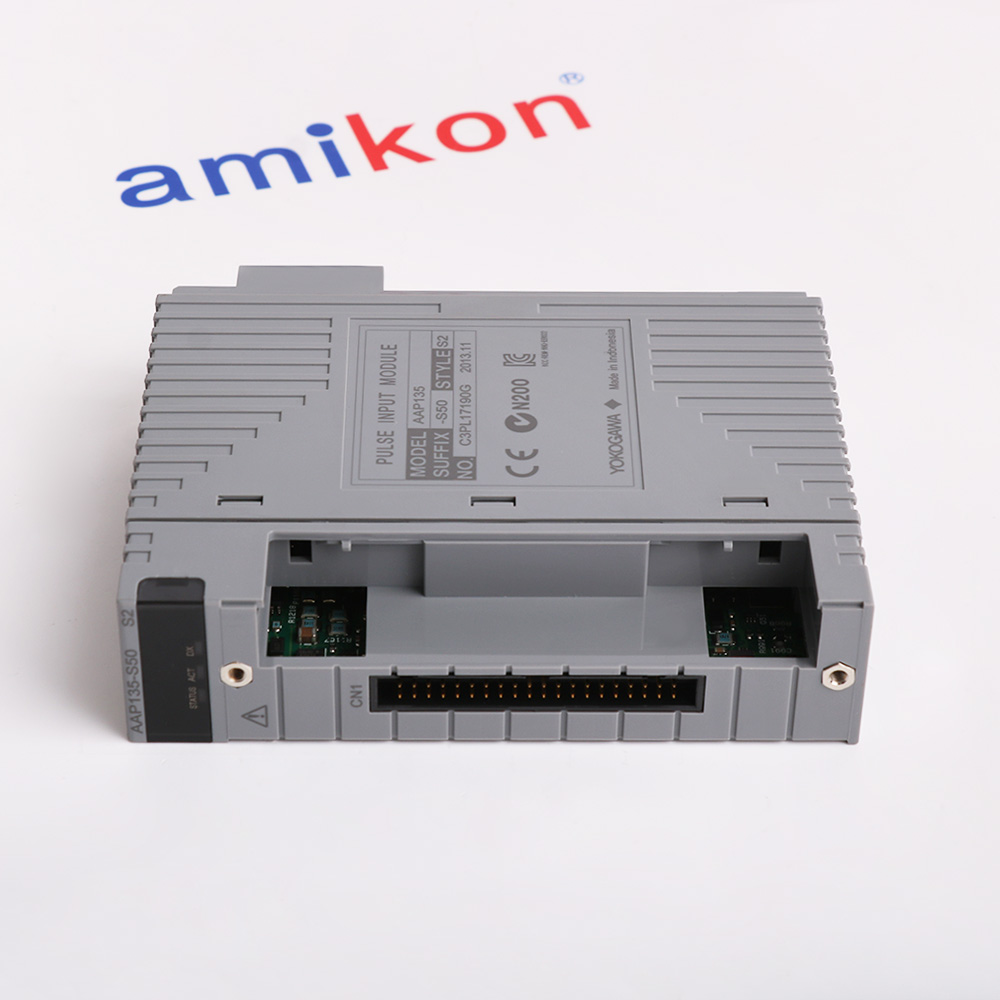

Product ModelAAP135-S50 S2
-
Spare ModelAAP135-S50
-
Product ParametersPulse Input Module
-
Tariff Code8537101190
-
Country of originJAPAN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3.2x10.6x13cm
-
ManufacturerYokogawa
-
Weight0.3 kg
-
Number of inputchannels8, isolated channels
-
Input frequency0 to 10 kHz
-
Minimum input pulse width:40 µs
-
Pull-up resistance68 kΩ (12 V DC or 24 V DC)
-
FilterFilter for eliminating chattering can be set
-
Data update period2 ms
-
Maximum current consumption300 mA (5 V DC), 400 mA (24 V DC)
Description
The Yokogawa AAP135-S50 S2 is a Pulse Input Module designed for the Yokogawa FIO (Field Input/Output) system, providing isolated pulse signal acquisition for industrial process control applications. The AAP135-S50 S2 receives contact ON/OFF, voltage pulse, and current pulse signals from field devices, converting them to internal data for field control stations (FCS). The AAP135-S50 S2 features isolation between the field and the system as well as isolation between each channel, ensuring electrical separation and protection of control electronics.
The AAP135-S50 S2 can be used in dual-redundant configuration, enhancing system availability by providing backup pulse input capability for critical process control applications. The AAP135-S50 S2 supports an input frequency range of 0 to 800 Hz for non-voltage contact signals between terminals B and C, accommodating a wide range of pulse input applications including flow meter pulse counting, speed measurement, and event logging.
The AAP135-S50 S2 can be used in dual-redundant configuration, enhancing system availability by providing backup pulse input capability for critical process control applications. The AAP135-S50 S2 supports an input frequency range of 0 to 800 Hz for non-voltage contact signals between terminals B and C, accommodating a wide range of pulse input applications including flow meter pulse counting, speed measurement, and event logging.
Information
Overview
Manuals
Application Notes
Product Applications
Hardware Insertion and Installation
Features:
- Pulse Input Module with Isolated Channels
- Dual-Redundant Configuration Capability
- 0 to 800 Hz Input Frequency Range
- Chattering Elimination for Dry Contact Signals
- Compatible with Multiple Field Control Station Types
The module features 8 isolated input channels with full isolation between the field and system as well as between individual channels. It accepts multiple input signal types including contact ON/OFF, voltage pulse, and current pulse signals in both 2-wire and 3-wire configurations. The 2-wire type supports transmitter power supply capability for powering external field devices.
The input frequency range spans 0 to 10 kHz with a minimum input pulse width of 40 µs, enabling accurate capture of high-speed pulse trains. The data update period is 2 ms, ensuring rapid response for flow totalization, speed measurement, and position tracking applications.
The AAP135-S50 S2 Yokogawa Pulse Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa AAP135-S50 S2 Pulse Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Input signal levels are configurable to accommodate various field device types. Contact inputs are detected with open resistance of 100 kΩ or larger and close resistance of 200 Ω or less. Voltage and current pulse inputs operate with high levels of 3 to 24 V DC, low levels of -1 to 8 V DC, and a minimum swing value of 3 V. The signal source resistance must be 1 kΩ or less.
The AAP135-S50 S2 provides a configurable chattering elimination filter to suppress noise and contact bounce on mechanical relay inputs. Shunt resistance is selectable from none, 200 Ω, 500 Ω, or 1000 Ω to match different field device requirements. The module can supply 12 V DC or 24 V DC transmitter power with current limiting at 40 mA (12 V) or 30 mA (24 V).
- Oil & Gas: Monitors valve positions, pump statuses, and safety shutdown switches
- Chemical Plants: Captures discrete signals from pressure/temperature switches in reactors/vessels
- Power Generation: Monitors emergency stops, breaker statuses, and turbine interlocks
- Manufacturing/Water: Controls filtration systems and tracks conveyor line sensors
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Compatible Units: The AAP135-S50 module is installed in the Field Control Unit (FCU) via FIO node units (ANB series).
Dual-Redundant Setup: The module can be configured in a dual-redundant setup (paired) to ensure high availability. When configuring redundantly, it must be installed in adjacent slots designated for redundant pairs.
Environment: Ensure the node unit power is off before inserting or removing the module to prevent electrical faults.
Alternative Names
AAP135-S50 SZ
AAP135-S5O S2
AAPI35-S50 S2
AAP135 S50 S2
AAP135 S50 SZ
AAP135 S5O S2
AAPI35 S50 S2
AAP135S50 S2
Technical notes
The AAP135-S50 S2 supports dual-redundant configuration, allowing two modules to operate as a redundant pair for increased system availability. It is compatible with Yokogawa ESB Bus Node Units (ANB10S, ANB10D, ANB11S, ANB11D) and ER Bus Node Units (ANR10S, ANR10D).
Environmental ratings include an operating temperature range of 0°C to +50°C (or -20°C to +70°C with the /3 G3 option), storage temperatures from -25°C to +70°C, and 5% to 95% non-condensing relative humidity.
