bachmann

Bus Expansion Module

Bus expansion slave module
with 2 interfaces
Bus expansion slave module optionally
with integrated power supply
Up to 6 local substations
Minimal signal delay
Distances of up to 3 m between 2 stations
Integrated watchdog on slave modules

CPU module

CPU module MC212 (1,3GHz)
DualCore; 2GB DDR4; 512kB nvRAM;
2GB pSLC File-Flash;
2x Eth100/1000;
1xRS232;
1xRS232/422/485;
1xUSB3.0;
TPM;
CFast-Slot
4GB CFast Card
Cold Climate

Six Channel Power Amplifier

CPU Modul MC206 (600 MHz) SingleCore
1 GB DDR4
512 kB nvRAM
2 GB pSLC File-Flash
2x Eth100/1000
1x RS232
1x RS232/422/485
1x USB3.0
TPM
CFast-Slot

Analog Input/Output Module

Analog voltage input ±10 V to ±10 mV
Analog current input 0(4) to 20 mA
Temperature sensor Pt elements as 2-,3-,4-wire
Thermo couples type J, K, T, N, E, R, S, B
Analog voltage output ±10 V
Analog current output 0(4) to 20mA
Resolution: 16-bit input with filter, 14-bit output
Galvanic isolation from the system 500 V

Memory Card

Product:CFast Cards
Memory Size: 4 GB
Brand:Apacer
Packaging:Tray
Product Type:Memory Cards

Industrial Ethernet Switch

4 safety inputs for 4 to 20 mA signals
forming 2 logic safety channels
Optional encoder supply via the module
4 safety inputs for temperature measurement (Pt100)
forming 2 logic safety channels
2 safety inputs for strain gauge signals
forming one logic safety channel

Memory Card

Memory capacity 32/64 MB
Access width 16 bits
Designed as 5 V card
Program voltage of 12 Vss
Write protection via operating software

Vibration Sensor Input Module

Channels 10-12 can be
used as an analog input of ±10 V
Analog inputs individually
configurable for sensitivity
24 bit A-D resolution with a
dynamic range ≥ 96 dB
Adjustable sampling
rate up to 51.2 kHz
Adjustable analog and digital filtering

Analog Input/Output Module

8 channels AIO208, 16 channels AIO216
Analog inputs and outputs
Filter adjustable from 4 kHz to 0.5 Hz per channel
All outputs overload, short circuit and external voltage-proof
Measuring range monitoring freely adjustable (±105 %)
Error message on overload and overtemperature and undervoltage of the supply
Galvanic isolation from the system 500 V
Modes that can be selected per channel:
Analog voltage input ±10 V to ±10 mV
Analog current input 0(4) to 20 mA

Digital I/O Module

16 / 32 digital channels
16 channels can be configured as input or output
Configurable interrupt inputs
Status display for each channel via LED
Supply voltage 18 to 34 VDC
Supply voltage protected against reverse polarity
Cost effective and space saving

I/O module

Head module for CANopen slave stations
Up to 30 I/O modules per slave station
Optional integrated power supply
Transfer rate 10 Kbaud to 1 Mbaud
Bus length to 5000 m (signal repeater required)
Two internally connected CAN interfaces for loop-through of the cable
Galvanic isolation between CAN interfaces and control electronics
Node address can be set via rotary switch

Analog In/Output Module

8 analog inputs
8 analog outputs
Connection possibility single-ended or differential
Power supply for up to 4 potentiometers
Temperature inputs for up to 4 Pt100/Pt1000 sensors
2-wire or 4-wire inputs for Pt100/Pt1000 sensors
Wire break detection for the inputs (for voltage and temperature)
Short circuit proof outputs

I/O MODULE

CONTROLLER M1 PLC
64MB DRAM
400MHZ
FACTORY

Digital I/O module

compact CAN slave module
16/32 channels can be freely configured as input or output
Digital outputs each with 1 A continuous current
Two internally connected CAN interfaces for loop-through of the cable
Galvanic isolation between CAN interfaces and control electronics
Baud rate and node ID can be set via rotary switch
Supply voltage 18 to 34 VDC
Operating range 0 to +60°C without additional cooling
Full wiring without additional backplanes

CPU module

8MB DRAM / 512kB SRAM
8MB file-flash
1x Eth100
1x RS232
1x RS232/422/485
Integrated power supply 17W
PCC slot
Cold Climate

pulse width modulation module

2 pulse-width modulated output channels
2 shielded DSub connectors
for output channels
LED (green) per output
Choice of high-power or TTL output level
Monitoring of the load current
Monitoring of the external supply voltage
Monitoring of the internal temperature

Analog In/Output Module

2 input channels
for incremental and SSI encoders
Full 32 bit counter
2 analog outputs (14 bit)
4 fast digital input channels for initiator and trigger
Position measurement / position storage can be initiated via triggers
Virtual for use in applications:
zero pulse, speed, etc.
Synchronization via SYNC/PreSYNC

Operator Panel

Industrial Processor at up to 433 MHz
Priority scheduled Multitasking
256 MB RAM
512 kB remanent memory (Retain)
64 MB internal memory device 1)
CompactFlash card slot for removable media
Front side PC-Card slot
2x Ethernet 10/100 Mbit/s

Temperature Input Module

Resolution 14 bit (16 bitmeasured value averaging)
Averaging of measured values for interference suppression
Wire break detection the inputs
Channels isolated against the system
Monitoring of the external power supply
Cold junction temperature compensated

Processor Module

64MB file-flash
2x Eth100
1x CAN/CANopen
1x RS232
1x RS232/422/485
1x USB2.0
I/O-supply 17W
CF slot

Digital input module

FASTBUS-Modules

FASTBUS master modules with 1 or 2 FO interfaces
FASTBUS slave modules with 1 or 2 FO interfaces
FASTBUS slave modules with integrated power supply
Up to 15 distributed substations
Distances to between 2 stations:
40 m for POF cables
150 m for HCS cables
180 m for special HCS cables
Status display (RUN/ERR) and display for fiber type
Minimal signal delay

Analog Input Module

2 or 4 analog inputs
Input current 0 to 20 mA
Input impedance 75 Ω
Resolution: 16 bit
Refresh cycle time 250 ms / channel
Galvanic isolation of channels
Galvanic isolation from system
Monitoring of internal voltages

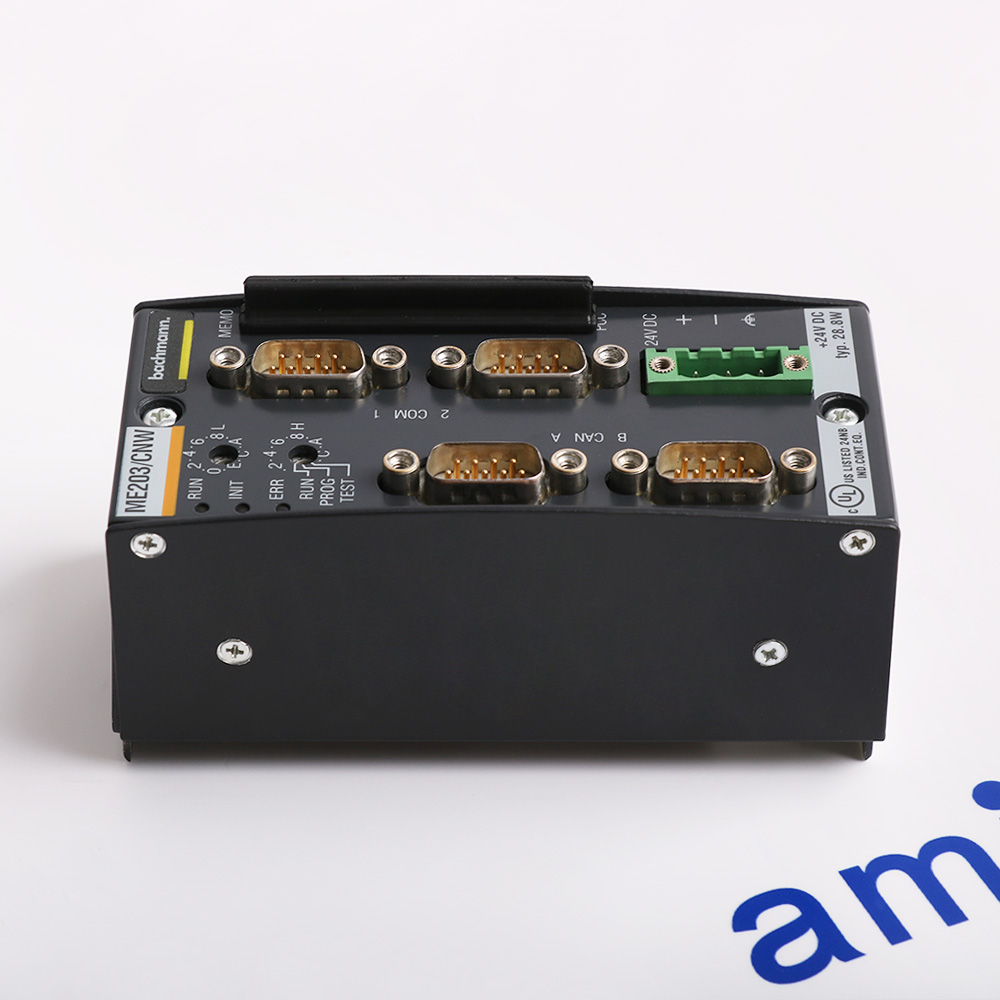

Processor module

CPU module ME203/EN (33MHz)
8MB DRAM / 512kB SRAM
8MB file-flash
1x Eth100
1x RS232
1x RS232/422/485
Integrated power supply 17W
PCC slot

CPU module

CPU module 386EX (33MHz)
8MB DRAM / 512kB SRAM
8MB file-flash
1x CAN/CANopen
1x RS232
1x RS232/422/485
Integrated power supply 17W
PCC slot
