3300 System

3300 XL 8 mm Proximity Probes

330101 3300 XL 8 mm Probe,
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 1.8 in
15 1.5 meter (4.9 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330103  3300 XL 8 mm Probe,
M10 x 1 thread,without armor
Minimum unthreaded length: 190 mm
Maximum case length: 250 mm
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
00 Not required

3300 NSv Proximity Probes

330910 3300 NSv Probe,
M10X1 thread, witharmor
Minimum unthreaded length:0 mm
Minimum length: 100 mm
50 5.0 meters (16.4 feet)
02 Miniature coaxial ClickLoc connector
standard cable
00 Not required

3300 XL 11 mm Proximity Probes

330704 3300 XL 11 mm Probe
M14 x 1.5 thread,with armor
Minimum unthreaded length:0 mm
Minimum length: 60 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable

3300 XL Proximitor Sensor

1 1.0 meter (3.3 feet) system length
51 5.0 meters (16.4 feet) system length
91 9.0 meters (29.5 feet) system length
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 60 mm
Minimum case length: 100 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330103 3300 XL 8 mm Probe,
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 50 mm
20 2.0 meters (6.6 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 XL 11 mm Proximity Probes

330704   3300 XL 11 mm Probe
M14 x 1.5 thread,with armor
Minimum unthreaded length:0 mm
Minimum length:40 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 Multiple Approvals

3300 XL 11 mm Proximity Probes

330704 3300 XL 11 mm Probe
M14 x 1.5 thread,with armor
Minimum unthreaded length:0 mm
Minimum length:100 mm
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable

3300 XL 8 mm Proximity Probes

330102 3300 XL 8 mm Probe
3/8-24 UNFthread, with armor
Minimum unthreaded length: 0.0 in
Minimum case length: 2.0 in
15 1.5 meter (4.9 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 XL 8 mm Proximity Probes

330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 5.5 in
05 0.5 meter (1.6 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330102  3300 XL 8 mm Probe
3/8-24 UNFthread, with armor
Minimum unthreaded length: 3.6 in
Minimum case length: 8.0 in
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

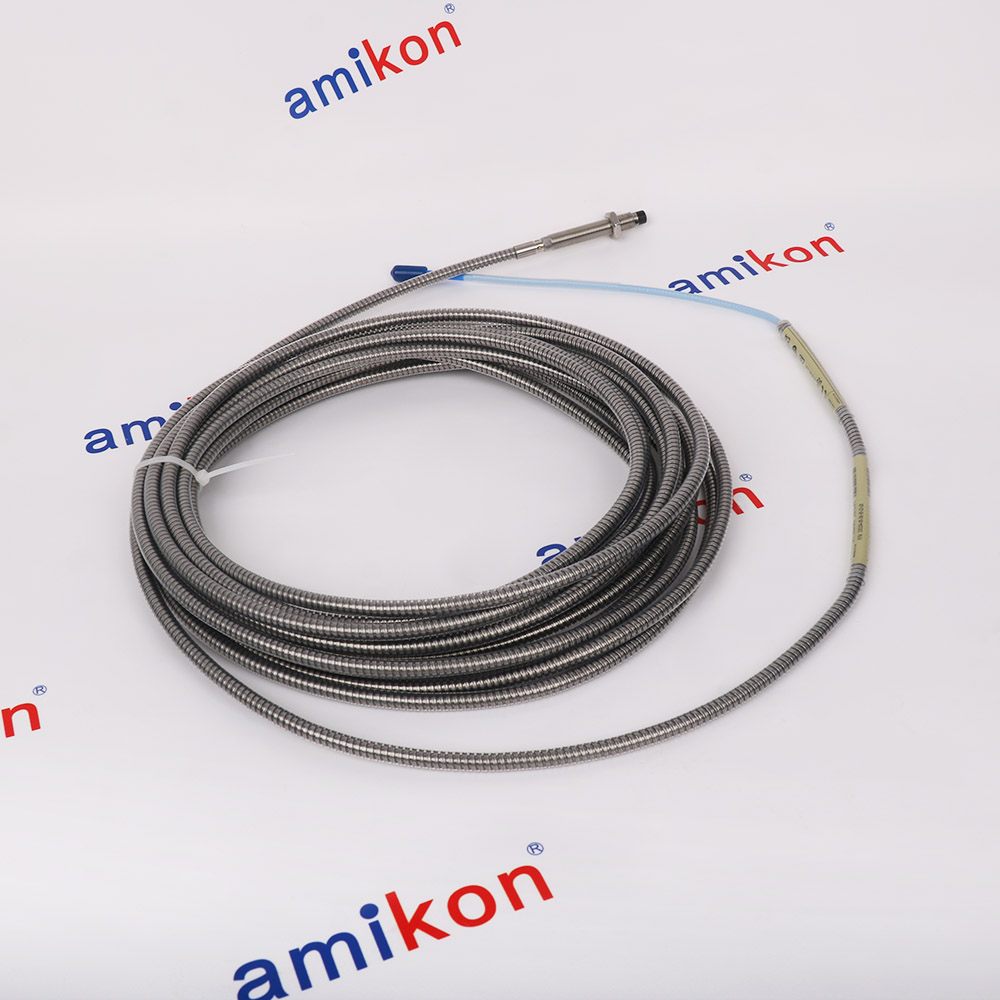

3300 XL 8 mm Proximity Probes

330104  3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 20 mm
Minimum case length: 140 mm
50 5.0 meters (16.4 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable

3300 XL 8 mm Proximity Probes

330104  3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 0 mm
Maximum case length: 250 mm
10 1.0 meter (3.3 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
00 Not required

3300 NSv Proximity Probes

330903 3300 NSv Probe
M8X1 thread,without armor
Minimum unthreaded length:0 mm
Minimum length: 100 mm
10 1.0 meter (39 in)
02 Miniature coaxial ClickLoc connector
standard cable
05 Multiple Approvals

3300 XL Standard Extension Cable

085 8.5 meters (27.9 feet)
10 FluidLoc cable
05 CSA, ATEX, IECEx  Approvals
3300 XL Standard Extension Cable

3300 XL 8 mm Proximity Probes

330101  3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 3.0 in
Minimum case length: 4.9 in
10 1.0 meter (3.3 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Reverse Mount Probes

330105-02-12-CC-DD-EE3/8-24 UNF threads
15 1.5 meter (4.9 feet)
02 Miniature ClickLoc coaxialconnector
05 CSA, ATEX, IECEx  Approvals
3300 XL 8 mm Reverse Mount Probes

3300 XL 50 mm Proximity Probe

0 1 ½-20 Thread
9 09.0 meters (29.5 feet)
0 0High Temperature FluidLocCable
0 0 No Approvals

3300 XL 11 mm Proximity Probes

330703  3300 XL 11 mm Probe
M14 x 1.5 thread,without armor
Minimum unthreaded length:0 mm
Minimum length:100 mm
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable

PROXPAC XL Proximity TransducerAssembly

Operating Voltage:-18 to -26V DC
Current Consumption:2-12mA
Output Signal:-1 to -20V DC
Sensitivity:200mV/mil (7.87V/mm) ±5%
Frequency Response:0 to 10kHz (-3dB)
Measurement Range:0.25 to 2.5mm
Linear Range :0.5 to 2.0mm
Resolution:1μm (0.04 mils)
Temperature Drift:±0.1%/°C

PROXPAC XL Proximity Transducer

2 8  3300 XL 8 mm probe with MultipleApprovals
1 5 1.5 in (38 mm)
0 3 5 3.5 in (96 mm)
0 0No fittings; two plugs and twowashers
0 2 3/4-14 NPT
(Required if orderingStandoff Adapter Option.)

3300 NSv Proximity Probes

330901 3300 NSv Probe
1/4-28 UNF thread,without armor
Minimum unthreaded length: 0.0 in
Minimum case length:  1.9 in
10 1.0 meter (39 in)
02 Miniature coaxial ClickLoc connector
standard cabe
00 Not required

3300 XL 8 mm Proximity Probes

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 160 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 XL 11 mm Proximity Probes

330703  3300 XL 11 mm Probe
M14 x 1.5 thread,without armor
Minimum unthreaded length:0 mm
Minimum length:100 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 Multiple Approvals
