Technical specifications for RDCU-02C
-
Product ModelRDCU-02C
-
Spare ModelASXR7220
-
Product ParametersRDCU Drive Control Unit
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size28x12.6x4cm
-
ManufacturerABB
-
Weight0.55 kg
-
Voltage+10 VDC
-
Maximum load10 mA
-
Applicable potentiometer1 to 10 kohm
-
Isolation test voltage500 VAC, 1 min
-
Common mode rejection ratio> 60 dB at 50 Hz
-
Inaccuracy±0.5% (Full scale range) at 25 °C
Description

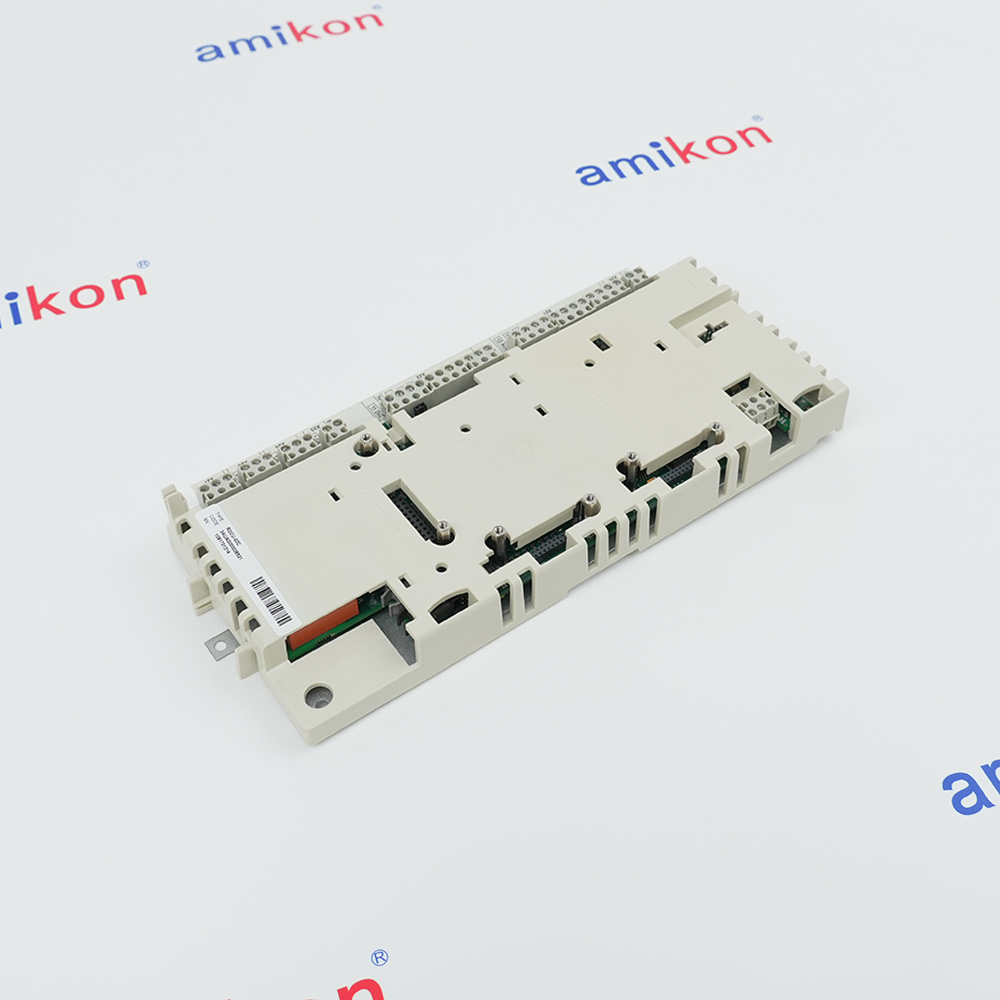

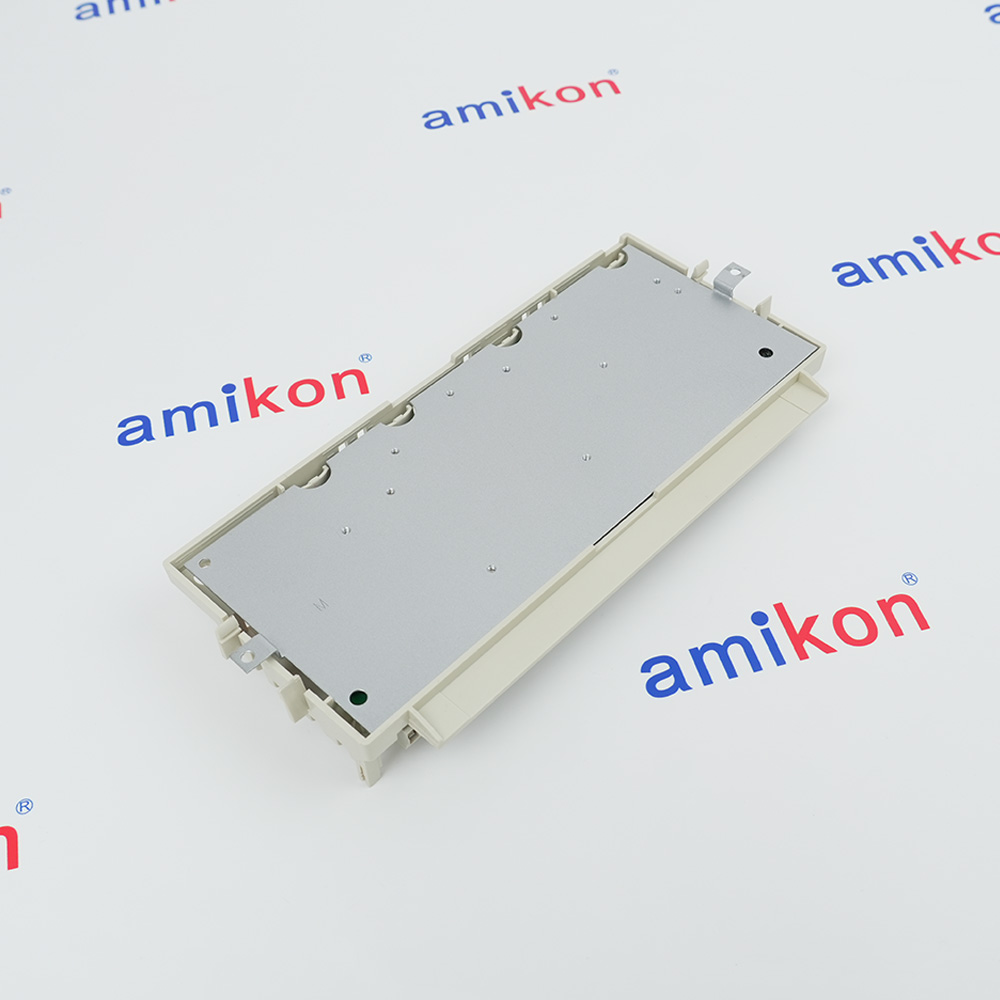

The ABB RDCU-02C (Product ID: 64607901) is a drive control unit manufactured by ABB for use with ACS800 series low-voltage AC drives. The unit functions as the central control board within the drive system and is supplied as a coated spare part for replacement and maintenance purposes.
The RDCU-02C provides a comprehensive set of I/O channels: three differential analog inputs (one voltage input at ±0(2) to 10 V with 12-bit resolution, and two current inputs at 0(4) to 20 mA with 11-bit resolution), two programmable analog outputs at 0/4 to 20 mA with 10-bit resolution, seven digital inputs at 24 V DC with 1 ms hardware filtering, and three relay outputs with changeover contacts rated for 2 A continuous current at 24 V DC or 115/230 V AC. A dedicated start interlock digital input and a ±10 V DC reference voltage output with ±0.5% accuracy are also included.
The RDCU-02C provides a comprehensive set of I/O channels: three differential analog inputs (one voltage input at ±0(2) to 10 V with 12-bit resolution, and two current inputs at 0(4) to 20 mA with 11-bit resolution), two programmable analog outputs at 0/4 to 20 mA with 10-bit resolution, seven digital inputs at 24 V DC with 1 ms hardware filtering, and three relay outputs with changeover contacts rated for 2 A continuous current at 24 V DC or 115/230 V AC. A dedicated start interlock digital input and a ±10 V DC reference voltage output with ±0.5% accuracy are also included.
Alternative Names
RDCU 02C
RDCU02C
RDCU-O2C
ROCU-02C
RDCU O2C
ROCU 02C
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation
Features:
- RDCU Drive Control Units
- ABB Drives
- Fiber optic TX/RX for reliable PPCS comms
- Speed/torque control, motor monitoring & diagnostics
The RDCU-02C ABB Drive Control Units may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB RDCU-02C DRIVE CONTROL UNIT Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The ABB RDCU-02C is a high-performance Drive Control Unit (DCU) printed circuit board primarily for the ACS800 series of frequency converters to enhance motor control and efficiency. It acts as the central control board for the drive, handling I/O connectivity, communication, and software execution.250 mA (typical without options), 1200 mA (maximum with option modules)
- Power & Energy Industry:Wind converters & hydro plant upgrades
- Petrochemical & Chemicals:Safety/efficiency for chemical, oil & gas plants
- Water & Wastewater Management:Pumping & distribution control for water treatment
- HVAC & Refrigeration:Industrial drives for large building ventilation/AC
- Marine & Heavy Industry:Ships, cement & mining: heavy motor load control
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting Type: Install the unit onto a 35 × 7.5 mm DIN mounting rail.
Grounding: Secure the base plate to the rail using two screws. These screws are essential as they provide the unit's functional grounding; ensure the contact surfaces are free from dirt or grease.
Clearance: Mount the unit so air can pass freely through the housing's ventilation holes. Avoid placing it directly above heat-generating equipment.
Interference: Maintain a minimum distance of 500 mm from sources of electromagnetic disturbance, such as motor cabling, brake choppers, or contactors.
Technical notes
Power is supplied via connector X34 at 24 V DC, with a typical consumption of 150 mA. The unit can also be powered from the inverter's internal power supply board, provided the maximum current of 1 A is not exceeded. An auxiliary +24 V DC output at 250 mA is available for external devices.
FAQs
-
What is the ABB RDCU-02C？
+The ABB RDCU-02C is a Drive Control Unit primarily used to manage and control ABB ACS800 series drives. -
What is the function of the RDCU-02C?
+The RDCU-02C is a control board that manages ABB drives in automation and control panels, ensuring precise motor control and energy optimization. -
Which drive models are compatible with the RDCU-02C?
+It is primarily designed for ACS800 drive modules, specifically the ACS800-04 and ACS800-04M series. -
What is its typical power consumption?
+Consumption varies based on any optional modules (like pulse encoder interfaces or fieldbus adapters) attached to the unit.
