Allen-Bradley

CompactLogix 5370 L1 controller

Ethernet nodes:8 Nodes
No. of Task:32 Task
No. of Program per Task:100
No. of Embedded Inputs:(16) 24 VDC
Module Type:Processor Module
Communication:Ethernet
Input Power:24 Volts DC
Memory:512KB
Communication Cable:6 Point
Shipping Weight:3 pounds

Compact GuardLogix Controller

Application Memory:4 MB
Safety Memory:2 MB
Non-volatile memory:2GB via 1784-SD2
Local I/O modules:31 I/O modules
Communication Ports:1 Type B 2.0
Full-Speed USB and 2 Ethernet/IP Ports
Communication rate, Ethernet:10 Mbps / 100 Mbps / 1 Gbps
User Memory:4 MB + 2 MB safety
Ports:2 Ethernet

SLC 500 Memory Module

Module Type:Memory Module Adapter
Memory:8 kilobytes, 1,000 instructions
Memory Type:EEPROM
User Memory:64,000 Words
Program Scan Time:0.9 milliseconds
I/O Scan Time:0.225 milliseconds
I/O Chassis:3
Chassis Module Slots:30
Communication:Ethernet, RS-232

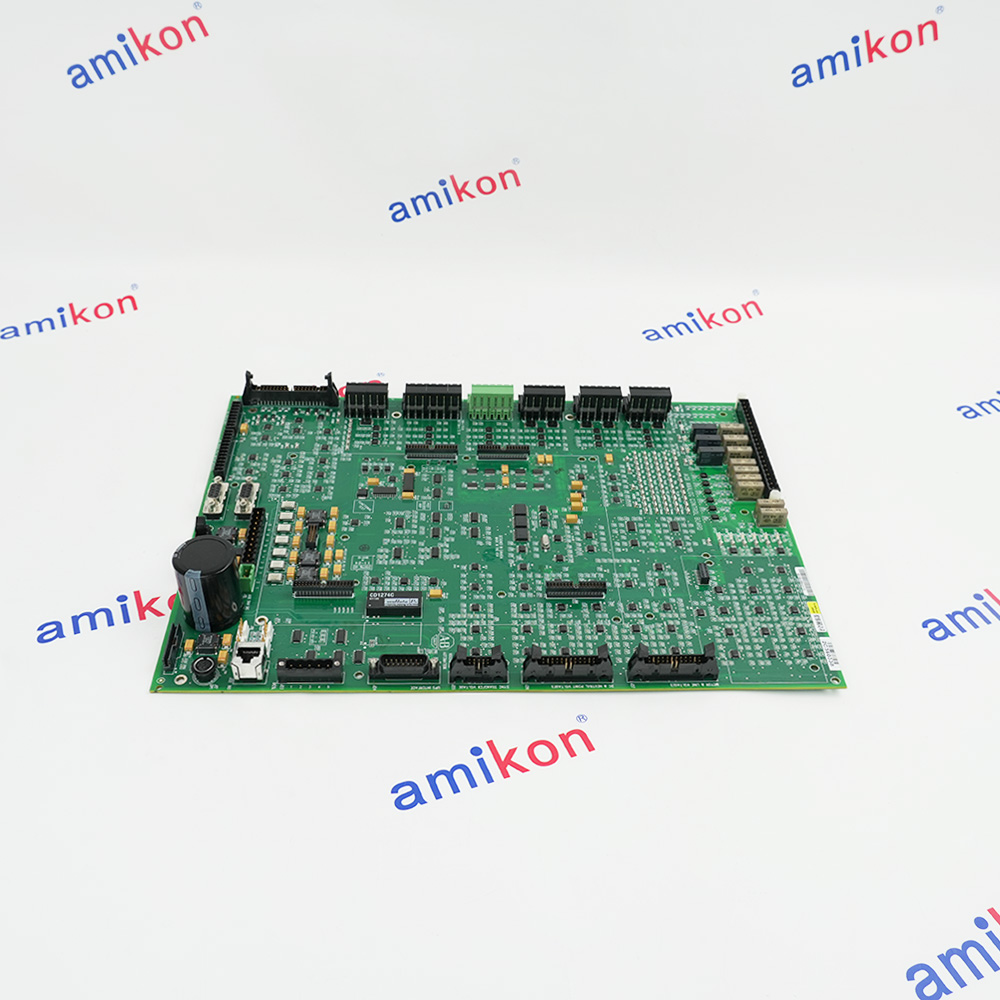

Controller Circuit Board

CONTROL BOARD
Controller Circuit Board
FOR POWERFLEX 7000
FOR AC DRIVE
PWM ONLY
PCB BOARD
Analog Control Board for 18 Pulse Drive

Analog Current Output Module

Outputs per module 2 channel single-ended, nonisolated
Output current 0…20 mA
Resolution 12 bits, 1/4096 max, 4.88 µA/bit
Converted data Binary data 0000 to 0fff (max scale)
Conversion time 2 ms/channel
Overall accuracy 0.2% Full scale @ 0…55 °C
Calibration None required
Allowable external output load resistance600 Ω max

Distance Fiber Module

Fiber Type:200/ 230 micron HCS (hard-clad silica) fiber
Fiber Operating Wavelength:650 nm (red)
Attenuation Levels:4.2 dB
Input Power:5V DC
Typical Repeater Distance:0-300m
Backplane Current Draw:300 mA
Product Line:ControlNet Repeater
Repeater Type:Repeater Short-Distance Fiber Module

SLC 500 Backup Scanner Module

Series:SLC 500
Module Type:Backup Scanner Module
Compatible Processors:SLC 5/02, 5/03, 5/04, 5/05
Backplane Current (5 Volts):800 milliamps
Operating Temperature:0-60 Celsius
Cable:Belden 9463
Connectors:6-Pin Phoenix Connector
Weight:2.5 pounds (1.1 kilograms)

Input Module

Part Number/Catalog No.:1734sc-IF4U
Product Type:Input Module
Rockwell Compatible Series:Point I/O
Channels:4
Input Type:Analog
Resolution:18 bits
Input Impedance:253 ohm
Input Overcurrent Protection:32 mA cont
Thermal Dissipation:1 W min

Point I/O module

Series:POINT I/O
Module Type:Serial Interface Module
Key Switch Position:2
Voltage Range:10-28.8 volts DC
Supply Voltage:24 volts DC nominal
Supply Current:15mA at 24 volts DC

SSI Module

Product Description:Serial Synchronous Interface (SSI) module
SSI Channels:1
Product Family:1734 POINT I/O
Supply Voltage:10-28.8 Volts DC
Part Number:1734-SSI
POINTBus Current:110 milliamps
Power Dissipation:0.94 Watts
No of SSI channels:One (1) SSI port
Supply current :110mA @ 24V dc
Operating Temperature:-20 to 55oC (-4 to 131oF)
Storage Temperature:-40 to 85°C (-40 to 185°F)

Expansion Module Safety Relay

440REM4R2
EXPANSION MODULE
GUARDMASTER
GSR EM
MONITORING SAFETY RELAY
1 SINGLE WIRE SAFE INPUT
1 NC SOLID STATE AUX OUTPUT
24 VDC SUPPLY

SAFETY RELAY

440RS12R2
SAFETY RELAY
GUARDMASTER
SINGLE INPUT
1 DUAL CHANNEL UNIVERSAL INPUT
1 N.C. SOLID STATE AUXILIARY OUTPUTS
24 VDC 2.5 W SUPPLY
AC15 250V / 1.5 AMP
DC13 24V / 2 AMP OUTPUT
REPLACES 440R-J23106

POINT I/O Terminal Module

Part Number/Catalog No.:1734-CTM
Series:POINT I/O
Module Type:Terminal Module
Isolation Voltage:250 Volts Continuous
Field Power Supply:1-28.8 Volts DC or 12/240 Volts AC
Field Power Supply Current:4 amps/module

Compact 5000 analog input module

Overvoltage protection, max:± 30V DC
Overcurrent protection, max:±30 mA
Open circuit detection time:2 seconds
Module Keying:Electronic
Number of Inputs:8 Differential Inputs
Number of Outputs:N/A
Voltage Category:N/A
Input Voltage Range:+/- 10 Volts, 0-10 Volts, 0-5 Volts
Output Voltage Range:N/A
Power Dissipation:2.1 Voltage Mode and 2.4 Current Mode
Enclosure Type:None (Open Style)

Guard Locking Proximity Inputs Safety Relay

Product Type: Safety Relay
Model Number: 440R-GL2S2P
Series: Guardmaster
Input Voltage: 24V DC
Voltage Tolerance: -15% to +10%
Current Consumption: Approx. 200mA
Power Consumption: Typically 4.8W
Relay Output Type:
Safety Outputs: 2 NO
Auxiliary Outputs: 1 NC

Digital DC Sinking Output Module

Series:POINT I/O
Module Type:Digital DC Sinking Output Modules
Outputs:8
Output Voltage:24 Volts DC
Electronically Protected:Yes
POINTBus Current:75 milliamps
Output Current:3 amps/module
Power Dissipation:2 Watts

Analog output module

Series:PLC series
Data Format:BDC or Natural Binary
No. of channels:Four (4) isolated channels
Output signal:+/- 10 VDC
Voltage Range:1-5 V dc, 0-10 V dc, +/- 10 V dc
Output signal ranges:+1 to +5 VDC; -10 to +10 VDC and 0 to +10 VDC
Current Range:N/A
Module resolution:12 bits
Backplane Current:1.5 Miliamperes

DEVICENET TO ETHERNET GATEWAY

Model Number: XM-500, 1440-GWEN2DN
Input Voltage: 24V DC
Power Consumption: < 5W
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Humidity Range: 5% to 95%

FlexLogix Extended-local IO Adapter

Product Type:FlexLogix Extended-local IO Adapter
Input Voltage:24V DC
Input Current:0.39A max. @ 19.2V DC; 0.25A max. @ 24V DC
Input Voltage Range:19.2-31.2V DC
Flexbus Output Current:653mA max. @ 5.1V DC
Isolation Voltage:30V DC
Power Connector Torque:0.6-0.8 Nm
Power Dissipation:7.5W max @ 19.2V; 6.0W max. @ 24V DC
Thermal Dissipation:25.6 BTU/hr. @ 19.2V

power supply module

POWER SUPPLY MODULE
220 V AC INPUT
50/60 HZ
0.5 AMPS
5 V DC OUTPUT
8 AMPS

Kinetix 300 Servo Drive

120 Volts Doubler Mode:Yes
Continuous Output Current (0-peak):5.7 Amperes
Integrated AC (EMC) Line Filter:No
Input Voltage:120/240 Volts (AC), 1 Phase
Power Rating:800 W
Part Number/Catalog No.:2097-V31PR2-LM
Safe Torque-Off:Yes

ARMOR WELDBLOCK

ARMOR WELDBLOCK
16 POINT CONFIGURABLE
QUICKCONNECT
5-PIN AUXILIARY POWER CONNECTOR
SCREW MOUNTED

DeviceNet Scanner Module

Module Width:Single Slot
Compatible controllers:SLC 5/02 or later
Pass through:Supported
Communication Port:One (1) DeviceNet
Data Transfer speed:125Kbps
Storage Temperature:-40 to 85 C (-40 to 185 F)
Vibration:Tested 5 g @ 10-500Hz per IEC 68-2-6
Operating Shock:30 g peak acceleration, 11(+1)ms pulse width
Series:SLC 500
Module Type:DeviceNet Scanner Module
Scan I/O:Yes
Backplane Current (5 Volts):500 milliamps

Process Module

PROCESS MODULE
XM-360
6-CHANNEL INPUT
0-10 VDC/0-20 MA INPUT RANGE
4-20 MA OUTPUT
600 OHM MAX LOAD
STATUS INDICATORS
RS-02232 VIA MINI-CONNECTOR
COMM RATE FIXED @ 19.2 KBPS
STANDARD DEVICENET NETWORK

POINT I/O Analog Input Module

Series:POINT I/O
Module Type:Analog Input Module
Inputs:2 single-ended, non-isolated, voltage
Signal Type:Voltage
Conversion Type:Delta Sigma
Absolute Accuracy:0.1% Full Scale @ 25 °C (77 °F)
Data format:Signed Integer
Key Switch Position:3
Enclosure Type Rating:Open
