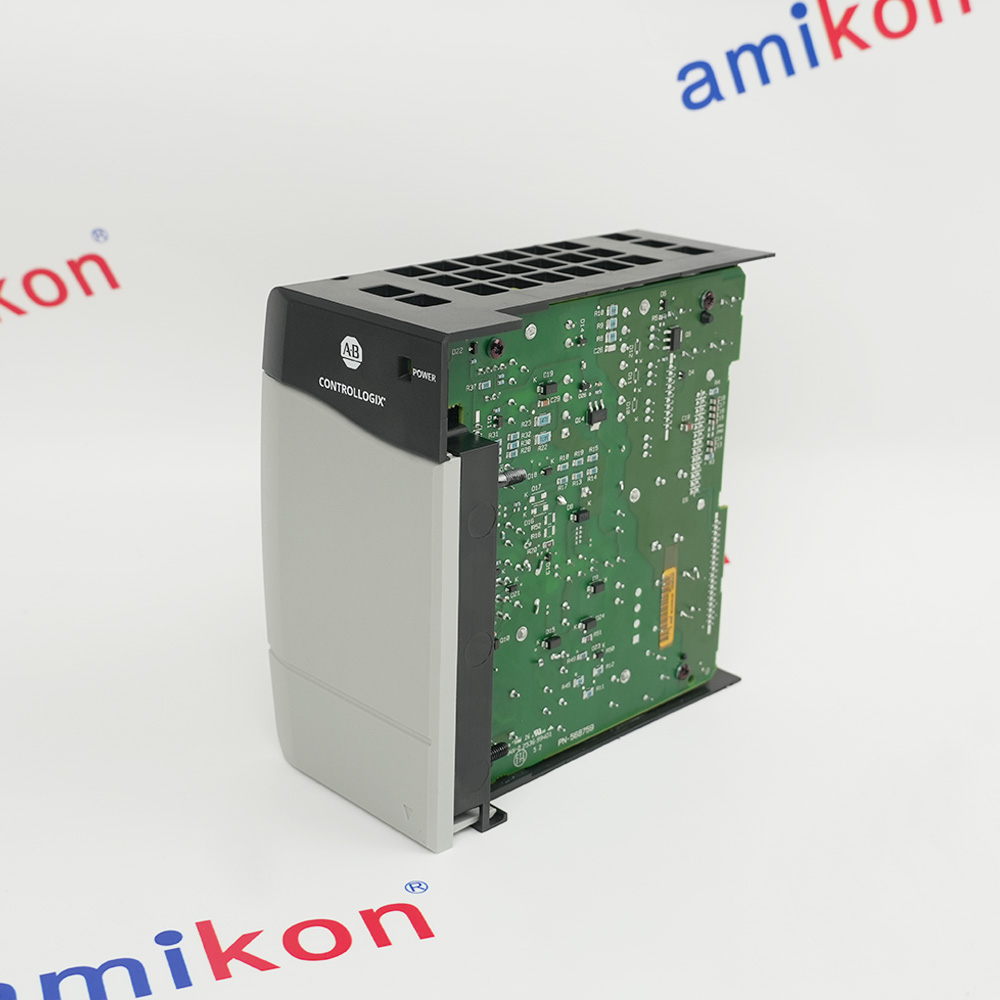

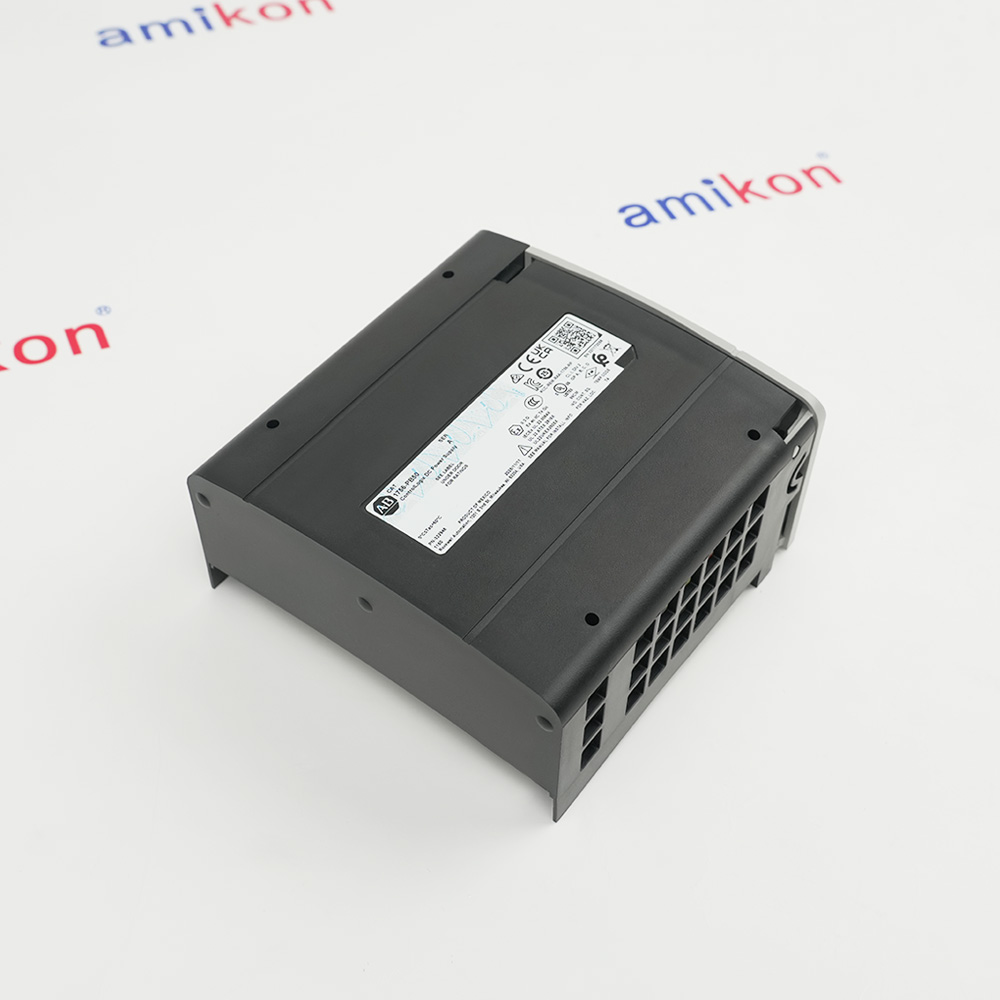

Technical specifications for 1756-PB50
-
Product Model1756-PB50
-
Product ParametersCONTROLLOGIX POWER SUPPLY
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7.8x14.4x14cm
-
ManufacturerAllen-Bradley
-
Weight0.8 kg
-
Input voltage range18…32V DC
-
Input voltage, nom24V DC
-
Input power, max85 W @ 50 °C (122 °F)/70 W @ 60 °C (140 °F)
-
Inrush current, max30 A
-
Current capacity @ 1.2V1.5 A
-
Current capacity @ 3.3V2 A
-
Temperature, operating0 °C < Ta < +60 °C (+32 °F < Ta < +140 °F)
-
Temperature, surrounding air, max60 °C (140 °F)
-
Temperature, nonoperating-40…+85 °C (-40…+185 °F)
-
Relative humidity5…95% noncondensing
-
Vibration2 g @ 10…500 Hz
Description
1756PB50
POWER SUPPLY
CONTROLLOGIX
STANDARD
18 - 32 VOLT DC
2.5 AMP
60 WATT
CHASSIS MOUNT
RACK MOUNTABLE
POWER SUPPLY
CONTROLLOGIX
STANDARD
18 - 32 VOLT DC
2.5 AMP
60 WATT
CHASSIS MOUNT
RACK MOUNTABLE
Information
Overview
Manuals
Technical notes
Product Applications
Installation Instructions
Features:
- ControlLogix DC Power Supply
- 18 - 32VDC, 2.5A, 60W
- 60 WATT
The 1756-PB50 Allen-Bradley ControlLogix Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Allen-Bradley 1756-PB50 ControlLogix Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This power supply does not occupy a slot in the ControlLogix chassis as it is installed in the leftmost position, outside the rack. It is designated with a specific installation location and unlike 1756 modules, this module cannot be installed to any available slot.
The 1756-PB50 is compatible for 1756-Chassis that belongs to the Series A, B, and C releases. This power supply is compatible for installation with any ControlLogix chassis as well as any type of modules specifically I/O, communication, specialty and encompass partner modules.
This power supply features a Hold-Up time capability. This feature refers to the ability of power supply to continue operation when the input voltage supply goes below the minimum supply level. Hold up time varies according to the power supply loading which specifically are 30 ms at 18 to 32V DC, 60 W load and 40 ms at 18 to 32V DC, 50 W load.
- Automotive & Aerospace:Assembly stations with ControlLogix for motion & safety control
- Food & Beverage:Stainless steel, space-restricted panels for processing & packaging
- Process Plants:Remote I/O chassis for decentralized process control environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount the Power Supply: Align the circuit board with the card guides on the left side of the ControlLogix chassis and slide it back until it is flush with the front.
Terminals: Connect the positive lead to DC+ (Terminal 1) and the negative lead to DC- (Terminal 2). Terminal 3 is unused.
Cable Retention: Align the power cable in the V-groove on the front and secure it with a cable tie.
FAQs
-
What is the 1756-PB50?
+Allen-Bradley 1756-PB50 ControlLogix DC Power Supply -
What are the input voltage requirements for the 1756-PB50?
+The 1756-PB50 operates with a nominal input of 24V DC, with an operational range of 18-32V DC. -
Does the 1756-PB50 occupy a slot in the chassis?
+No, the 1756-PB50 mounts directly to the left end of the ControlLogix chassis and does not occupy a standard I/O slot. -
Does this module support redundancy?
+No, the 1756-PB50 is not redundancy capable.
