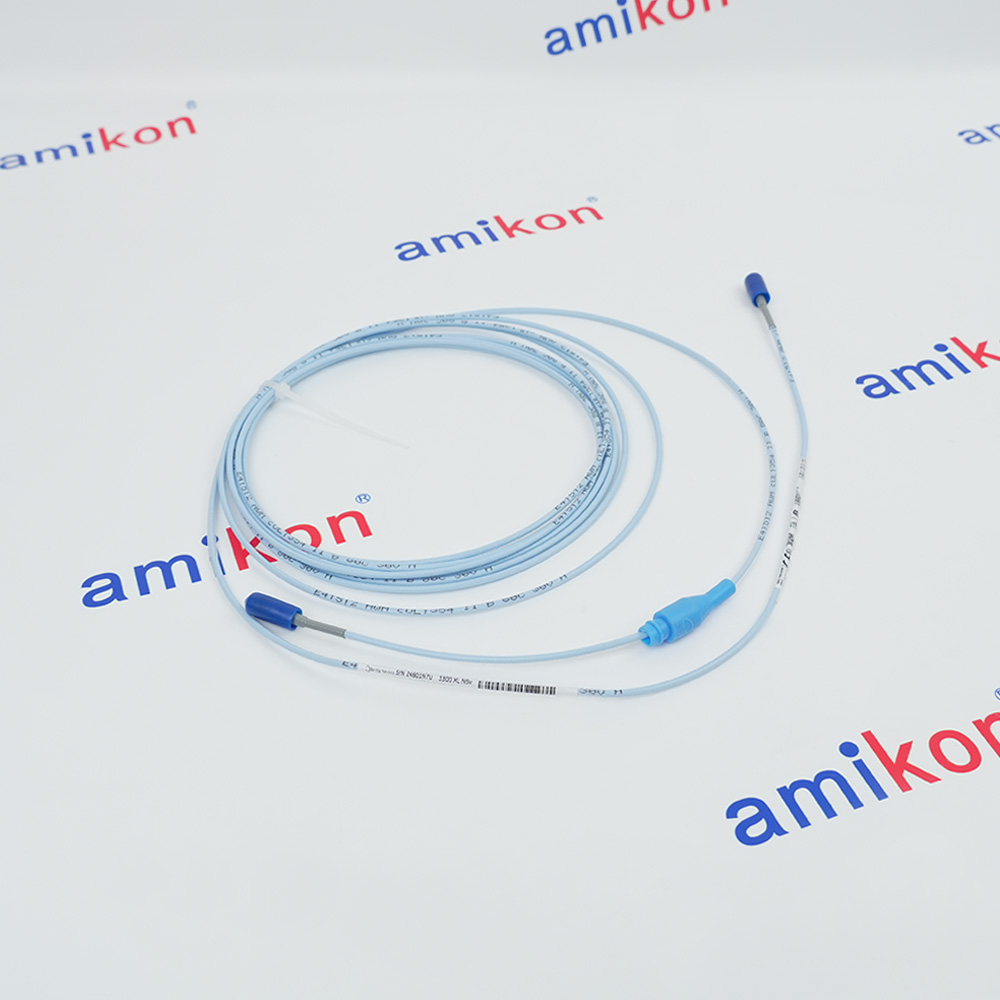

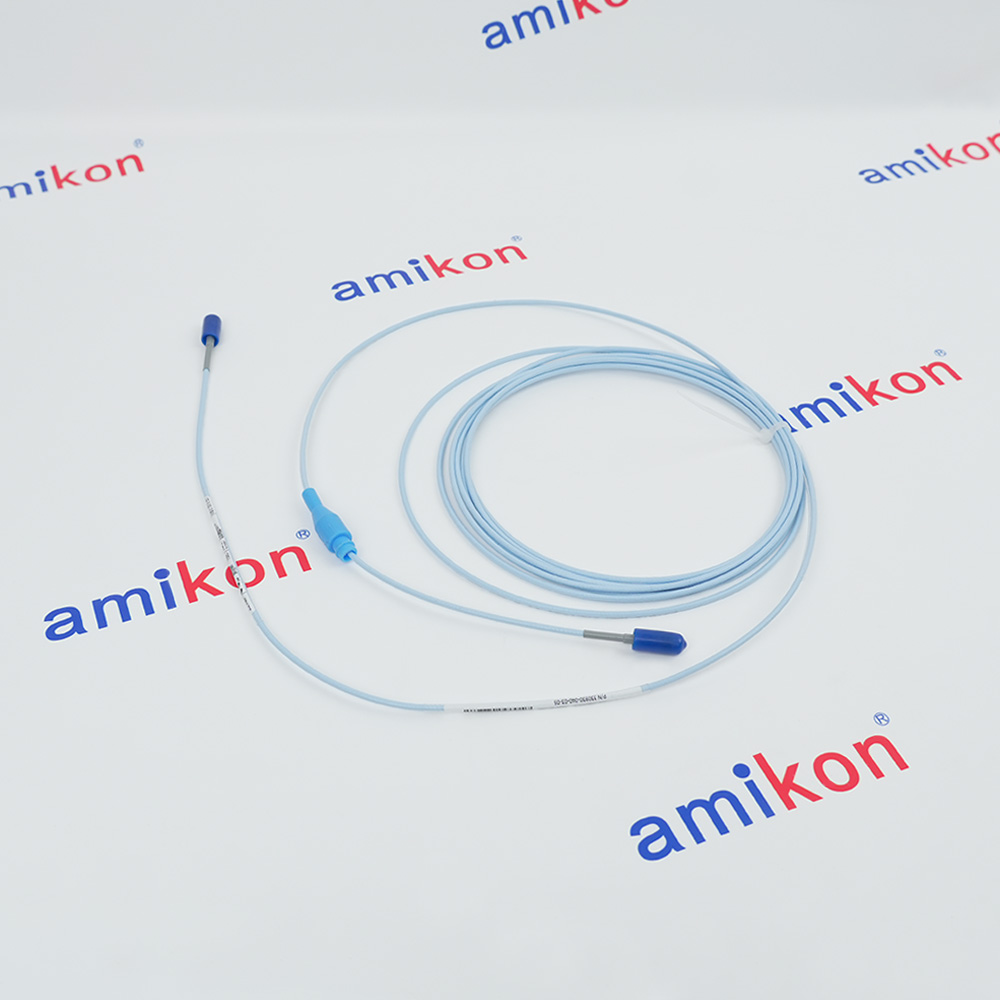

Technical specifications for 330930-040-03-05
-
Product Model330930-040-03-05
-
Product Parameters3300 NSv Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size18x18x1.5cm
-
ManufacturerBently Nevada
-
Weight0.1 kg
-
Cable Length Option4.0 meters (13.1 feet)
-
Connector and Cable OptionWithout stainless steel armor with connector protector
-
Agency Approval OptionMultiple Approvals
-
Output resistance50 Ω
-
Probe Case MaterialAISI 304 stainless steel
Description
040 4.0 meters (13.1 feet)
03 Without stainless steel armor
with connector protector
05 Multiple Approvals
03 Without stainless steel armor
with connector protector
05 Multiple Approvals
Alternative Names
330930-040-03-O5
330930-040-O3-05
330930-04O-03-05
33093O-040-03-05
33O930-040-03-05
330930 040 03 05
330930 040 03 O5
330930 040 O3 05
330930 O4O 03 05
33O93O 040 03 05
33O93O-O4O-O3-O5
330930-040-03-00
330930-040-03-CN
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting & Configuration
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
The 330930-040-03-055 Bently Nevada 3300 NSv Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330930-040-03-05 3300 NSv Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 NSv probe and extension cable aremechanically and electrically compatible andinterchangeable with Bently Nevada’s previous3300 RAM proximity probe and extension cable.The NSv probe has increased chemicalresistance compared to the 3300 RAM probe,which allows its use in many processcompressor applications. The side-viewcharacteristics of the 3300 NSv probe are alsosuperior to those of the 3000-series 190 probewhen gapping the 3300 NSv probe at the samedistance from the probe target.
- Fluid-Filmed Bearing Machines:Radial vibration/position & axial thrust
- Compressors:Centrifugal air, refrigeration & process gas
- Tight Installation Areas:Counterbore, side-view or rearview constraints/span>
- Turbo Expanders: High-speed turbines used in gas processing
- Electric Motors & Generators: Specifically those with tight internal clearances or small fluid-film bearings
- Pumps & Fans: Centrifugal or positive displacement pumps where mounting between bearing pads is required
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Probe Threading: The 3300 NSv probe features various threading options including 1/4-28, 3/8-24, M8X1, and M10X1 to fit specific machine case requirements.
Connector Hand-Tightening: All system components use gold-plated brass ClickLoc connectors. These should be tightened finger-tight until they "click" to engage the locking mechanism; no special tools are required for a secure, vibration-resistant connection.
Cross-Talk Prevention: To avoid electrical interference between adjacent probes, maintain a minimum separation of at least 25 mm (1.0 in) for axial measurements or 23 mm (0.9 in) for radial vibration
Technical notes
The cable operates in temperatures from −51°C to +177°C. It carries multiple agency approvals for hazardous area applications. Typical applications include vibration monitoring, axial position measurement, and phase reference (Keyphasor®) measurement on centrifugal air compressors, refrigeration compressors, process gas compressors, and other rotating machinery with limited installation space.
FAQs
-
What is the 330930-040-03-05?
+It is a 3300 XL NSv (Near-sV) Extension Cable designed for Bently Nevada proximity transducer systems to connect the probe to the Proximitor sensor. -
Is it compatible with older systems?
+Yes, it is designed for 3300 NSv systems and is often used to replace 3300 RAM systems. It is also compatible with 3000-series 190 systems if the probe and Proximitor are also replaced. -
What is the difference between standard 3300 XL and NSv cables?
+The NSv (Non-Standard Velocity) system is designed for small targets, such as shafts smaller than 51 mm (2 inches) or flat targets smaller than 15 mm (0.6 inches). It has a shorter linear range (1.5 mm) but superior side-view characteristics compared to standard systems. -
Why does the length of the extension cable matter?
+The total system length (Probe + Extension Cable) must equal the calibrated length of your Proximitor Sensor (typically 5 or 9 meters). Using a 4m extension cable requires you to use a 1m probe to achieve the correct 5m system requirement, or a 5m probe for a 9m system
