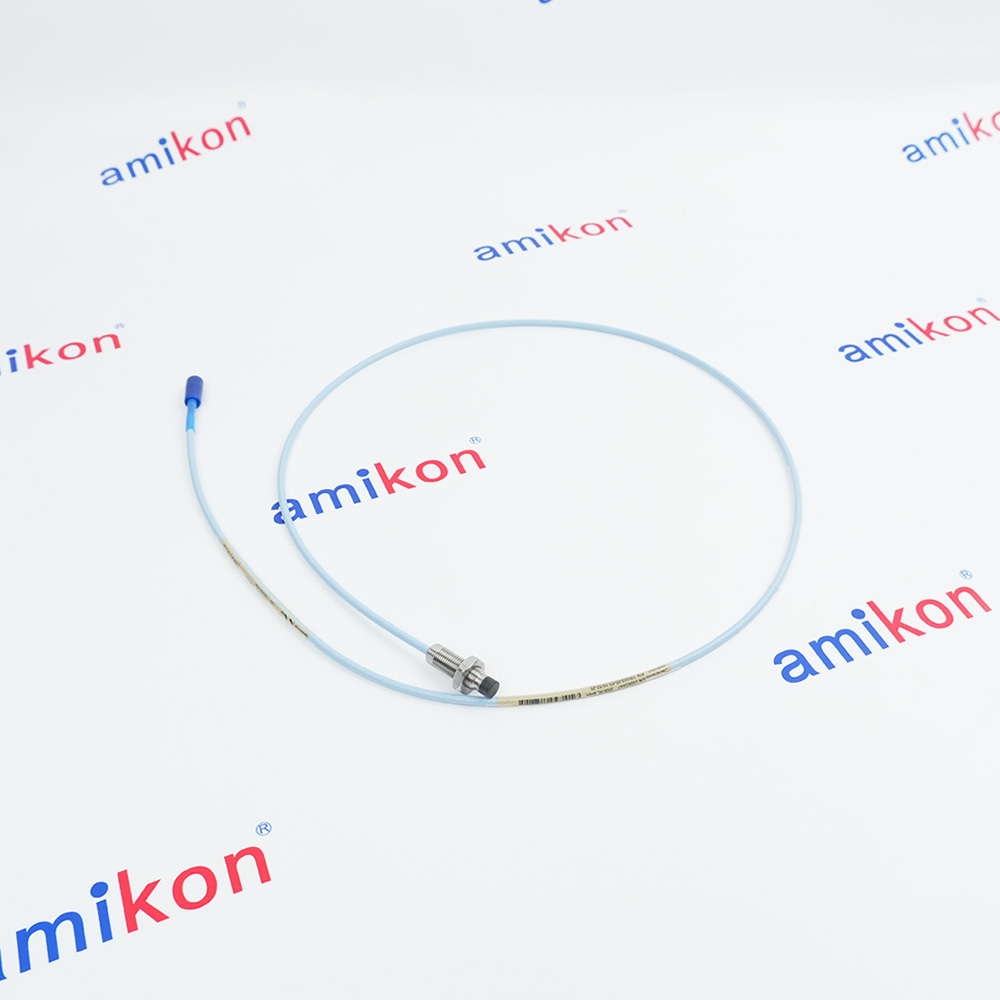

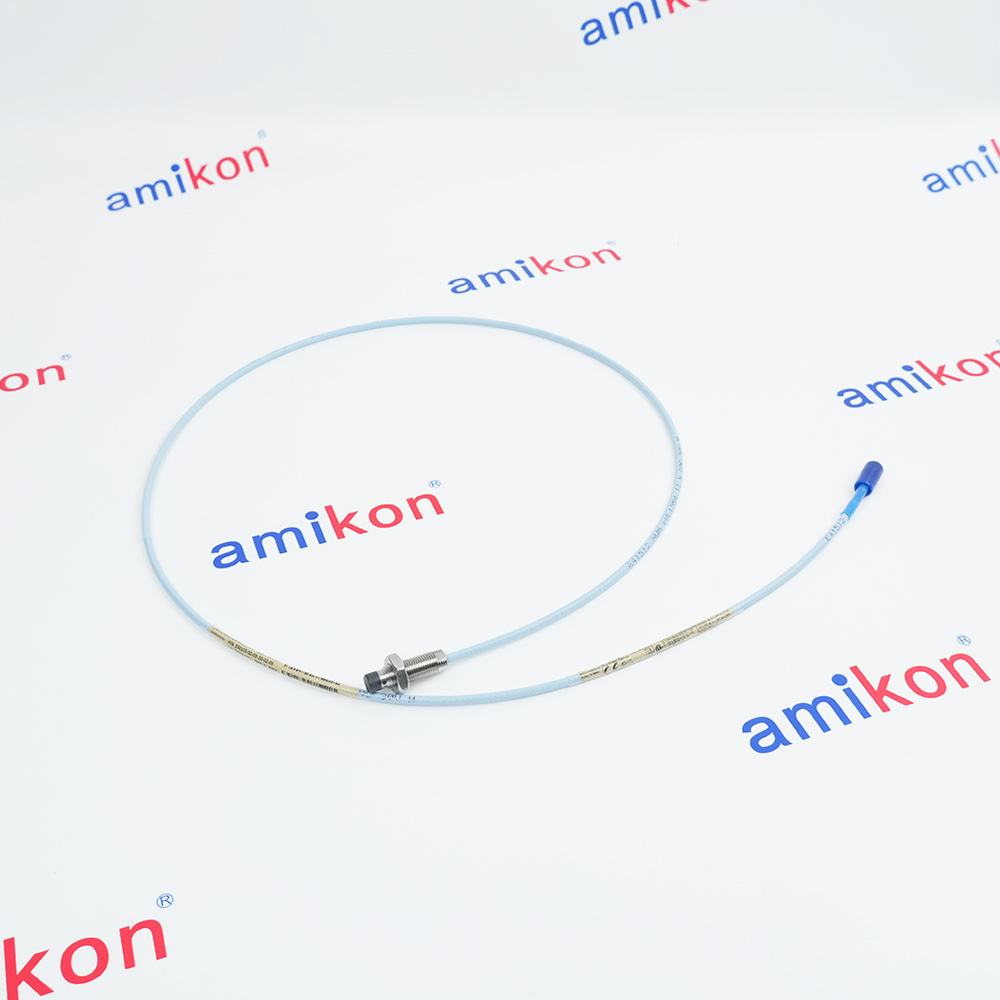

- 3300 XL 8mm Proximity Transducer
- 330103-00-03-10-02-05
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330103-00-03-10-02-05
-
Product Model330103-00-03-10-02-05
-
Product Parameters3300 XL 8 mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.8x1.5x112cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0 mm
-
Overall Case Length Option30 mm
-
Total Length Option1.0 meter (3.3 feet)
-
Connector and Cable-Type OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionCSA, ATEX, IECEx Approvals
Description
330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 30 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx Approvals
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 30 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Operational Instructions
Features:
- Armored and Unarmored Options
- Multiple Connector Options
- Complete Interchangeability of Units and Cabling
The 3300 XL 8 mm system delivers the most advancedperformance in our eddy current proximity transducersystems. The standard 3300 XL 8 mm 5-meter system alsofully complies with the American Petroleum Institute’s (API)670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mmproximity transducer systems provide this level ofperformance and support complete interchangeability ofprobes, extension cables, and Proximitor sensors, eliminatingthe need to match or bench calibrate individual components.
The 330101-00-20-10-02-05 Bently Nevada 3300 XL 8 mm Proximity Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330101-00-20-10-02-05 3300 XL 8 mm Proximity Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 3300 XL probe and extension cable alsoreflect improvements over previous designs. Apatented TipLoc molding method provides amore robust bond between the probe tip andthe probe body.
The probe’s cable incorporatesa patented CableLoc design that provides 330N (75 lbf) pull strength to more securely attachthe probe cable and probe tip.You can also order 3300 XL 8 mm probes andextension cables with an optional FluidLoccable option. This option prevents oil and otherliquids from leaking out of the machine throughthe cable’s interior.
- Power Generation: Monitoring steam/gas turbines, generators, and large pumpse
- Oil & Gas: Centrifugal, axial, and reciprocating compressors; monitoring pipeline pumping stations
- Manufacturing & Metals: High-performance vibration measurement on large motors, drives, and rolling millsy
- Hazardous Environments: Certified (CSA, ATEX, IECEx) for use in volatile environments
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Proper Gapping: The probe should be gapped at approximately 1.27 mm (50 mils) from the target to operate within its linear range.
Gap Voltage: When properly gapped and centered, the normal gap voltage should range between -9 V and -11 V DC.
Interchangeability: This 1-meter probe is physically and electrically interchangeable with other Bently Nevada 3300 series 5 mm and 8 mm components.
FAQs
-
What is the 330103-00-03-10-02-05？+The Bently Nevada 330103-00-03-10-02-05 is a 3300 XL 8 mm proximity probe designed for non-contact vibration and position monitoring in industrial machinery.
-
What is the function of this probe?+It provides voltage output proportional to the distance between the probe tip and a conductive surface, measuring both radial vibration and axial position on rotating equipment like turbines and compressors.
-
Does this probe require special installation tools?+No, the 3300 XL probe features ClickLoc connectors that only require finger-tight torque, ensuring a secure connection without tools.
-
Is this probe interchangeable with older systems?+Yes. 3300 XL 8 mm components are both electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
-
What is the correct gap voltage?+For the 3300 XL series, the normal gap voltage range is typically -9 V to -11 V DC when the shaft is centered in the linear range.
