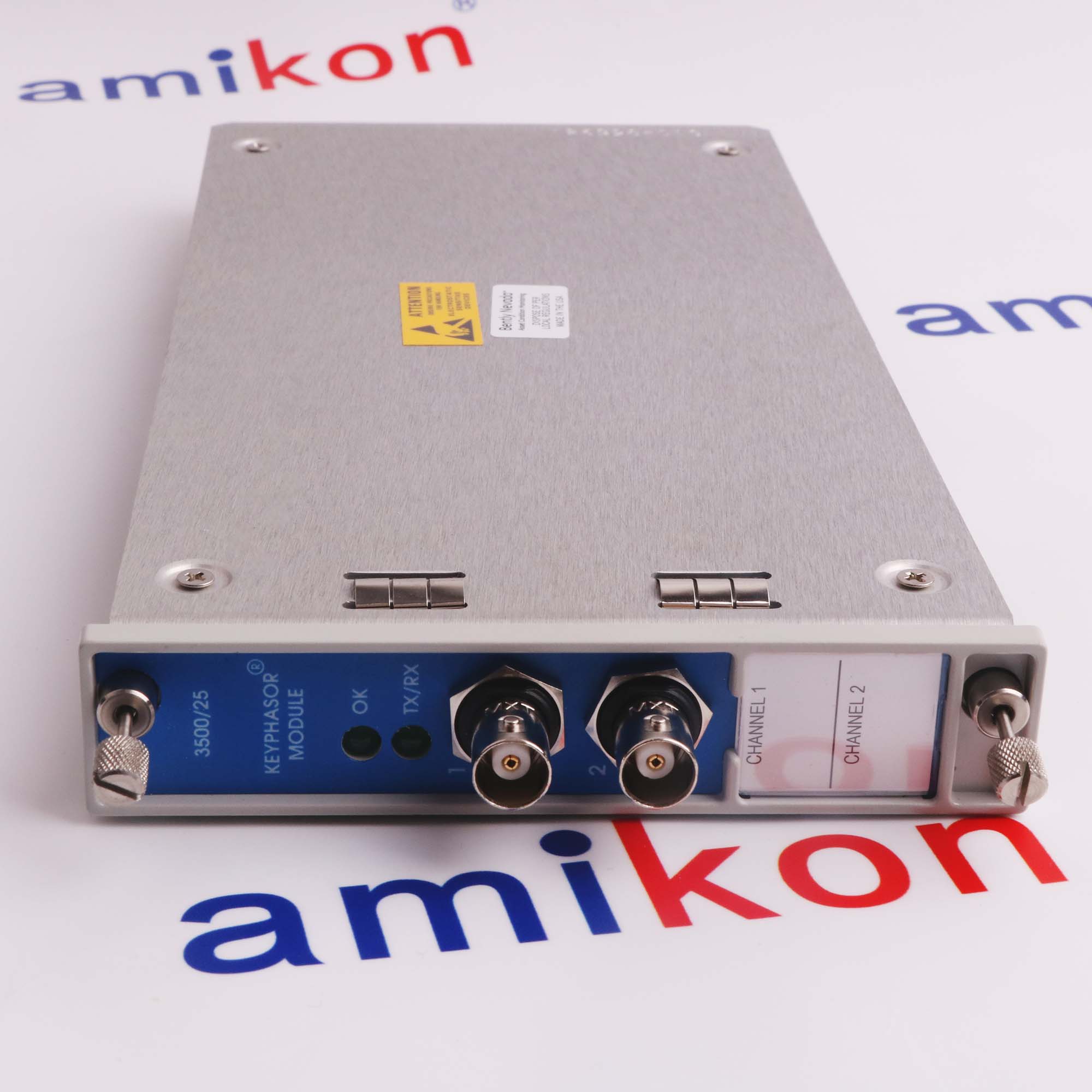

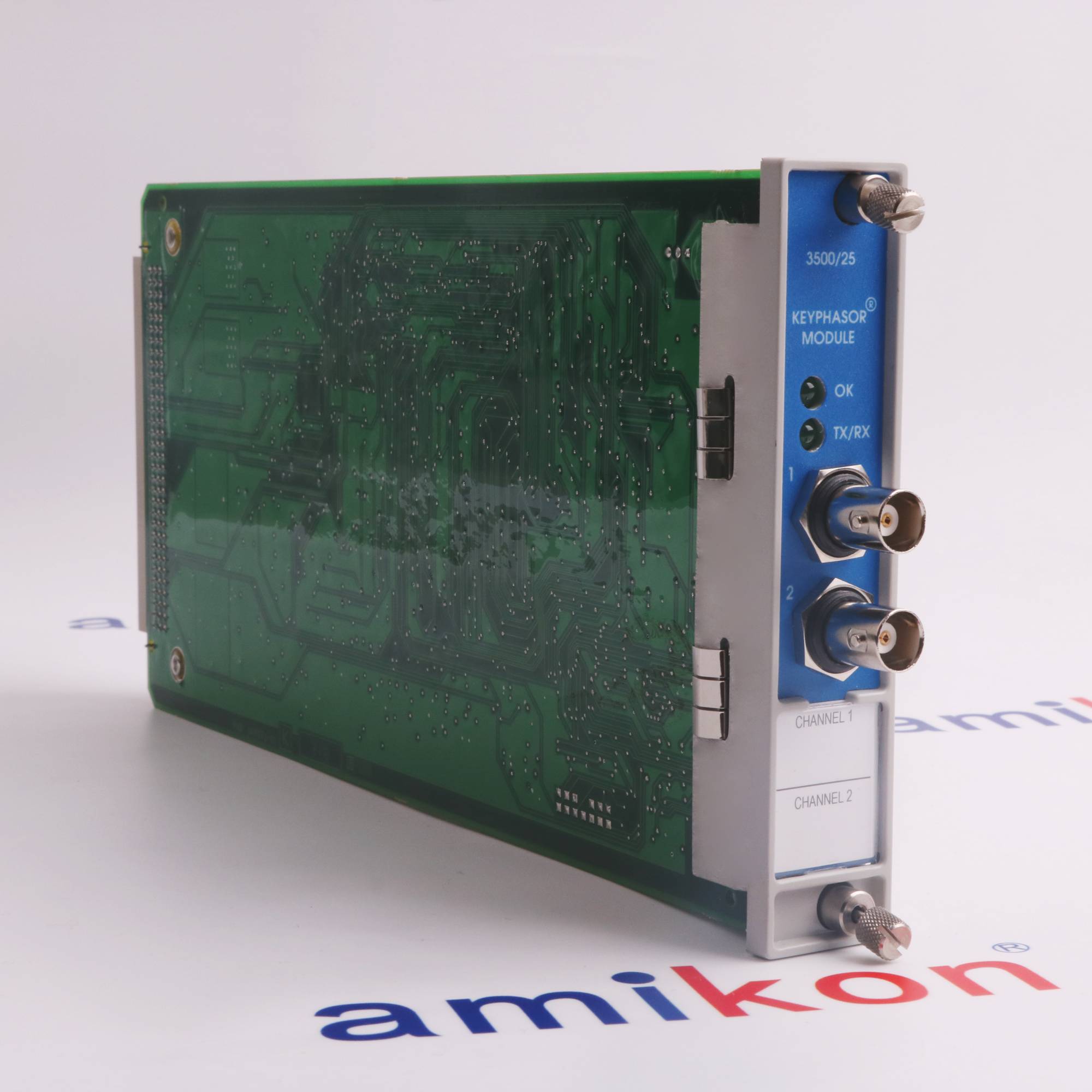

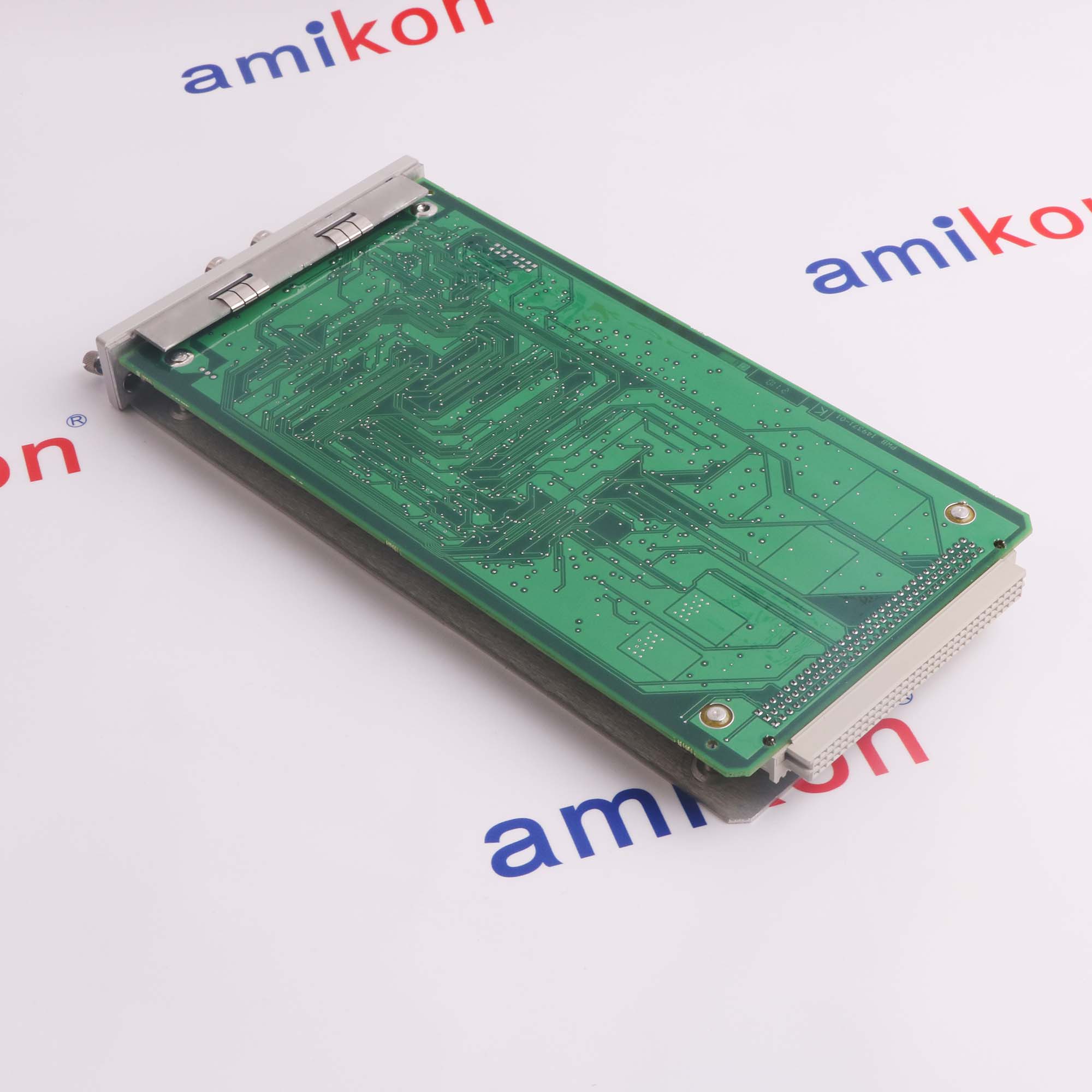

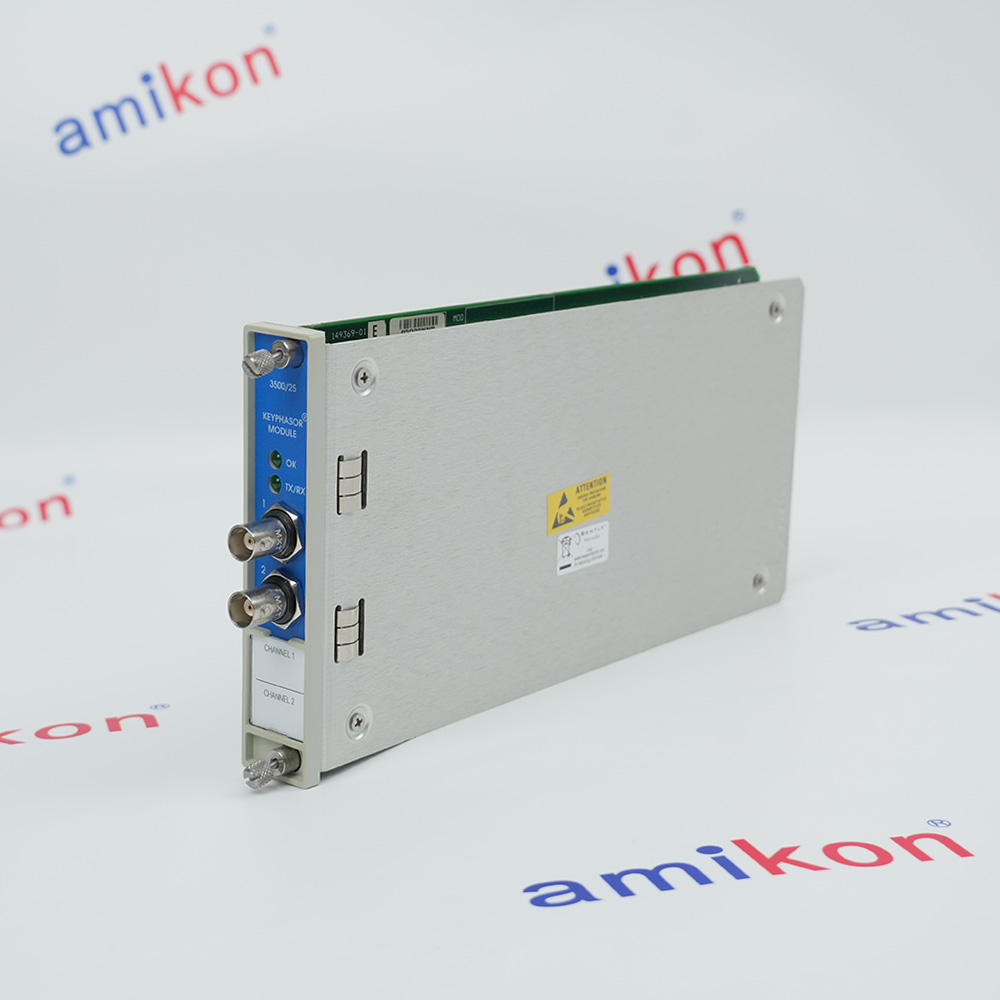

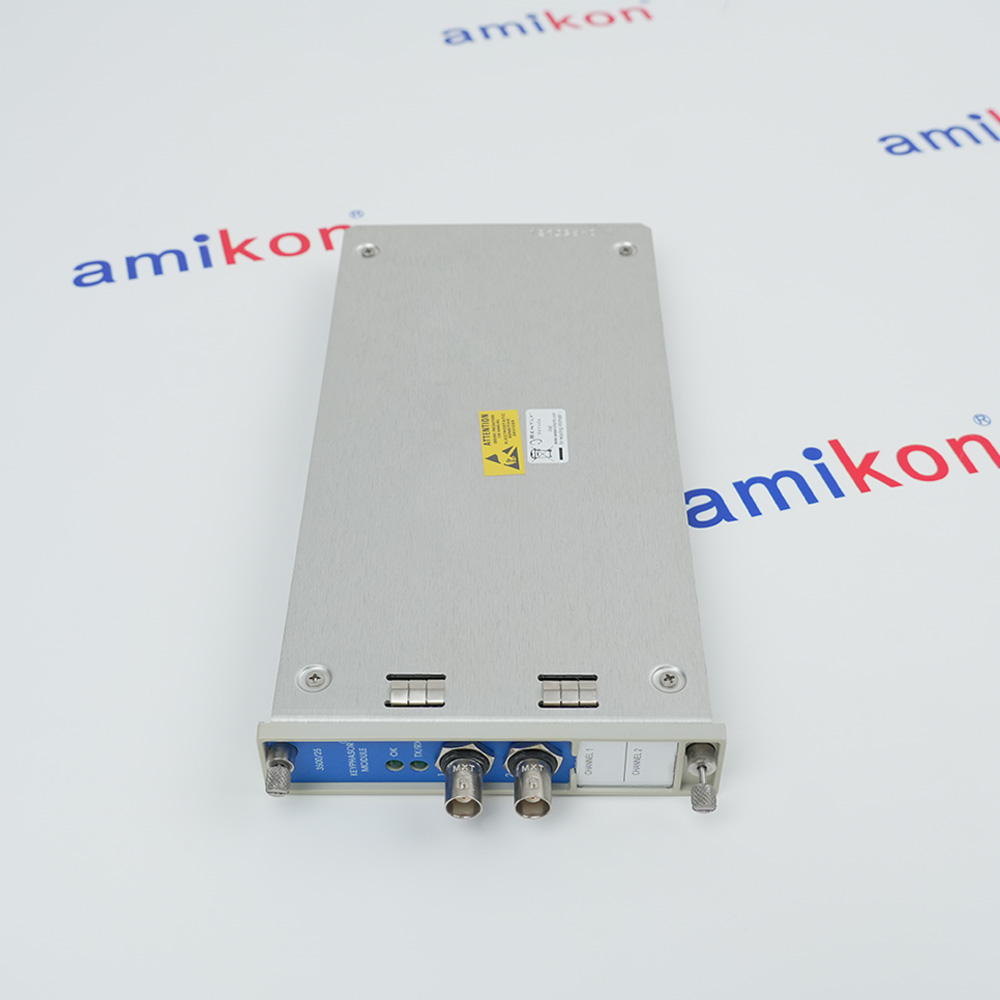

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3500/25 149369-01
-
Product Model3500/25 149369-01
-
Spare Model149369-01
-
Product ParametersEnhanced Keyphasor Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock3 units
-
Estimated Shipping Size2.5x25.6x12cm
-
ManufacturerBently Nevada
-
Weight0.3 kg
-
OperatingTemperature-30°C to +65°C(-22°F to +150°F)
-
StorageTemperature-40°C to +85°C(-40°F to +185°F)
-
Humidity95%, non-condensing
-
PowerConsumption3.2 Watts typical
-
InputImpedance21.8 kΩ minimum
-
I/O Modules1 full-height rear slot
Description
The Bently Nevada 3500/25 Enhanced Keyphasor Module isa half-height, two-channel module used to provideKeyphasor signals to the monitor modules in a 3500 rack. Themodule receives input signals from proximity probes ormagnetic pickups and converts the signals to digitalKeyphasor signals that indicate when the Keyphasor mark onthe shaft coincides with the Keyphasor transducer. The 3500Machinery Protection System can accept up to fourKeyphasor signals for normal configuration and up to eightKeyphasor signals in a paired configuration
The Enhanced Keyphasor Module is an improved 3500system module. It offers expanded Keyphasor signalprocessing capabilities over the previous design whilemaintaining complete downward-compatibility in terms ofform, fit and function with existing Keyphasor modules for usein legacy systems. The Keyphasor module, PWA 125792-01, iscompletely replaced by the updated 149369-01 module.
The Enhanced Keyphasor Module is an improved 3500system module. It offers expanded Keyphasor signalprocessing capabilities over the previous design whilemaintaining complete downward-compatibility in terms ofform, fit and function with existing Keyphasor modules for usein legacy systems. The Keyphasor module, PWA 125792-01, iscompletely replaced by the updated 149369-01 module.
Alternative Names
3500 25 149369 01
3500-25
35OO/25 149369-O1
I49369-0I
I49369 0I
Information
Overview
Manuals
User guide
Product Applications
Field Wiring & Terminations
Features:
- Half-height
- (2) Channels
- Input Signals: Proximity Probes or Magnetic Pickups
The Bently Nevada 3500/25 is an improved 3500 system module. The Bently Nevada 3500/25 offers expanded Keyphasor signal processing capabilities over the previous module while maintaining complete downward compatibility in terms of form, fit, and function with existing Keyphasor modules for use in legacy systems. The Keyphasor module PWA 125792-01 is completely replaced by the updated 149369-01.
The 3500/25 149369-01 Bently Nevada Enhanced Keyphasor Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/25 149369-01 Enhanced Keyphasor Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 3500/25 generates once-per-turn event signals from multi-event-per-turn inputs. The Bently Nevada 3500/25 supports field-upgradeable firmware. The Bently Nevada 3500/25 provides asset management data reporting. These enhanced product features expand the functionality of the module beyond the capabilities of the original Keyphasor module.
The Bently Nevada 3500/25 supports up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired configuration. When a system Keyphasor input is required for Triple Modular Redundant (TMR) applications, the 3500 system employs two Keyphasor modules. In this configuration, the modules work in parallel to provide both a primary and secondary Keyphasor signal to the other modules in the rack.
- Steam & Gas Turbines:Monitors speed/phase for rubs, thermal growth & unbalance
- Aeroderivative Gas Turbines:Casing & high-speed core shaft vibration monitoring
- Hydroelectric Turbines:Rotor speed & air gap to keep generator centered
- Centrifugal Compressors:Speed variation detection & auto-shutdown for bearing failure
- Reciprocating Compressors:Rod position, pressure & impulse for valve/piston wear
- Critical Pumps:Reverse rotation & zero-speed monitoring for water/oil
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Internal Terminations: Field wiring from proximity probes or magnetic pickups connects directly to terminal blocks on the I/O module at the rear of the rack.
External Terminations (ET): Used when you want to terminate field wiring at a separate terminal block in a cabinet. You must use specific Bently Nevada cables to connect the I/O module to the ET block.
Isolated I/O: Recommended for magnetic pickups or when signals are shared between multiple devices. These modules provide isolation to prevent electrical interference but may introduce a slight phase shift.
Technical notes
A system with more than four Keyphasor inputsmay usea paired configuration provided thereare no more than four primary Keyphasor inputsignals.A paired configuration requires twoconsecutive monitoring positions in either theupper/lower or both half-slot positions. FourKeyphasor modules will accept four primaryand four backup input channels and providefour output channels (one per module).Aconfiguration of two paired and one nonpaired (three Keyphasor modules total) is alsopossible. In sucha configuration, the user mayconfigure the one non-paired Keyphasor (ordereither two 2-channel or one 1-channel and one2-channel option)
