PRODUCT DESCRIPTION
Reciprocating compressor vibration monitor

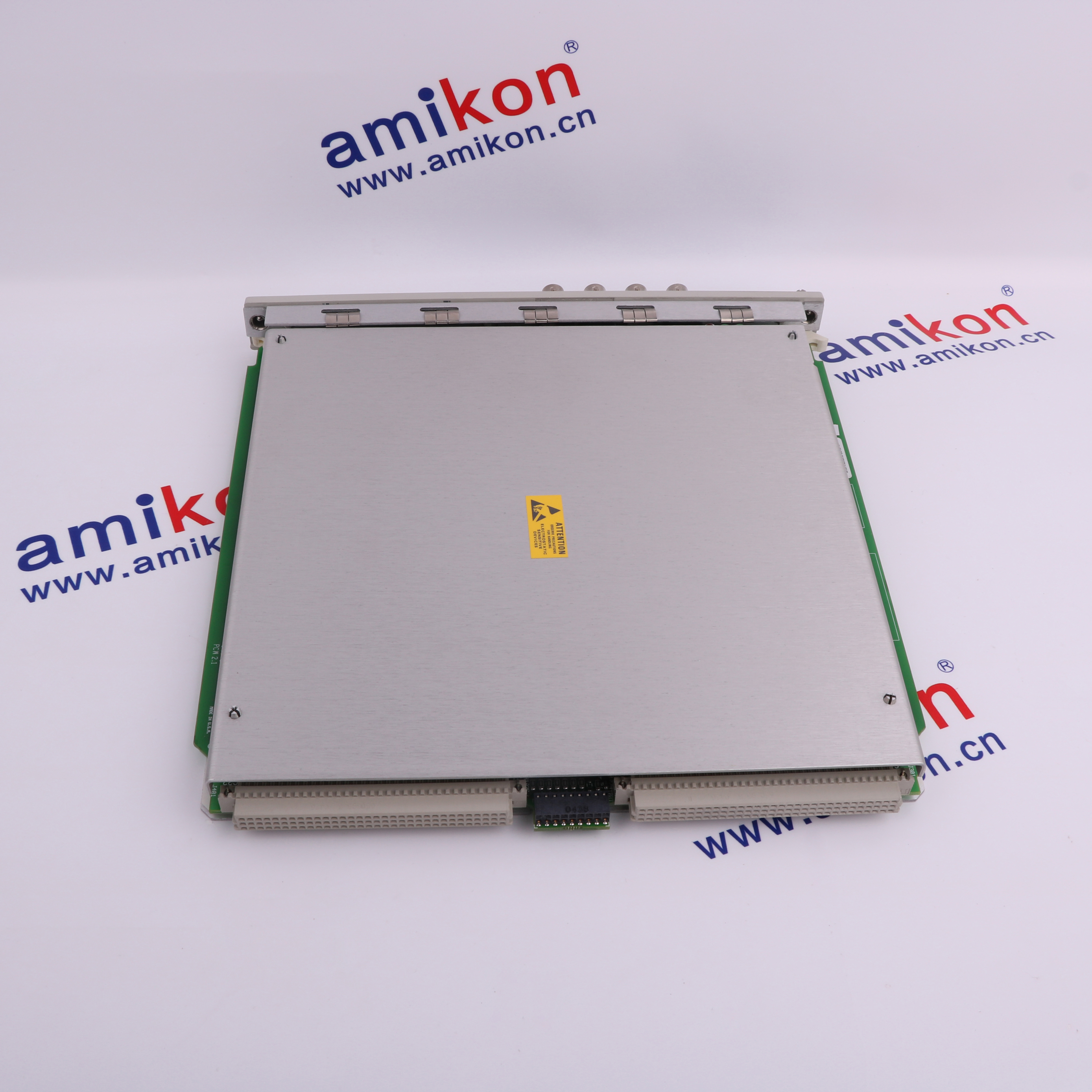

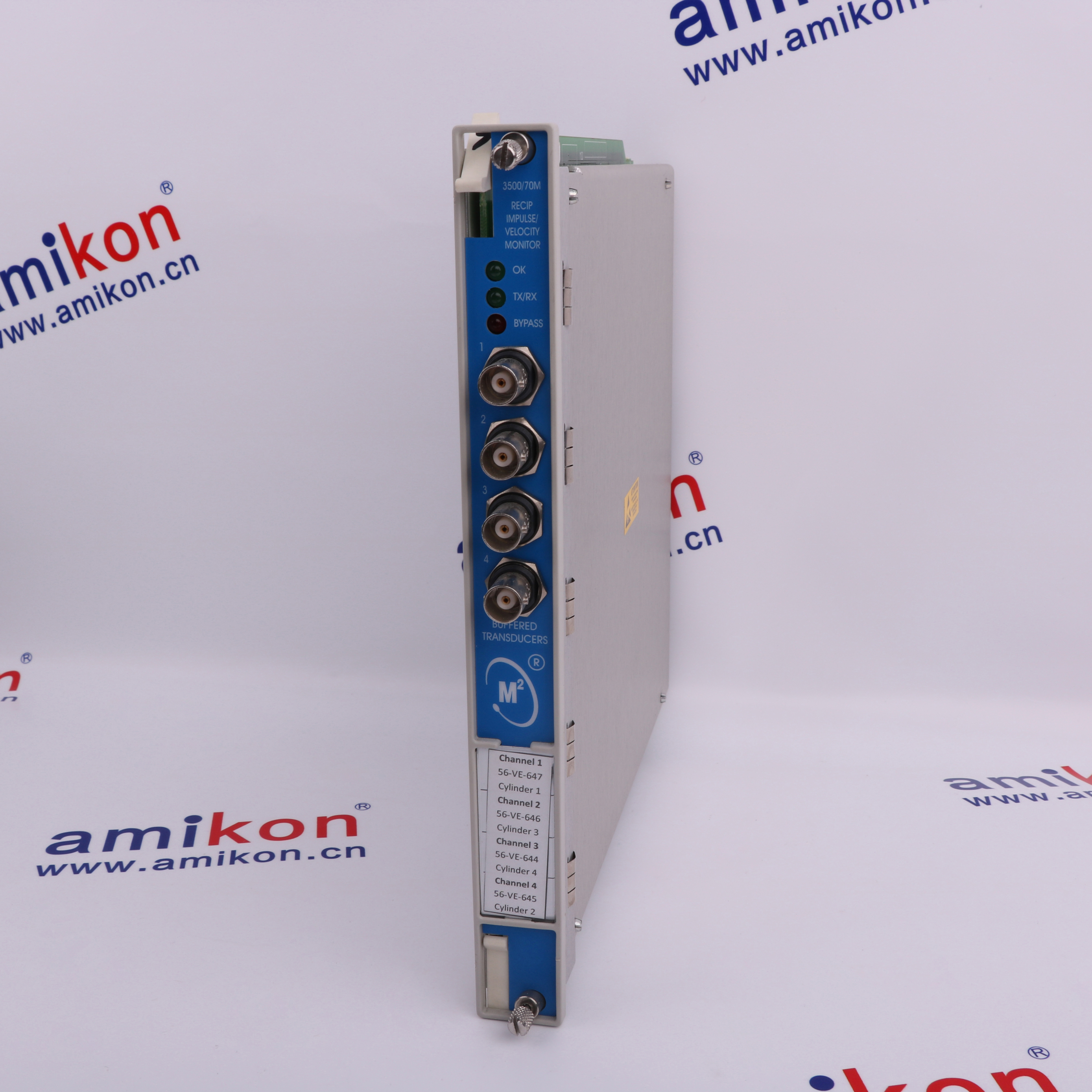

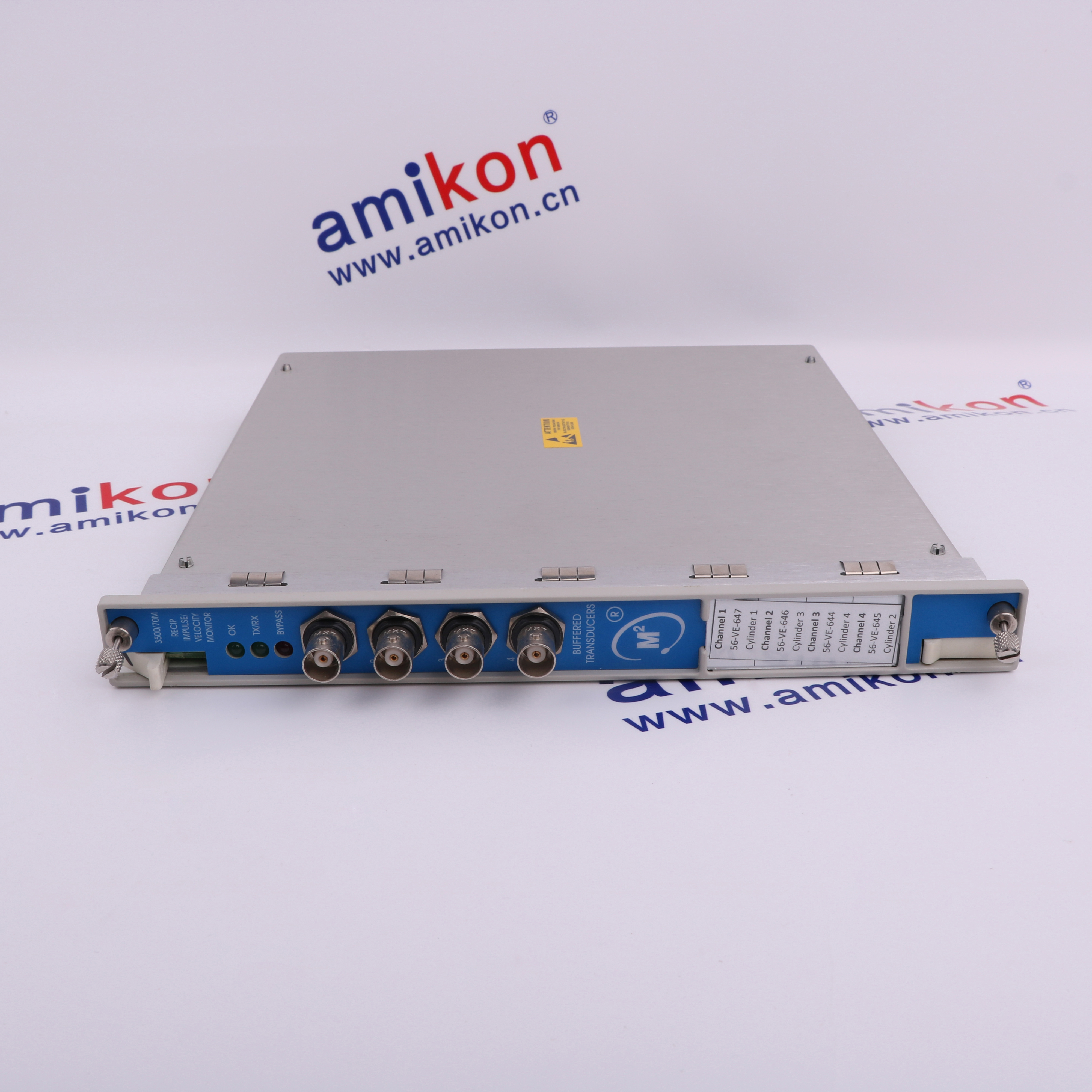

Bently Nevada 3500/70M 176449-09 is a reciprocating vibration monitor. The monitor evaluates seismic-transducer signals for reciprocating compressor crankcase and crosshead vibration. Available functions include impulse acceleration, acceleration and reciprocating velocity. Channels are configured in pairs and compared with programmed alarms, with the chosen measurement and sensor arrangement determining valid results.
The official spare table identifies 176449-09 as the 3500/70M Recip Impulse Velocity Monitor. Match the rear I/O, transducer and configuration to the installed compressor. The supplied part number does not establish its firmware or the presence of a low-speed modification.
The official spare table identifies 176449-09 as the 3500/70M Recip Impulse Velocity Monitor. Match the rear I/O, transducer and configuration to the installed compressor. The supplied part number does not establish its firmware or the presence of a low-speed modification.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Applications for 3500 reciprocating vibration monitoring system
These applications describe manufacturer-documented family use. They do not establish that this exact ordering code was installed at a named customer site.
-
01 · CRANKCASE VIBRATION
Compressor-frame condition monitoring
The manufacturer describes crankcase vibration monitoring as part of the reciprocating compressor solution. Select the seismic transducer and channel function suitable for that physical location. -
02 · CROSSHEAD VIBRATION
Impulse-related compressor measurements
Impulse-acceleration channels can evaluate peak or RMS acceleration within selected crank-angle bands. These measurements depend on the configured compressor timing and supported operating speed. -
03 · LOW-FREQUENCY VELOCITY
Reciprocating machine vibration trends
The low-frequency velocity function provides the specified filtering for appropriate reciprocating-machine measurements. Its existence does not remove the separate minimum-speed and modification requirements.
Technical specifications for 3500/70M 176449-09
-
Product Model3500/70M 176449-09
-
Spare Model176449-09
-
Product ParametersReciprocating compressor vibration monitor
-
In stock7 units
-
ManufacturerBently Nevada
-
Monitoring channelsFour
-
Nominal power consumption7.7 W
-
Acceleration input impedance10 kohm
-
Velocity input impedanceGreater than 1 Mohm
-
Channel programmingPairs 1-2 and 3-4
-
Buffered output impedance550 ohm typical
-
Recorder output4-20 mA per channel
-
Recorder maximum load600 ohm
-
Recorder updateLess than 100 ms
-
Impulse-angle bandsSix adjustable crank-angle bands
-
Standard minimum machine speed60 rpm; lower-speed MOD required for 30 rpm
-
Alarm setpoint accuracyWithin 0.13% of desired value
-
Operating temperature-30 to +65 deg C standard I/O; 0 to +65 deg C barrier I/O
-
Storage temperature-40 to +85 deg C
-
Rack allocationOne full-height front slot
View all additional
Alternative Names
3500/70M 176449 09
3500/70M 176449-09 reciprocating vibration monitor
Bently Nevada 3500/70M 176449-09
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
RECIPROCATING COMPRESSOR VIBRATION MONITOR
Integrating 3500/70M 176449-09
The monitor evaluates seismic-transducer signals for reciprocating compressor crankcase and crosshead vibration. Available functions include impulse acceleration, acceleration and reciprocating velocity. Channels are configured in pairs and compared with programmed alarms, with the chosen measurement and sensor arrangement determining valid results.
The current source specifies Rack Configuration 5.2, monitor firmware 4.21 and System 1 version 6.90 or later, with corresponding TDI firmware requirements. Standard minimum speed is 60 rpm; modification 135M8137-01 is required for operation down to 30 rpm.
Use the matched front monitor and rear I/O in corresponding full-height rack positions. External terminations require the separately selected block and cable; they cannot be added to an internal-termination I/O. Follow the applicable channel wiring, sensor and barrier instructions before commissioning.
Features:
- Match monitor generation, matched front and rear assemblies, wiring and software
- Follow the applicable installation instructions
- Confirm unverified configuration details
The 3500/70M 176449-09 reciprocating vibration monitor requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement of 3500/70M 176449-09 requires comparing monitor generation, matched front and rear assemblies, wiring and software. A shared base family or similar appearance does not establish a drop-in replacement for the complete ordered assembly.
The current source specifies Rack Configuration 5.2, monitor firmware 4.21 and System 1 version 6.90 or later, with corresponding TDI firmware requirements. Standard minimum speed is 60 rpm; modification 135M8137-01 is required for operation down to 30 rpm.
No verified exact-order discontinuation date, product revision or designated successor is asserted. Document revisions identify the reference literature, not hardware changes to the supplied product. Unconfirmed replacement options must be resolved before substitution.
Features:
- Preserve the complete ordering identity
- Compare the installed electrical and mechanical interfaces
- Do not infer hardware revisions or successor models
The 3500/70M 176449-09 reciprocating vibration monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 3500/70M 176449-09 reciprocating vibration monitor must be checked for document applicability before installation or commissioning.
