- 3701 Machinery Dynamics Monitor

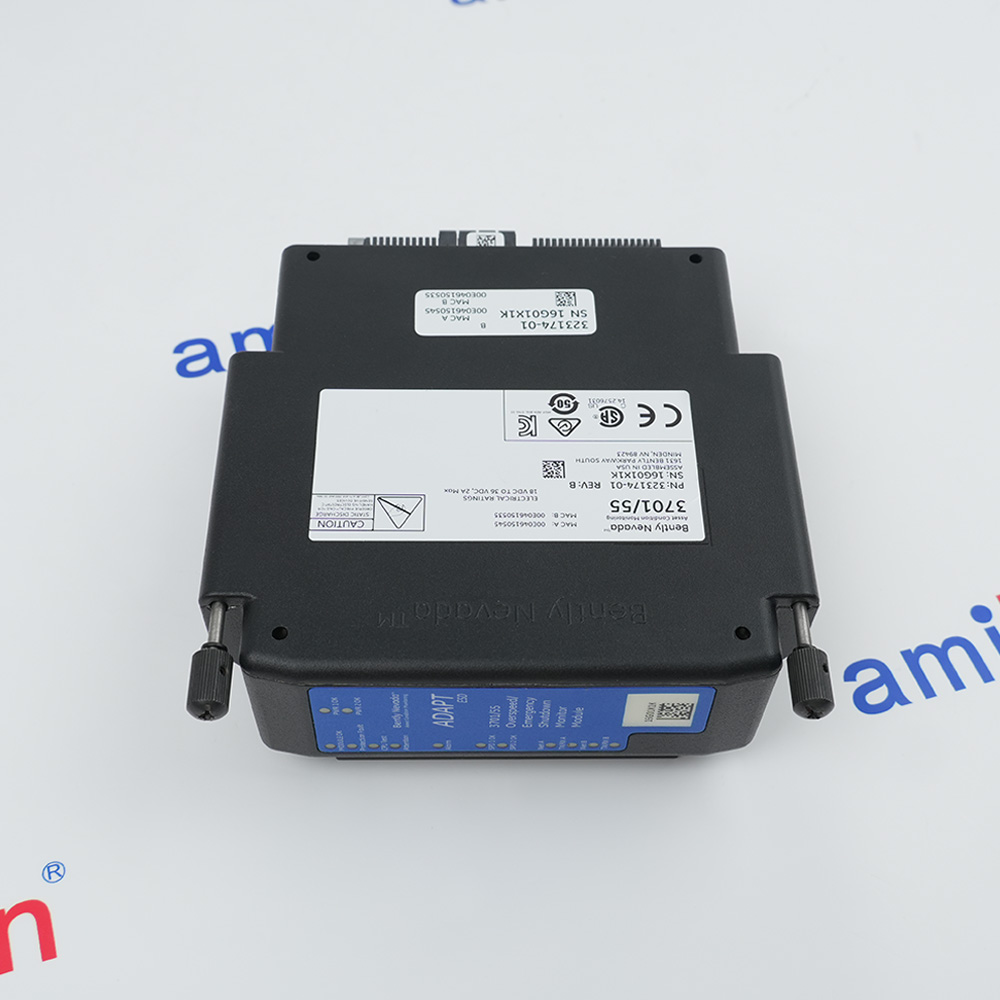

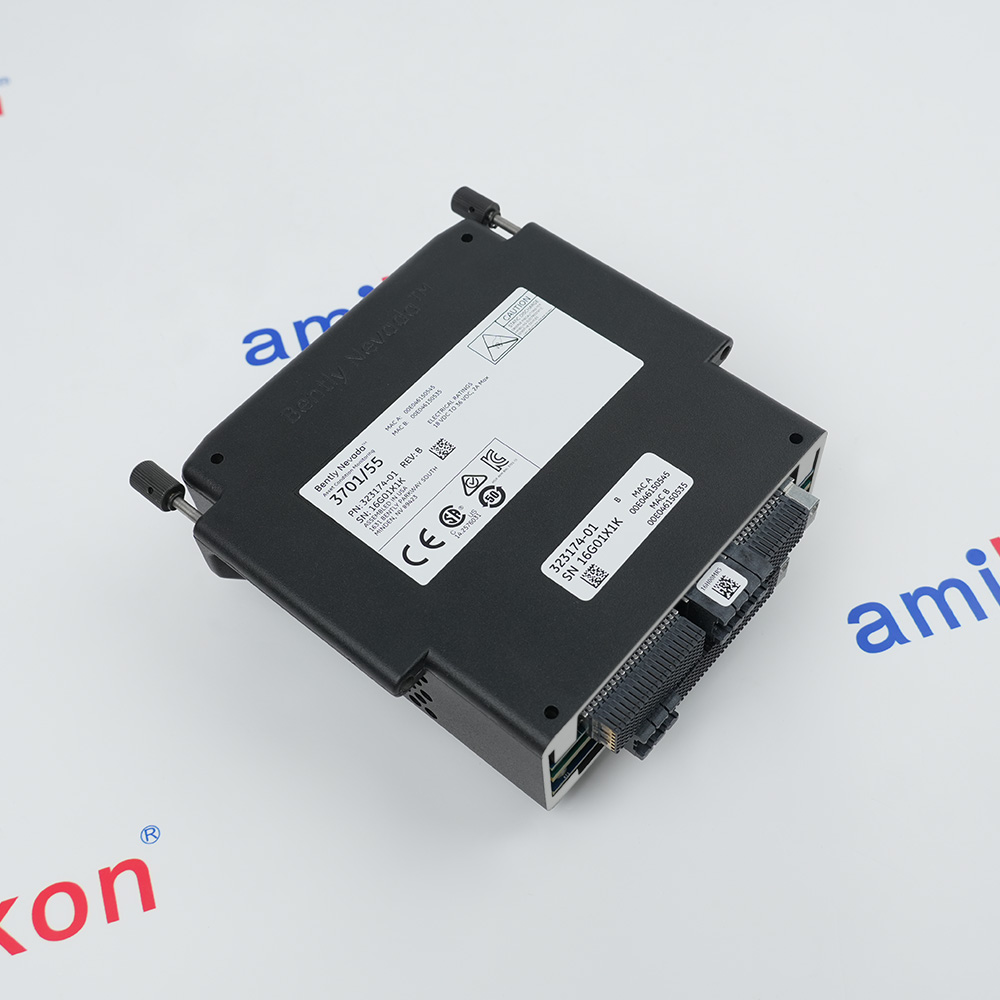

- 3701/55 323174-01
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 3701/55 323174-01
-
Product Model3701/55 323174-01
-
Spare Model323174-1
-
Product ParametersEmergency Shutdown Device
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size49x45.3x6.8cm
-
ManufacturerBently Nevada
-
Weight2.85 kg
-
Full Scale Range4-20 mA ±1%
-
Typical OperatingFrequency0-159 Hz
-
Common ModeInput Range±32 V
-
Differential InputRange0-25 mA
-
Faulted InputTolerance±40 V
-
Ethernet-6 Ports10/100 Mbps
-
Input Range18-36 Vdc Voltage
-
Power Consumption24 W Typical/35 W Maximum
-
Closed StateImpedance57 KΩ Maximum
-
Open StateImpedance187 KΩ Minimum
-
Internal WettingVoltage10-15 Vdc
-
Input Resistance150 KΩ Typical
Description
The 3701/55 Emergency Shutdown Device, (ADAPT ESD) is asafety PLC with a graphical logic programming interface andintegrated overspeed detection. ADAPT ESD is designed foremergency shutdown of rotating machinery such as steam,gas, and hydro turbines, expanders, and other processequipment.
ADAPT ESD is a compact, standalone, triple-redundant, safetyshutdown device that is designed to meet a broad range ofuser scenarios and applications. The design offers anelectrical and mechanical package with attention toreliability and availability as well as extensive selfdiagnostics and compliance to industry standards.
ADAPT ESD is a compact, standalone, triple-redundant, safetyshutdown device that is designed to meet a broad range ofuser scenarios and applications. The design offers anelectrical and mechanical package with attention toreliability and availability as well as extensive selfdiagnostics and compliance to industry standards.
Alternative Names
3701/55
323174-01
323174 01
3701-55
3701 55
3701/55 323174-0I
370I/55 323174-0I
3701/55 323I74-0I
3701/55 323174-O1
37O1/55 323174-O1
Information
Overview
Manuals
Application Notes
Product Applications
Hazardous Area Isolation & Grounding
Features:
- Triple Modular Redundant (TMR) safety PLC
- Six speed input channels total
- 32 discrete/process variable input channels
- 12 independent trip relays with configurable voting logi
- SIL 3 certified functional safety
Bently Nevada 3701/55 323174-01 is a compact, standalone, triple-redundant safety shutdown device that processes inputs using three CPU modules to provide triple modular redundancy (TMR), where each CPU processing module processes two unique speed input channels for a total of six speed channels, and monitors an array of 32 discrete (DI) and process variable (PV) signal inputs with twelve channels configurable as either discrete inputs or 4-20 mA analog inputs.
The 3701/55 323174-01 Bently Nevada ADAPT (ESD) Emergency Shutdown Device may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3701/55 323174-01 ADAPT (ESD) Emergency Shutdown Device Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Triple Modular Redundancy (TMR): A complete system houses three identical 323174-01 CPU modules to achieve fault tolerance.
Channel Capacities: All three CPUs simultaneously process 32 discrete inputs and 12 analog inputs (4-20 mA).
Speed Sensing: Each individual CPU manages 2 unique speed inputs, combining for a system total of 6 speed channels.
Ultra-Fast Execution: Delivers a 2ms nominal logic processing time and an 8ms relay toggle time to execute shutdowns within milliseconds of an event.
- Steam Turbines:Prevents destructive overspeed during load rejection
- Gas Turbines:Rapid shutdown for power generation assets
- Hydro Turbines:Protects from excessive speed & rotational anomaliess
- Turboexpanders:Trip-logic for high-speed gas processing
- Large Process Compressors:Mitigates surge/shaft damage/overspeed
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Location Limitations: The module itself is certified for Class I, Division 2, Zone 2 locations. It is not certified for direct installation inside Class I, Division 1, or Class I, Zone 0/1 environments.
Barrier Integration: To support speed transducers or sensors located in Division 1 / Zone 0 hazardous spaces, you must route all sensor wiring through galvanically isolated safety barriers or zener barriers before connecting to the CPU.
Ground Jumper Management: If your architecture uses galvanic isolators, do not change the factory grounding configuration. If installing zener barriers, you must remove the built-in ground jumper on the monitor. This isolates the circuit common from the chassis ground at the module, allowing the chassis loop to ground cleanly at the barrier block instead.
Technical notes
The system supports 32 discrete input channels and 12 configurable analog inputs that can be assigned as 4–20 mA process variable signals or discrete inputs. Shutdown actions are executed through 12 independent relay outputs that can be configured using one-out-of-one (1oo1) or two-out-of-three (2oo3) voting logic. Configuration and monitoring are performed through Bently Nevada Monitor Configuration software, which supports graphical logic programming with up to 500 logic steps.
FAQs
-
What is the primary purpose of the 3701/55 ADAPT?
+It provides continuous, online protection and emergency shutdown capabilities for highly critical machinery to prevent catastrophic failures. It combines graphical logic programming with integrated overspeed detection. -
What are the input and output specifications?
+Each processor connects to an array of 32 input channels (which can be configured as discrete or 4-20mA analog inputs) alongside dedicated speed inputs. It is also capable of driving 12 independent trip relays. -
What logic execution speed does it offer?
+The device features an ultra-fast 2ms logic execution time for protective actions. -
What safety standards does it fulfill?
+It complies with global safety standards, including API 670, API 612, and IEC 61508, holding an exida IEC 61508 SIL 3 certification.
