PRODUCT DESCRIPTION

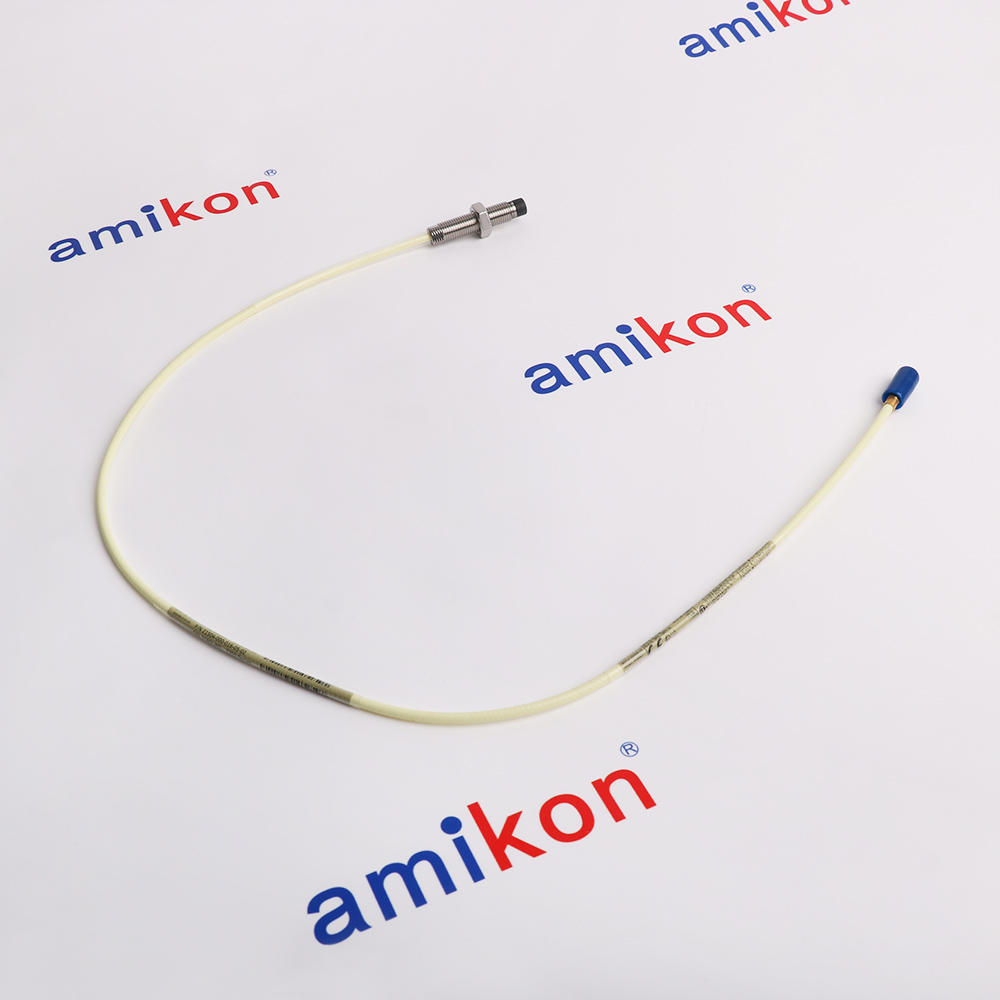

Standard mount proximity probe - 21505-00-44-10-02
Bently Nevada 21505-00-44-10-02 is a 8 mm, standard-mount 7200 proximity probe identified in the manufacturer's historical ordering catalogue. This configuration has 3/8-24 threads, a 4.4-inch case, a 1-metre integral lead and a miniature male coaxial connector, with stainless-steel lead armor.
The probe forms part of a matched eddy-current measurement system for conductive-target position and shaft vibration. Select the extension and Proximitor for the required total electrical length. Historical catalogue specifications do not establish a current discontinuation date, hardware revision or approved successor.
The probe forms part of a matched eddy-current measurement system for conductive-target position and shaft vibration. Select the extension and Proximitor for the required total electrical length. Historical catalogue specifications do not establish a current discontinuation date, hardware revision or approved successor.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Application context for 21505-00-44-10-02
These are manufacturer-documented proximity measurement scenarios. The 7200 catalogue establishes the family measurement role; the cited diagnostic cases do not identify this exact order as installed. Historical component and calibration requirements still apply.
-
01 · TURBINE-GENERATORS
Shaft-vibration signals during turbine run-up
Bently Nevada reports turbine-generator rub investigations using proximity-probe signals. The 7200 documentation supports this measurement class; the probe belongs in a correctly matched sensing chain. -
02 · PROCESS COMPRESSORS
Radial monitoring for compressor seal diagnostics
An official centrifugal-compressor case uses X-Y shaft signals to investigate seal rubbing. For a suitable 7200 installation, the probe supports that sensing path; diagnostic equipment interprets the signals, not the component alone. -
03 · THRUST MONITORING
Axial shaft-position measurements
The manufacturer documents static position measurement in this transducer family. A probe serves the matched probe-to-conditioner chain at an engineered axial target. Mechanical fit, initial gap and complete electrical length must be checked for 21505-00-44-10-02.
Technical specifications for 21505-00-44-10-02
-
Product Model21505-00-44-10-02
-
Product ParametersStandard mount proximity probe
-
In stock1 unit
-
ManufacturerBently Nevada
-
Probe tip diameter8 mm
-
Mounting arrangementStandard mount
-
Case thread3/8-24
-
Lead armorStainless-steel armor
-
Unthreaded case length0 in
-
Overall case length4.4 in
-
Total integral lead length1 m
-
ConnectorMiniature male coaxial
-
Matched-system nominal scale factor200 mV/mil; historical 7200 system reference conditions
-
Matched-system linear range80 mils (2 mm); historical 7200 system, not case length
View all additional
Alternative Names
21505 00 44 10 02
21505-00-44-10-02 product identification reference
Bently Nevada 21505-00-44-10-02
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
7200 PROXIMITY TRANSDUCER SYSTEM
Integrate the matched 7200 sensing chain
The historical manufacturer table identifies 21505-00-44-10-02 as a 8 mm standard-mount probe with 3/8-24 threads and stainless-steel lead armor.
The case is 4.4 inches long with zero unthreaded length; the integral lead is 1 metre. The miniature male coaxial connection is the documented 02 option. Select the extension and Proximitor together for the required five- or nine-metre sensing chain.
The catalogue gives 200 mV/mil and 80 mils of linear range for the matched system, under its stated reference conditions. Those values are not an independent probe calibration certificate. Follow the exact installation instructions and verify the target and gap.
Features:
- 8 mm standard-mount probe
- 3/8-24 case thread
- Match total sensing-chain length and Proximitor calibration
The 21505-00-44-10-02 proximity probe requires matched components before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Compare 21505-00-44-10-02 against the original 3/8-24 mounting, 4.4-inch case, 1-metre lead, connector and armor selection. A similar family prefix does not establish complete interchangeability.
The historical catalogue describes interchangeability within matching 7200 component types and lengths. It does not establish a drop-in change to 3300 XL or NSv, or remove the need to check the installed Proximitor calibration.
The reviewed manufacturer evidence does not establish an exact-order hardware revision, discontinuation date or designated successor. Do not interpret the age of the catalogue or its document version as a current lifecycle statement.
Features:
- Compare the complete historical order configuration
- Do not assume XL or NSv interchangeability
- No current successor or lifecycle date established
The 21505-00-44-10-02 proximity probe requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: No verified product PDF is currently available on this page. Amikong-hosted reference documents will be listed only after their product identity and scope have been checked. Consult the applicable manufacturer instructions before use; additional documents are included only when expressly listed in the quotation.
Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the 21505-00-44-10-02 product identification reference must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weight0.4 kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS referenceClassification unconfirmed
-
OriginUSA
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 21505-00-44-10-02
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does the 44 field specify a 44 mm case?
No. This English-thread 21505 configuration uses tenths of an inch. The 44 field specifies a 4.4-inch overall case; the metric ordering rule must not be applied to it. -
Is 21505-00-44-10-02 an armored probe?
Yes. Table 1 identifies 21505 as an 8 mm standard-mount probe with stainless-steel lead armor and 3/8-24 threads. The 10 option is a one-metre total integral lead. -
What does the probe measure in a matched 7200 system?
It senses distance to a conductive target through the eddy-current principle. The matched system supports static shaft position and dynamic vibration; the probe does not diagnose a machine fault by itself. -
What must match before a replacement is fitted?
Compare case reach, thread, armor, connector and integral lead, then match the extension and Proximitor calibration. A 3300 XL family label does not demonstrate equivalence to this historical 7200 probe. -
Is the 4.4-inch case also the sensing range?
No. Case length is mounting geometry. The historical catalogue specifies an 80-mil linear range for the complete calibrated 7200 system under its reference conditions.
