PRODUCT DESCRIPTION

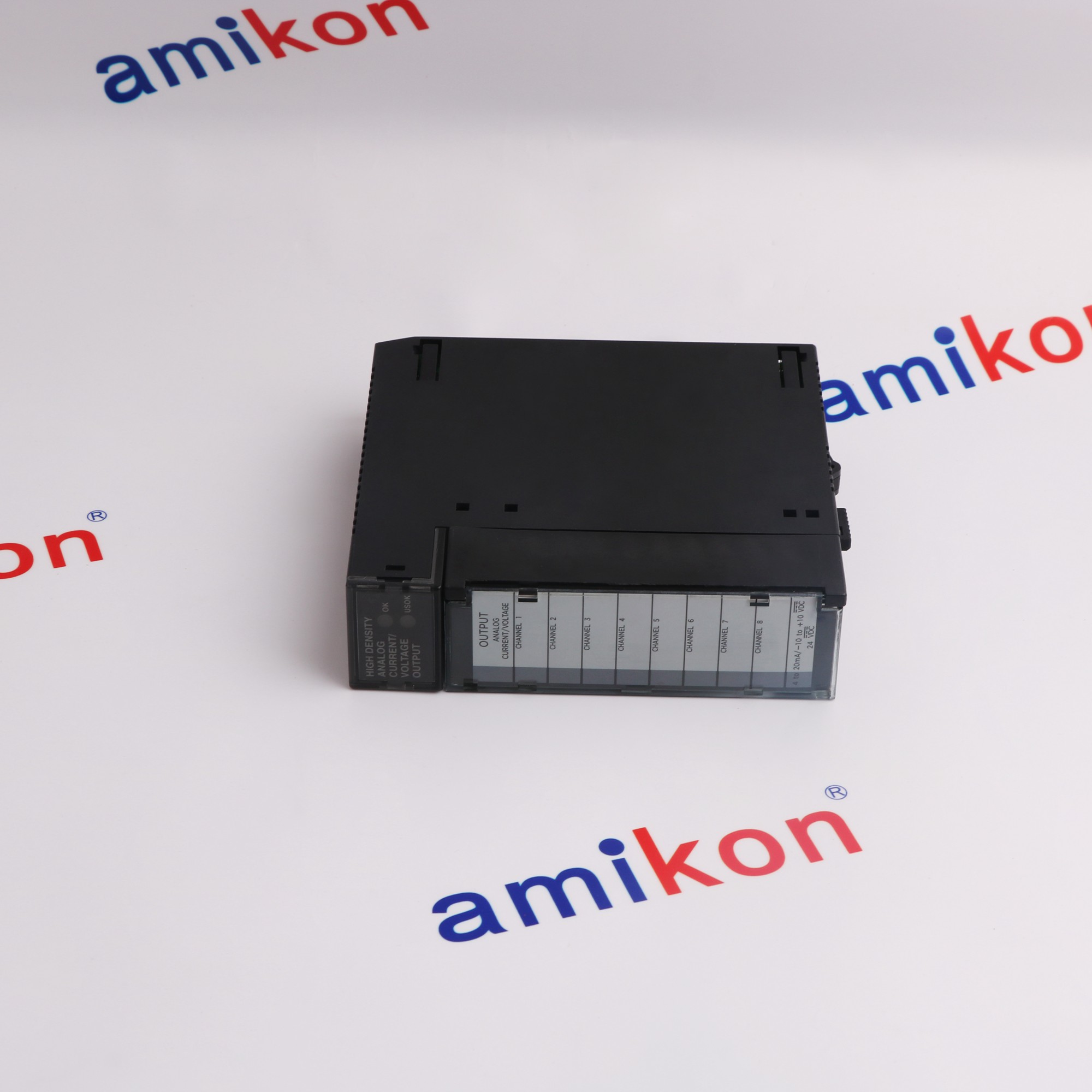

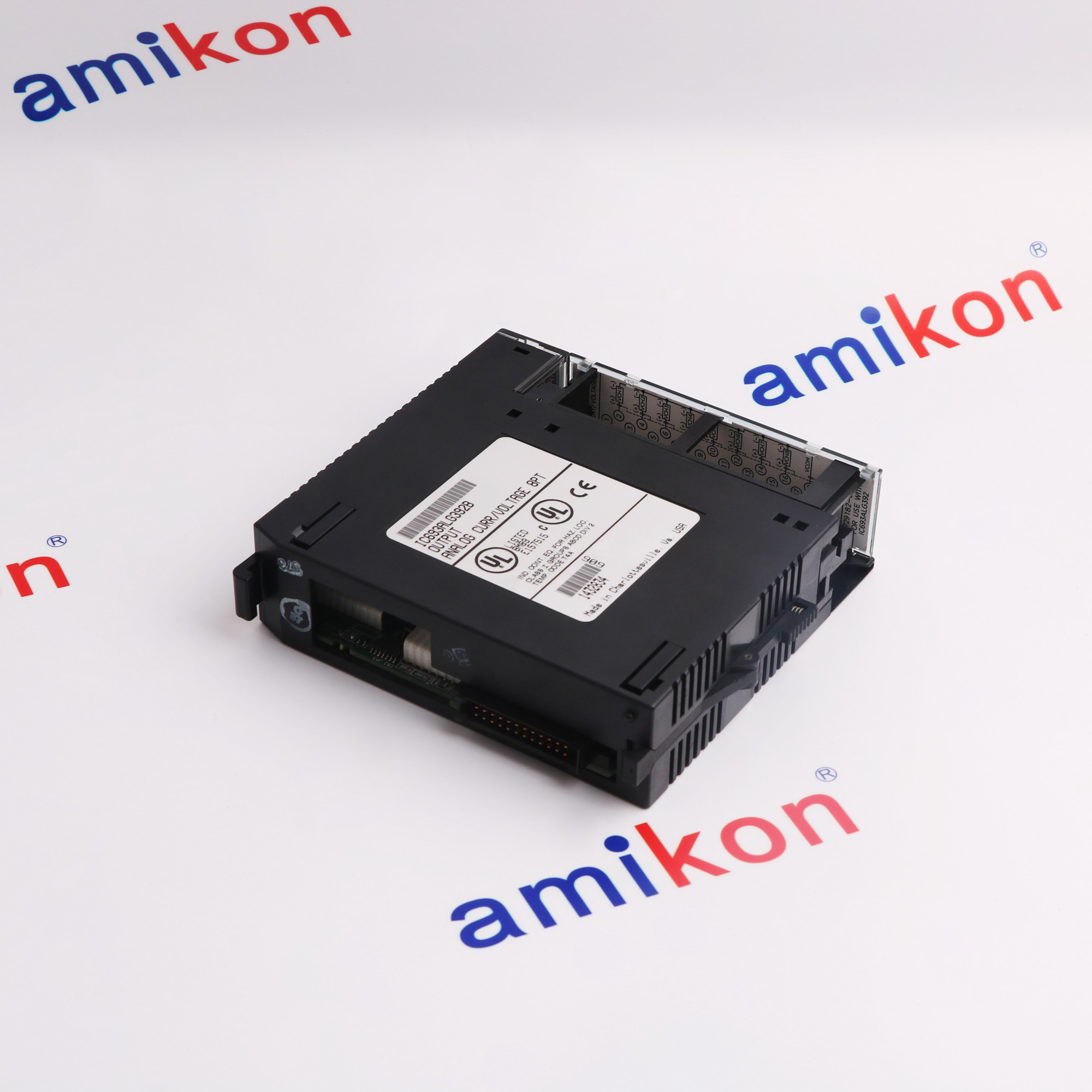

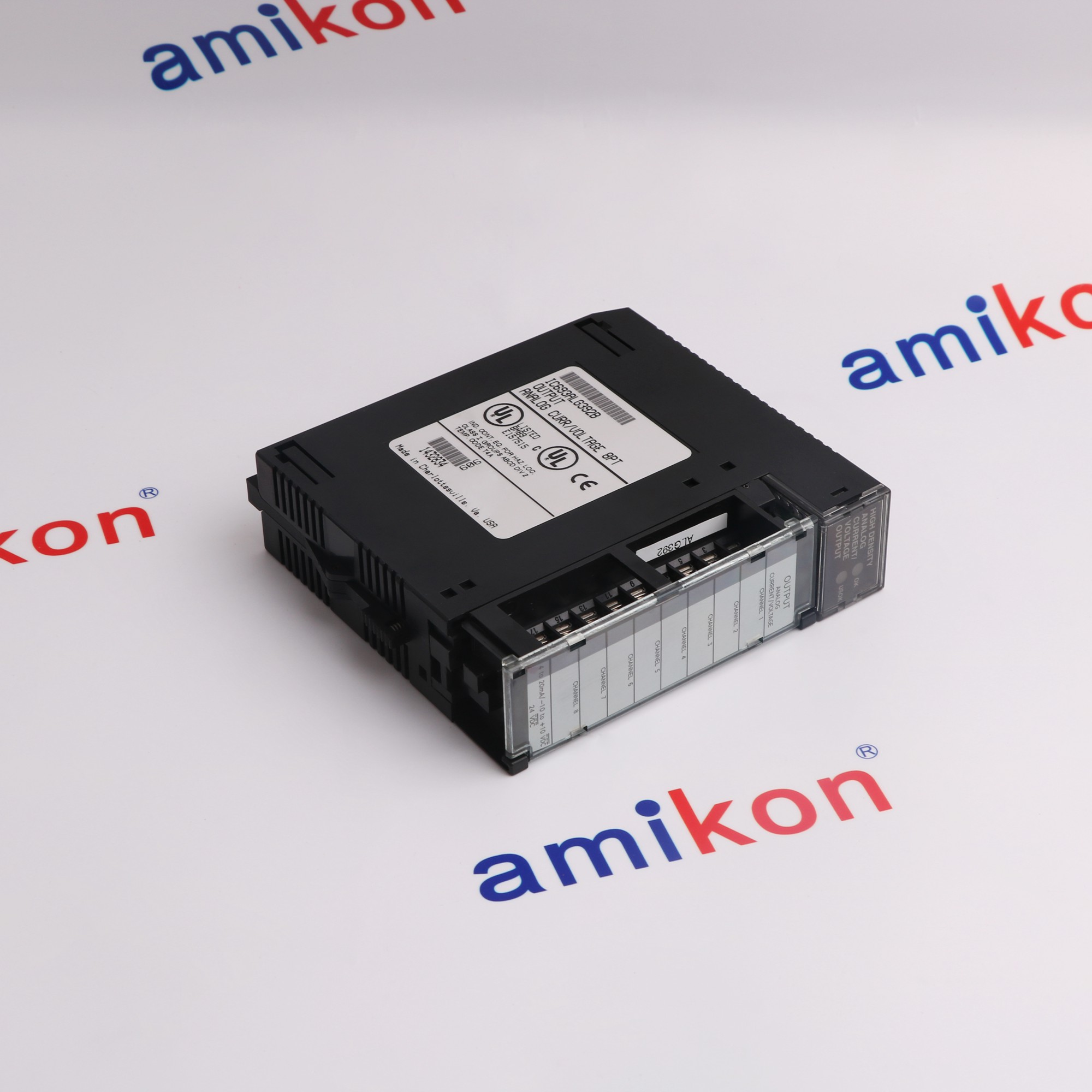

IC693ALG392 Analog Current Voltage Output Module
IC693ALG392 is an Analog Current Voltage Output Module in the Series 90-30 family. It supplies analog current or voltage commands to field equipment in compatible Series 90-30 installations.
Each of the eight single-ended channels can be configured for the supported output range. Backplane power supplies logic while an external DC source powers the output circuits. Scaling, open-loop reporting and configured fallback behavior support controlled signal generation; load limits and thermal derating must be observed.
Each of the eight single-ended channels can be configured for the supported output range. Backplane power supplies logic while an external DC source powers the output circuits. Scaling, open-loop reporting and configured fallback behavior support controlled signal generation; load limits and thermal derating must be observed.
BEFORE YOU BUY
Confirm the complete analog current voltage output module
ACTUAL APPLICATIONS
Application context for IC693ALG392
IC693ALG392 is an Analog Current Voltage Output Module for compatible Series 90-30 configurations. It suits chemical processing, power generation, industrial manufacturing. Match the installed revision, interfaces and electrical ratings before use.
-
01 · CHEMICAL PROCESSING
Chemical Manufacturing and Process Production
Industrial Chemical ProductionChemical Processing and Formulation -
02 · POWER GENERATION
Electric Power and Energy Generation
Electric Power Generation ProcessesIndustrial Steam and Energy Production -
03 · INDUSTRIAL MANUFACTURING
Industrial Manufacturing and Production Automation
Industrial Production and AssemblyManufacturing Process Automation
Technical specifications for IC693ALG392
-
Product ModelIC693ALG392
-
Product ParametersAnalog Current Voltage Output Module
-
In stock1 unit
-
ManufacturerGeneral Electric
-
Output channels1 to 8 selectable; single-ended
-
Current output ranges0 to 20 mA; 4 to 20 mA
-
Voltage output ranges0 to 10 V; -10 to +10 V
-
External supply range20 to 30 V DC; 24 V DC nominal
-
External supply ripple10% maximum
-
Backplane current110 mA at 5 V DC
-
Field supply current315 mA at 24 V DC
-
Update rate8 ms approximately, all eight channels
-
Current accuracy at 25℃±0.1% typical; ±0.25% maximum of full scale
-
Voltage accuracy at 25℃±0.25% typical; ±0.5% maximum of full scale
-
Current conversion steps0.5 µA at 4-20 mA; 0.625 µA at 0-20 mA
-
Voltage conversion step0.3125 mV per count
-
Voltage load resistance2 kohm minimum
-
Current load capacitance2000 pF maximum
-
Current load inductance1 H maximum
View all additional
Alternative Names
IC693ALG392
Series 90-30 Analog Current Voltage Output Module
90-30 1 to 8 selectable; single-ended output channels
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate IC693ALG392 analog current voltage output module
IC693ALG392 belongs to the Series 90-30 platform and serves as an Analog Current Voltage Output Module. Match the complete article code and installed hardware revision before using the applicable manufacturer documentation.
The documented output channels is 1 to 8 selectable; single-ended; current output ranges is 0 to 20 mA; 4 to 20 mA. Compare these requirements and the remaining electrical or interface ratings with the existing configuration. Confirm terminal allocation, compatible carriers or backplanes and power budget before connection.
Follow the applicable GE Intelligent Platforms GFK-2557C, ALG392 analog output modules instructions for IC693ALG392. Verify configuration, communication or I/O response as appropriate to this analog current voltage output module, and retain the final configuration and acceptance results with the asset record.
Features:
- Output channels: 1 to 8 selectable; single-ended
- Current output ranges: 0 to 20 mA; 4 to 20 mA
- Voltage output ranges: 0 to 10 V; -10 to +10 V
The IC693ALG392 analog current voltage output module requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify IC693ALG392 analog current voltage output module
Replace IC693ALG392 only after matching its full article code, Series 90-30 role and documented hardware revision. Similar housings or related catalog numbers do not establish interchangeability; verify the relevant connections, electrical ratings and configuration requirements.
Before removing IC693ALG392, record its label, connector positions, terminal assignments and existing configuration. Photograph adjacent modules, cable routing and grounding, isolate the applicable supplies and preserve any controller configuration needed for this analog current voltage output module.
After fitting the verified IC693ALG392 article, restore the documented connections and configuration. Inspect status indications, check the affected I/O or communication path at a safe operating point and retain the acceptance record for the Series 90-30 installation.
Features:
- Output channels: 1 to 8 selectable; single-ended
- Current output ranges: 0 to 20 mA; 4 to 20 mA
- Voltage output ranges: 0 to 10 V; -10 to +10 V
The IC693ALG392 analog current voltage output module requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the IC693ALG392 analog current voltage output module must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size3.5 × 13 × 13.5cm
-
Shipping weight0.38kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginUnited States
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about IC693ALG392
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
How is output channels defined for IC693ALG392?
For IC693ALG392, output channels is 1 to 8 selectable; single-ended under the applicable manufacturer specification. Check the complete hardware revision before applying this value to the installed Series 90-30 configuration. -
What value applies to IC693ALG392 for current output ranges?
For IC693ALG392, current output ranges is 0 to 20 mA; 4 to 20 mA under the applicable manufacturer specification. Check the complete hardware revision before applying this value to the installed Series 90-30 configuration. -
What does the documentation state about voltage output ranges on IC693ALG392?
For IC693ALG392, voltage output ranges is 0 to 10 V; -10 to +10 V under the applicable manufacturer specification. Check the complete hardware revision before applying this value to the installed Series 90-30 configuration. -
For IC693ALG392, what is the specified external supply range?
For IC693ALG392, external supply range is 20 to 30 V DC; 24 V DC nominal under the applicable manufacturer specification. Check the complete hardware revision before applying this value to the installed Series 90-30 configuration. -
What is the documented external supply ripple for IC693ALG392?
For IC693ALG392, external supply ripple is 10% maximum under the applicable manufacturer specification. Check the complete hardware revision before applying this value to the installed Series 90-30 configuration. -
Which backplane current is specified for IC693ALG392?
For IC693ALG392, backplane current is 110 mA at 5 V DC under the applicable manufacturer specification. Check the complete hardware revision before applying this value to the installed Series 90-30 configuration. -
What article information should accompany an order for IC693ALG392 analog current voltage output module?
Specify IC693ALG392 in full, including every revision suffix, and verify the supplied article label, condition, included accessories and quotation. For this Series 90-30 item, related base numbers are not automatic substitutes. -
Which configuration records support replacement of IC693ALG392 analog current voltage output module?
For IC693ALG392, retain the label photographs, connection assignments, installed hardware revision and applicable Series 90-30 configuration. Restore these records and perform the documented functional checks after replacement.
