Technical specifications for IC200PWR002
-
Product ModelIC200PWR002
-
Product ParametersPOWER SUPPLY MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen,China
-
Estimated Shipping Size4.9x5.2x12.8cm
-
ManufacturerGeneral Electric
-
Weight0.12 kg
-
Output current at 3.3 VDC1.0 A, maximum
-
Output Voltage5 Volts DC and 3.3 Volts DC
-
ProtectionShort circuit, overload, reverse polarity
-
Inrush Current20 A at 24 VDC and 25 A at 30 VDC
-
Compatible moduleVersaMax CPU, NIU, I/O modules
-
Product DescriptionSupplemental Power supply operation
Description
IC200PWR002
POWER SUPPLY MODULE
24 VDC INPUT
11 WATT INPUT POWER
5 VDC MAX OUTPUT
WITH EXPANDED 3.3 VDC
1.5 AMP MAX OUTPUT
REPLACED BY IC200PWR002J
POWER SUPPLY MODULE
24 VDC INPUT
11 WATT INPUT POWER
5 VDC MAX OUTPUT
WITH EXPANDED 3.3 VDC
1.5 AMP MAX OUTPUT
REPLACED BY IC200PWR002J
Revisions
Revision Part #
Also known as
Information
Overview
Manuals
Technical notes
Product Applications
Installation and Wiring Instructions
Features:
- 24VDC Expanded 3.3 V Power Supply
- Supplemental Power supply operation
- Short circuit, overload, reverse polarity

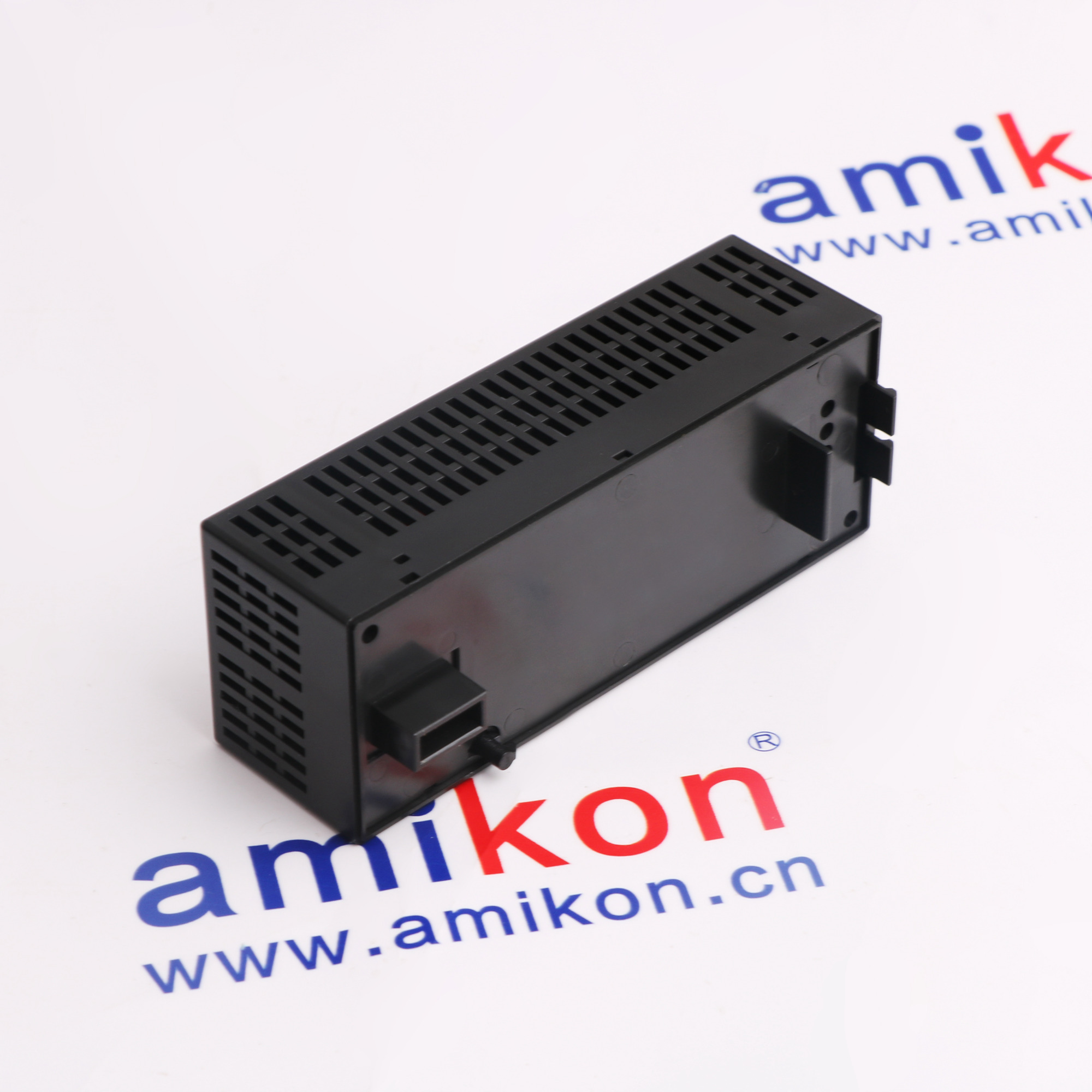

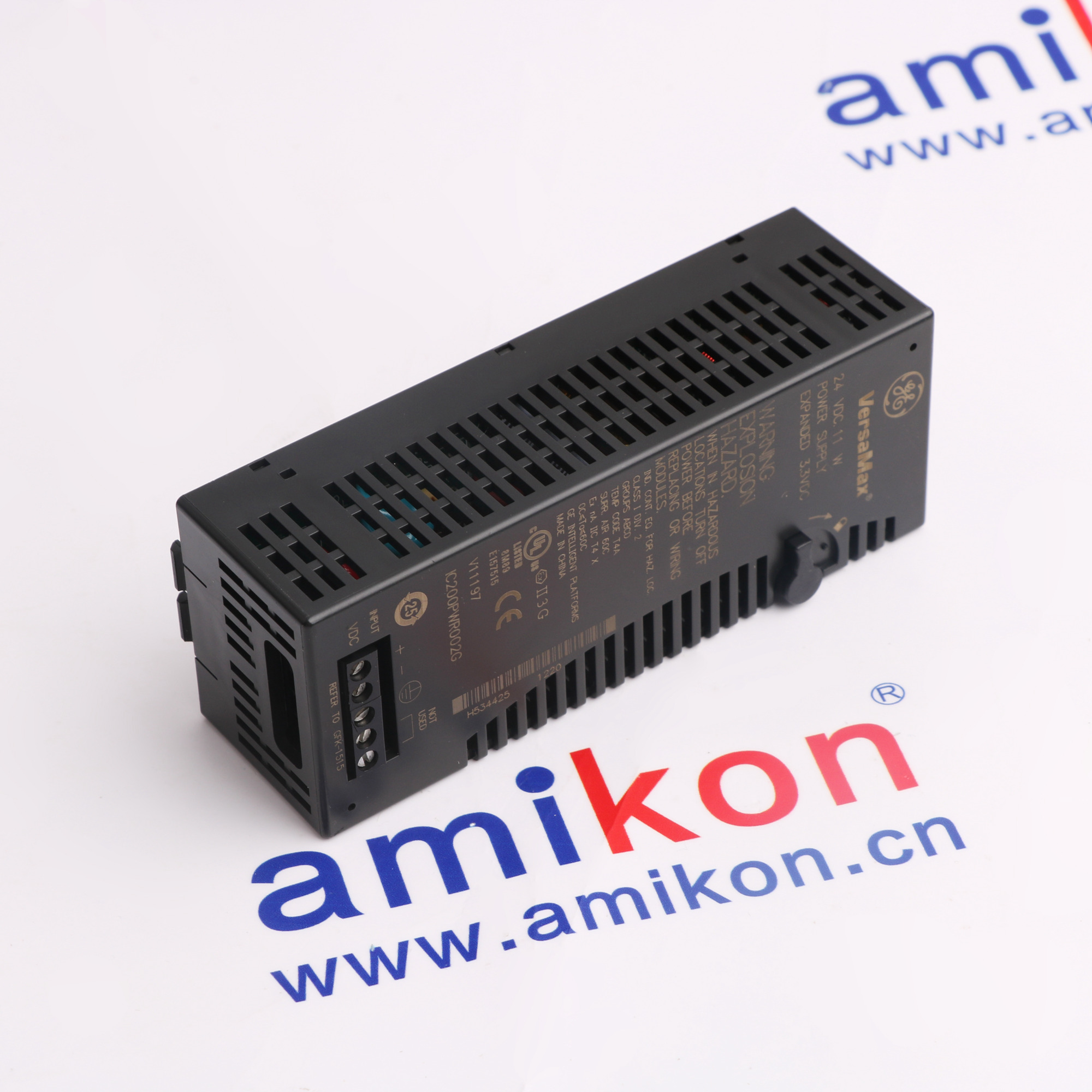

The IC200PWR002 is a Power supply module that is part of the VersaMax product family, currently under Emerson Automation, formerly produced by GE Intelligent Platforms. This power supply module is a 24 VDC expanded power supply with input supply voltage of 18-30 VDC. It has an output voltage of 5 VDC and 3.3 VDC and total output current of 1.5 A, maximum specifically, 1.0 A, maximum at 3.3 VDC and 1.5 A, maximum at 5 VDC output.
The IC200PWR002 GE Power supply module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IC200PWR002 Power supply module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
This module can be used as primary power supply or as a power supply booster carrier. When used as a primary power supply, this module is used to provide power to the enable the VersaMax installed and connected to the backplane. When used as a booster power supply, this module is installed to a booster carrier and function as a supplemental power supply. It has 5 screw type terminals located on the module’s bottom front panel. Two terminal from the left are the +DC and -DC terminals while the 3rd terminal is the ground terminal. The last Two terminals require no connection. The IC200PWR002 is designed to operate at an input supply voltage of 18-30 VDC with nominal supply voltage of 24 VDC. The modules input power is 11 Watts with holdup time of 10 ms. It has an inrush current rating of 20 Amperes with maximum duration of 6 ms at 24 VDC and 25 Amperes for maximum duration of 6 ms at 30 VDC. The module output characteristics include output voltage of 5 VDC and 3.3 VDC with output current of 1.5 Amperes, maximum at 3.3 VDC and 1.0 Amperes at 5 VDC however, the output current cannot exceed the maximum output which is 1.5 Amperes. This power supply module is also installed with an internal short circuit, overload and reverse polarity protection. This power supply module is used mainly with VersaMax I/O modules, Network Interface Units (NIU) and Central Processor Units (CPUs).
- Factory Automation:Synchronizes multiple machines on production lines
- Material Handling:Large-scale conveyors & sorters spanning wide areas
- Automotive Plants:High-speed discrete I/O for robotic assembly & painting
- Gas Monitoring & Safety:SIL 1/2 hazardous area monitoring & gas detection
- Process Control:Modular distributed control for light chemical/water treatment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: When mounted directly on a CPU or NIU, it acts as the primary power supply. It can also be used as a supplemental supply if mounted on a Power Supply Booster Carrier.
Grounding (Critical): The DC- terminal must be grounded to both the frame ground and earth ground. Note that DC- is internally grounded to the frame within the unit, meaning a floating power supply configuration is not possible.
Safety Warning: Always turn off power before replacing or wiring modules to avoid explosion hazards in hazardous locations (Class I Div 2).
Protection: The unit includes built-in protection against short circuits, overloads, and reverse polarity.
FAQs
-
What is IC200PWR002?
+The GE Fanuc IC200PWR002 is an expanded power supply unit from the VersaMax PLC series designed to provide power to backplane devices such as CPUs, Network Interface Units (NIUs), and I/O modules. -
What is the input voltage of IC200PWR002?
+18 to 30VDC (nominal 24VDC). -
What is the output voltage of IC200PWR002?
+3.3VDC and 5VDC. -
What is the function of the IC200PWR002?
+It supplies backplane power to VersaMax CPUs, NIUs, and I/O modules. -
Can it be used as a main power supply?
+Yes, when mounted on the CPU or NIU module, it acts as the main power supply for the station.
