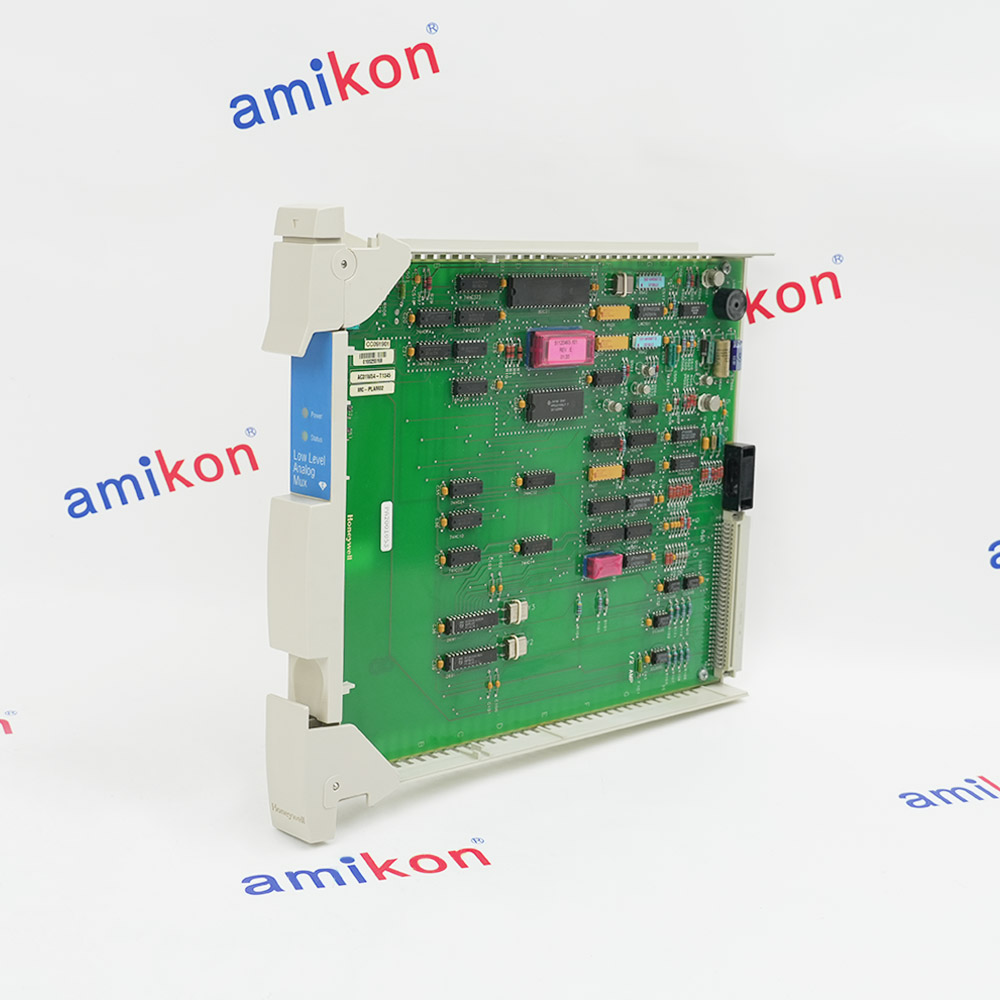

Honeywell MC-PLAM02 51304362-150: A Comprehensive Overview of the Low-Level Analog Input Multiplexer Processor
The Honeywell MC-PLAM02 51304362-150 is a state-of-the-art low-level analog input multiplexer processor designed to handle a wide array of input types, including thermocouples, RTDs (Resistance Temperature Detectors), and linear millivolt signals. With a capacity to manage 32 galvanically isolated input channels, this processor is essential for applications requiring precise temperature measurements and data acquisition in industrial settings.
Key Features of the MC-PLAM02
The MC-PLAM02 boasts several notable features that enhance its performance and versatility:
- Input Type Flexibility: Supports multiple input types, such as thermocouples (types J, K, E, T, B, S, R, RP), RTDs, and linear millivolt sensors, making it suitable for various measurement needs.
- High A/D Converter Resolution: Equipped with a 14-bit resolution, the processor ensures high accuracy for readings from different sensors.
- Galvanic Isolation: Each of the 32 input channels is galvanically isolated, providing improved noise immunity and safety.
- Input Scan Rate: Capable of scanning all channels at 32 samples per second, allowing for real-time monitoring and rapid response to changing conditions.
Technical Specifications
Understanding the technical specifications of the MC-PLAM02 is essential for evaluating its capabilities:
- Thermocouple Measurement: Offers a sensitivity of 10 µV per bit for thermocouples, enabling precise readings even at low temperatures.
- RTD Measurements: Provides varying sensitivity based on the RTD configuration:
- 100 Ω and 120 Ω RTDs: 64 mΩ per bit
- 10 Ω RTD: 8 mΩ per bit
- Linear Millivolt Sensors: The sensitivity is 20 µV per bit, ensuring accurate low-level measurements.
- Crosstalk: Achieves an impressive 120 dB crosstalk performance, minimizing interference between channels.
Safety and Compliance
Safety is paramount in industrial environments, and the MC-PLAM02 adheres to stringent standards:
- Dielectric Strength: Capable of withstanding 1500 Vac rms or ±1500 Vdc between channels and common points during operation, ensuring robust performance under electrical stress.
- Surge Withstand Capability: Complies with ANSI/IEEE C37.90.1-1978 standards for surge protection, safeguarding the device against electrical spikes.
- Input Impedance: With a minimum input impedance of 2 MΩ at 100 mV, the processor maintains signal integrity, reducing loading effects on the sensor.
Performance and Accuracy
The MC-PLAM02 is engineered for high performance, providing accurate readings across various operating conditions:
- Accuracy:
- Hardware Accuracy: ±40 µV or ±160 mΩ at typical conditions (23.5° ±2°C).
- Software Accuracy: ±0.1°C typical and ±0.5°C maximum at 23.5° ±2°C, allowing for precise temperature control in critical applications.
- Line Frequency Synchronization: The processor can be configured for both 50 Hz and 60 Hz line frequency synchronization, making it adaptable to different regional power standards.
Conclusion
The Honeywell MC-PLAM02 51304362-150 low-level analog input multiplexer processor is a reliable and versatile solution for temperature measurement and data acquisition in industrial applications. With its robust feature set, including high-resolution A/D conversion, input flexibility, and galvanic isolation, it meets the demanding requirements of modern process control systems. The processor's impressive safety specifications and accuracy make it an excellent choice for organizations looking to enhance their monitoring capabilities while ensuring the reliability and safety of their operations.
