Honeywell

SC S300 SAFETY CONTROLLER

Safety Standard Compliance
IEC 61508 SIL3, ISO 13849-1
Operating Voltage 24 VDC
Power Consumption <15 W
Operating Temperature -10°C to +60°C
Storage Temperature -40°C to +85°C
Mounting Options DIN rail or panel mount

FTA interconnection cable

System Interconnection Cable For Chassis IO
FS-SICC-0001/Lx (where × = length)
20 × AWG 22 (= 0.34 mm²) double shielded
9.93 mm / 0.39 in
3 = 3m

Digital Output Module

Optional redundancy
Electronic Overcurrent protection
Configurable Safe-state (FAILOPT)
Extensive internal diagnostics to ensure data integrity
Latched, pulsed or pulse-width modulated output(per channel)

C300 Series Power Supply

Power System (20A)
Redundant (2 power supplies)
120/240 VAC
with 24VBackup Battery Assembly

DIGITAL OUTPUT RELAY MODULE

DIGITAL OUTPUT RELAY MODULE
51308376-175
0.5 AMP
24 VDC
COATED
(51308376/175)

Redundant Power Supply

Power System (20A)
Redundant (2 power supplies)
120/240 VAC
Include:
2PCS 51202343-001,Indication Cable
2PCS 51199935-100,Power Adapter Board
4PCS SPS5710-2-LF 51198685-100,Power Supply module
2PCS SPS5713 51199930-100, Rack TDI Power Transistor

Analog Input Module

Input Channels :16 Channels
A/D Converter Resolution:16 bits
Input Range:1 4-20 mA only (through 200 Ω)
Normal Mode Rejection Ratio, at 60 Hz:19 dB
Maximum Normal Mode Input: ± 30 Volts
Crosstalk, dc to 60 Hz (channel-to-channel):-60 dB
Input Scan Rate:50 ms

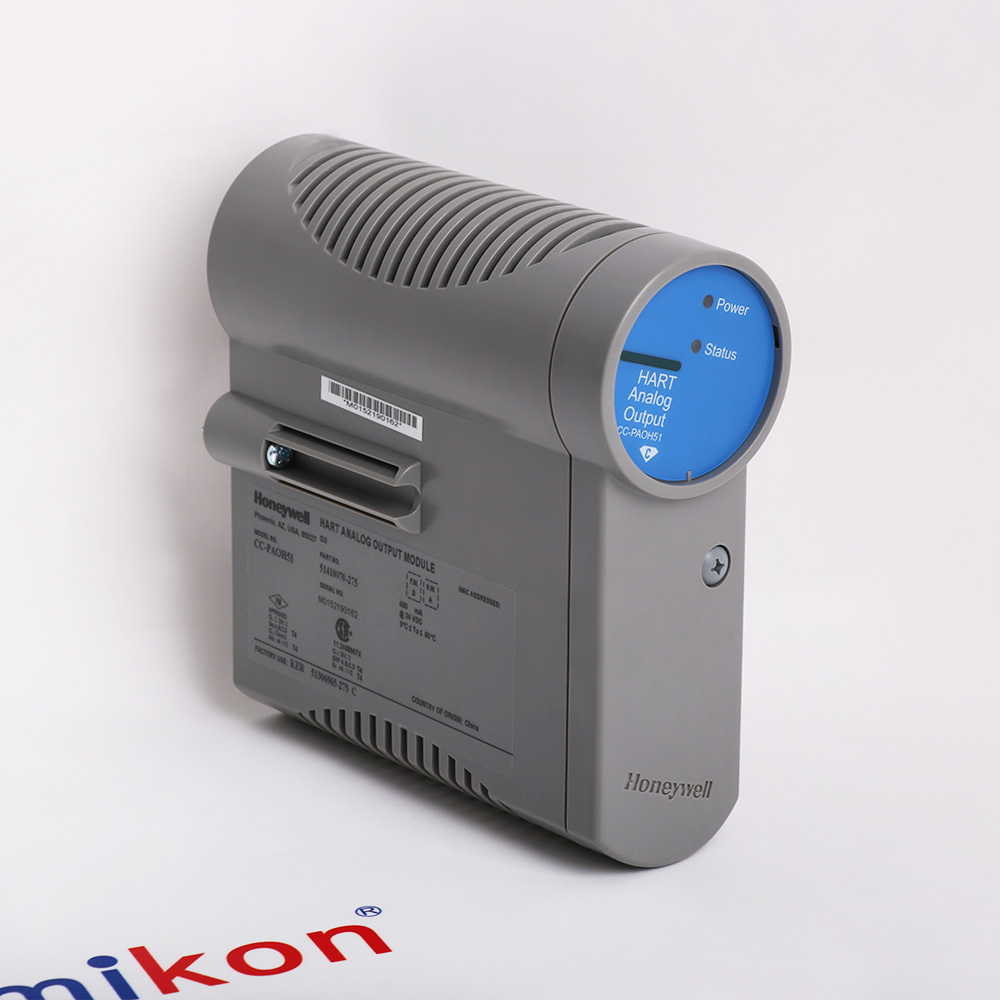

Analog Output Module

OUTPUT MODULE
ANALOG
0.46 AMP
24 VDC
R-12 INCH

Digital Output Module

INPUT/OUTPUT CARD DIGITAL OUT RELAY
8 CHANNELS
0-60 DEGREES CELSIUS OPERATING TEMPERATURE
250 VAC
30 VDC
4 AMPS MAX PER RELAY
40MA MAX AT 5 VDC
200MA MAX AT 24 VDC

Digital Input Module

Digital Input
120/240 VAC125VDC
16 Ch
HC900
16POINT
130MA MAX / 5VDC
120/240VAC
