TC-304-01 workstation cable for front-panel RS232 diagnostics

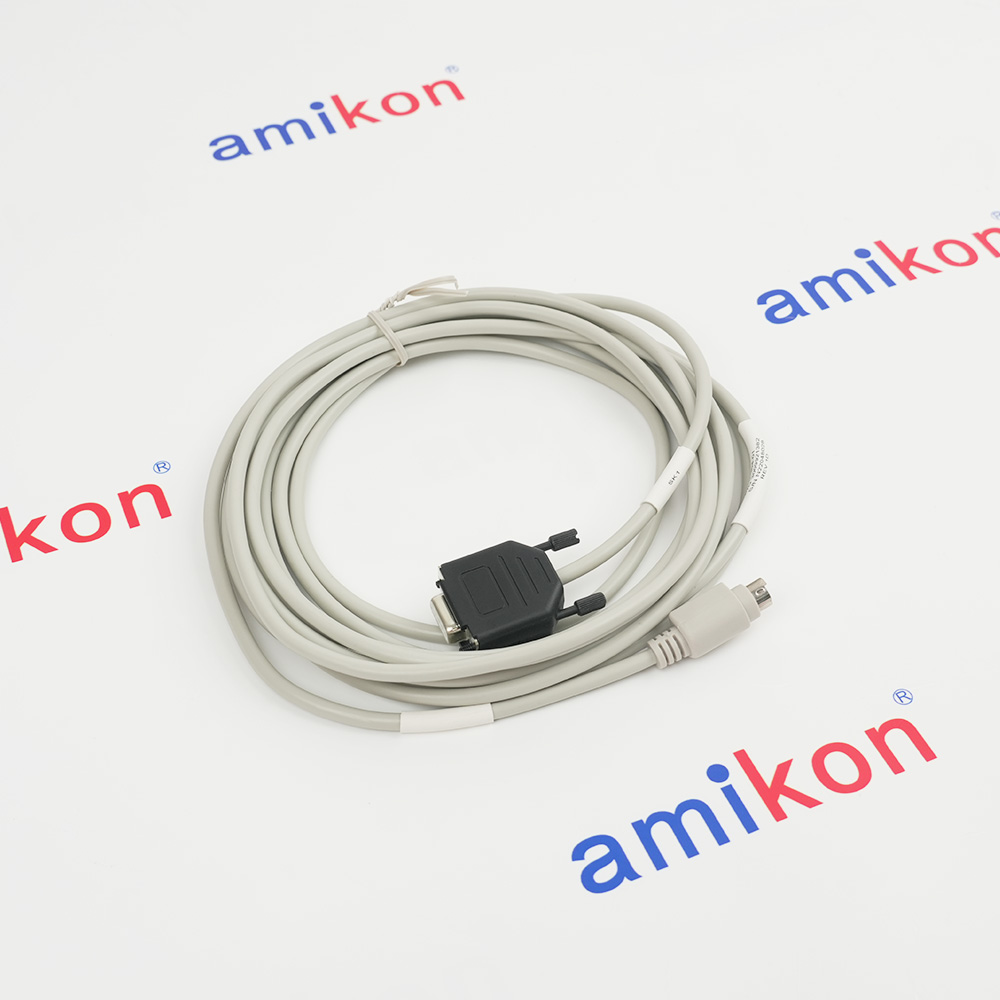

TC-304-01 connects an engineering workstation or PC to the front-panel RS232 diagnostics port on a Trusted TMR Processor or Communications Interface. The manufacturer specifies a six-core Belden cable with different connectors at the computer and equipment ends.

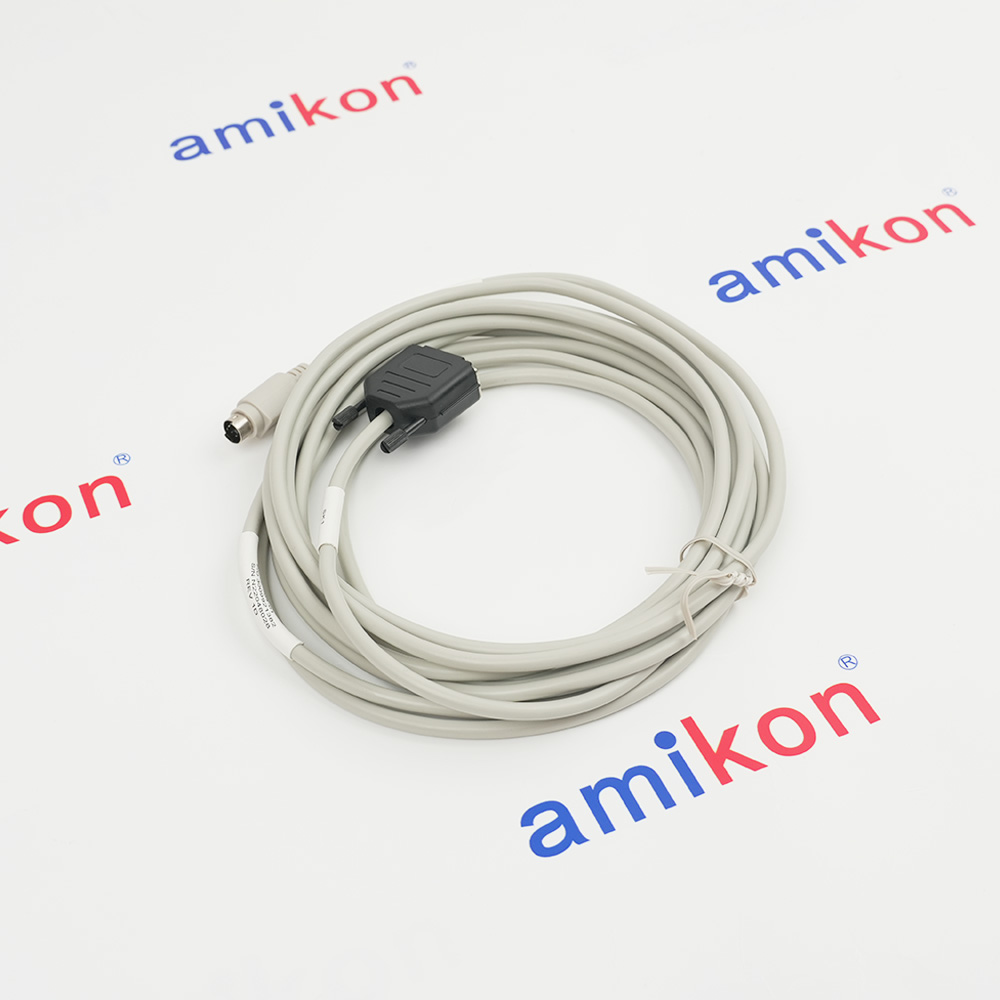

The cable assembly has a nine-way D-type connector at one end and a six-way DIN connector at the other. It is intended for the documented diagnostic connection, not field I/O wiring, and the product catalog identifies ordinary-location use.
The cable assembly has a nine-way D-type connector at one end and a six-way DIN connector at the other. It is intended for the documented diagnostic connection, not field I/O wiring, and the product catalog identifies ordinary-location use.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where TC-304-01 Fits Across Industrial Production Fields
Used in oil, chemical and power operations where the installed equipment and approved controller configuration are compatible.
-
01 · CHEMICAL PROCESSING
Continuous Chemical Production and Batch Manufacturing Process Areas
Bulk chemical production plants handling continuous industrial processing operations.Specialty chemical facilities combining batch preparation and formulation operations. -
02 · POWER GENERATION
Natural Gas Electricity Production and Utility Generation Facilities
Utility generating stations producing electricity from natural gas combustion.Combined cycle facilities combining turbine generation with steam production. -
03 · OIL & GAS
Hydrocarbon Production, Refining and Petroleum Transport Operating Areas
Oil extraction facilities handling production and initial hydrocarbon processing.Gas processing facilities and petroleum terminals serving transportation networks.
Technical specifications for TC-304-01
-
Product ModelTC-304-01
-
Product ParametersFront Panel Diagnostics Cable
-
ManufacturerICS Triplex
-
Documented connectionEngineering workstation or PC to front-panel diagnostics
-
Serial interfaceRS232
-
Compatible equipmentT8110 TMR Processor or T8151 Communications Interface
-
Cable construction6-core Belden 9536
-
D-type connector9-way
-
DIN connector6-way
-
Insulation conventionPVC; -01 variant
-
Catalog electrical limit60 V / 2 A maximum per channel
-
Catalog location designationOrdinary Locations
View all additional
Alternative Names
Trusted TC-304-01 diagnostics cable
TC-304-01 RS232 workstation cable
ICS Triplex TC-304 maintenance cable
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match TC-304-01 to the documented Trusted configuration
TC-304-01 provides the documented PC or engineering-workstation link to the front-panel diagnostics port on a T8110 or T8151. Verify the exact host and port identity.
The RS232 assembly uses six-core Belden 9536 cable with nine-way D-type and six-way DIN connectors. It is not an Ethernet patch lead or field I/O harness.
The product catalog lists Ordinary Locations. Verify the actual cable length, workstation requirements and approved maintenance conditions without inheriting another cable rating or approval.
Features:
- Exact front-panel diagnostic port
- Different connector endpoints
- Ordinary-location restriction
The ICS Triplex TC-304-01 front panel diagnostics cable requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Match TC-304-01, the target T8110 or T8151 diagnostics port and the workstation connection. Confirm the actual cable length separately; no length is inferred from the bare order code.
Inspect both connectors, contacts and the six-core cable. Preserve the documented wiring and route, and do not force a connector or substitute a generic serial lead by appearance.
Follow the approved maintenance and connection procedure. Verify the diagnostic link without issuing uncontrolled commands or changing the active process configuration.
Features:
- Match both diagnostic endpoints
- Preserve original connector wiring
- Verify the controlled diagnostic link
The ICS Triplex TC-304-01 front panel diagnostics cable requires replacement verification against the complete installed configuration and current manufacturer documentation.
