PRODUCT DESCRIPTION
Dedicated turbine speed sensing and overspeed protection

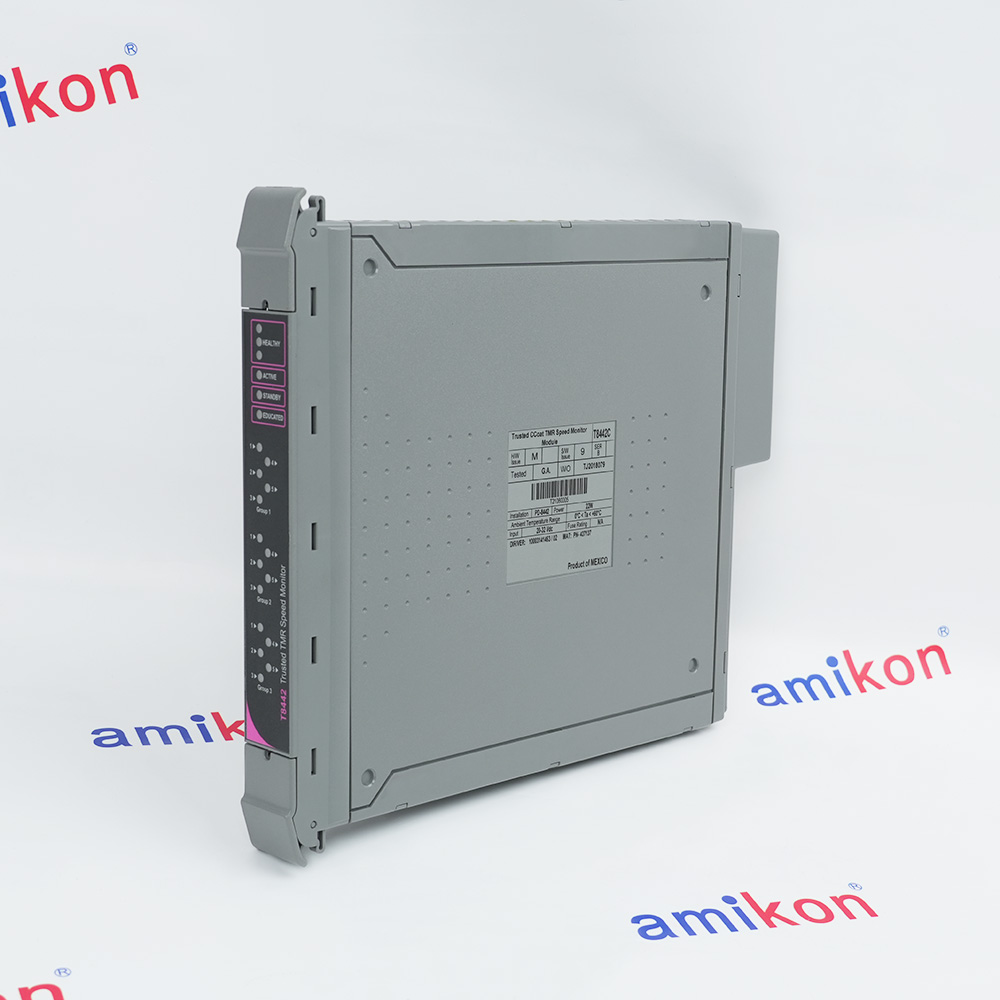

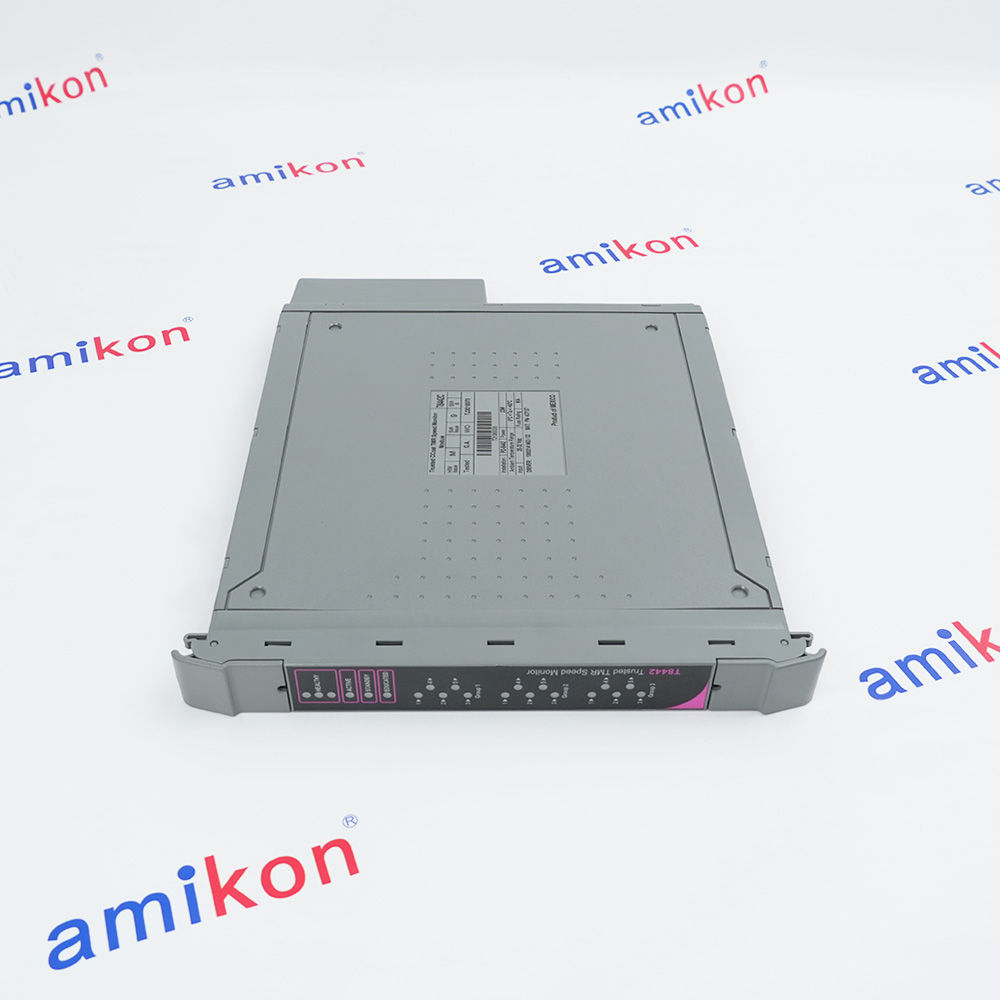

ICS Triplex T8442C is a conformal-coated Trusted TMR speed monitor for rotating machinery. Three independent machine groups each combine triplicated speed inputs with two redundant output drives, supporting overspeed and acceleration protection alongside a separate speed-control function.
Speed probes and trip equipment connect through the specified input and output termination assemblies rather than directly to the module. Each machine group requires the correct sensor arrangement, termination and protection configuration; replacement uses a Companion Slot, not a SmartSlot position.
Speed probes and trip equipment connect through the specified input and output termination assemblies rather than directly to the module. Each machine group requires the correct sensor arrangement, termination and protection configuration; replacement uses a Companion Slot, not a SmartSlot position.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8442C Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · OIL & GAS
Gas Compression Facilities and Petroleum Plant Machinery
Gas compression trains serving hydrocarbon processing and transportation facilities.Steam turbine driven pumping equipment within petroleum processing plants. -
02 · POWER GENERATION
Electricity Production Facilities and Turbine Generator Equipment
Turbine generator sets providing electricity across utility generation plants.Gas turbine driven generating units and associated plant machinery. -
03 · WATER & WASTEWATER
Water Supply Facilities and Large Pumping Installations
Turbine driven water pumps serving large utility supply facilities.Water transfer pumping installations with dedicated rotating equipment drives.
Technical specifications for T8442C
-
Product ModelT8442C
-
Product ParametersTrusted TMR speed monitor
-
ManufacturerICS Triplex
-
Machine groups3 independent machine groups
-
Speed input arrangement3 triplicated speed inputs per machine group
-
Output arrangement2 quad-redundant output drives per machine group
-
Active/passive input frequencyUp to 30000 Hz at the module/FTA interface
-
Input duty cycle20-80%, steady state
-
Speed measurement resolution+/-1 RPM
-
Speed measurement accuracy0.01% full scale or 1 RPM, whichever is greater
-
DC-coupled detection threshold200 mV peak-to-peak at the module/FTA interface
-
Backplane supply20-32 V DC; 22 W at 24 V DC
-
Field supply18-32 V DC
-
Input/output terminationT8846 SIFTA and T8891 SOFTA
-
Spare-slot arrangementCompanion Slot only; SmartSlot unavailable
-
Sequence of events1 ms resolution; +/-0.5 ms accuracy
-
Operating temperature0 to +60 degrees C
-
Storage and humidity-25 to +70 degrees C; 10-95% RH, noncondensing
View all additional
Alternative Names
T8442C Trusted TMR speed monitor
ICS Triplex T8442C turbine speed monitoring module
T8442C Trusted overspeed protection module
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match T8442C to the documented Trusted configuration
The speed monitor links three machine groups to the Trusted IMB. Field sensors and output circuits require the dedicated termination assemblies; module-interface ratings are not bare field-sensor connection ratings.
Use the specified T8846 input FTA and T8891 output FTA with the TC-801 assembly. Do not connect field devices directly to the module. Verify the 20-32 V DC backplane supply and specified 18-32 V DC field supply. Check the separate termination-assembly ratings.
Verify the machine groups, speed sensors and approved protection settings. Only Companion Slot replacement is documented; SmartSlot is unavailable.
Features:
- Three independent machine groups
- Triplicated speed inputs for each machine
- Overspeed and acceleration protection
The ICS Triplex T8442C trusted tmr speed monitor requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the complete T8442C identity and compare its hardware revision with the installed item. Check the exact order suffix, actual hardware revision, termination assemblies and approved machine configuration. SmartSlot replacement is not supported.
Use the specified T8846 input FTA and T8891 output FTA with the TC-801 assembly. Do not connect field devices directly to the module. Verify the machine groups, speed sensors and approved protection settings. Only Companion Slot replacement is documented; SmartSlot is unavailable.
Use the controlled manufacturer procedure and the approved maintenance plan. Use the approved Companion Slot procedure and confirm the required state change. Never remove a module still showing ACTIVE. SmartSlot is not available.
Features:
- Complete order identity retained
- Companion equipment and configuration checked
- No unconditional substitution claim
The ICS Triplex T8442C trusted tmr speed monitor requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8442C trusted tmr speed monitor must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8442C
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What equipment does T8442C serve?
The manufacturer describes speed monitoring and protection for steam or gas turbines driving equipment such as pumps, compressors and generators. Actual suitability depends on the complete configured machine protection arrangement. -
How many machine groups are provided?
Three. Each group has three triplicated speed inputs and two quad-redundant output drives. These group quantities must not be confused with the internal redundant signal paths. -
Can speed probes connect directly to the module?
No. The documented arrangement uses the T8846 speed input FTA and T8891 speed output FTA with the specified interconnection assembly. Consult the FTA manuals for field-side connections. -
What is the maximum measured frequency?
The module specification lists 30000 Hz for active and passive sensor inputs at the module/FTA interface. Sensor and termination-assembly requirements must also be checked. -
Does this module support SmartSlot replacement?
No. The replacement section expressly specifies Companion Slot only and states that SmartSlot is unavailable. Generic spare-slot wording elsewhere must not override this restriction. -
Is this a complete independent turbine protection installation?
No. The module requires the appropriate controller arrangement, terminations, field equipment and approved configuration. A module purchase alone does not establish commissioned protection. -
Does a C order suffix identify hardware Series C?
No. The manufacturer uses the C suffix for the conformal-coating option. Read the actual unit label separately for hardware revision or series; no individual-unit certification is implied.
