PRODUCT DESCRIPTION
Expansion positions and backplane connections for Trusted modules

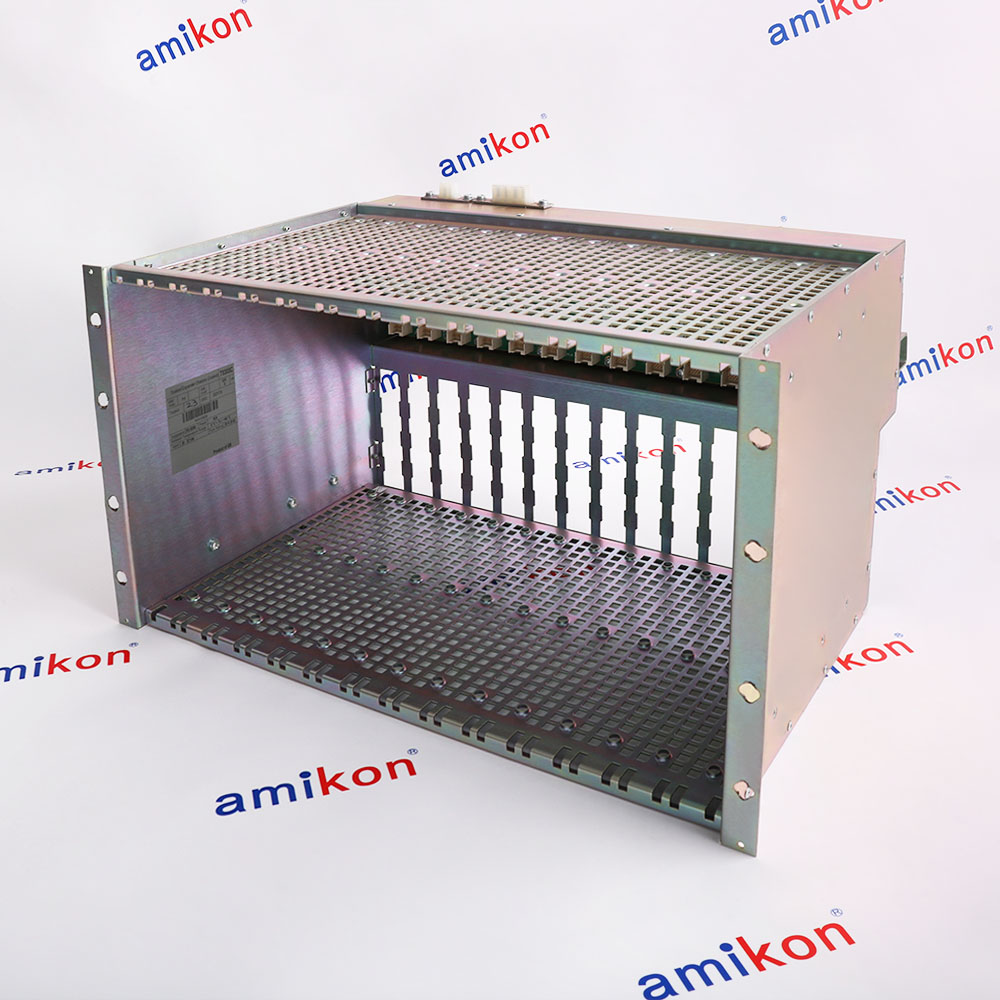

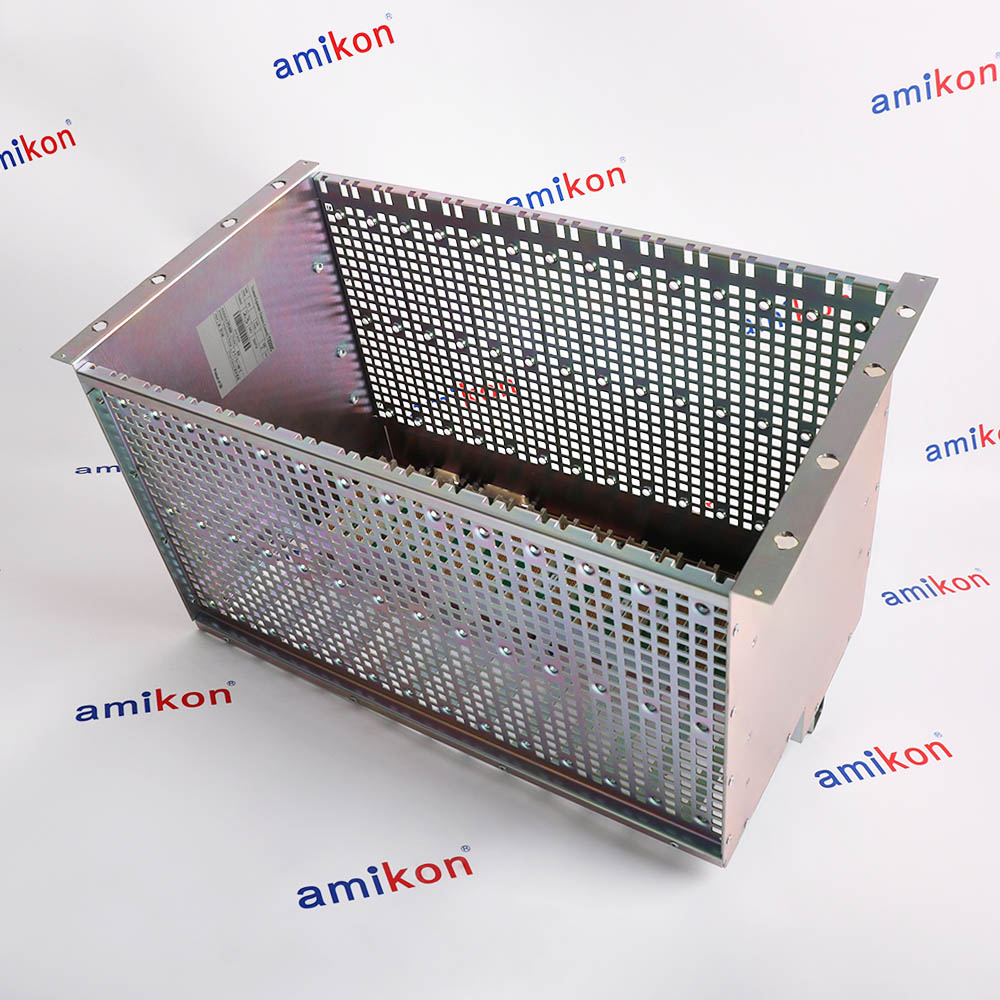

ICS Triplex T8300C is a conformal-coated Trusted expander chassis that houses expander processors and input/output modules. Its integral inter-module bus backplane provides their electrical interconnections, while the frame supports module guidance, retention and airflow through the assembly.
The chassis accommodates two single-width expander processors and twelve single-width I/O modules. It supports fixed or swing frame mounting, with rear panel mounting available through a separate bracket kit. Check the supply arrangement, chassis identification settings and required cooling clearance before installation.
The chassis accommodates two single-width expander processors and twelve single-width I/O modules. It supports fixed or swing frame mounting, with rear panel mounting available through a separate bracket kit. Check the supply arrangement, chassis identification settings and required cooling clearance before installation.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8300C Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · POWER GENERATION
Generating Plant Operations and Power Station Auxiliary Facilities
Power generation facilities with fuel supply and turbine auxiliaries.Station auxiliary equipment supporting continuous industrial electricity generation operations. -
02 · CHEMICAL PROCESSING
Chemical Manufacturing Operations and Process Plant Production Equipment
Chemical process plants with reaction vessels and mixing equipment.Industrial production facilities with chemical storage and transfer equipment. -
03 · WATER & WASTEWATER
Water Supply Facilities and Municipal Treatment Plant Operations
Municipal water treatment facilities with filtration and pumping equipment.Wastewater processing plants with aeration machinery and sludge equipment.
Technical specifications for T8300C
-
Product ModelT8300C
-
Product ParametersTrusted expander chassis unit
-
ManufacturerICS Triplex
-
I/O module capacity12 single-width slots, 30 mm each
-
Expander processor capacity2 single-width slots, 30 mm each
-
Expander processor positions13 and 14 only; leftmost slot is 13
-
Supply voltage20 to 32 V DC
-
External fusing20 A
-
Power feed arrangementDual-redundant 24 V DC inputs, separate terminal blocks
-
Inter-module busIntegral backplane; triplicated bus connections
-
Chassis identificationThree 4-position DIP switches; all three settings must match
-
Cross-chassis SmartSlotVersion 2 or later chassis and TC-006 common IMB 0 V connection
-
MountingFixed or swing frame; panel mounting with T8380 kit
-
Inter-chassis clearance90 mm for cooling
-
Operating temperature0 to +60 degrees C
-
Non-operating temperature-25 to +70 degrees C
-
Relative humidity10-95%, noncondensing
-
Coating optionC suffix denotes conformal coating; not a hardware series
View all additional
Alternative Names
T8300C Trusted expander chassis unit
ICS Triplex T8300C I/O expansion chassis
T8300C Trusted expander backplane assembly
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match T8300C to the documented Trusted configuration
The chassis provides mounting and backplane interconnections for Trusted expansion processors and I/O modules. It is not an expander processor or controller module.
Verify the frame or T8380 panel brackets and 90 mm spacing between chassis. Check 20-32 V DC feeds, external 20 A fusing and the controlled power drawings.
Match IDA, IDB and IDC. Early backplane switch legends may be reversed; use the manual table.
Features:
- Two expander processor positions
- Twelve single-width I/O module positions
- Integral inter-module bus backplane
The ICS Triplex T8300C trusted expander chassis unit requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
