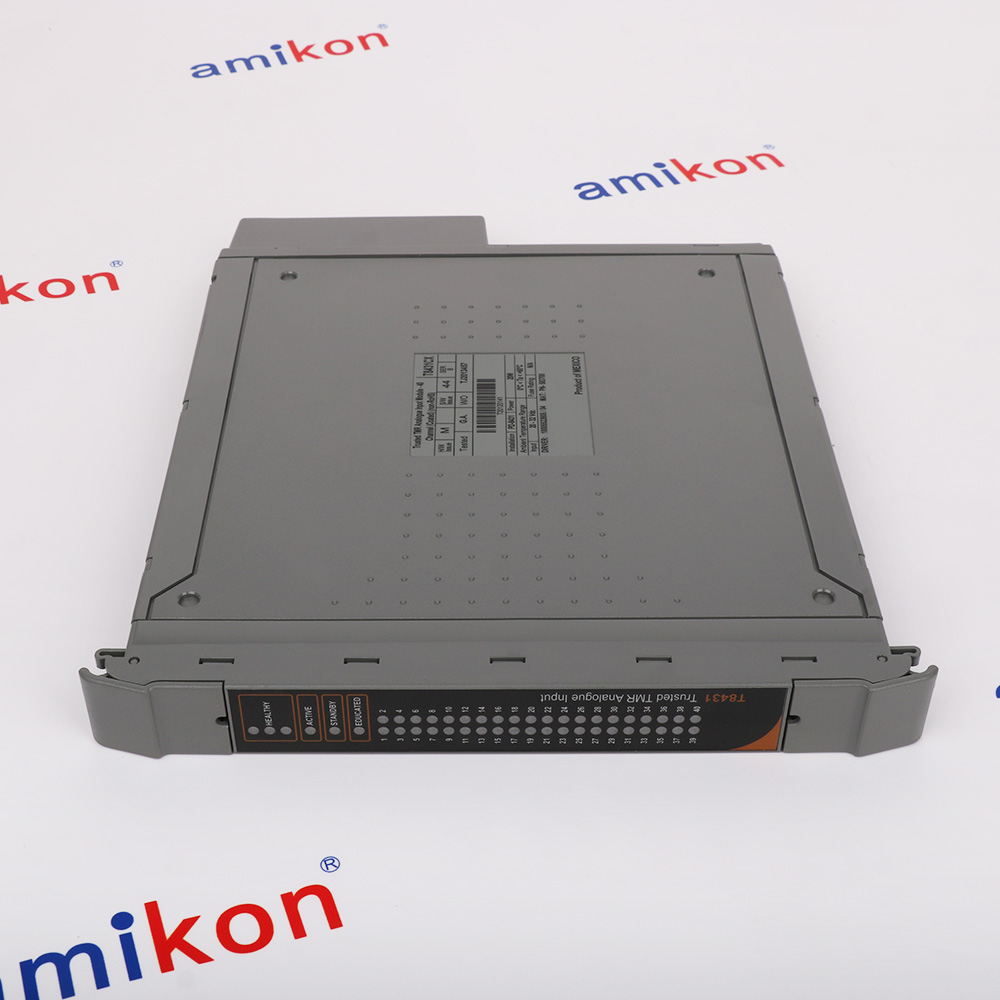

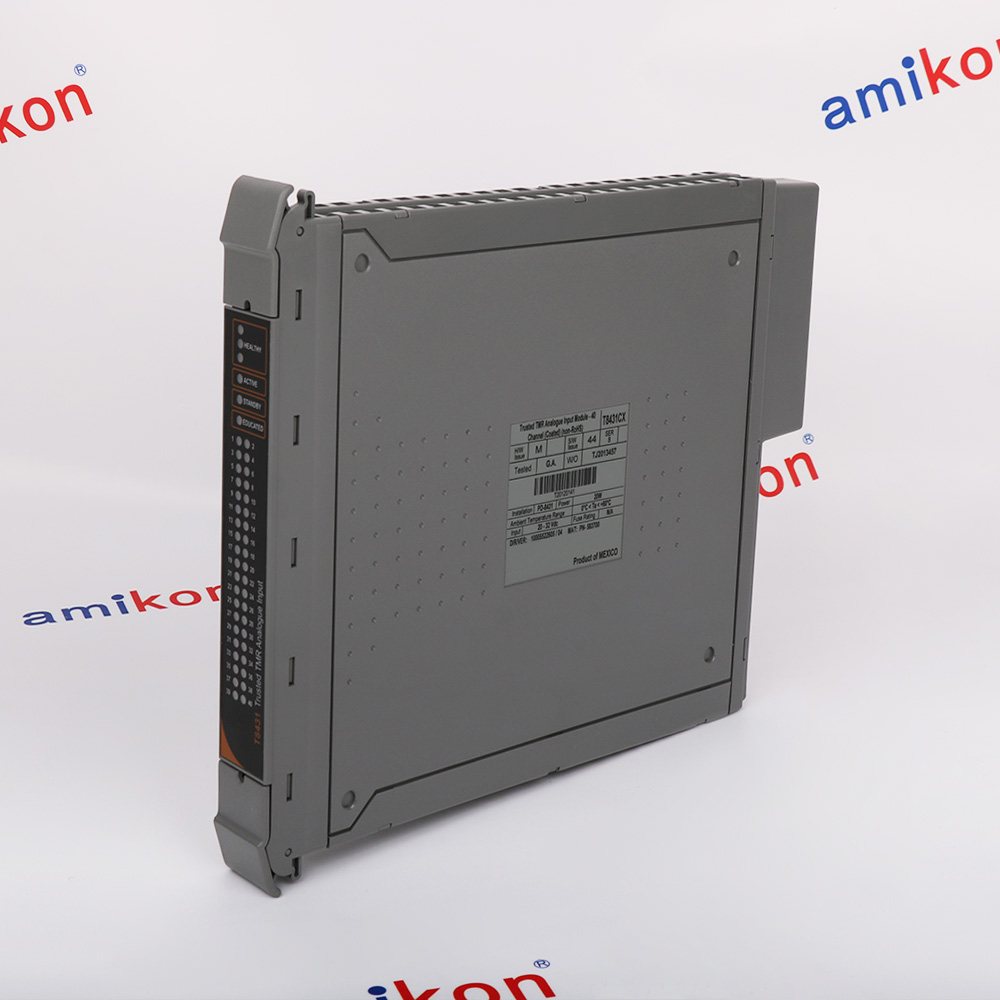

Technical specifications for T8431CX
-
Product ModelT8431CX
-
Product ParametersTrusted CCoat 4-20mA 40Ch AI Non-RoHS
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size3x30.1x26.4cm
-
ManufacturerICS Triplex
-
Weight1.15 kg
-
Operating Temperature-5°C to 60°C (23°F to 140°F)
-
Non-operating Temperature-25°C to 70°C (-13°F to 158°F)
-
Temperature change0.5ºC/min
-
Operating Humidity10 – 95% RH non-condensing
-
System Supply Voltage Range20 to 32V dc
-
Number of Inputs40 Channels
-
Input Current Range0-22mA
-
Input Voltage Range0-6 Vdc
Description
The ICS Triplex T8431CX is a 40-channel Trusted® TMR Analog Input Module designed for high-integrity Safety Instrumented Systems (SIS). It interfaces with field transmitters and sensors, acquiring analog process signals while maintaining Triple Modular Redundancy (TMR) for fault-tolerant operation. Each input channel is processed through three independent circuits, ensuring continued operation even in the event of a single hardware failure. The module also supports comprehensive diagnostics, line monitoring, and Sequence of Events (SOE) reporting.
The ICS Triplex T8431CX is a Trusted® TMR 40-channel Analog Input Module for safety-critical industrial applications. Operating from 20–32 VDC, it supports 0–22 mA and 0–6 VDC input signals, features Triple Modular Redundancy (TMR), 0.5 ms sampling, 1 ms SOE reporting, configurable line monitoring, and comprehensive diagnostics, making it ideal for SIL 3 Safety Instrumented Systems in oil & gas, power generation, and process industries.
The ICS Triplex T8431CX is a Trusted® TMR 40-channel Analog Input Module for safety-critical industrial applications. Operating from 20–32 VDC, it supports 0–22 mA and 0–6 VDC input signals, features Triple Modular Redundancy (TMR), 0.5 ms sampling, 1 ms SOE reporting, configurable line monitoring, and comprehensive diagnostics, making it ideal for SIL 3 Safety Instrumented Systems in oil & gas, power generation, and process industries.
Information
Overview
Manuals
Application Notes
Product Applications
Connection & Wiring
Features:
- 40 analog input channels
- Triple Modular Redundant (TMR) architecture
- Supports 4–20 mA process transmitters
- Built-in open-circuit and short-circuit line monitoring
- Integrated Sequence of Events (SOE) recording
Each channel is fully triplicated, with three independent slices processing the same input signal. The system performs a 2-out-of-3 vote on each data bit from the slices to determine the final output value. This architecture ensures that the module continues to operate correctly even in the event of up to two component failures, providing 3-2-0 fault tolerance.
The T8431CX ICS Triplex Trusted TMR 24Vdc Analogue Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ICS Triplex T8431CX Trusted TMR 24Vdc Analogue Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module supports a 0 – 22 mA input current range and a 0 – 6 V DC input voltage range. Resolution is 3.9 µA (1/256 mA) with a safety accuracy of ±1 % of full scale and calibration accuracy of 0.03 %. The sample update time is 0.5 ms. Input current is converted to voltage using a 250 Ω resistor on a standard Field Termination Assembly (FTA). Engineering units are reported as 1024 counts per volt, with 0 V reporting as –1024, 1 V as 0, and 5 V as 4096, facilitating easy scaling for 4 – 20 mA inputs.
- Oil & Gas: Used for ESD, pipeline control, and compressor protection
- Chemical/Pharmaceutical: Manages burners, fire/gas detection, and high-integrity batch controls
- Power Generation: Protects turbines from overspeed and secures generator functions
- Manufacturing/Marine: Controls distributed safety I/O and protects shipboard heavy machinery
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Field Termination Assembly (FTA): The module links to field inputs via an FTA. This minimizes direct wear on the module and allows it to be replaced on-line (hot-swapped) without disconnecting field wiring.
Cable Requirements: Use specified cables and ensure terminal block ring resistance is ≤ 4 Ω.
Line Monitoring: The module supports configurable, selectable line monitoring for each channel to detect open circuit and short circuit field wiring faults.
Grounding & Isolation: Take advantage of the module’s opto/galvanic isolation barrier (2500 Vdc) to protect the backplane from field transients.
Alternative Names
T8431 CX
T843I CX
T8A31 CX
T843ICX
T8A31CX
T8431-CX
Technical notes
The T8431CX can be hot-replaced on-line using dedicated Companion (adjacent) Slot or SmartSlot (one spare slot for many modules) configurations. Front panel input status LEDs for each of the 40 channels indicate input status and field wiring faults. Front panel module status LEDs indicate module health and operational mode (Active, Standby, Educated). The six module status LEDs include three Healthy indicators (one per slice), one Active, one Standby, and one Educated indicator.
FAQs
-
What does TMR mean for the T8431CX?
+TMR stands for Triple Modular Redundant. The module uses three identical, independent processing paths (slices) for each signal. Hardware "voting" is continuously performed, ensuring a single component failure does not disrupt the safety loop. -
What is the Sequence of Events (SOE) resolution?
+The module supports on-board SOE reporting with a time-stamp resolution of 1 ms and an accuracy of ±0.5 ms for state changes. -
Does the module support line monitoring?
+Yes, line monitoring is user-selectable per channel. It continuously detects field wiring faults such as open circuits or short circuits. -
What are the power requirements?
+The module operates on 24 Vdc power. Typical power consumption is approximately 15 to 18 Watts
