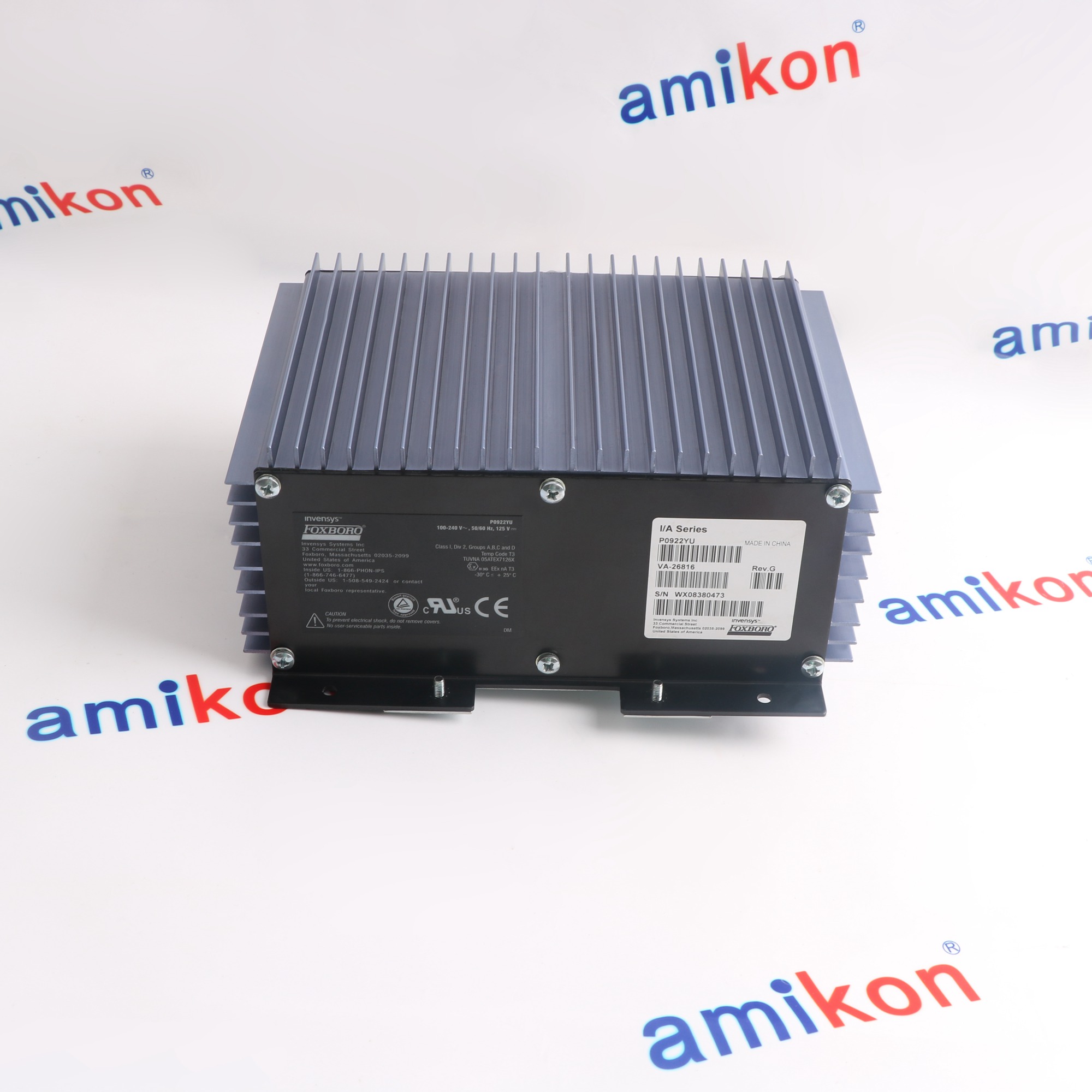

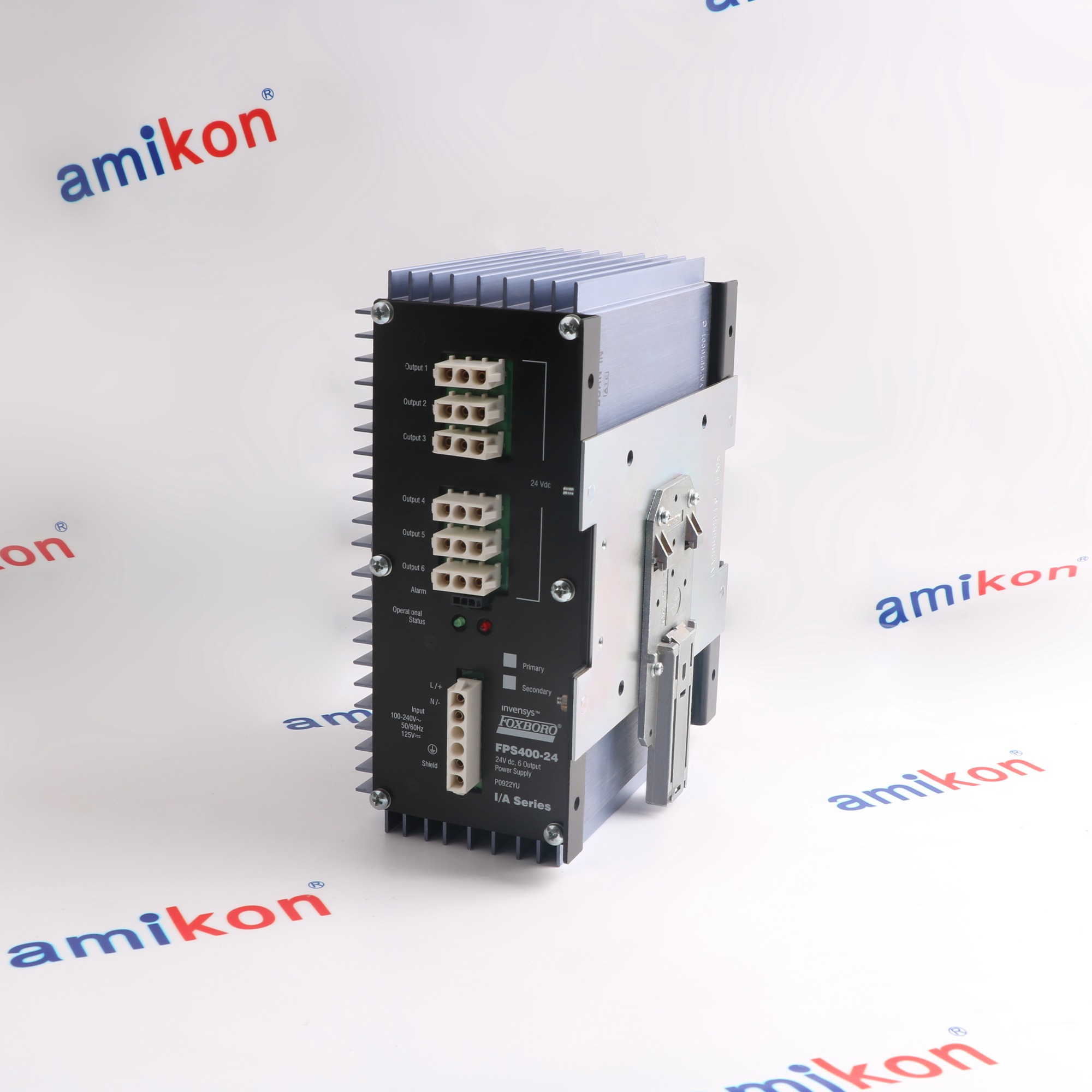

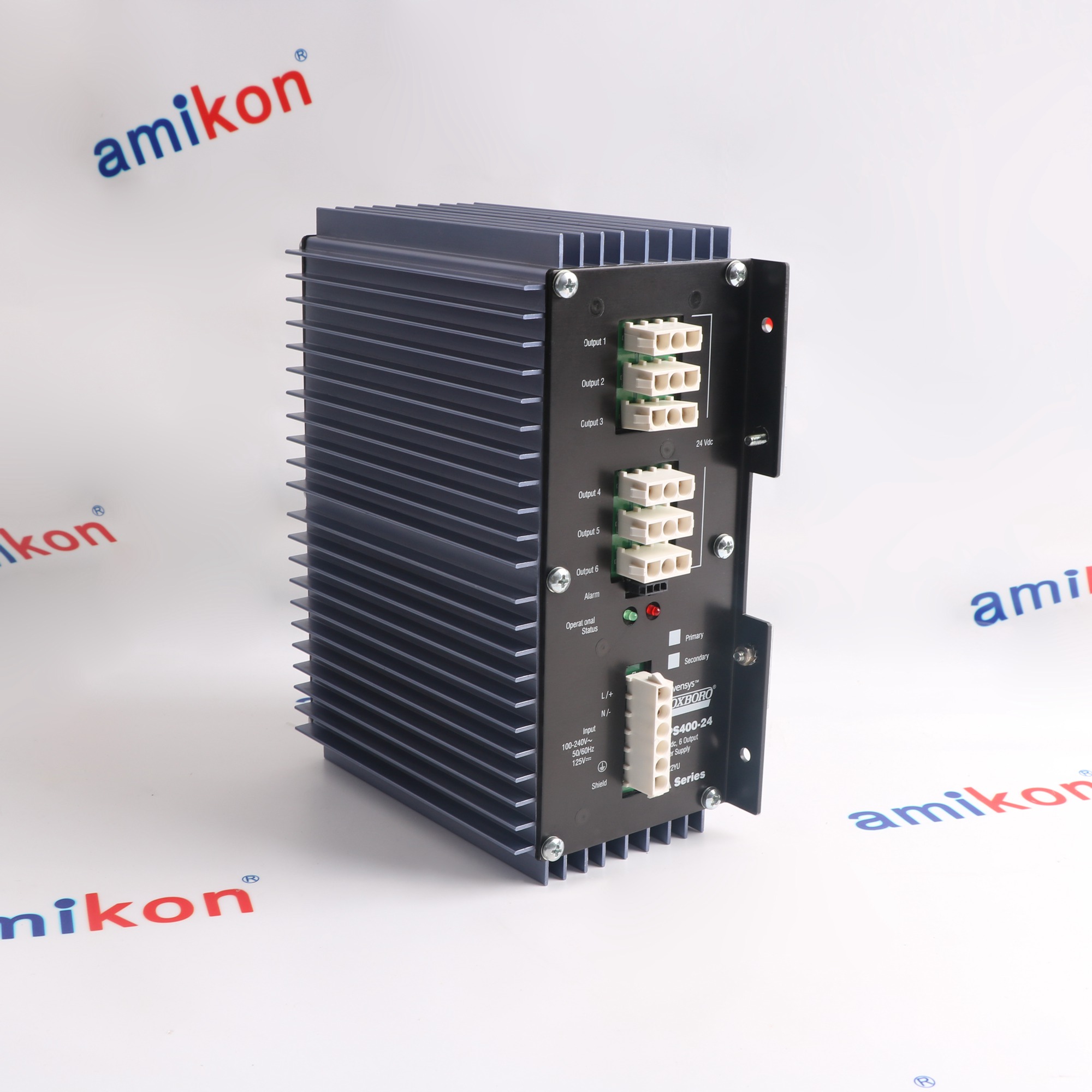

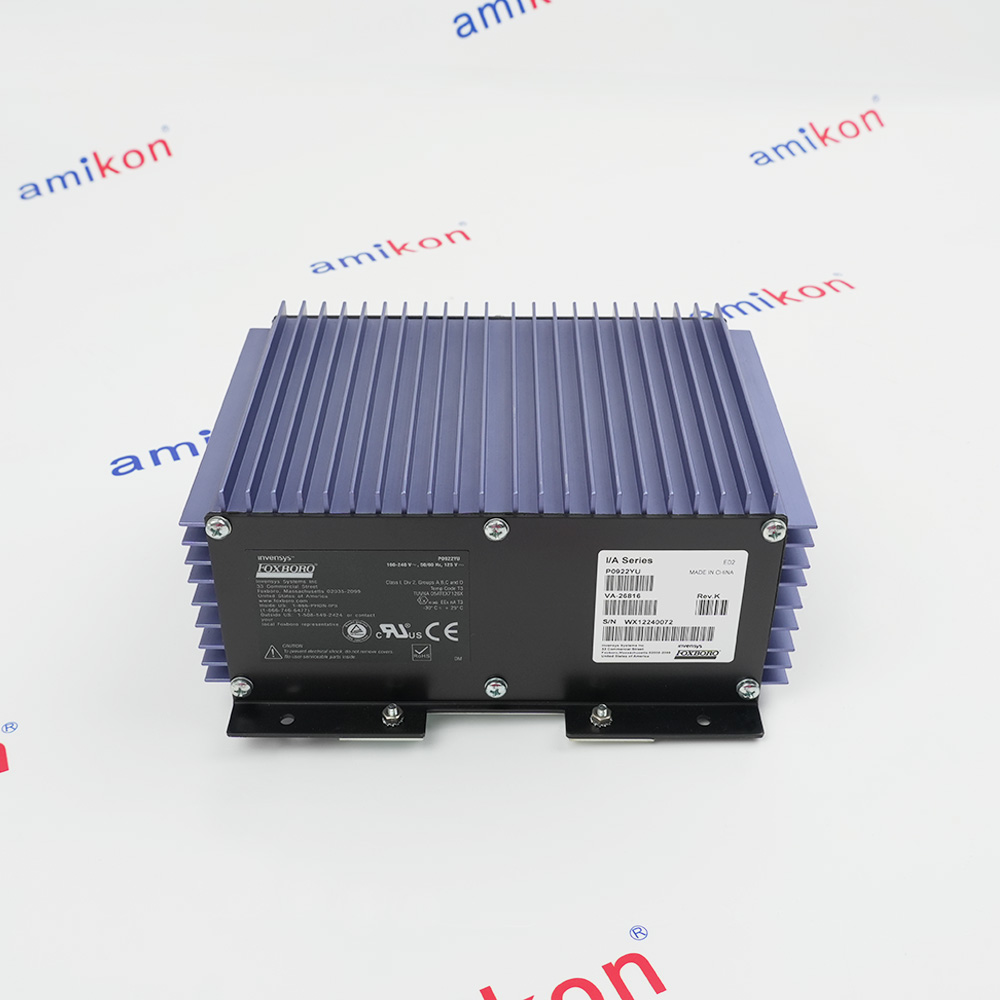

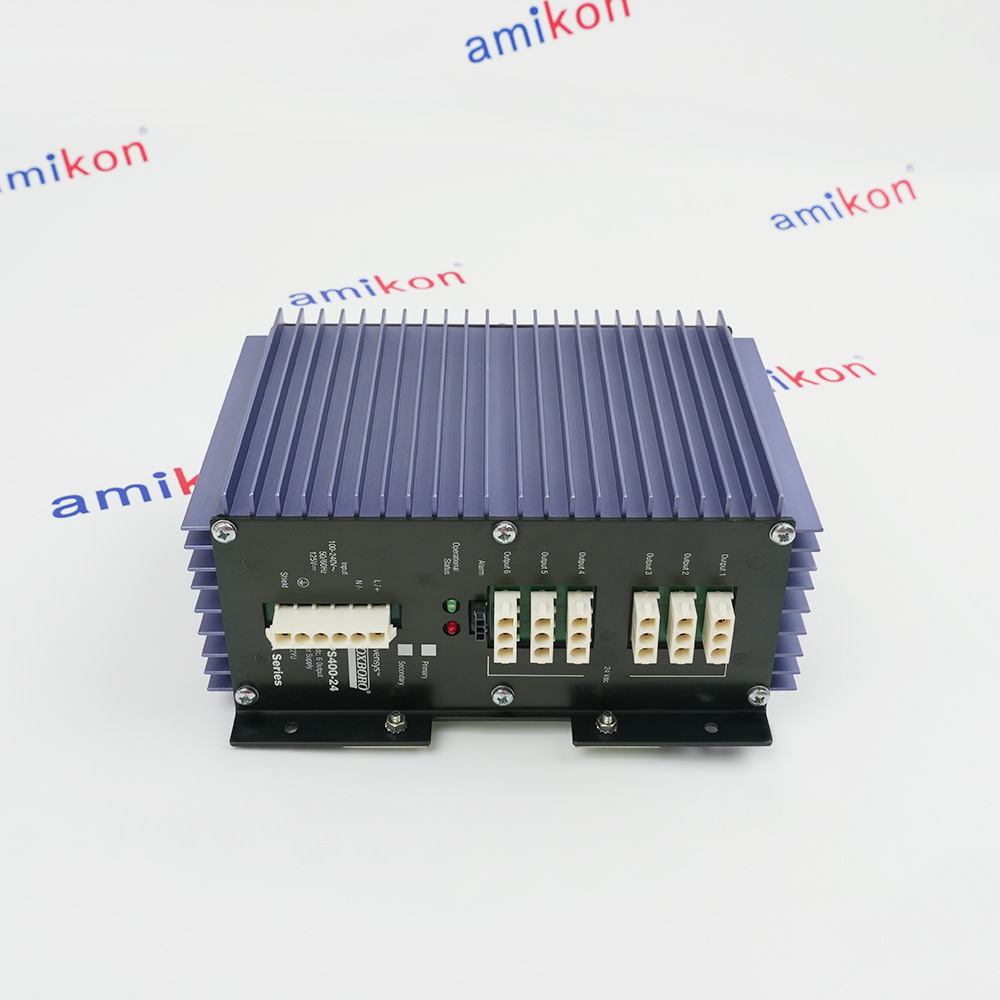

Technical specifications for P0922YU FPS400-24
-
Product ModelP0922YU FPS400-24
-
Spare ModelFPS400-24
-
Product ParametersDIN Rail Mounted Power Supply
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size21.5x17.8x10.7cm
-
ManufacturerInvensys
-
Weight2.8 kg
-
OUTPUT VOLTAGEFactory set at 24.0 V dc
-
Input Voltage Range85 to 265 V ac or 108 to 145 V dc, 125 V dcnominal
-
Input Frequency Range47 to 63 Hz
-
Input Voltage Range18 to 35 V dc, 24 V dc nomina
-
Input Current19.5 A at 24 V dc input
-
Efficiency (At Maximum Output Power)85% typical at 24 V dc input
-
Input Power468 W at 24 V dc input typical
-
OUTPUT VOLTAGE24.0 V dc, ±0.2 V dc nominal factory setting
-
VOLTAGE LINE REGULATION2.0% of Vout
-
VOLTAGE LOAD REGULATION2.0% of Vout
-
RIPPLE AND NOISE AT 20 MHZ100 mV (peak-to-peak), 10 mV (RMS maximum)
-
TEMPERATURE COEFFICIENT0.025% per °CSTARTUP TIME (SOFT-START3 s typical at 110 V ac input or 24 V dc, 5 smaximum
Description
Wide range of AC and DC input voltages
Power factor correction
Dual stage current limiting
Overvoltage shut down circuitry
Transformer isolated 24 V DC output
Class 1, DIV 2, Zone 2 applications
G3 rating for harsh environments
Power for external field devices
Convection cooling (no fans)
Gasketed and sealed housing
Horizontal or vertical DIN rail mounting
Holes for bracket or wall mounting
Relay (form C) status alarm output
Power factor correction
Dual stage current limiting
Overvoltage shut down circuitry
Transformer isolated 24 V DC output
Class 1, DIV 2, Zone 2 applications
G3 rating for harsh environments
Power for external field devices
Convection cooling (no fans)
Gasketed and sealed housing
Horizontal or vertical DIN rail mounting
Holes for bracket or wall mounting
Relay (form C) status alarm output
Information
Overview
Manuals
Technical notes
Product Applications
Operational Instructions & Features
Features:
- Wide Range of AC/DC Input Voltages
- Extremely High Efficiency
- Power Factor Correction
- Dual Stage Current Limiting
- Overvoltage Shut Down Circuitry
The FPS400-24 P0922YU Foxboro Power Supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Foxboro FPS400-24 P0922YU Power Supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The power supply operates as a constant voltagesource with maximum load ratings as listed in thespecifications. If load current attempts to exceedgreater than 110% of maximum current at the rated25°C load, the output voltage begins to decreasetoward zero, thereby limiting the current delivered tothe load. Upon removal of overload, normal operationresumes.
- Oil & Gas: Offshore drilling platforms, onshore oil and gas fields' monitoring and data acquisition systems (SCADA)
- Conventional energy: Boiler control and turbine protection in thermal power plants and nuclear power plants
- Renewable energy: Remote terminal control (RTU) power supply for wind power farms
- Mining monitoring: Ventilation monitoring in underground mines
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Sealed Design: The unit features a robust, gasketed housing with no internal fans, protecting it from corrosive atmospheres (like hydrogen sulfide or chlorine) and reducing maintenance.
Status Indicators:
Green LED: Indicates output voltage is normal (>23.5 V DC).
Red LED: Signals an undervoltage condition (<22 V DC).
Alarm Relay: Includes a Form C relay output that activates to indicate the absence of 24 V DC output, allowing for external alarm integration.
- What happens next
- Get the quote now Write Email to INFO@AMIKON.CNEmail confirmation You will get an email confirming that we have received your enquiry.Dedicated Account Manager One of our team will be in touch to confirm your part(s) specification and condition.Your quote You will receive a comprehensive quote tailored to your specific needs.Need Moore Help? Get fast and efficient help from our experienced sales or customer service teams.
- Delivery and payment
- Delivery
Logistic partners UPS, FedEx and DHL
International delivery available
Same day dispatch from warehouse inventory
Warranty
All parts new original are covered by Amikon 12 month warranty
Returns
No hassle returns policy
Dedicated customer support team
Payment options
We accept Bank transfers and the following methods of payment:
For more information, please visit our dedicated payments page.
- Why Choose Amikon Limited?
When it comes to industrial automation, reliability, speed, and trust matter. At Amikon Limited, we go beyond just supplying parts — we deliver confidence.
- ● Extensive Inventory Reach: Nearly 1 million automation parts at your fingertips, including legacy and obsolete models.
- ● 20+ Years of Expertise: Trusted by engineers, project managers and government companies worldwide for our professional service.
- ● Quality You Can Trust: Each unit is strictly inspected by the warehouse staff to ensure product quality
- ● Fast Global Shipping: We help you minimize downtime with express logistics worldwide.
- ● 1-Year Warranty Available: Peace of mind with every purchase backed by one year warranty guarantee.
Whether you're maintaining legacy systems or building future-ready projects, Amikon Limited is your dependable partner in precision and performance.
FAQs
-
What is the FPS400-24 P0922YU?
+The Foxboro P0922YU (FPS400-24) is a 400W, 24VDC, DIN-rail mounted power supply designed for Foxboro I/A Series 200 Series FBMs in harsh environments (G3 rating). -
What is the FPS400-24 P0922YU input voltage range?
+The P0922YU supports 85 to 265 V ac or 108 to 145 V dc (nominal 125 V dc). -
What are the FPS400-24 P0922YU input power options?
+The P0922YU model accepts a wide range of voltages: 85 to 265 V AC (47–63 Hz) or 108 to 145 V DC. -
How efficient is this module?
+It is highly efficient, typically reaching 92% at 230 V AC input. Schneider Electric reports an ROI of less than two years based on average electrical rates.
