- 6SE7090-0XX84-0FF5
In Stock
Ships by Monday, August 17
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6SE7090-0XX84-0FF5
-
Product Model6SE7090-0XX84-0FF5
-
Product ParametersCBP2 communication board
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size9.5x8.4x1.2cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Voltage Supply24 V ±15% DC
-
Data RatesUp to 12 Mbps for PROFIBUS
-
PROFIBUS9-pin D-Sub connector
-
Operating Temperature0°C to +55°C
-
Humidity Range5–95% non-cond
Description

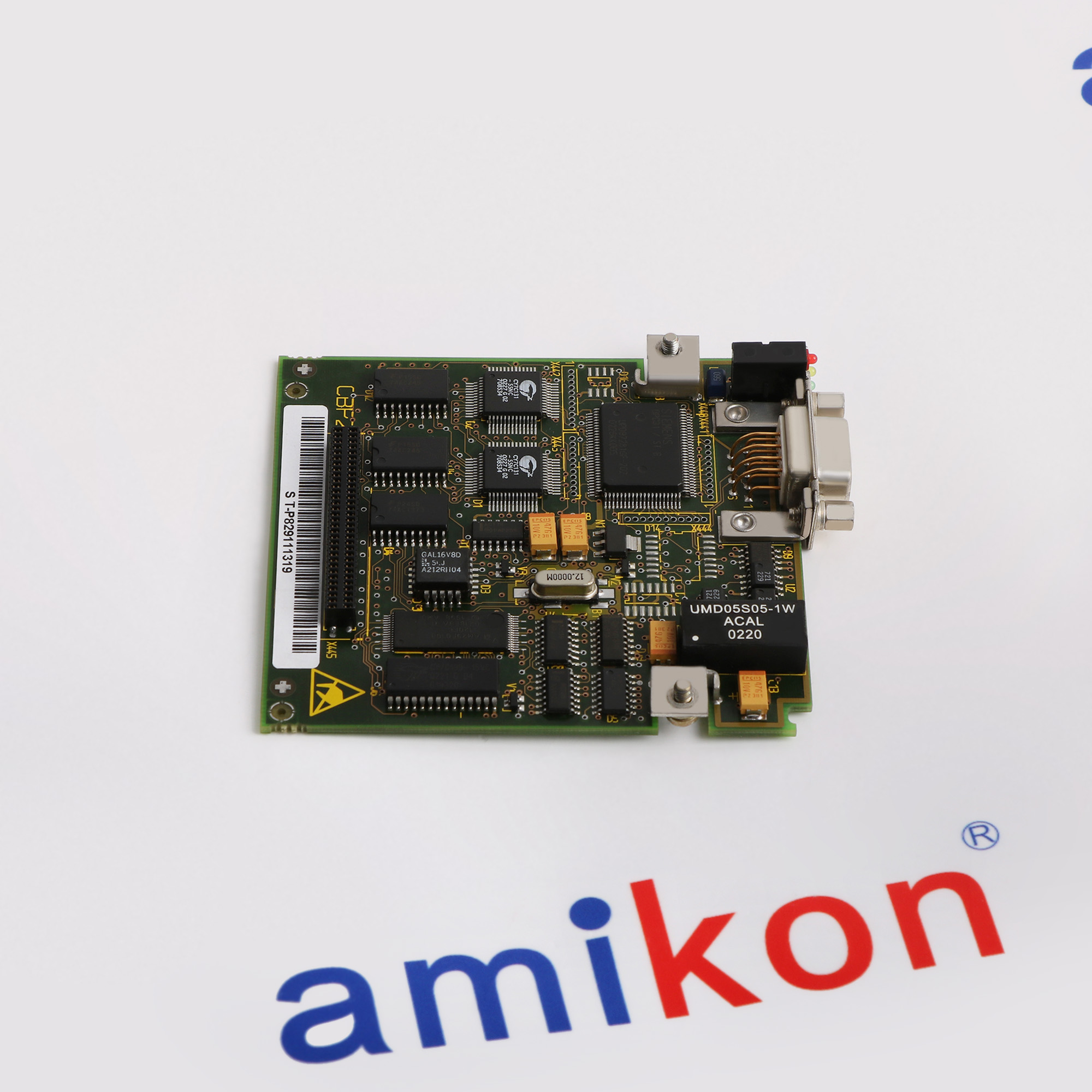

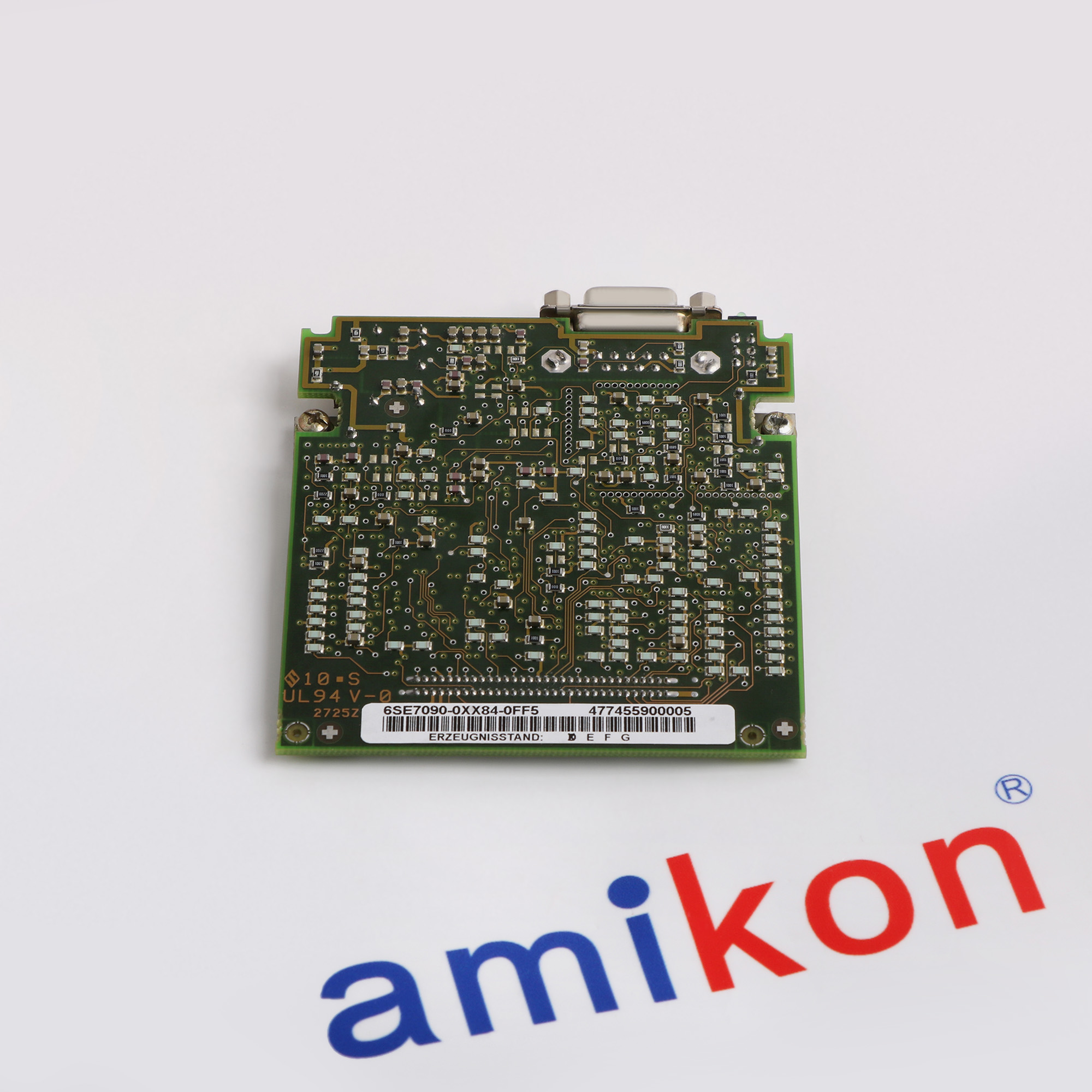

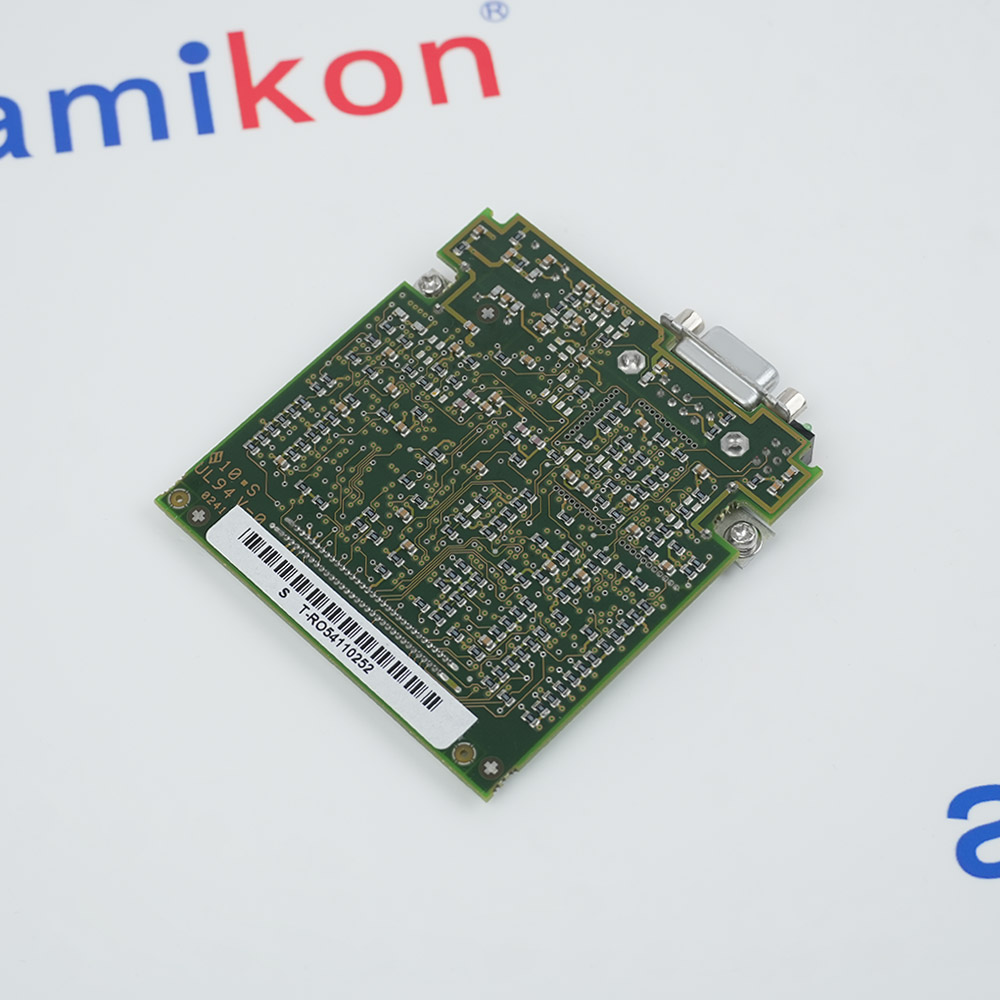

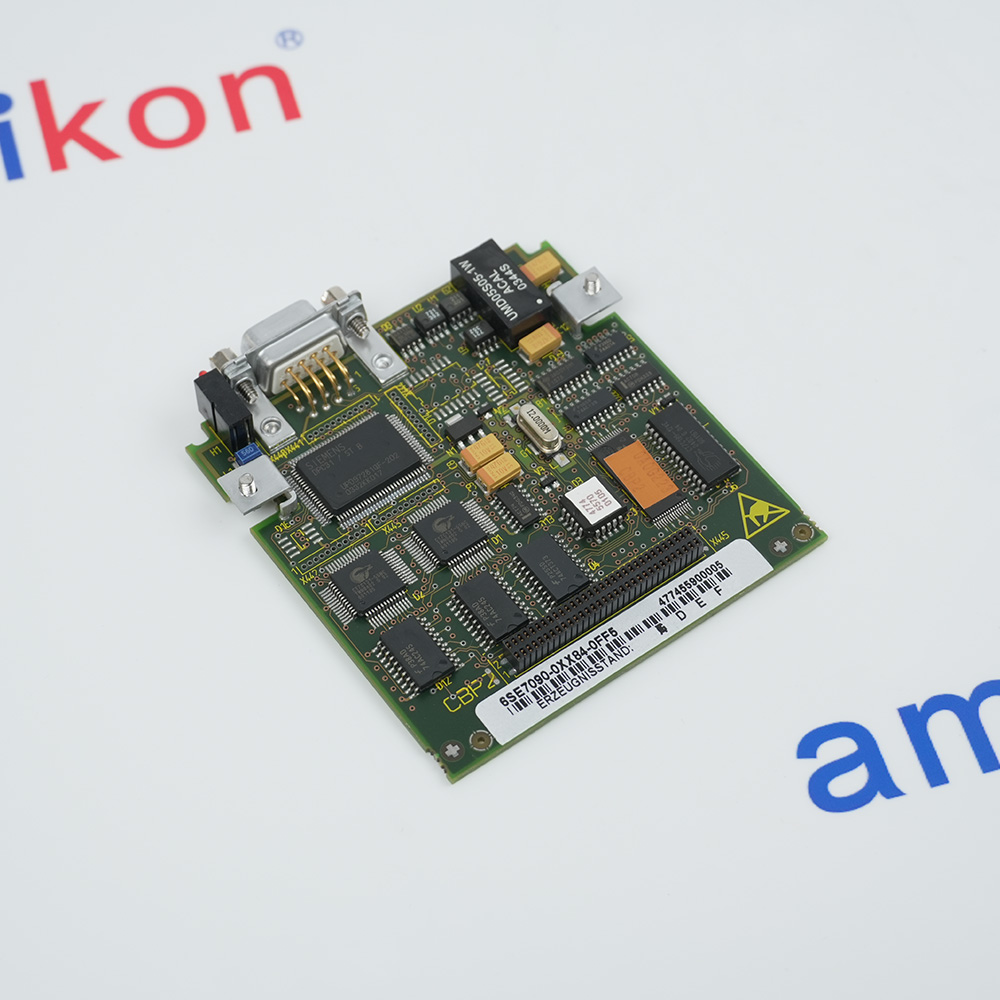

The CBP2 communication board(Communication Board PROFIBUS)is for connecting SIMOVERTMASTERDRIVES to the PROFIBUSDP field bus system
The 6SE7090-0XX84-0FF5 is a CBP2 Communication Board (Communication Board PROFIBUS) manufactured by Siemens for the SIMOVERT MASTERDRIVES Vector Control series. The 6SE7090-0XX84-0FF5 is designed for connecting SIMOVERT MASTERDRIVES to the PROFIBUS DP field bus, enabling high-speed digital communication between the drive and higher-level automation systems.
The 6SE7090-0XX84-0FF5 supports the extended functionality of PROFIBUS DP, making the 6SE7090-0XX84-0FF5 significantly more capable than the original CBP board. The 6SE7090-0XX84-0FF5 enables flexible configuration of cyclic messages, allowing users to customize the data exchange between the drive and the PROFIBUS master to suit specific application requirements.
The 6SE7090-0XX84-0FF5 is a CBP2 Communication Board (Communication Board PROFIBUS) manufactured by Siemens for the SIMOVERT MASTERDRIVES Vector Control series. The 6SE7090-0XX84-0FF5 is designed for connecting SIMOVERT MASTERDRIVES to the PROFIBUS DP field bus, enabling high-speed digital communication between the drive and higher-level automation systems.
The 6SE7090-0XX84-0FF5 supports the extended functionality of PROFIBUS DP, making the 6SE7090-0XX84-0FF5 significantly more capable than the original CBP board. The 6SE7090-0XX84-0FF5 enables flexible configuration of cyclic messages, allowing users to customize the data exchange between the drive and the PROFIBUS master to suit specific application requirements.
Information
Overview
Manuals
Application Notes
Product Applications
Insertion Instructions
Features:
- PROFIBUS DP Field Bus Connectivity
- Extended PROFIBUS DP Functionality
- Full Backward Compatibility with CBP
- Support for Compact PLUS, Compact, and Chassis Units
- Factory-Mounted or Retrofit Kit Options
- Integration with SIMATIC and TIA Systems
The CBP2 supports both DP-V0 cyclic data exchange and DP-V1 acyclic parameter access. The DP-V0 protocol handles real-time process data (PZD) including control words, setpoints, status words, and actual values. The DP-V1 protocol extends functionality to non-cyclic parameter reading and writing (PKW area), allowing remote configuration and diagnostics without interrupting drive operation. The board operates at baud rates from 9.6 kbps to 12 Mbps with automatic baud rate recognition. The PROFIBUS address is set via on-board DIP switches in the range 0 to 126. The 9-pin D-Sub female connector includes an integrated termination resistor switch for proper bus termination.
The 6SE7090-0XX84-0FF5 SIEMENS CBP2 communication board may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6SE7090-0XX84-0FF5 CBP2 communication board Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The CBP2 is fully backward compatible with the original CBP board (6SE7090-0XX84-0FF0) and replaces it directly. It adds extended functionality including flexible configuration of cyclic messages, slave-to-slave communication between drives, and operation of a SIMATIC OP as PROFIBUS DP master class 2.
The board mounts as a plug-in option card in the electronics box of SIMOVERT MASTERDRIVES compact PLUS, compact, and chassis units. It occupies slots A through G (excluding slot F). When factory-mounted, the drive order number is supplemented with "–Z" and the corresponding option code: G91 (slot A, compact/chassis), G92 (slot B, compact PLUS), G93 (slot C), G95 (slot E), or G97 (slot G).
The retrofit kit part number 6SX7010-0FF05 includes the CBP2 board with faceplate for field installation. The spare part 6SE7090-0XX84-0FF5 is supplied as the board only, without connectors or operating instructions.
- Metal/Steel Mills: Multi-motor control for rolling, wire drawing, and casting with high-speed sync for shears/slitters/winders
- Paper/Packaging/Printing: Precision speed/tension regulation for webs; electronic gearing/cams for presses and assembly lines
- Textile: Coordination of multi-axis spinning, weaving, and wind-up; speed deviations ruin material quality
- Automotive: Conveyor positioning, lifting gantries, and robotic tables via PROFIBUS deterministic communication
- Material Handling/Cranes: Dynamic torque/regenerative braking for slewing gears/hoists; precise point-to-point positioning for ASRS
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off: Ensure the drive is completely isolated and powered down. Wait at least 5 minutes for the DC bus capacitors to discharge.
Locate the Slot: Remove the drive's front cover. The CBP2 module is designed to be installed in the designated option slots of the MASTERDRIVES Control Unit (usually slots A, B, C, or D, depending on your drive configuration).
Align and Insert: Carefully align the module with the guide rails of the option slot. Push the board in firmly until the edge connector is fully seated in the basic unit's slot.
Secure the Module: Fasten the retaining screws located on the face of the board to secure it in place and ensure a proper ground connection.
Alternative Names
6SE7090-0XX84-OFF5
6SE7090-0XX8A-0FF5
6SE7090-0XXB4-0FF5
6SE7090-OXX84-0FF5
6SE709O-0XX84-0FF5
6SE7O90-0XX84-0FF5
6SE7 090-0XX84-0FF5
6SE7090 0XX84 0FF5
6SE7090 0XX84 OFF5
6SE7090 OXX84 0FF5
6SE709O 0XX84 0FF5
6SE7O90 0XX84 0FF5
6SE70900XX840FF5
Technical notes
The CBP2 board measures 90 mm × 83 mm and weighs 0.05 kg. It operates from a 5 V supply provided by the drive electronics box. The operating temperature range is 0 °C to +70 °C. The board is rated for pollution degree 2 per IEC 664-1; moisture condensation is not permissible during operation.Four front-panel LEDs indicate operational status: RDY (green) for ready state, GRP (red) for group fault, DIA (red flashing) for diagnostic events, and ON (green) for power presence. The LED positioning has been revised from the original CBP design, but functional compatibility is maintained.
FAQs
-
What is the primary function of the 6SE7090-0XX84-0FF5 module?
+The primary function of this module is to enable PROFIBUS DP communication within the Siemens SIMOVERT MASTERDRIVES system. This allows the drive to integrate into a PROFIBUS automation network for high-speed, real-time data exchange and control. -
Is the 6SE7090-0XX84-0FF5 compatible with the older CB1 or CBP modules?
+Yes, the CBP2 module is fully compatible with the basic CU2 control unit and is the designated successor to the original CBP board (part number 6SE7090-0XX84-0FF0). Functionally, they are compatible, though minor physical differences like LED positioning exist. -
What is the function of this module?
+The CBP2 board adds high-performance networking capabilities to SIMOVERT MASTERDRIVES inverters, allowing for complex automation setups and communication. -
What are the main differences between CBP and CBP2?
+The CBP2 (this model) is an upgraded version of the original CBP board. The CBP2 introduces support for PROFIBUS DPV1 extended functions, which permits more advanced diagnostic data transmission and flexible asynchronous parameter access alongside standard clock-synchronous operation.
