Technical specifications for 6SX7010-0FF05
-
Product Model6SX7010-0FF05
-
Product ParametersCOMMUNICATION MODULE
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size9.5x8.2x1.3cm
-
ManufacturerSiemens
-
Weight0.05 kg
-
Power Supply24 V DC ±10%
-
Current Consumption≤150 mA
-
Isolation500 V
-
PROFIBUS DP9-pin D-Sub
-
Operating Temperature0°C to +55°C
-
Storage Temperature-25°C to +70°C
Description

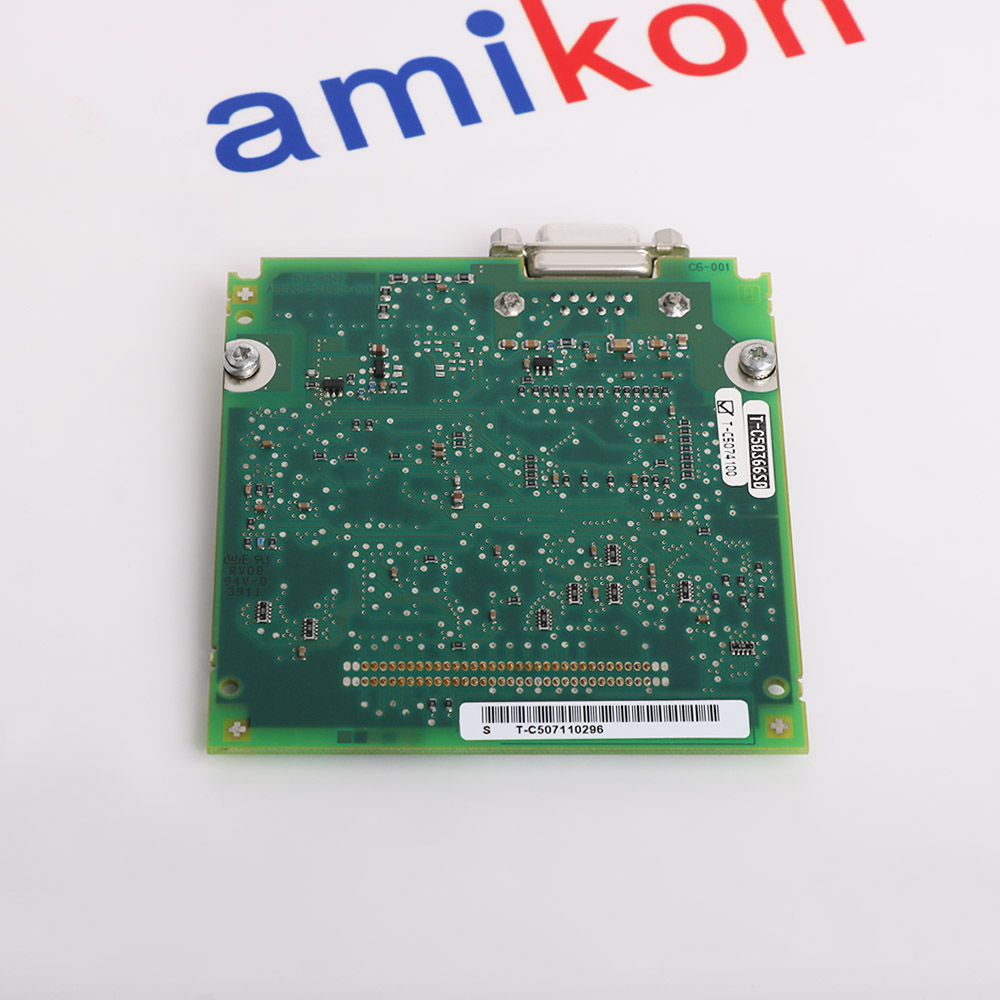

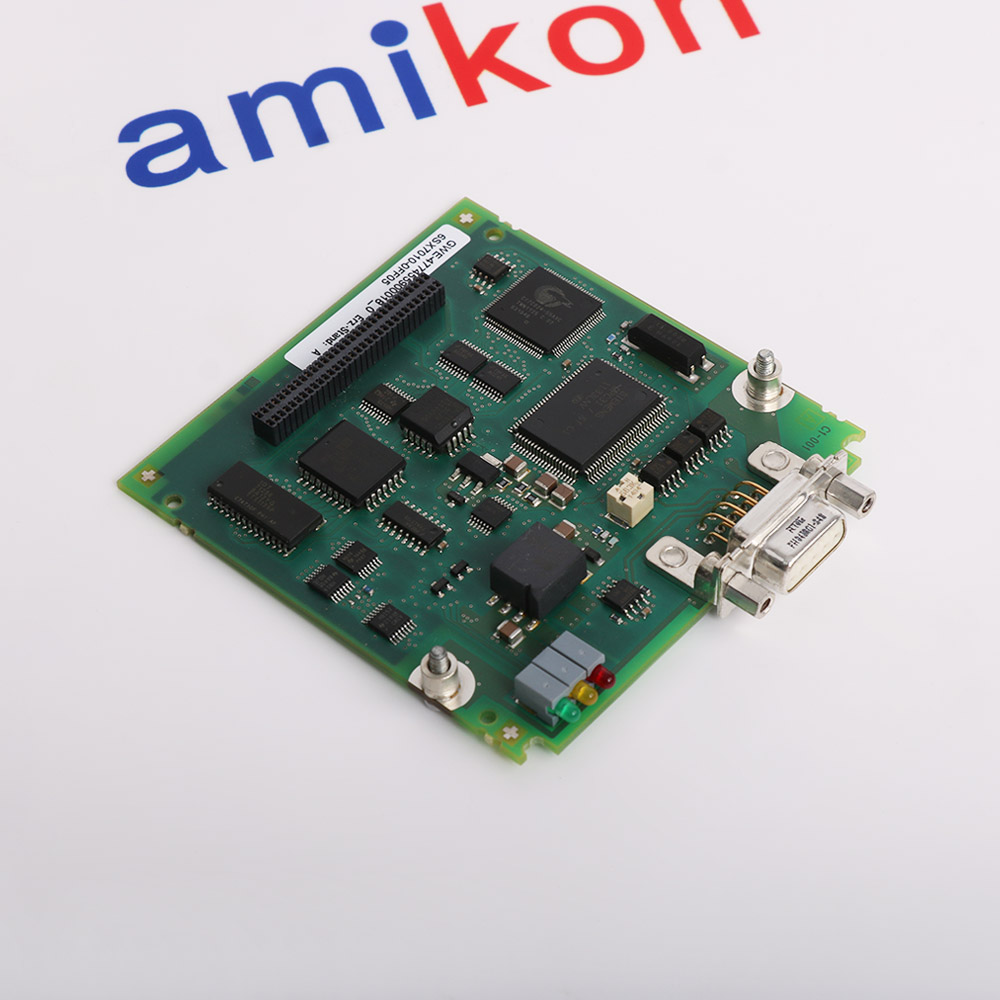

The 6SX7010-0FF05 is a CBP2 PROFIBUS DP communication board from the Siemens SIMOVERT MASTERDRIVES product family. It enables integration of SIMOVERT MASTERDRIVES vector control and motion control drives into PROFIBUS DP automation networks.
The CBP2 board supports the extended functionality of PROFIBUS DP, including flexible configuration of cyclic messages, slave-to-slave communication between drives, and operation of SIMATIC operator panels as PROFIBUS DP master class 2 devices. The board is fully backward compatible with the original CBP board and replaces it in all applications.
Data transmission rates range from 9.6 kbit/s to 12 Mbit/s with automatic baud rate detection. The board supports PPO (Parameter Process data Object) telegram types 1 through 5, allowing flexible allocation of process data (PZD) and parameter data (PKW) within the cyclic telegram. Up to 16 PZD words can be transferred in each direction for real-time control and status exchange, plus 4 PKW words for non-cyclic parameter access.
The CBP2 board supports the extended functionality of PROFIBUS DP, including flexible configuration of cyclic messages, slave-to-slave communication between drives, and operation of SIMATIC operator panels as PROFIBUS DP master class 2 devices. The board is fully backward compatible with the original CBP board and replaces it in all applications.
Data transmission rates range from 9.6 kbit/s to 12 Mbit/s with automatic baud rate detection. The board supports PPO (Parameter Process data Object) telegram types 1 through 5, allowing flexible allocation of process data (PZD) and parameter data (PKW) within the cyclic telegram. Up to 16 PZD words can be transferred in each direction for real-time control and status exchange, plus 4 PKW words for non-cyclic parameter access.
Information
Overview
Manuals
Application Notes
Product Applications
Board Insertion
Features:
- SIMOVERT MASTERDRIVES communication module
- CBP2 PROFIBUS DP interface
- Compatible with Motion Control (MC) and Vector Control (VC) drives
- Interfaces with Siemens SIMATIC PLCs and PROFIBUS networks
- Plug-in communication module design
The module installs directly into the communication interface of a SIMOVERT MASTERDRIVES drive and provides a standard PROFIBUS DP connection for integration with Siemens SIMATIC PLCs and other PROFIBUS-compatible controllers. Through cyclic communication, the drive exchanges control words, speed references, torque commands, status words, and actual operating values. Acyclic communication supports parameter reading, parameter modification, commissioning, and maintenance functions.
The 6SX7010-0FF05 Siemens SIMOVERT Master drives Communication module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6SX7010-0FF05 SIMOVERT Master drives Communication module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The board mounts in the electronics box of SIMOVERT MASTERDRIVES Compact PLUS, Compact, and Chassis units. For Compact and Chassis units, it occupies position 1 or 2 in the electronics box slots. For Compact PLUS units, it mounts in Slot A. Connection to the PROFIBUS network is via a 9-pin SUB-D female connector implementing the RS485 physical layer. Fiber optic connection is possible via external optical link modules (OLM).
Key communication parameters include P695 for telegram failure time monitoring, P697 for PPO type selection, and P918 for PROFIBUS node address assignment. Parameterization enable (P053 or P927) is required when assigning parameters via the PROFIBUS network.
- Steel/Metal Mills: Controls cross-cutters, rolling mills, and casting with high torque and synchronized speed
- Paper/Pulp/Printing: Integrated into winding/unwinding web lines with real-time communication to prevent tearing
- Material Handling/Cranes: Applied in hoists, overhead cranes, and conveyors with coordinated multi-motor control
- Process Control/Chemicals: Controls high-capacity pumps, fans, and mixers via plant-wide communication
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Locate the Slot: Identify the designated option slot (typically Slot C or the upper option slots) on the basic drive's control board.Alignment: Carefully slide the 6SX7010-0FF05 board along the guide rails.
Seating: Press firmly until the module is fully seated and securely locked into the internal card rack connector.
Adapter Note: For certain drive configurations, you may require a Local Bus Adapter (LBA) or Adapter Board (ADB) to mount the module.
Alternative Names
6SX7010-0FFO5
6SX7010-OFF05
6SX701O-0FF05
6SX70I0-0FF05
6SX7O10-0FF05
6SX7010 0FF05
6SX7010 0FFO5
6SX7010 OFF05
6SX701O 0FF05
6SX70I0 0FF05
6SX7O10 0FF05
Technical notes
The board mounts in the electronics box of SIMOVERT MASTERDRIVES Compact PLUS, Compact, and Chassis units. For Compact and Chassis units, it occupies position 1 or 2 in the electronics box slots. For Compact PLUS units, it mounts in Slot A. Connection to the PROFIBUS network is via a 9-pin SUB-D female connector implementing the RS485 physical layer. Fiber optic connection is possible via external optical link modules (OLM).
FAQs
-
What is the 6SX7010-0FF05?
+The Siemens 6SX7010-0FF05 is a CBP2 (Communication Board PROFIBUS) used in SIMOVERT MASTERDRIVES and SIMOREG DC Master drives. -
Which network protocols are supported?
+It communicates using the PROFIBUS-DP / SINECL2-DP automation protocol. -
What does CBP2 stand for?
+CBP2 stands for Communication Board PROFIBUS 2. It is a plug-in option card that provides PROFIBUS-DP connectivity for MASTERDRIVES Motion Control (MC), Vector Control (VC), and SIMOREG DC drives.
