- 6ES7223-1BL22-0XA0
In Stock
Ships by Thursday, July 16
Fast Shipping Available

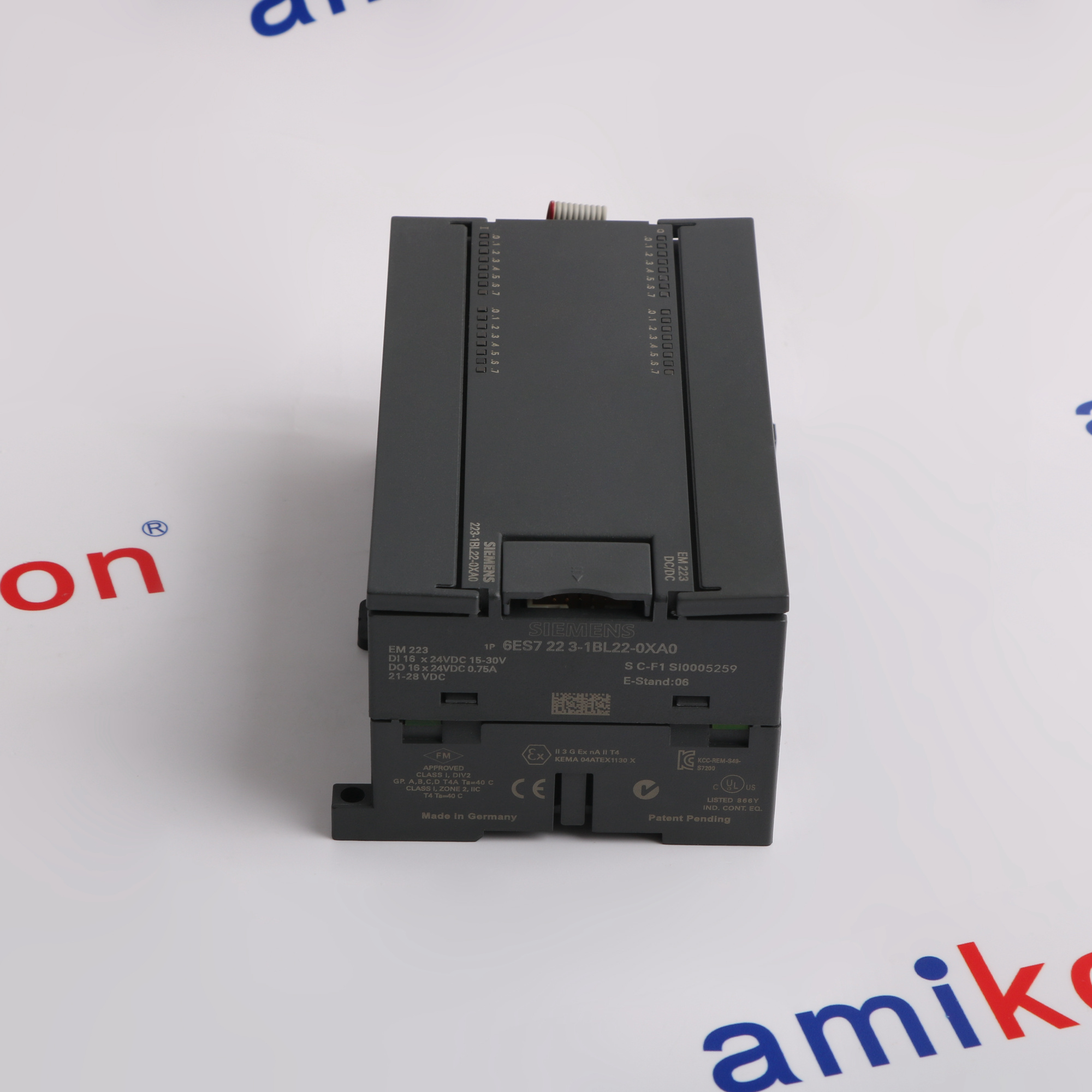

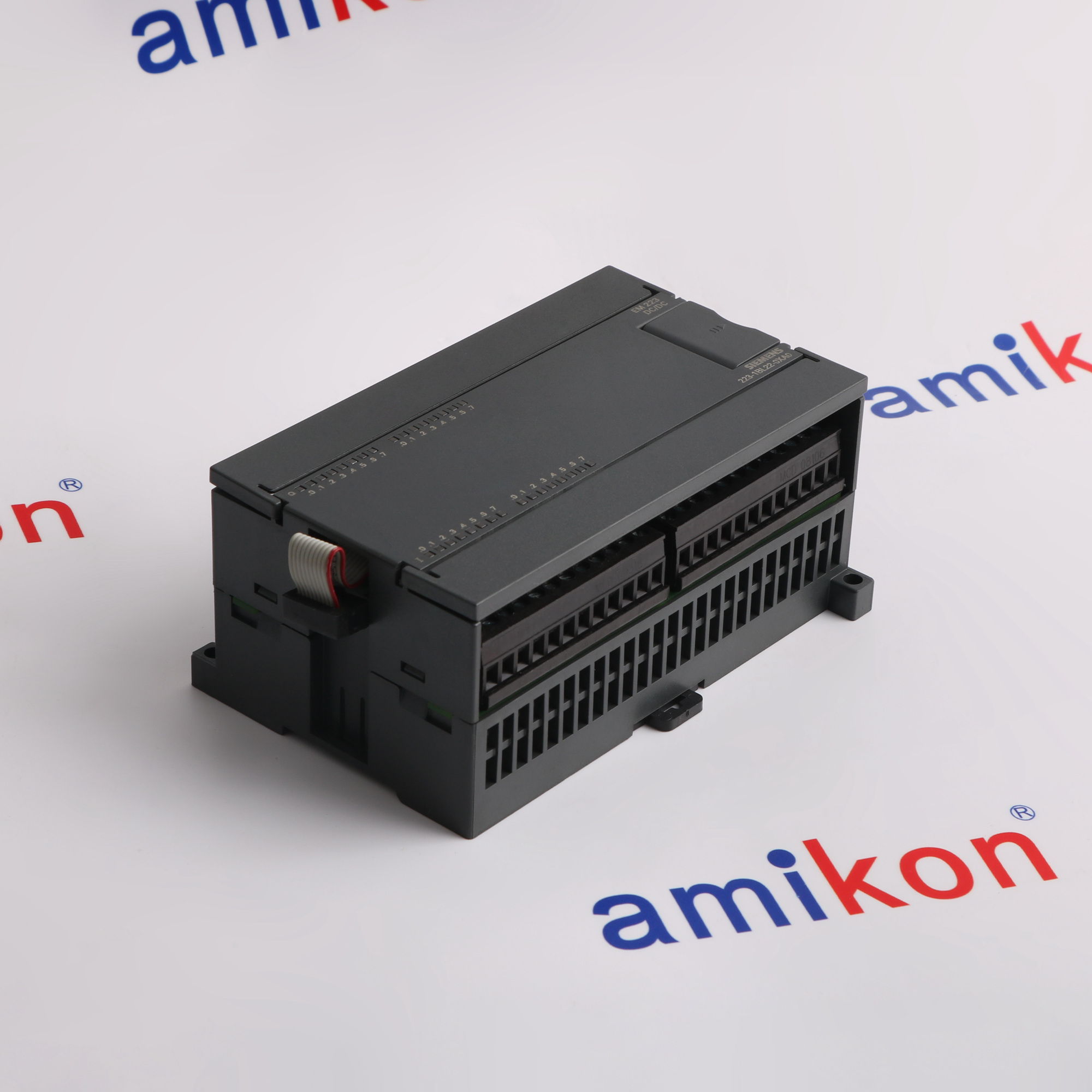

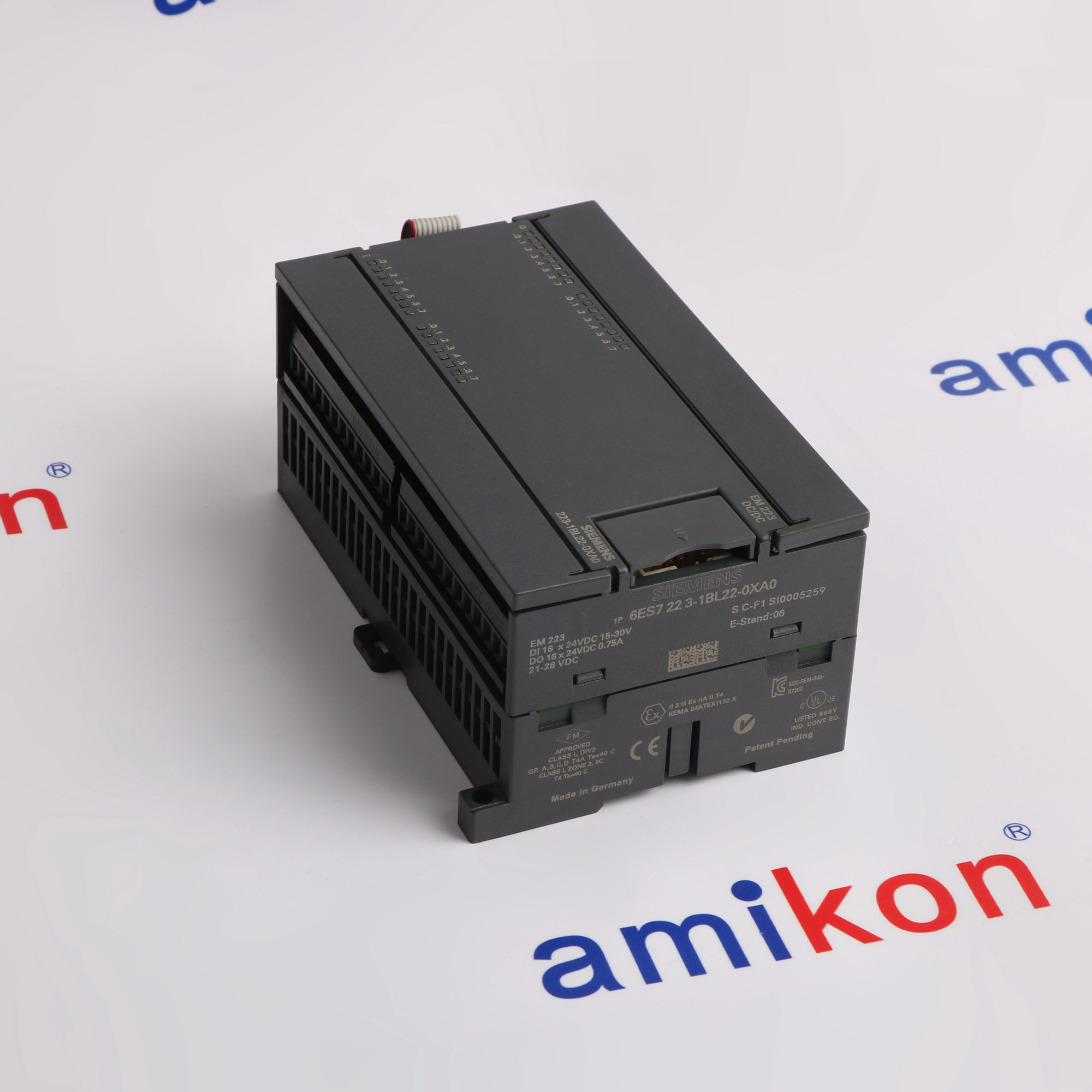

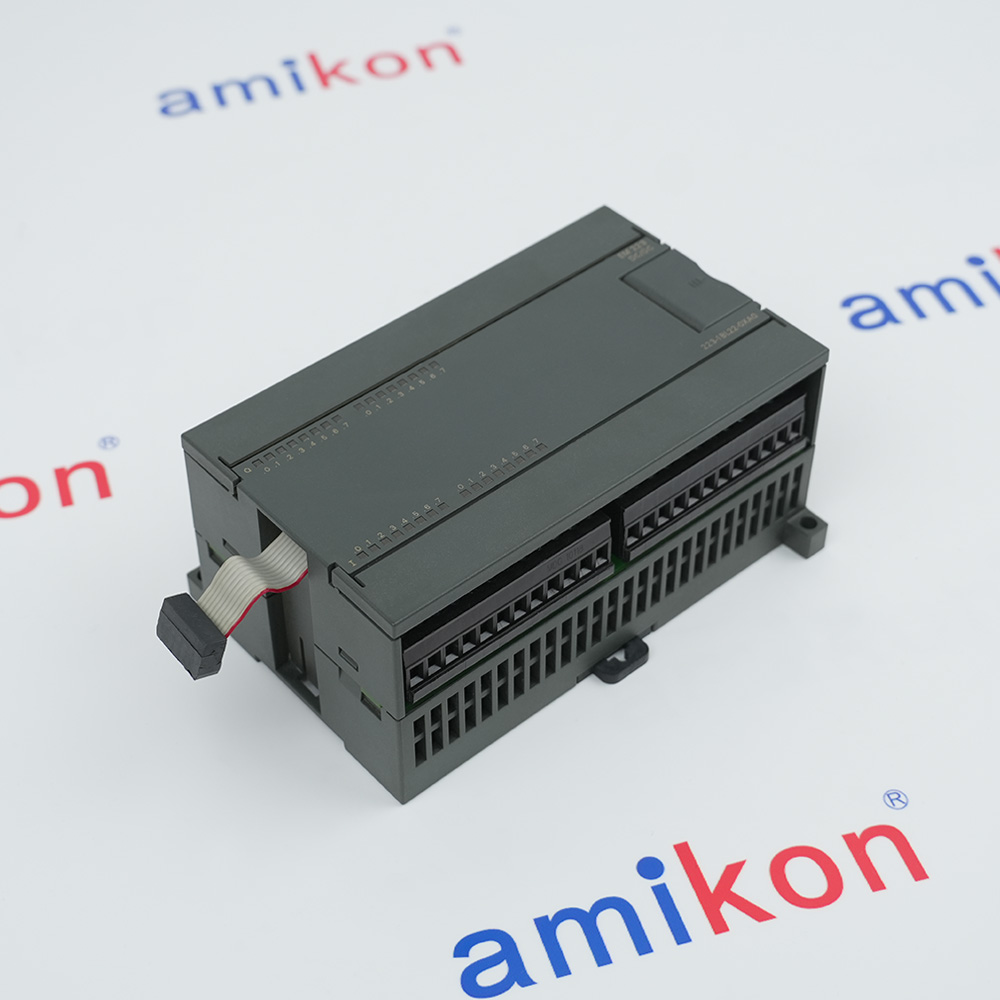

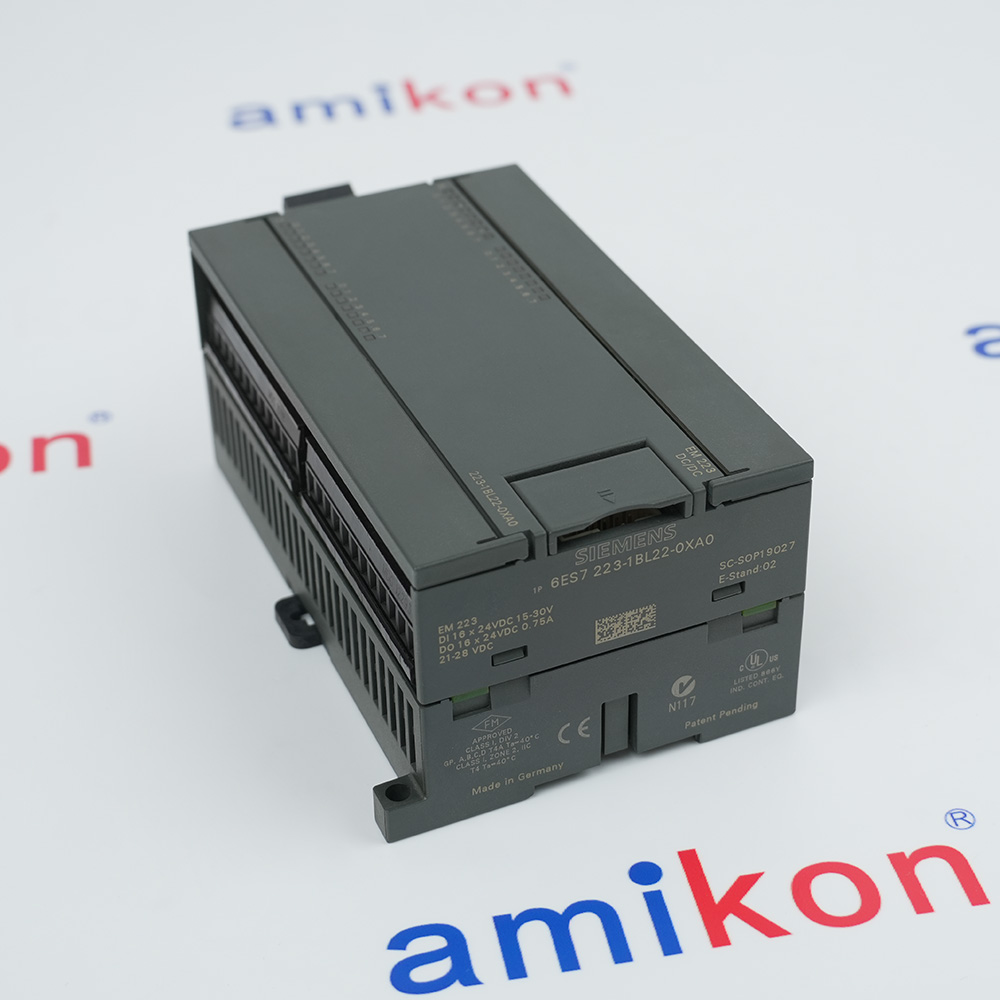

· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7223-1BL22-0XA0
-
Product Model6ES7223-1BL22-0XA0
-
Spare ModelEM223
-
Product ParametersSIMATIC S7-200, DIGITAL I/O EM 223
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size13.7x6.2x9.5cm
-
ManufacturerSiemens
-
Weight0.3 kg
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
from backplane bus 5 V DC, max160 mA
-
Power loss, typ6 W
-
Number/binary inputs16
-
Type of input voltageDC
-
Rated value, DC24 V
-
for signal "0"0 to 5 V
-
for signal "1"15 to 30 VDC
-
for signal "1", typ4 mA
-
Number/binary outputs16
Description
The Siemens 6ES7223-1BL22-0XA0 is a SIMATIC S7-200 combined digital input/output expansion module as EM 223. It is designed exclusively for use with the S7-22X CPU family of the SIMATIC S7-200 programmable logic controller platform. The module provides sixteen digital input channels and sixteen digital output channels in a single expansion unit, enabling compact I/O expansion for small to medium automation applications.
The sixteen digital input channels support both sink and source configurations (PNP/NPN compatible) with a rated input voltage of 24 V DC. The operational input voltage range is 20.4 to 28.8 V DC. Signal "0" is defined from 0 to 5 V, while signal "1" is defined from 15 V DC to 30 V DC. The typical input current at signal "1" is 4 mA per channel. Input delay times are maximum 4.5 ms for both 0-to-1 and 1-to-0 transitions.
The sixteen digital input channels support both sink and source configurations (PNP/NPN compatible) with a rated input voltage of 24 V DC. The operational input voltage range is 20.4 to 28.8 V DC. Signal "0" is defined from 0 to 5 V, while signal "1" is defined from 15 V DC to 30 V DC. The typical input current at signal "1" is 4 mA per channel. Input delay times are maximum 4.5 ms for both 0-to-1 and 1-to-0 transitions.
Alternative Names
6ES7223-1BL22-0XAO
6ES7223-1BL22-OXA0
6ES7223-1BLZZ-0XA0
6ES7223-IBL22-0XA0
6ES7ZZ3-1BL22-0XA0
6ES7 223-1BL22-0XA0
6ES7 223-1BL22-0XAO
6ES7 223-1BL22-OXA0
6ES7 223-1BLZZ-0XA0
6ES7 223-IBL22-0XA0
6ES7 ZZ3-1BL22-0XA0
6ES72231BL220XA0
Information
Overview
Manuals
Application Notes
Product Applications
Insertion & Connection
Features:
- 16 digital inputs (DI) at 24 V DC
- 16 digital outputs (DO) at 24 V DC, 0.75 A per channel
- Sink/Source input configuration
- Plug-in I/O terminals for easy wiring
The 6ES7223-1BL22-0XA0 features 16 digital input channels with a rated input voltage of 24 V DC. The 6ES7223-1BL22-0XA0 defines a Logic 0 signal at 0 to 5 V DC and a Logic 1 signal at 15 V DC to 30 V DC, with a typical input current of 4 mA for signal "1". The input configuration of the 6ES7223-1BL22-0XA0 supports both sink and source wiring, allowing seamless connection to a wide variety of digital sensors, switches, and field devices. For standard inputs, the 6ES7223-1BL22-0XA0 achieves a maximum input delay of 4.5 ms at "0" to "1" transition.
The 6ES7223-1BL22-0XA0 SIEMENS SIMATIC S7-200, DIGITAL I/O EM 223 may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7223-1BL22-0XA0 SIMATIC S7-200, DIGITAL I/O EM 223 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
For digital inputs, the 6ES7223-1BL22-0XA0 features 16 channels with DC input voltage type. The 6ES7223-1BL22-0XA0 accepts signal "0" from 0 to 5V and signal "1" from 15V DC to 30V DC, with a typical input current of 4 mA for signal "1". The 6ES7223-1BL22-0XA0 provides standard input delay characteristics with a maximum delay from "0" to "1" of 4.5 ms, ensuring reliable signal detection for typical industrial switching applications.
For digital outputs, the 6ES7223-1BL22-0XA0 provides 16 source-type outputs rated at 24V DC. The 6ES7223-1BL22-0XA0 delivers a rated output current of 750 mA per point for signal "1", with a minimum output voltage of 20V for signal "1" and maximum output voltage of 0.1V for signal "0". The 6ES7223-1BL22-0XA0 supports total output current per conductor/group maximum of 3A with grouping configuration of 3/3/6, enabling flexible load distribution across the 16 output channels.
The 6ES7223-1BL22-0XA0 does not include built-in short-circuit protection for the outputs. The 6ES7223-1BL22-0XA0 limits inductive shutdown voltage to L+ (-48V), protecting the module from voltage spikes generated by inductive load switching. The 6ES7223-1BL22-0XA0 supports switching capacity of 0.75A maximum for each output with inductive loads, 0.75A maximum for each output with resistive loads, and 5W maximum on lamp loads per output.
- Chemical/Petrochemical: Monitors thermal reactions in reactors, cracking units, and distillation columns via RTDs/thermocouples
- Food/Beverage: Regulates pasteurization, ovens, and refrigeration for product safety and shelf life
- Power/Utilities: Tracks boiler, turbine bearing, and heat exchanger temperatures to prevent overheating
- Automotive/Metal: Provides feedback in heat-treatment furnaces, casting molds, and paint lines under noisy conditions
- HVAC/Cleanroom: Regulates chambers, semiconductor lines, and pharma facilities requiring stable ambient conditions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Off: Disconnect all power from the CPU and existing modules before starting.
DIN Rail Mounting: Hook the module onto the top of a standard 35-mm DIN rail.Secure Placement: Push the module down until the rail clip snaps into place.
Bus Connection: Slide the expansion ribbon cable cover on the CPU or adjacent module open.
Ribbon Insertion: Insert the module’s integrated ribbon cable into the expansion port of the preceding unit.
Technical notes
The module operates in temperatures from 0°C to +55°C. Storage and transport temperatures range from -40°C to +70°C. Relative humidity tolerance is 5% to 95% non-condensing. IP20 protection makes it suitable for installation in industrial control cabinets. Maximum cable lengths are 500 meters for shielded cables and 150 meters for unshielded cables. Two-wire sensors are supported with a maximum permissible quiescent current of 1 mA.
FAQs
-
What is the 6ES7223-1BL22-0XA0?
+The SIEMENS 6ES7223-1BL22-0XA0 is a digital I/O expansion module for the SIMATIC S7-200 series -
Can I replace an older module?
+Yes, the 6ES7223-1BL22-0XA0 is a direct, drop-in replacement for the older 6ES7223-1BL21-0XA0. You can swap the unit without altering your existing CPU programming. -
Which CPUs can host this expansion module?
+It is strictly compatible with SIMATIC S7-22X CPUs. It cannot be used with S7-300, S7-1200, or newer generation PLCs. -
Does the module support both NPN and PNP input devices?
+Yes. The inputs are configured for Sink/Source, meaning they accept both positive-switching (PNP) and negative-switching (NPN) sensors depending on how you wire the common terminal (M)
