PRODUCT DESCRIPTION
Two-channel thermocouple acquisition with coordinated external compensation

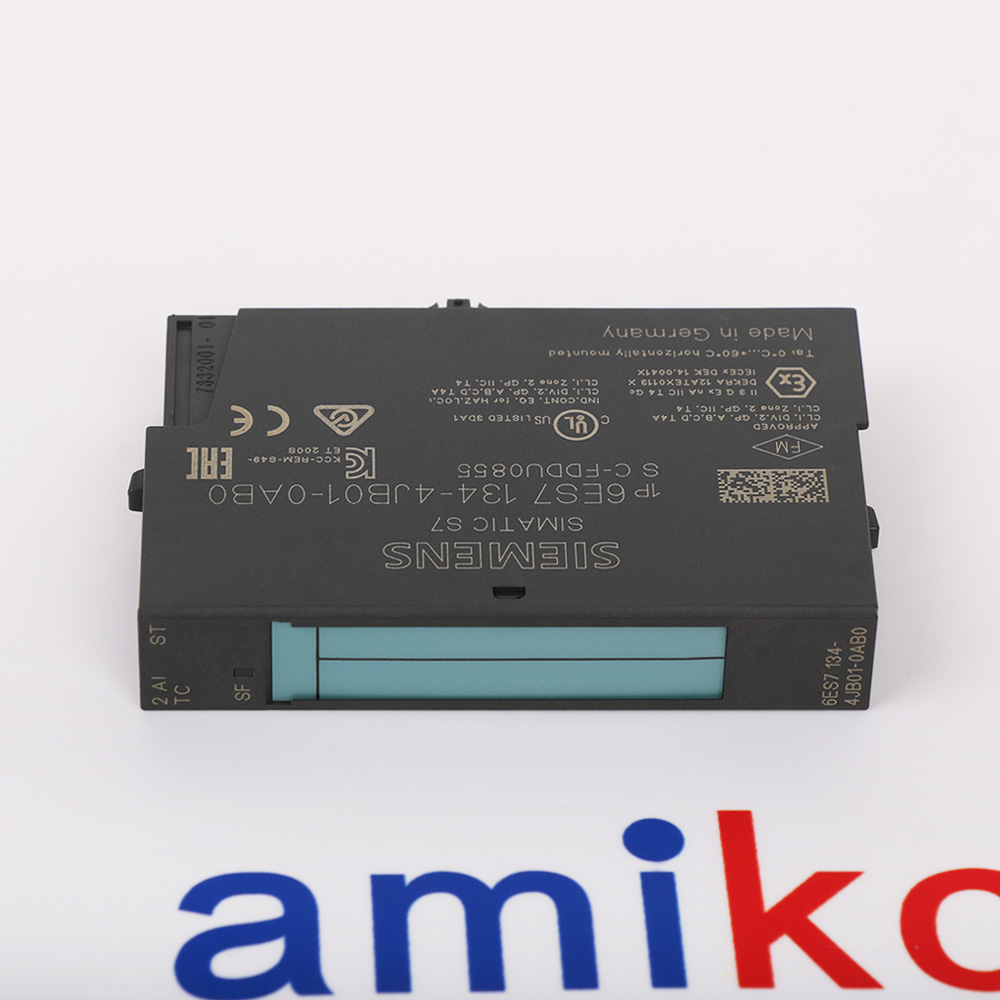

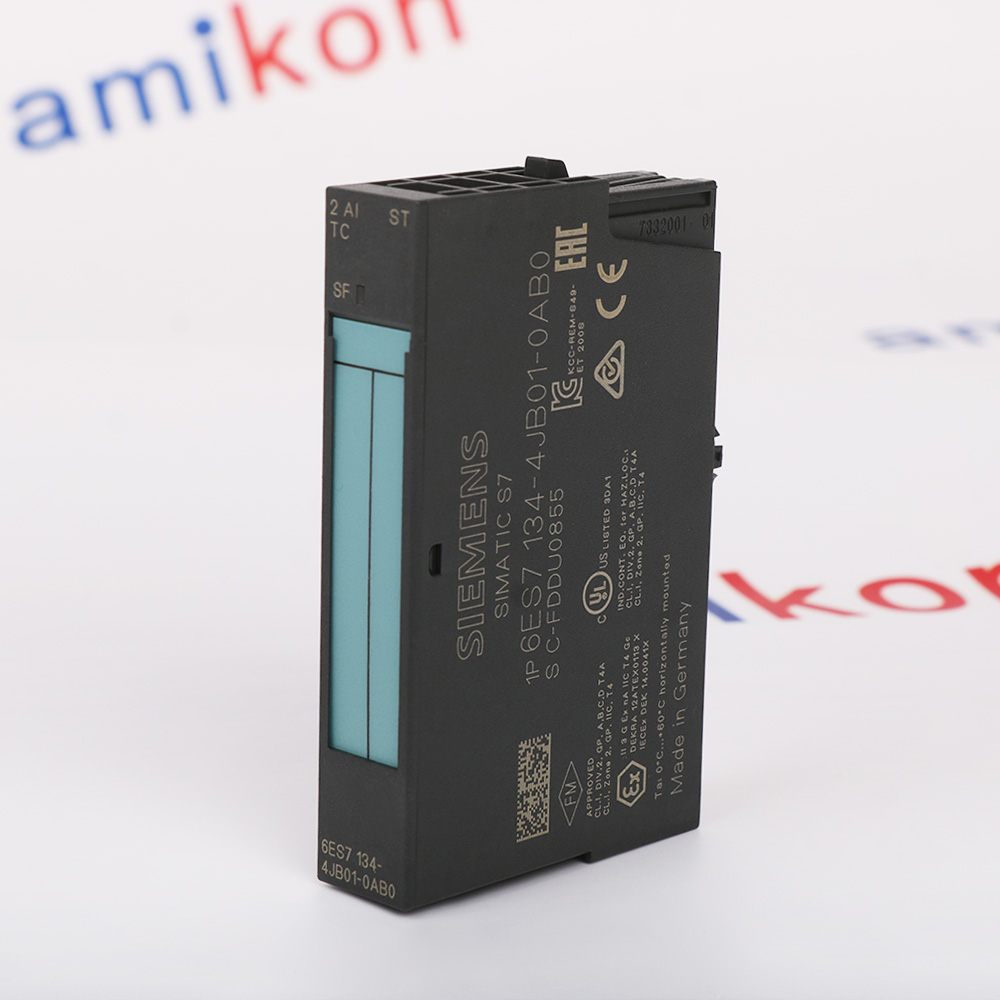

Siemens 6ES7134-4JB01-0AB0 is a SIMATIC ET 200S Standard analog input module for two thermocouple or millivolt signals. It supports nine thermocouple characteristics, ±80 mV measurement and 15-bit resolution plus sign, with configurable integration, smoothing and diagnostic functions.
The module supports identification and maintenance functions with the documented interface modules and is described by Siemens as compatible with 4JB00. Cold-junction compensation remains external: terminal wiring, reference temperature and coordinated station parameters must be checked when installing or replacing the module.
The module supports identification and maintenance functions with the documented interface modules and is described by Siemens as compatible with 4JB00. Cold-junction compensation remains external: terminal wiring, reference temperature and coordinated station parameters must be checked when installing or replacing the module.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Industrial Production and Service Sectors
These industry examples describe Siemens' broader market coverage, not verified installations of this exact product. Product suitability depends on the documented configuration and engineering requirements.
-
01 · TEXTILE MANUFACTURING
Manufactured Fibers and Textile Finishing
Manufactured fiber production for the wider textile manufacturing sector.Textile finishing for materials within the commercial fabric industry. -
02 · FOOD & BEVERAGE
Dairy and Soft Drink Production
Dairy production and processing within the commercial food industry.Soft drink manufacturing for the wider commercial beverage industry. -
03 · PACKAGING
Pharmaceutical and Non-food Packaging
Pharmaceutical product packaging within the medicines and healthcare sector.Non-food product packaging across consumer goods and industrial markets.
Technical specifications for 6ES7134-4JB01-0AB0
-
Product Model6ES7134-4JB01-0AB0
-
Product ParametersStandard Thermocouple Input Module
-
ManufacturerSiemens
-
Analog input channels2 for thermocouples or voltage signals
-
Thermocouple typesB, E, J, K, L, N, R, S and T
-
Voltage measuring range±80 mV
-
Resolution15 bits plus sign, including overrange
-
Input resistanceMinimum 1 Mohm
-
Input address space4 bytes
-
Rated load supply24 V DC from the power module; reverse-polarity protection
-
Conversion time55 ms/channel at 60 Hz or 65 ms/channel at 50 Hz; wire-break testing adds 20 ms
-
Digital smoothingTime constants of 1, 4, 32 or 64 module cycles
-
Temperature compensationNo internal compensation; external compensating box or same-station RTD reference
-
Electrical isolationFrom backplane and load supply; not between input channels
-
Common-mode limit2 V AC peak-to-peak between inputs and MANA
-
I&M functionsSupported with the interface-module order numbers listed by Siemens
-
Shielded sensor cableMaximum 50 m
-
DiagnosticsRed SF LED; readable group and channel diagnostics with parameter-dependent wire-break detection
View all additional
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
ET 200S STANDARD THERMOCOUPLE INPUTS
Keep sensor, reference temperature and diagnostics coordinated
Configure each active channel for its thermocouple characteristic or the documented ±80 mV voltage mode. The module occupies four input bytes and linearizes the nine listed thermocouple types. Use the listed terminal module, correct polarity and suitable extension conductors. Identification and maintenance functions require one of the interface versions identified in the manufacturer's compatibility table.
External compensation is part of the complete measurement chain. A compensating box must use the specified reference temperature and supply conditions; an RTD reference requires matched TC, interface and RTD parameters. Keep the reference sensor in good thermal contact with the actual junction and include its sensor and input errors when evaluating the overall temperature measurement.
Select interference-frequency suppression, active channels and smoothing for the required response. Basic conversion takes 55 or 65 ms per channel, with additional time for wire-break checking. Enable both group diagnostics and wire-break checking when a defined open-circuit indication is needed in thermocouple mode. Voltage mode must not use the thermocouple-only wire-break parameter.
Features:
- Exact sensor and terminal selection
- Coordinated external compensation
- Parameter-dependent open-circuit detection
The Siemens 6ES7134-4JB01-0AB0 requires the documented hardware configuration, installation conditions and interface arrangement to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Siemens identifies the 4JB01 as compatible with the earlier 4JB00, but the installed measurement circuit still needs to be checked. Confirm both complete order numbers and the terminal-module type, then retain the thermocouple characteristic and compensation method. Do not extend that documented relationship to a different TC module simply because its housing or name is similar.
Preserve the reference-junction assignment together with the TC channel settings. A shared RTD reference must point to the intended slot and permitted channel and must track the physical junction temperature. For a compensating box, retain the specified reference and isolated, filtered supply. Changing only the electronic module does not correct an incorrect compensation arrangement.
Have qualified personnel follow the applicable ET 200S station procedure and check polarity, MANA, shielding and unused-channel jumpers before commissioning. Evaluate SF and diagnostic information, then test a known signal under the correct compensation conditions. Verify the configured conversion and smoothing response, and do not interpret an inactive-channel or diagnostic code as a valid temperature.
Features:
- Documented 4JB00 compatibility
- Reference-junction settings retained
- Known-signal and diagnostic checks
The Siemens 6ES7134-4JB01-0AB0 requires replacement verification based on its complete order number, installed hardware, signal configuration and project documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.Features:
- Exact-model manufacturer data and relevant original manual pages
- Original terminal diagrams, configuration details and manufacturer safety context
- Accessories and supplied documentation follow the written quotation
Documentation for the Siemens 6ES7134-4JB01-0AB0 includes an independent technical summary and selected original manufacturer pages; check the applicable document edition against the delivered product and approved installation documentation.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizeConfirm final packed dimensions
-
Shipping weightConfirm final packed weight
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginConfirm supplied-unit origin
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about 6ES7134-4JB01-0AB0
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Is the 4JB01 compatible with the earlier 4JB00?
Siemens explicitly describes 6ES7134-4JB01-0AB0 as compatible with 6ES7134-4JB00-0AB0. Still verify the terminal module, sensor configuration and external reference-junction arrangement for the actual station. This statement does not establish compatibility with unrelated High Feature modules. -
Does it measure its own cold-junction temperature?
No. Internal temperature compensation is not supported. Use the documented external compensating box or a suitable RTD input in the same ET 200S station. With RTD compensation, coordinate the interface reference assignment and the TC reference-junction parameters. -
What is required for a defined wire-break result?
In thermocouple mode, enable both wire-break checking and group diagnostics to obtain 7FFFH with an open-circuit diagnostic. If either is disabled, the manual identifies the open-input value as undefined. Do not enable thermocouple wire-break checking in voltage mode because a parameter error prevents startup. -
Can any RTD channel provide the reference temperature?
Use the documented reference-channel arrangement. For the 2/4AI RTD ST, Siemens specifies channels 0 or 1 for compensation. Both TC channels selecting RTD use the same assigned reference junction, so the physical junction and configured reference must correspond. -
How fast does it acquire a temperature signal?
Basic conversion is 55 ms per channel with 60 Hz suppression or 65 ms with 50 Hz suppression; wire-break checking adds 20 ms. The cycle depends on active-channel count. Smoothing introduces a further response time of the selected number of module cycles. -
How should an unused input be handled?
Deactivate the unused input in the configuration and fit the exact TC-module jumpers shown in the manual. The inactive channel returns 7FFFH, and the module cycle is halved. Do not leave an unused input floating or treat its code as a measured temperature.
