- 6ES7151-1BA00-0AB0

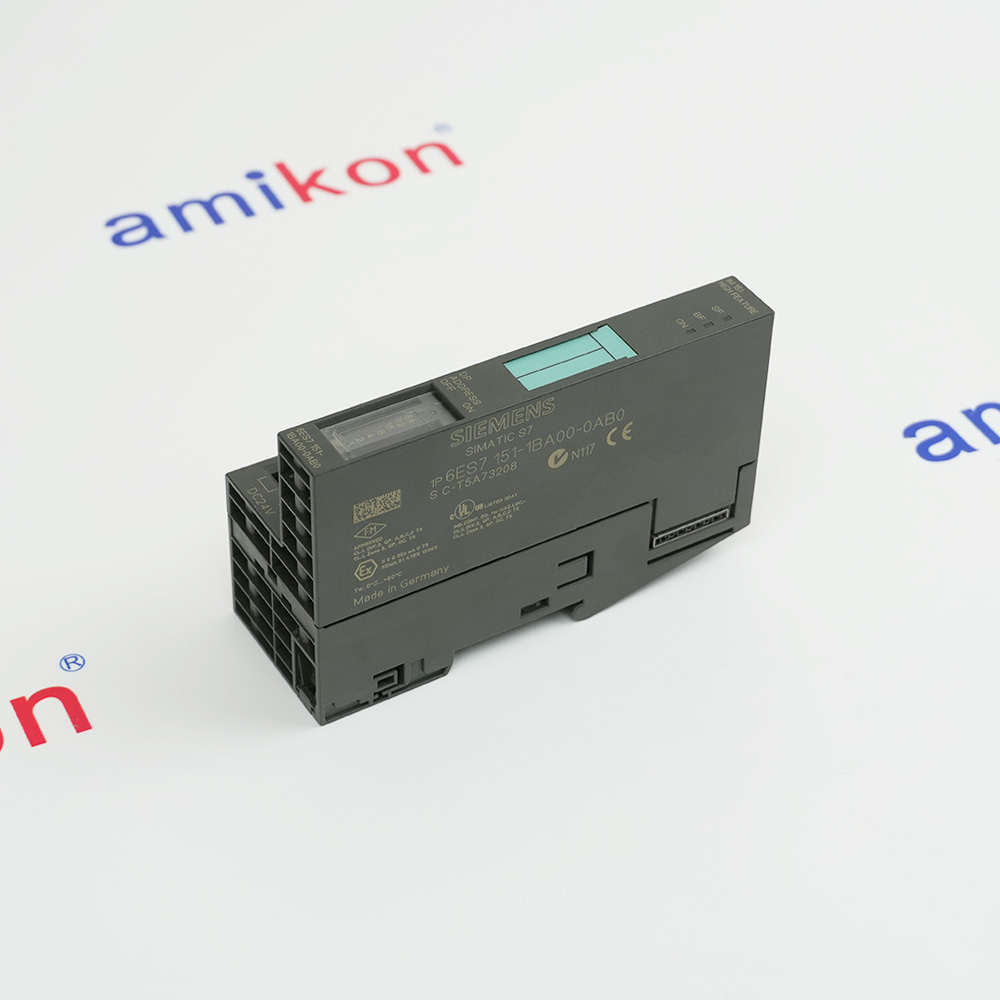

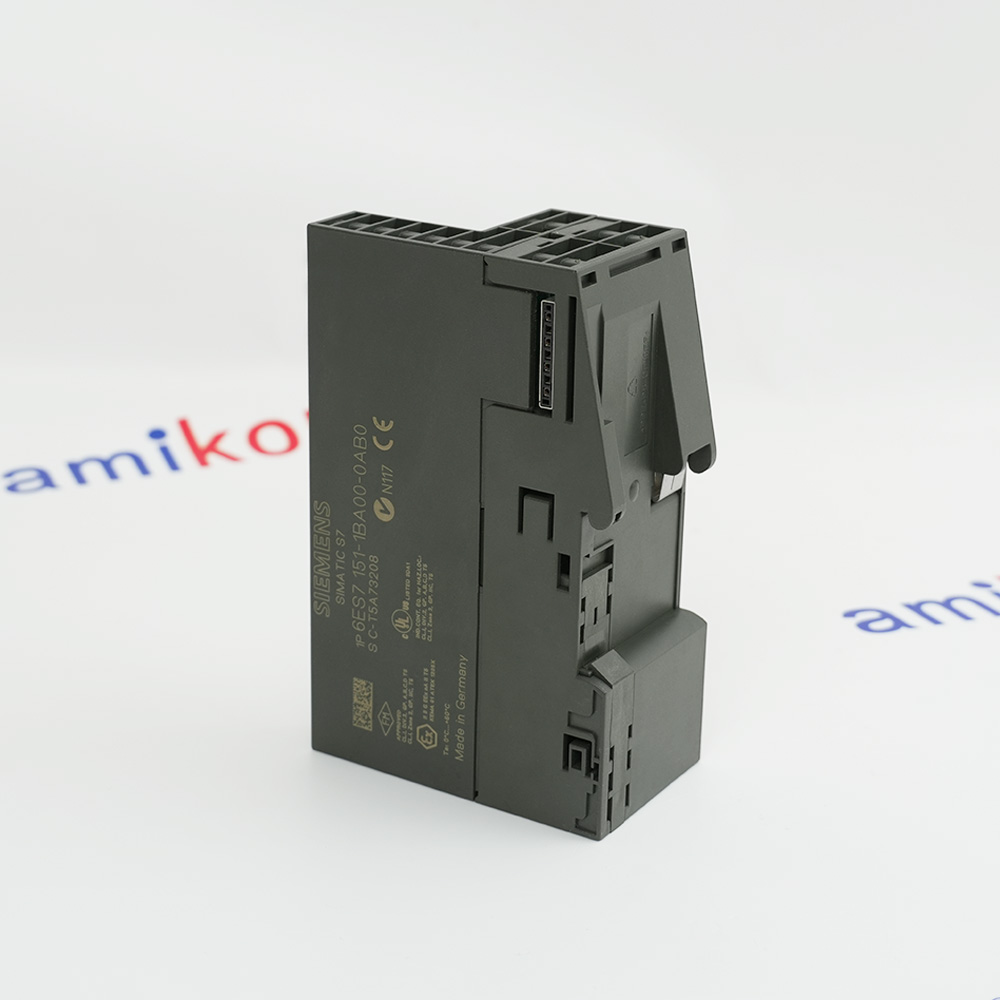

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7151-1BA00-0AB0
-
Product Model6ES7151-1BA00-0AB0
-
Product ParametersINTERFACE MODULE
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4.5x7.4x11.8cm
-
ManufacturerSiemens
-
Weight0.15 kg
-
Vendor identification (VendorID)80E0h
-
Mains buffering, min.20 ms
-
from supply voltage 1L+, max200 mA
-
Power loss, typ3.3 W
-
Interface physics, RS 485Yes ; 9-pin sub D socket
-
PROFIBUS DP, output current, max80 mA
-
Cable length, max1200 m
-
Isolation checked with500 V DC
Description
6ES71511BA000AB0
INTERFACE MODULE IM15-1
SIMATIC DP
HIGH FEATURE F. ET200S
TRANSMISS. RATE UP TO 12MBIT/S
DATA VOLUMEN 244 BYTE FOR I/O
MAX. 63 MODULES CONNECTABLE: ISOCHRONE MODE
INTERFACE MODULE IM15-1
SIMATIC DP
HIGH FEATURE F. ET200S
TRANSMISS. RATE UP TO 12MBIT/S
DATA VOLUMEN 244 BYTE FOR I/O
MAX. 63 MODULES CONNECTABLE: ISOCHRONE MODE
Information
Overview
Manuals
Technical notes
Product Applications
Wiring & Connections
Features:
- SIMATIC DP
- INTERFACE MODULE IM151-1
- HIGH FEATURE F.ET200S
- MAX. 63 MODULES
The 6ES7151-1BA00-0AB0 Siemens Interface Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7151-1BA00-0AB0 Interface Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
It supports the "hot swapping" of I/O modules (depending on the terminal modules used), allowing faulty components to be replaced while the rest of the station remains operational. The front panel is equipped with clear diagnostic LEDs that signal the status of the power supply, the bus connection, and the overall system health. With its rugged industrial design and compliance with international standards, the 6ES7151-1BA00-0AB0 remains a foundational component for reliable decentralized automation in diverse sectors such as automotive manufacturing, packaging, and process control.
- Packaging & Bottling Lines:High-speed sync for conveyors, filling & labeling units
- Assembly Machines:Integrates up to 63 modules into one assembly station
- Material Handling Systems:AS/RS: distributed I/O reduces long-distance wiring
- Machine Tools (CNC Add-ons):PROFIBUS DP for auxiliary axes & fast peripheral sensors
- Pumping & Compressor Stations:Controls motor starters & converters up to 7.5 kW
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Connect a 24 V DC supply to the terminal module of the first Power Module (PM-E). The interface module itself requires a 24V supply (typical power loss of 3.3 W).
PROFIBUS DP: Use a standard 9-way Sub-D connector to interface with the PROFIBUS network. Ensure the bus connector is securely screwed into the RS 485 socket.
Grounding: The module is designed with an internal RC combination that connects the ground (M) of the supply voltage to the mounting rail, allowing for a ground-free installation if necessary.
FAQs
-
What is 6ES7151-1BA00-0AB0?
+The Siemens SIMATIC DP 6ES7151-1BA00-0AB0 is an IM151-1 High Feature (HF) interface module for the ET 200S distributed I/O system. It is designed to connect the ET 200S station to a PROFIBUS DP network, supporting high-performance tasks with up to 63 modules. -
How many modules can it support?
+It can operate with a maximum of 63 modules per station, including power modules and electronic modules. -
What is the maximum address space?
+The High Feature module supports up to 244 bytes for inputs and 244 bytes for outputs. -
Are there specific incompatible modules?
+Yes, certain older modules like the 1COUNT 24V/100kHz (up to 6ES7138-4DA02-0AB0) or specific serial interface modules (Modbus/USS) cannot be used with this interface.
