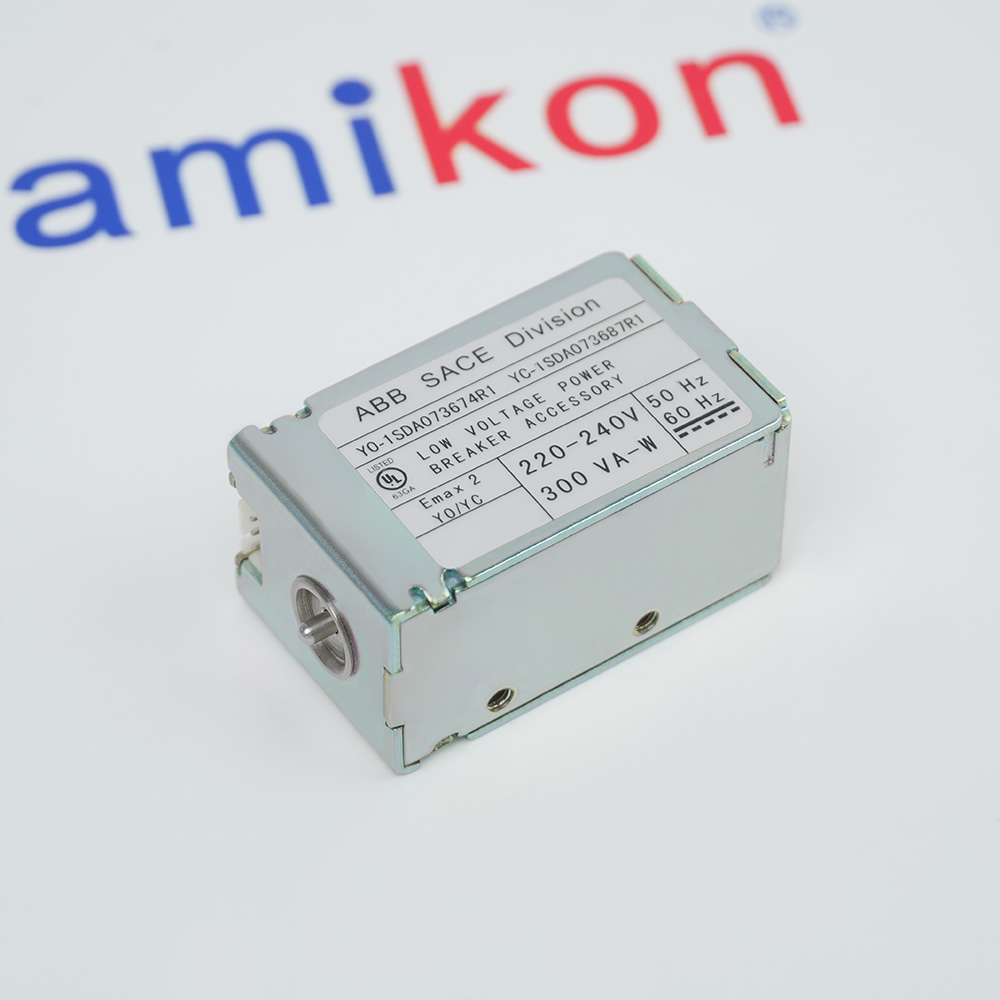

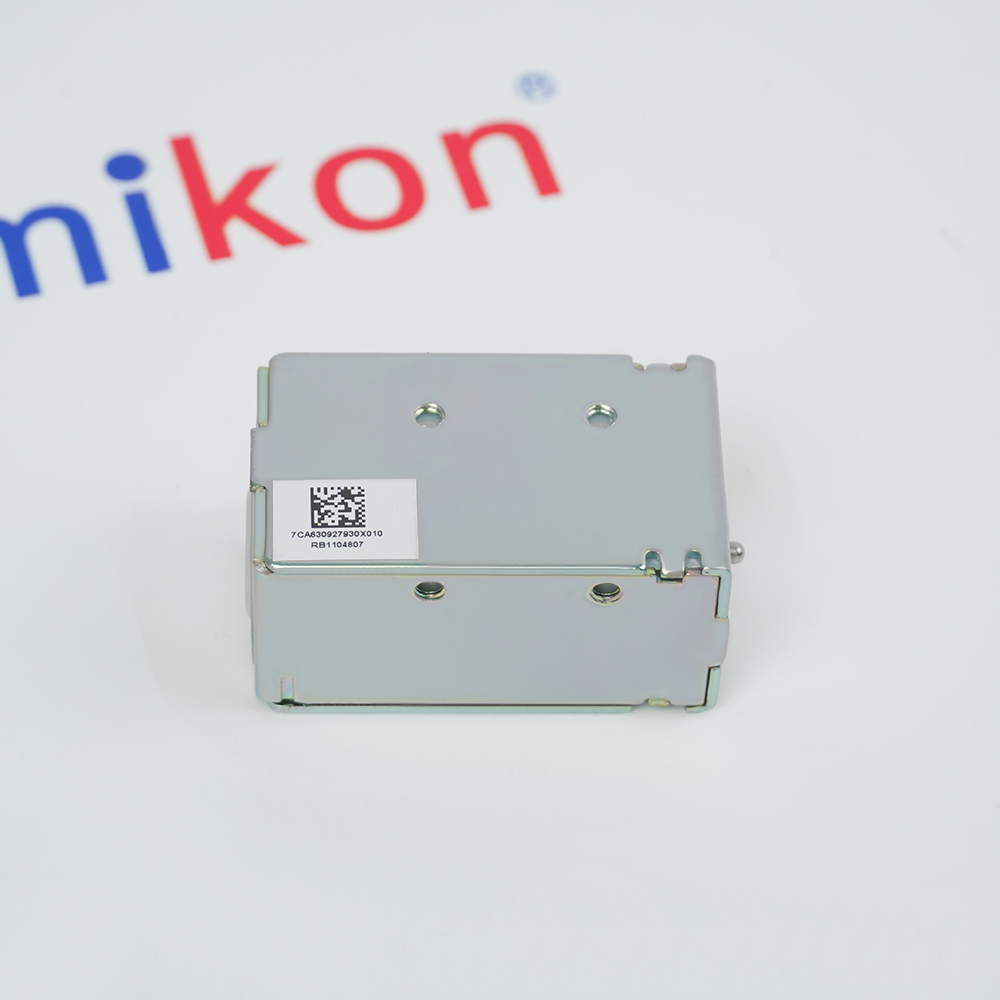

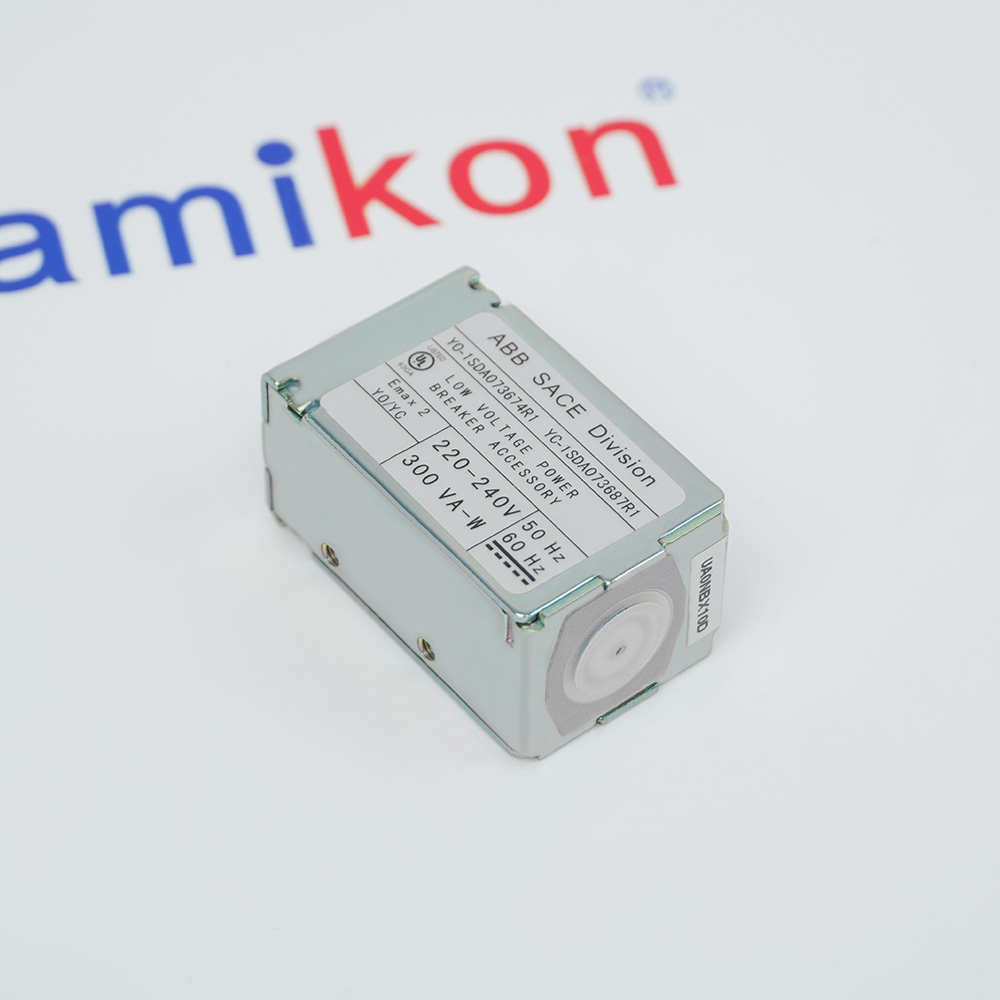

1SDA073674R1/1SDA073687R1
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
1SDA073674R1
AIR CIRCUIT BREAKER
SHUNT OPENING RELEASE
220 TO 240 VAC / VDC
YO E1.2..E6.2-XT7-XT7M
AIR CIRCUIT BREAKER
SHUNT OPENING RELEASE
220 TO 240 VAC / VDC
YO E1.2..E6.2-XT7-XT7M
Technical specifications for 1SDA073674R1/1SDA073687R1
-
Product Model1SDA073674R1/1SDA073687R1
-
Spare ModelYO E1.2..E6.2-XT7-XT7M
-
Product ParametersAIR CIRCUIT BREAKER
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.1x16.4x15.8cm
-
ManufacturerABB
-
Weight0.2 kg
-
Configuration TypeLoose or configurable
-
Current TypeAC/DC
-
Product Main TypeAccessories for Emax 2, Accessories for Tmax XT
-
Rated Voltage (Ur)220...240 V
-
Suitable ForXT7-XT7M, E1.2, E2.2, E4.2, E6.2
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 1SDA073674R1 ?+The ABB 1SDA073674R1 (catalog name: YO E1.2..E6.2-XT7-XT7M 220-240 VAC/DC) is a shunt opening release (or trip coil) used in ABB SACE Air Circuit Breakers (Emax 2) and Moulded-Case Circuit Breakers (Tmax XT). It provides instantaneous remote opening of the circuit breaker..
-
What are the control voltage requirements?+The shunt release is for a rated control voltage of 220–240V, supporting both AC (Alternating Current) and DC (Direct Current)
-
What is the purpose of the 1SDA073674R1?+It is a shunt trip/opening release coil. When energized, it mechanically trips the circuit breaker, providing a reliable way to perform remote emergency shutdowns or system interlocks
-
Which circuit breaker models are compatible?+This accessory is designed for ABB Emax 2 air circuit breakers (models E1.2, E2.2, E4.2, E6.2) and SACE Tmax XT molded case circuit breakers (models XT7, XT7M).
Get a quick price fo 1SDA073674R1/1SDA073687R1
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Critical Installation Rules
Features:
- 220–240 V AC/DC Universal Control Voltage
- Compatible with SACE Emax 2 & XT7/XT7M Circuit Breaker Families
- Remote Tripping via Control Signal
- Compact, Lightweight Modular Design
- Factory-Sealed Original Packaging with RoHS Compliance
When its control coil is energized with 220–240 V AC or DC (within ±10 % tolerance), the solenoid instantaneously actuates the breaker's mechanical opening mechanism, causing the main contacts to separate and interrupt the power circuit.
The 1SDA073674R1 ABB AIR CIRCUIT BREAKER may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 1SDA073674R1 AIR CIRCUIT BREAKER Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 1SDA073674R1 is part of ABB's modular accessory ecosystem for the Emax 2 platform. The SACE Emax 2 series itself represents ABB's flagship low-voltage air circuit breaker family, available in frame sizes from E1.2 (630–1600 A) through E6.2 (up to 6300 A), with rated service voltages up to 690 V AC (3-pole) / 1000 V AC (4-pole) and rated insulation voltage of 1000 V. The breakers feature Ekip Dip, Ekip Touch, or Ekip Hi-Touch electronic trip units with comprehensive protection functions including overload (L), short-time delayed (S), instantaneous (I), earth fault (G), and optional voltage/frequency protections. The shunt release integrates seamlessly with these trip units without interfering with their protective algorithms.
- Remote Emergency Shutdown Systems:Remote E-stop cuts power during critical hazards
- Building Management & Fire Alarm Integration:Auto-disconnects zones on fire/gas detection
- Industrial Automation & PLC Systems:Selective isolation on PLC/protection relay trips
- Power Distribution & Substation Boards:Load balancing & emergency interlocks for HV boards
- Backup Generator Control Panels:Safe mains-to-generator transfer with grid breaker openings
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Pulse Control Only: The shunt trip coil is designed for intermittent duty. The control signal must be a pulse (minimum duration 100 ms). Continuous voltage will burn out the coil.
Use Auxiliary Contacts: Wire an internal breaker auxiliary contact (normally open) in series with the shunt trip coil. This automatically cuts power to the coil the moment the breaker opens.
Voltage Verification: Ensure your external control circuit supplies stable 220–240V AC/DC. Operating outside 70%–110% of this rated voltage will cause failure to trip or component damage.
