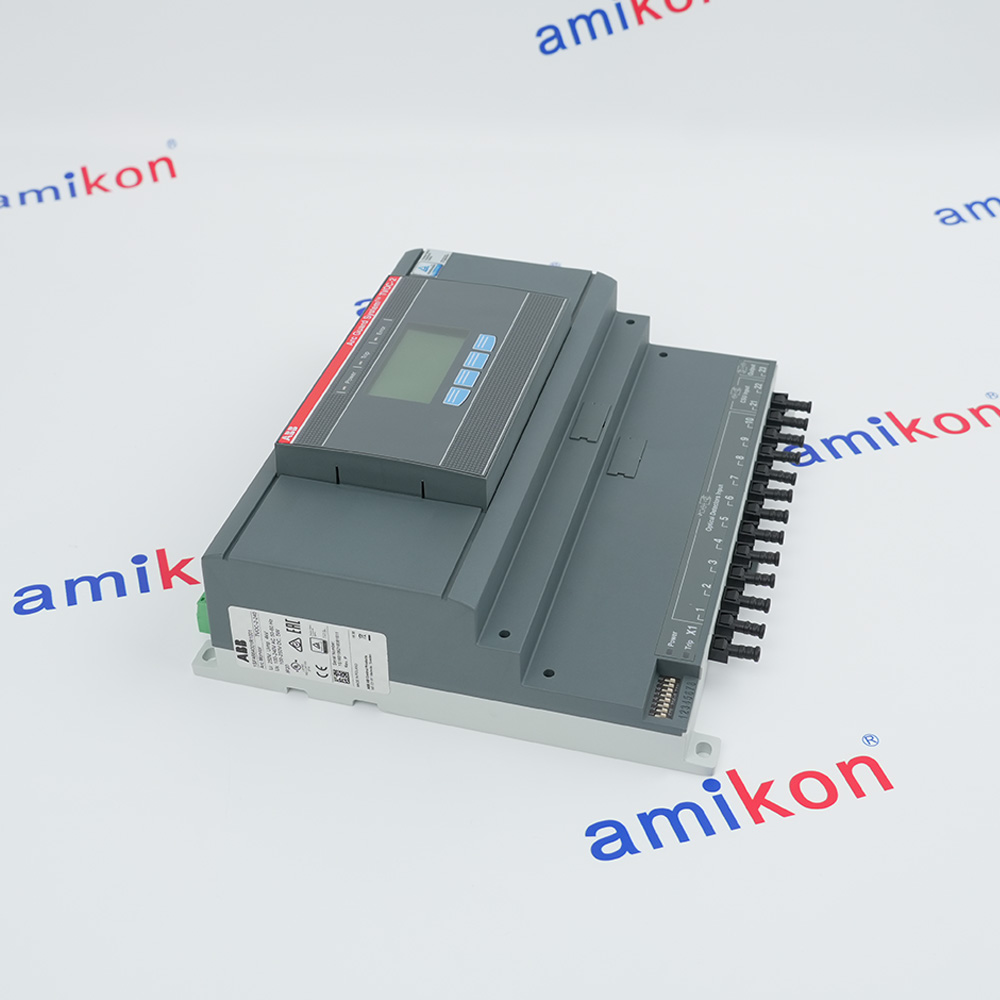

1SFA664001R1001 TVOC-2-240
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
ARC MONITOR
TVOC-2-240
1SFA664001R1001
PROTECTION RELAY
1.5W
TVOC-2-240
1SFA664001R1001
PROTECTION RELAY
1.5W
Technical specifications for 1SFA664001R1001 TVOC-2-240
-
Product Model1SFA664001R1001 TVOC-2-240
-
Product ParametersArc Monitor
-
Tariff Code8537101190
-
Country of originSWEDEN
-
Place of shipmentXiamen, China
-
Estimated Shipping Size21x23x8cm
-
ManufacturerABB
-
Weight1.2 kg
-
Number of Auxiliary Contacts CO (SPDT)3
-
Number of Auxiliary Contacts NC0
-
Number of Auxiliary Contacts NO3
-
Mounting TypeWall mounted or DIN
-
Additional InformationARC MONITOR TVOC-2
-
Power Loss1.5 W
-
Rated Operational Voltage100 ... 240 V AC/DC
-
Terminal TypeScrew Terminals
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the primary function of the TVOC-2?+It protects personnel and equipment from arc flash accidents by instantly detecting light and triggering breakers to cut power.
-
What is TVOC-2-240 (1SFA664001R1001)?+The ABB TVOC-2-240 (1SFA664001R1001) is the central unit of the Arc Guard System™, to protect personnel and electrical equipment from arc flash damage by tripping circuit breakers in less than 1 millisecond.
-
How many sensors can be connected?+The system is highly flexible and can accommodate up to 30 optical sensors, allowing it to cover extensive cabinet configurations
-
What is the rated operational voltage?+The TVOC-2-240 supports a wide supply range of 100 ... 240 V AC/DC
-
Is it certified for safety-critical applications?+Yes, the system holds a SIL-2 safety certification and is cULus and CE certified.
Get a quick price fo 1SFA664001R1001 TVOC-2-240
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Sensor Placement and Care
Features:
- Ultra-Fast Arc Fault Detection & Response
- Multi-Zone Selective Tripping Capability
- Scalable System Expansion
- Versatile Power Supply Options
- External Human-Machine Interface (HMI)
- Customizable Detector Configuration
The 1SFA664001R1001 TVOC-2-240 ABB Arc Monitor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ABB 1SFA664001R1001 TVOC-2-240 Arc Monitor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
With its modular concept, the Arc Monitor is designed to fit alltypes and sizes of low- and medium-voltage switchgears.It is designed according to Functional Safety, and is SIL 2-certifiedaccording to IEC 61508 and IEC 62061 which puts full focus onreliability. This corresponds to performance level d according toEN ISO 13849-1. Safety functions are exclusively handled byhardware. In addition, the system, trip logs and user-interfaceare all microprocessor-monitored.The system can be configured to trip selected breakers, dependingon which sensor that detects the light. The DIP-switches thattake care of this function also handle settings like auto-resetand Current Sensing Units.Energy is stored in the unit for operation up to 0.2 s if the supplyvoltage fails. This is sufficient to close the tripping circuit evenif voltage disappears at a short-circuit fault.
- Switchgear & Distribution:LV/MV switchgear, MCCs & power distribution boards
- Critical Infrastructure:Hospitals & data centers: minimize downtime
- Energy & Utilities:Substations & wind/solar power facilities
- Marine & Offshore:Cruise ships, yachts, container ships & oil rigs
- Heavy Industry:Chemical plants, steel mills & industrial manufacturing
- Transportation:Protection for railroad way stations & trains.
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Coverage: Each detector monitors a 3m radius sphere with a 180° angle.
Cable Management:
Do not shorten the fiber optic cables.
Wind excess cable into a ring with a minimum diameter of 100mm.
Avoid tight bends; maintain a radius of at least 20mm-50mm for glass fiber or 10mm-45mm for plastic fiber.
